Ambient temperature (operation) (fixed installation)
-40 °C ... 70 °C (fixed installation)
Ambient temperature (operation) (flexible installation)
-10 °C ... 70 °C (flexible installation)
Ambient temperature (storage/transport)
-40 °C ... 80 °C
Altitude
≤ 2000 m
Operating voltage (AC)
≤ 30 V AC
Operating voltage (DC)
≤ 60 V DC
Nominal operating mode
100% operating factor
Current (Per path)
≤ 2 A (Uncoiled, see derating)
Cable length
10 m
25X0.25 [PVC]
UL AWM Style
2464/1061
Number of positions
25
Shielded
yes
Cable type
25X0.25 [PVC]
Conductor type
Assembled shielded round cable
Conductor structure signal line
14x 0.15 mm
AWG signal line
24
Conductor cross section
25x 0.25 mm²
Wire diameter incl. insulation
1.2 mm ±0.05 mm
External cable diameter
9.80 mm ±0.5 mm
Outer sheath, material
Semi-rigid PVC
External sheath, color
gray
Conductor material
Bare Cu litz wires
Cable resistance
≤ 80 Ω/km (at 20 °C)
Insulation resistance
≥ 20 MΩ*km (at 20 °C)
Smallest bending radius, fixed installation
82 mm
Smallest bending radius, movable installation
155 mm
Dynamic load capacity (bending)
Max. bending cycles: 5000 (at a radius of ≥ 15x outside diameter)
Halogen-free
no
Flame resistance
IEC 60332-1-2 (raw cable)
VDE 0842, Part 332-1-2 (raw cable)
IEC 60332-3-22 (raw cable)
UL VW-1
CSA FT-1
Resistance to oil
can withstand occasional splashes (raw cable)

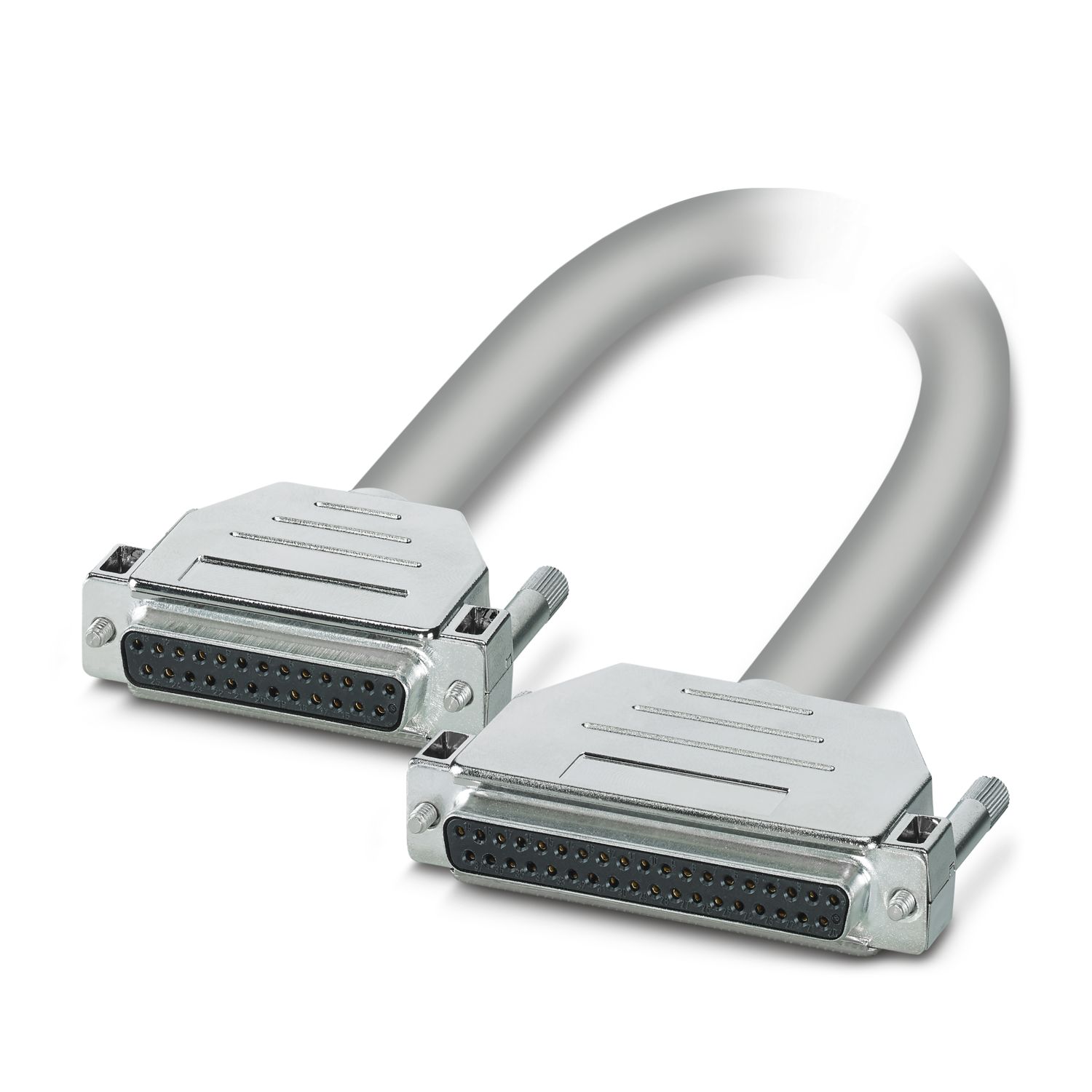

Connection 1
Connection in acc. with standard
IEC 60807-2
DIN 41652
Connection method
D-SUB socket strip
Screw thread
UNC 4-40
Number of connections
1
Number of positions
25
Tightening torque
0.2 Nm
Insertion/withdrawal cycles
> 200
Pitch
2.77 mm
Connection 2
Connection in acc. with standard
IEC 60807-2
DIN 41652
Connection method
D-SUB socket strip
Screw thread
UNC 4-40
Number of connections
1
Number of positions
37
Tightening torque
0.2 Nm
Insertion/withdrawal cycles
> 200
Pitch
2.77 mm
Notes on operation
For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met.
Item number
1280751
Packing unit
1 pc
Minimum order quantity
1 pc
Note
Made to order (non-returnable)
Sales key
DK2
Product key
DK2AI2
GTIN
4063151478599
Weight per piece (including packing)
1,634 g
Weight per piece (excluding packing)
1,634 g
Customs tariff number
85444290
Country of origin
DE
ECLASS
ECLASS-13.0
27242220
ETIM
ETIM 8.0
EC000237
EU RoHS
Fulfills EU RoHS substance requirements
Yes
Exemption
6(a)
China RoHS
Environment friendly use period (EFUP)
EFUP-50
An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration". For all articles with EFUP-E, no China RoHS declaration table issued and required.
