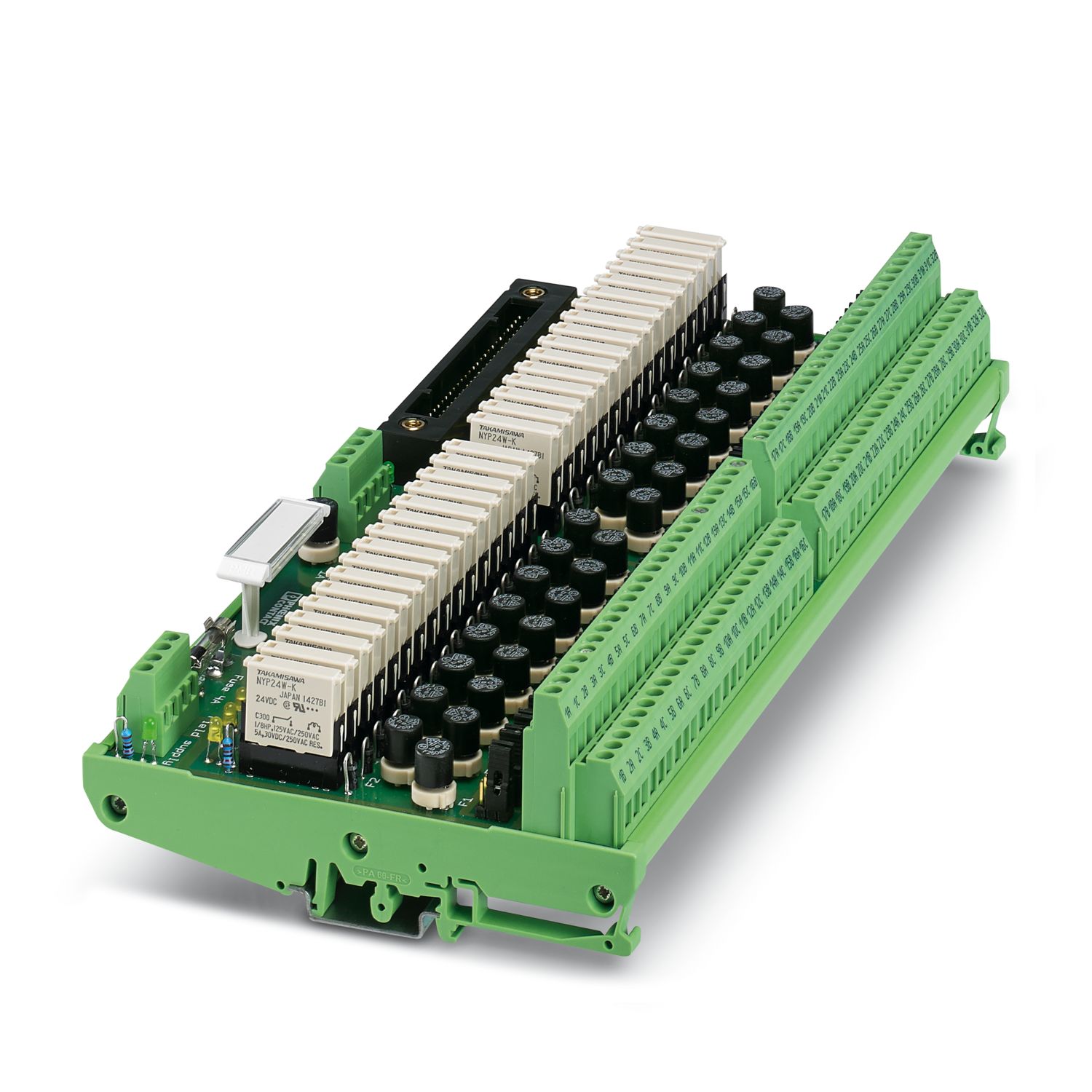

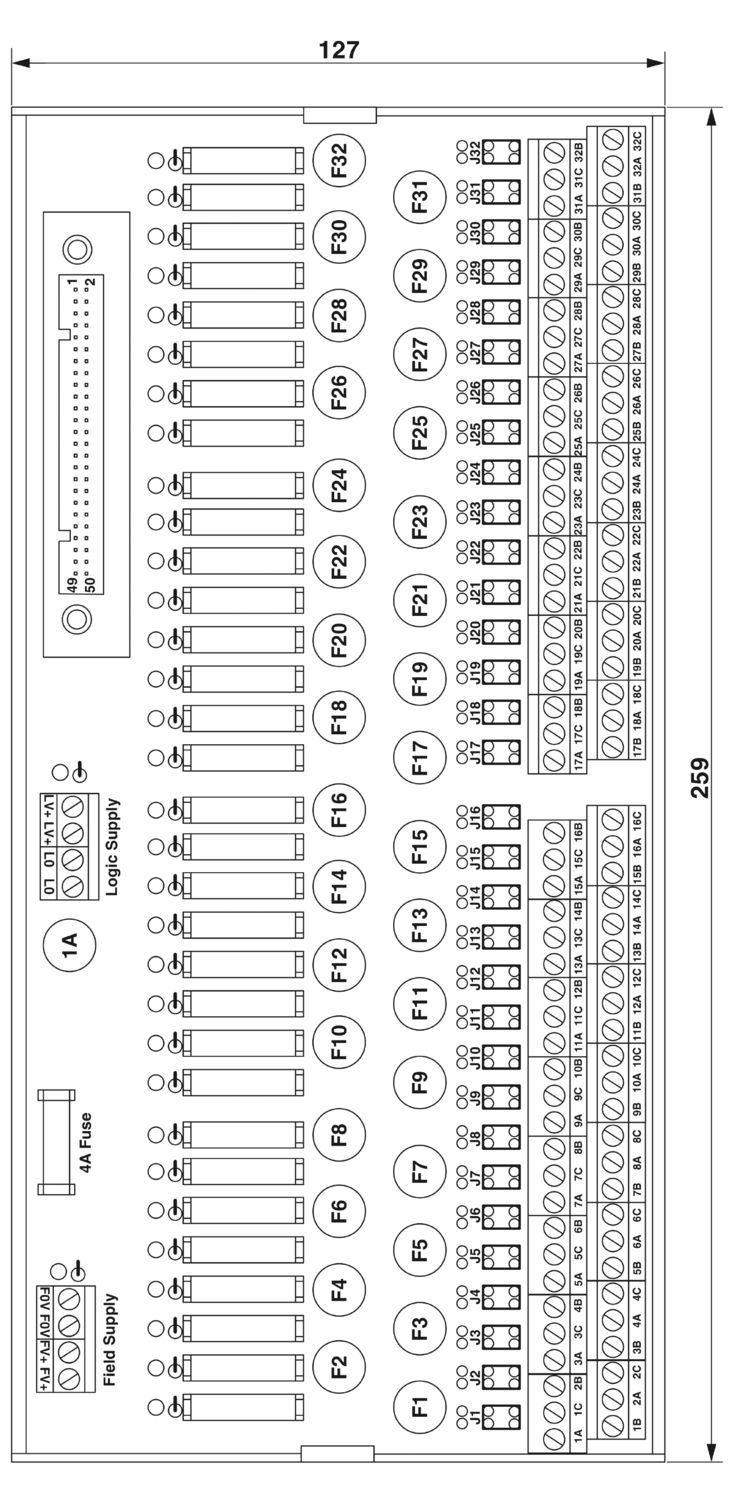

32-channel input relay module with screw connection and 50-pos. system connection. The coil side is secured and optionally non-isolated. Suitable for the Yokogawa ADV 151 and ADV 161 cards.
Product details
Product type
Interface module
Insulation characteristics
Overvoltage category
III
Pollution degree
2
Rated surge voltage
2 kV (Basic insulation)
Nominal input voltage UN
24 V DC
Input voltage range in reference to UN
0.9 ... 1.1
Input voltage range
21.6 V DC ... 26.4 V DC
Typical input current at UN
5 mA
Protective circuit
Freewheeling diode
Operating voltage display
Green LED
Status display/channel
Yellow LED
Switching
Contact switching type
Single contact, 1 N/O contact
Maximum switching voltage
24 V DC
Limiting continuous current
100 mA

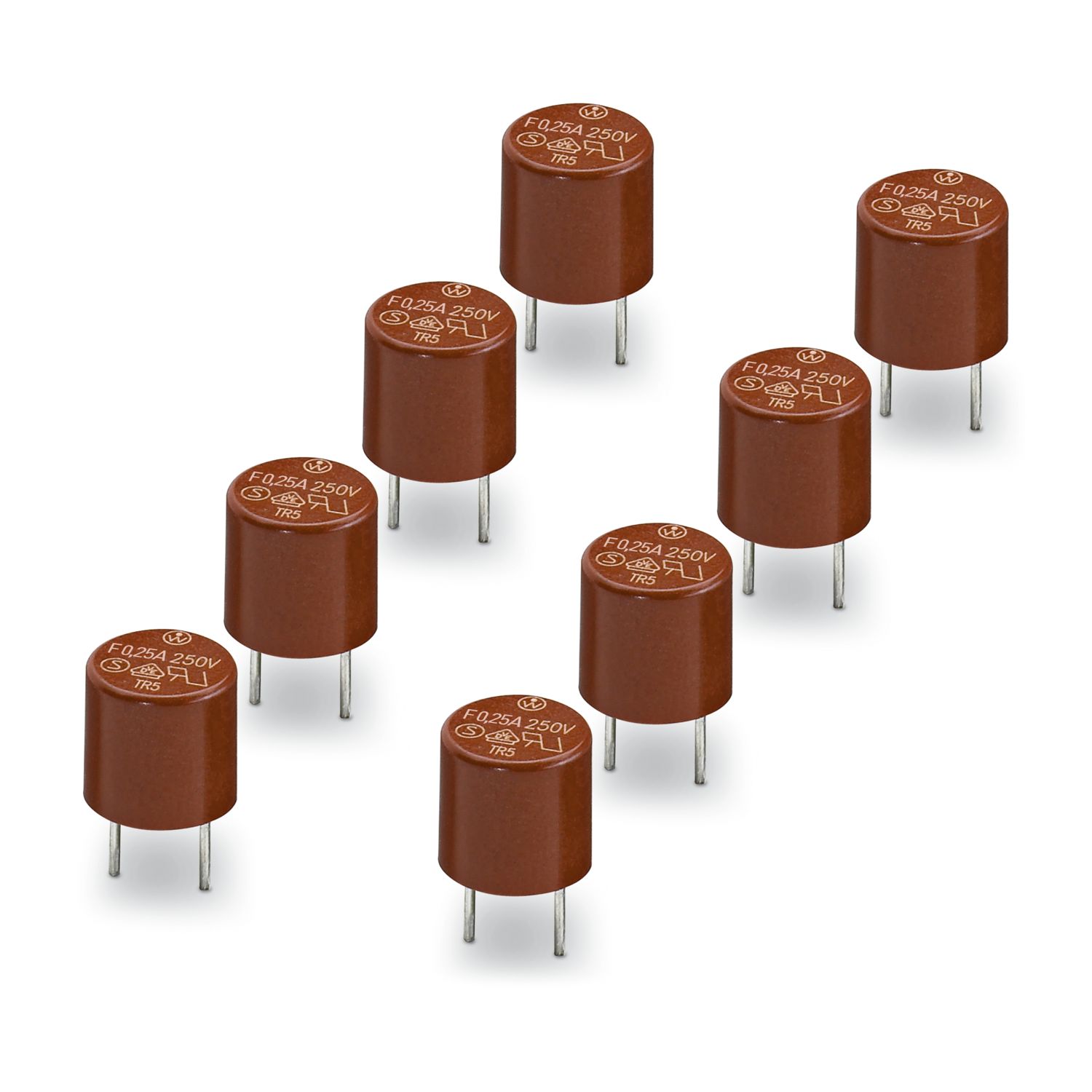

Output fuse
250 mA Slow-blow (TR 5)
Field level
Connection method
Screw connection
Stripping length
8 mm
Screw thread
M3
Conductor cross section rigid
0.2 mm² ... 4 mm²
Conductor cross section flexible
0.2 mm² ... 2.5 mm²
Conductor cross section AWG
24 ... 12
Controller level
Connection method
Yokogawa, KS compatible
Number of connections
1
Number of positions
50
Note
Usable system cables: Phoenix Contact YUC50, Yokogawa AKB331
Tightening torque
0.5 Nm
Ambient conditions
Ambient temperature (operation)
-20 °C ... 50 °C
Ambient temperature (storage/transport)
-20 °C ... 70 °C
Standards/regulations
DIN EN 50178
Mounting type
DIN rail mounting
Notes on operation
For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met.
Utilization restriction
EMC note
EMC: class A product, see manufacturer's declaration in the download area
Item number
2901651
Packing unit
1 pc
Minimum order quantity
1 pc
Note
Made to order (non-returnable)
Sales key
CK2
Product key
DK219N
GTIN
4046356620451
Weight per piece (including packing)
879 g
Weight per piece (excluding packing)
879 g
Customs tariff number
85369010
Country of origin
DE
China RoHS
Environment friendly use period (EFUP)
EFUP-50
An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration". For all articles with EFUP-E, no China RoHS declaration table issued and required.
