Synchronization of Average Values

What you will find in this section:

  1. Synchronization of average values
  2. Related topics



The digital input complies with IEC 61131-2 Type 3. It includes the following functions:

  • Impulse counter
  • Tariff selection
  • Synchronization of average values
  • Acknowledgment of alarms



Synchronization of average values

By means of the digital input, the synchronization pulse can be used for starting the respective average value generation.



Navigation on the display

“UL-L, UL-L ...”



Menu: “UL-L”
Menu: “UL-L”



Menu: “UL-L, UL-L instantaneous” (instantaneous values, instantaneous)
Menu: “UL-L, UL-L instantaneous” (instantaneous values, instantaneous)



Menu: “UL-L, UL-L min” (minimum values, min)
Menu: “UL-L, UL-L min” (minimum values, min)



Menu: “UL-L, UL-L max” (maximum values, Max)
Menu: “UL-L, UL-L max” (maximum values, Max)



Menu: “UL-L, UL-L AVG min” (minimum average values, AVG Min)
Menu: “UL-L, UL-L AVG min” (minimum average values, AVG Min)



Menu: “UL-L, UL-L AVG” (average values, AVG)
Menu: “UL-L, UL-L AVG” (average values, AVG)



Menu: “UL-L, UL-L AVG max“ (maximum average values, AVG max)
Menu: “UL-L, UL-L AVG max“ (maximum average values, AVG max)



Navigation on the web server //should this be split//

“Settings, Average values”

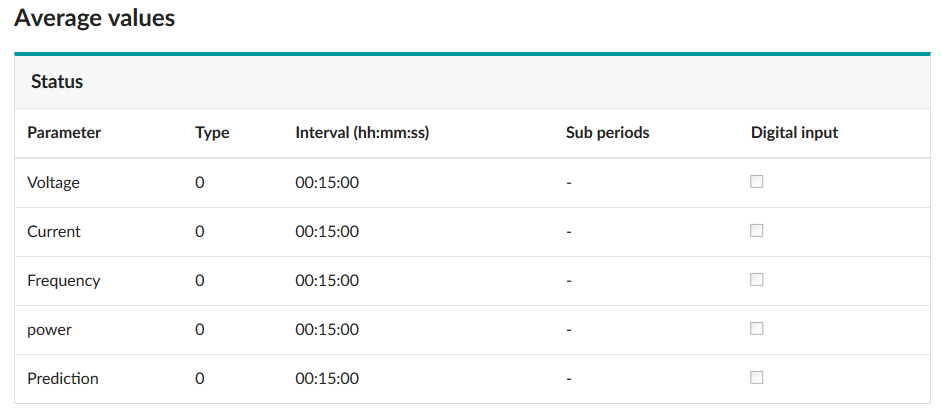

Menu: “Settings, Average values, Status”
Menu: “Settings, Average values, Status”



The digital input can be used to synchronize the average value generation. This function is used, e.g., when energy requirements have been defined that are not to be exceeded.

When the average values are not synchronized, the measuring results might not correspond to the relevant energy requirements.



  1. Digital input
  2. Impulse counter
  3. Tariff selection
  4. Acknowledgment of alarms
