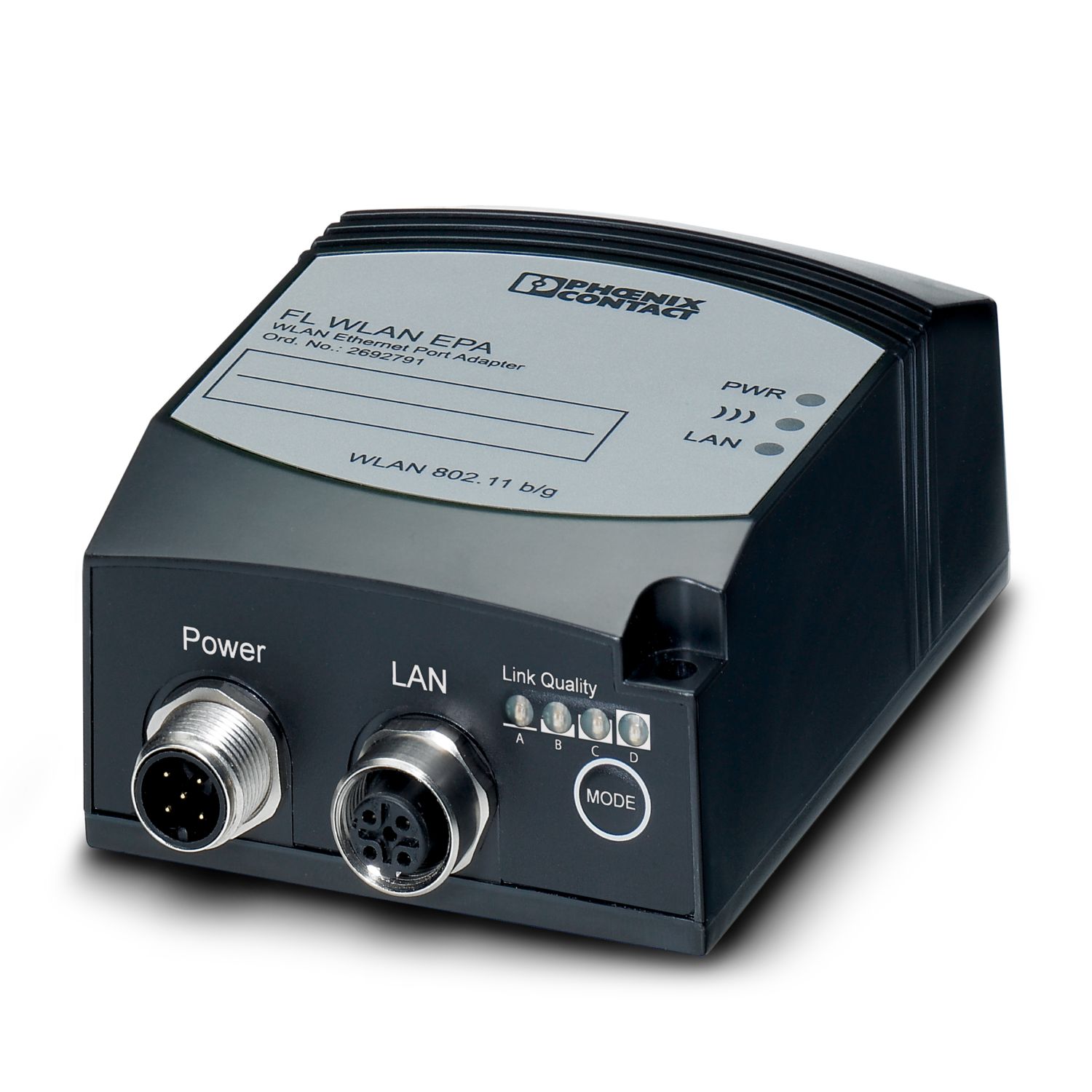

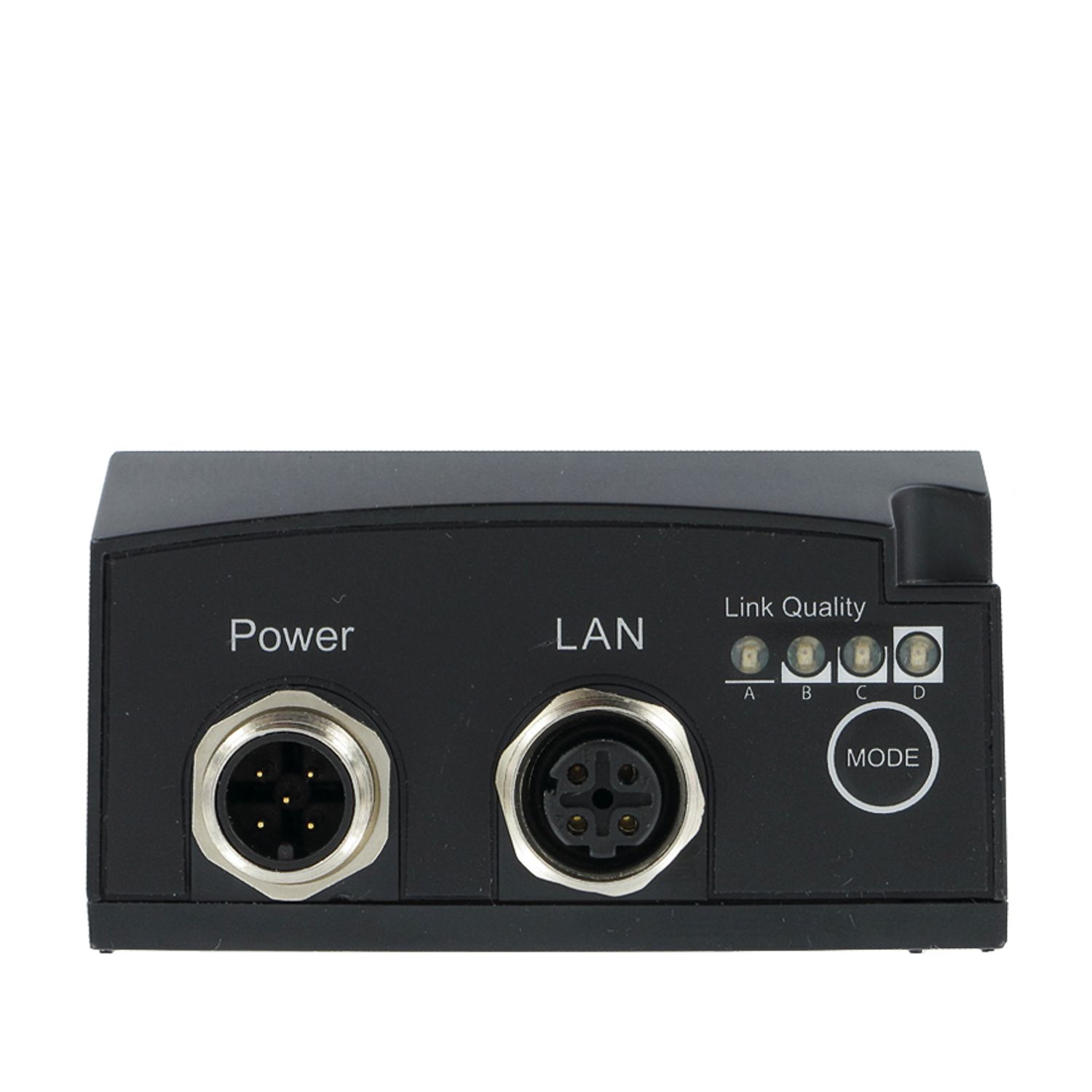

FL WLAN EPA - Wireless module - 2692791

Maximum power dissipation for nominal condition	1.824 W
Supply: Module electronics
Connection method	M12 connector, A-coded (male)
Supply voltage	24 V DC
Supply voltage range	9 V DC ... 30 V DC
Supply current	76 mA (at 24 V DC)
Current consumption	76 mA (at 24 V DC)

Digital:
Number of inputs	1

Ethernet
Interface	Ethernet
Number	1
Connection method	M12 connector, D-coded (female)
Antenna
Number	1
Connection method	permanently installed
Functions
Operating modes	Ethernet client adapter
Configuration	Web interface, MODE button, AT commands (TCP/IP), SSC
Automatic channel selection	yes
Quality of service (QoS)	Yes
Security	802.11i
		WPA PSK (preshared key)
		WPA2 PSK
		AES
		WEP 64 bit/128 bit
		TKIP
		Supports 802.1X/RADIUS
Wireless licenses	Europe, USA, Canada, additional countries in the e-shop
Country support	Belgium
		Bulgaria
		Denmark
		Germany
		Estonia
		Finland
		France
		Greece
		Great Britain
		Ireland
		Iceland
		Italy
		Canada
		Latvia
		Liechtenstein
		Lithuania
		Luxembourg
		Malta
		Netherlands
		Norway
		Austria
		Poland
		Portugal
		Romania
		Sweden
		Switzerland
		Slovakia
		Slovenia
		Spain
		Czech Republic
		Hungary
		USA
		Cyprus (rep.)
		Japan
Wireless
Designation	Wireless LAN
Antenna connection method	(Internal)
Frequency range	2.402 GHz ... 2.48 GHz (ISM bandwidth)
Frequency band	2.4 GHz
Wireless standard	WLAN
		IEEE 802.11
		b
		g
		n
Transmission power	max. 20 dBm (EIRP)
Number of wireless interfaces	1 IEEE 802.11 b/g/n
Wireless modules that can be connected	1

Ambient conditions
Degree of protection	IP65
Ambient temperature (operation)	-40 °C ... 65 °C
Air pressure (operation)	795 hPa ... 1080 hPa (up to 2000 m above sea level)
Ambient temperature (storage/transport)	-40 °C ... 85 °C
Permissible humidity (operation)	5 % ... 90 % (non-condensing)
Permissible humidity (storage/transport)	5 % ... 90 % (non-condensing)

Mounting type	Panel mounting
Mounting type		Panel mounting
Assembly note	Internal circularly polarized panel antenna

Item number	2692791
Packing unit	1 pc
Minimum order quantity	1 pc
Note	Made to order (non-returnable)
Sales key	1100*
Product key	DNN2W3
Catalog page	Page 454 (C-6-2017)
GTIN	4046356422420
Weight per piece (including packing)	250 g
Weight per piece (excluding packing)	240.8 g
Customs tariff number	85176200
Country of origin	SE

EU RoHS
Fulfills EU RoHS substance requirements	Yes (No exemptions)
China RoHS
Environment friendly use period (EFUP)	EFUP-E No hazardous substances above the limits
EU REACH SVHC
REACH candidate substance (CAS No.)	No substance above 0.1 wt%
