POWERSET BC/3-VF/FM
-
Type 1/2 surge protection device
2856715

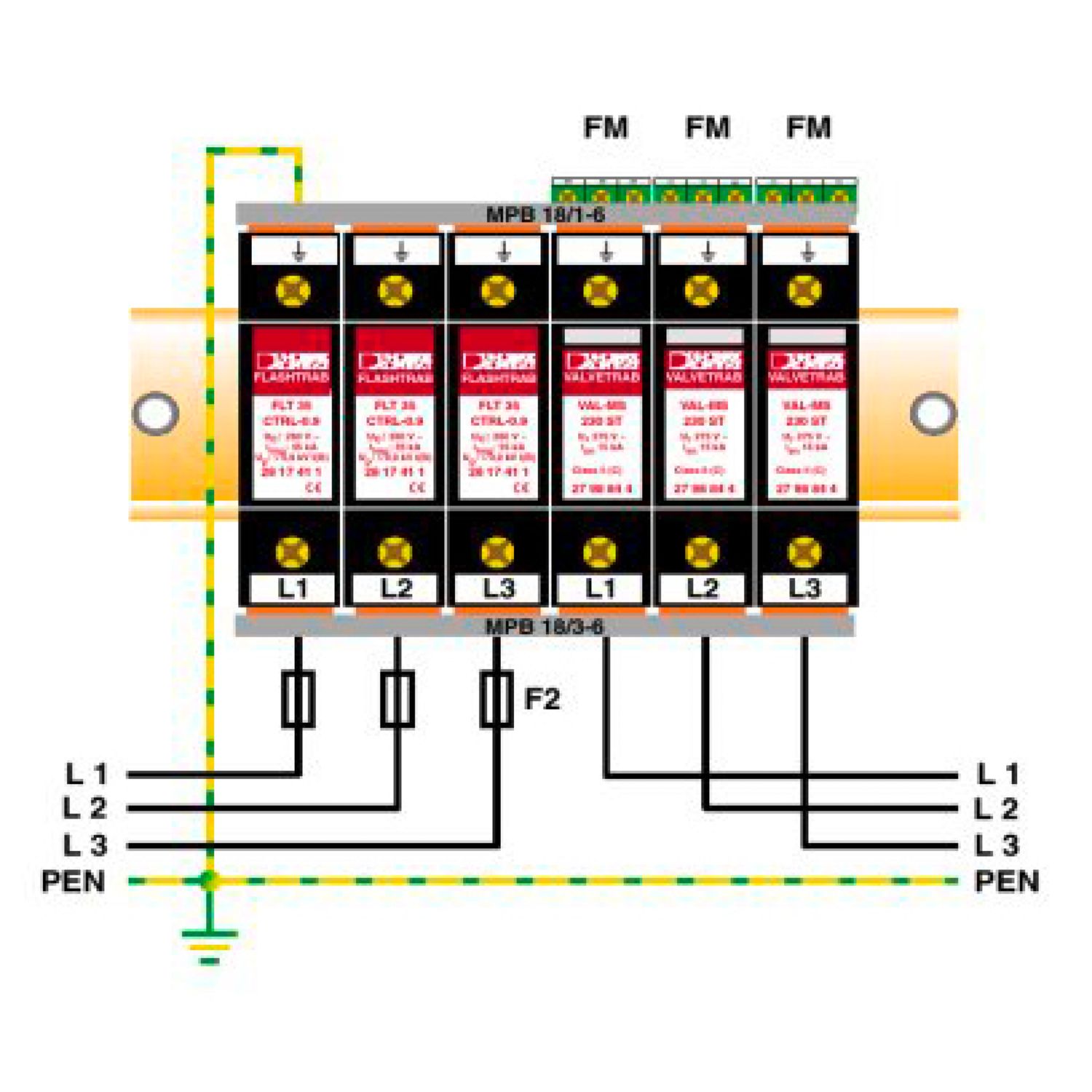

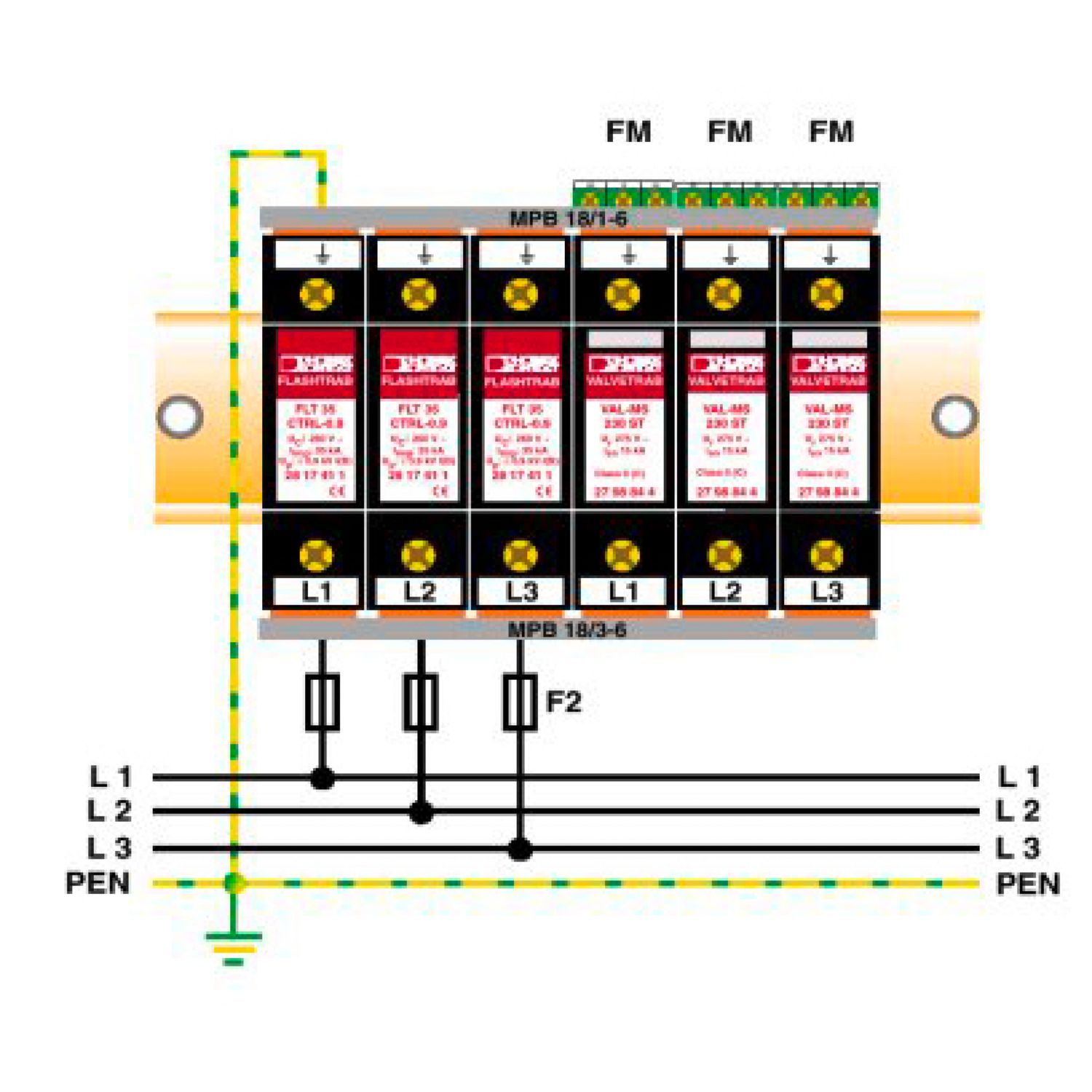

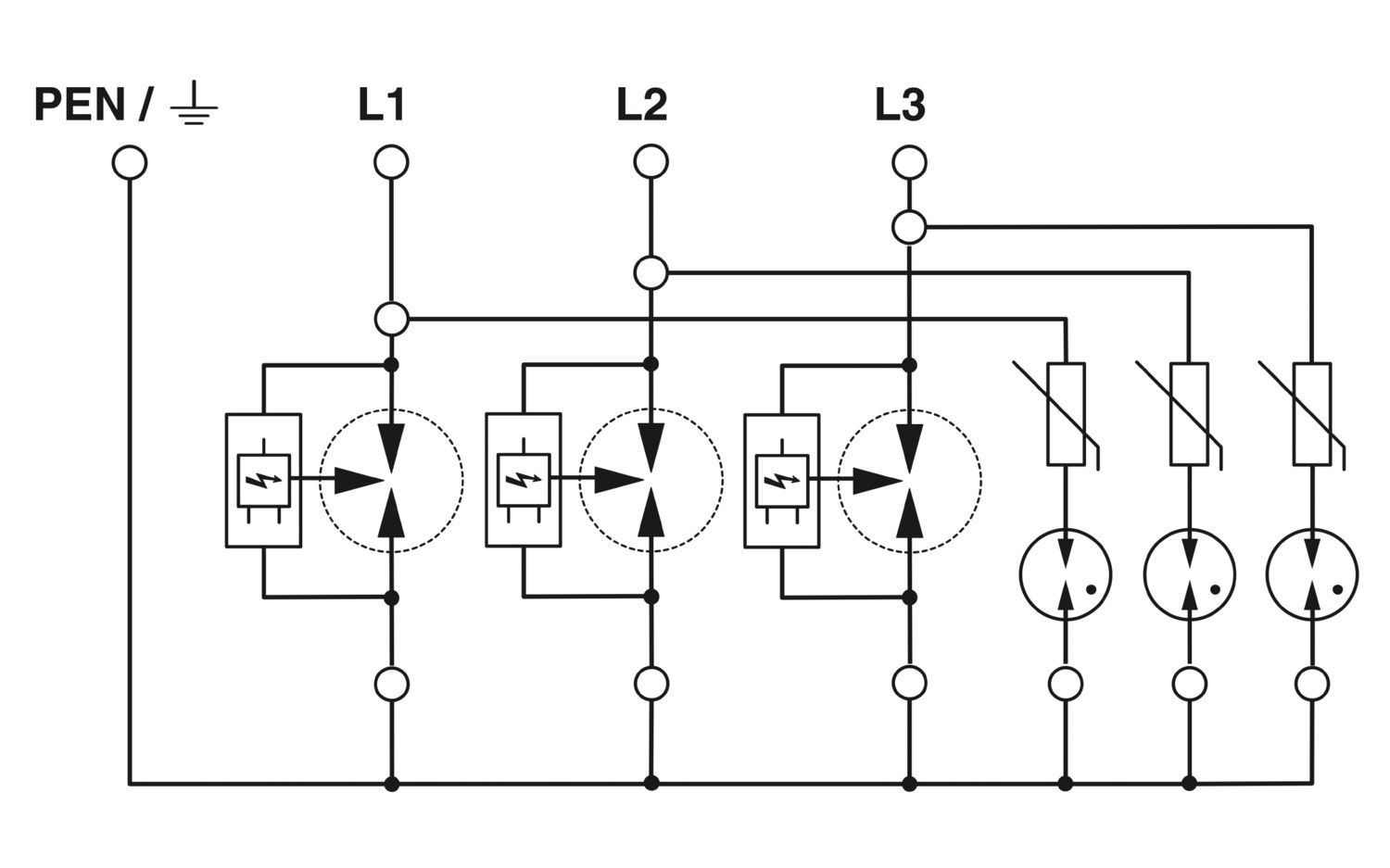

AEC arrester combination, consisting of 3 x FLT 35 CTRL 1,5 and 3 x VAL-MS 350/FM, (free of leakage current to ground); including bridges and labeling
Product details
| IEC test classification | I + II |
| EN type | T1 + T2 |
| Type | DIN rail module, two-section, divisible |
| Surge protection fault message | Optical (Type 2 arrester), remote indication contact (Type 2 arrester) |
| Nominal voltage UN | 230 V AC |
| Indicator/remote signaling | |
| Connection name | Remote fault indicator contact |
| Switching function | Changeover contact |
| Conductor cross section flexible min. | 0.5 mm² |
| Conductor cross section flexible max. | 25 mm² |
| Conductor cross section, rigid min. | 0.5 mm² |
| Conductor cross section, rigid max. | 35 mm² |
| Remote fault indicator contact | |
| Conductor cross section flexible min. | 0.14 mm² |
| Conductor cross section flexible max. | 1.5 mm² |
| Conductor cross section, rigid min. | 0.14 mm² |
| Conductor cross section, rigid max. | 1.5 mm² |
| Dimensional drawing |
|
| Width | 106.2 mm |
| Height | 112.4 mm |
| Depth | 65.5 mm |
| Housing material | PA |
| Mechanical data | |
| Open side panel | No |
| Direction of action | 3L-N/PE |
| Maximum continuous operating voltage UC (L-PE) | 350 V AC |
| Voltage protection level Up (L-N) | ≤ 1.5 kV |
| Voltage protection level Up (L-PE) | ≤ 1.5 kV |
| Max. backup fuse with branch wiring | 125 A (gL) |
| Mounting type | DIN rail: 35 mm |
