HC-B-TA-PG13-ER-AL
-
Adapter
1414260

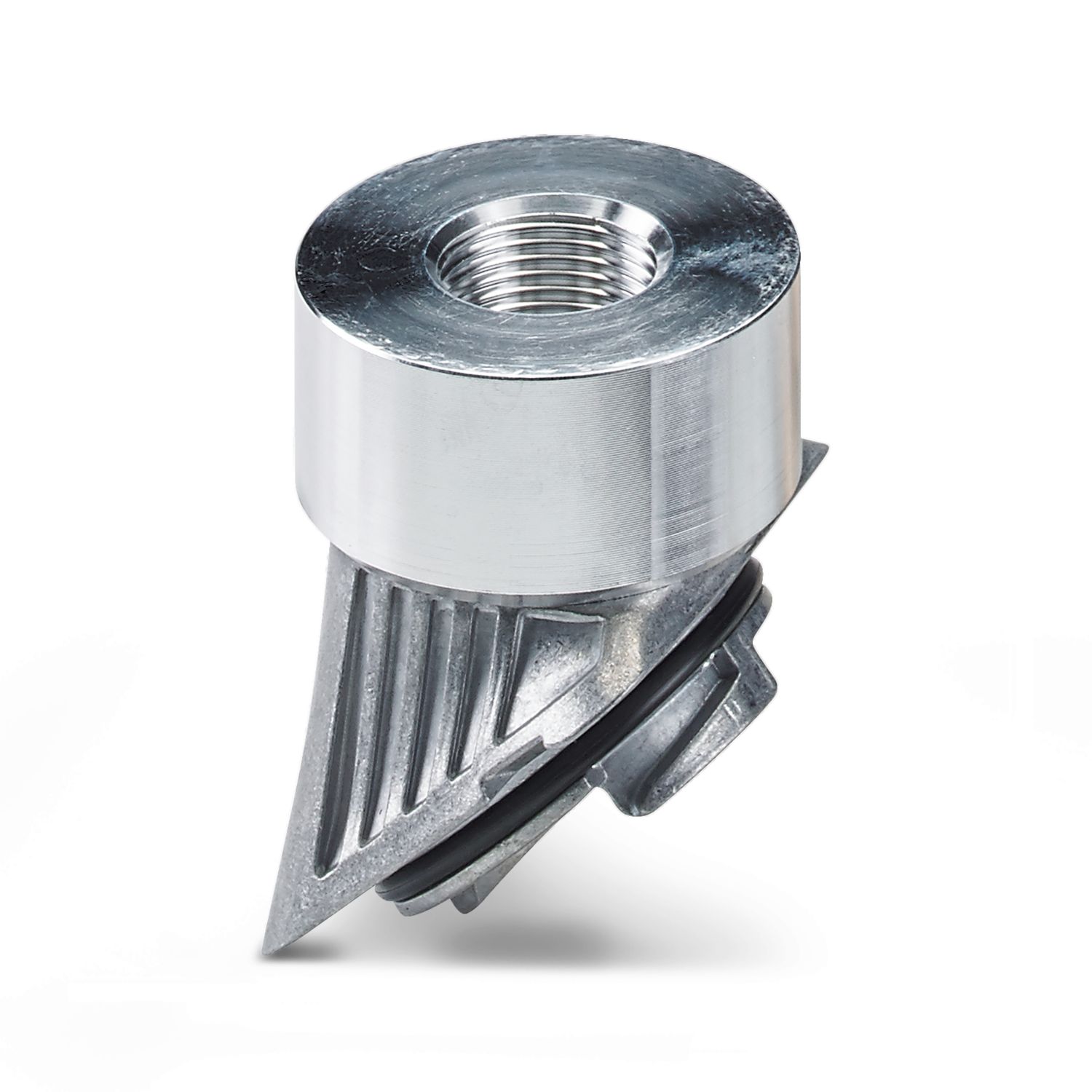

Adapter, aluminum, for EVO housing, Pg13.5 thread
Product details
| Product type | Thread adapter |
| Application | Bayonet B - Pg |
| Type of the screw connection | Pg13.5 |
| Tightening torque | ... 6.25 Nm |

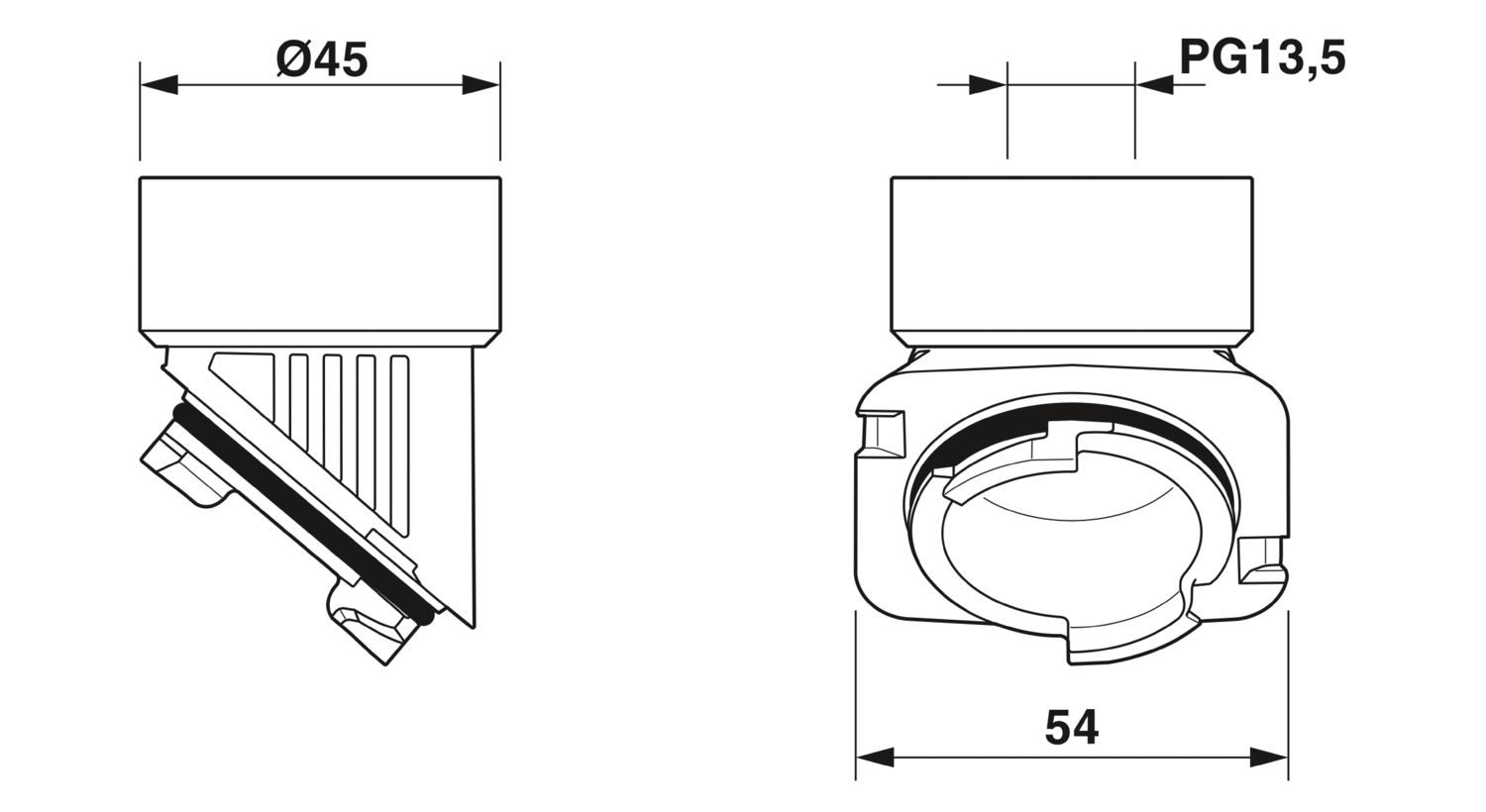

| Dimensional drawing |
|
| Thread type on seal side | Pg13,5 |
| Internal dimensions | |
| Length of internal thread | 13 mm |
| Color | aluminum color |
| Material | Die-cast aluminum, corrosion-resistant |
| Seal material O-ring | NBR |
| Housing material | Die-cast aluminum, corrosion resistant |
| Mechanical data | |
| Type of the screw connection | Pg13.5 |
| Ambient conditions | |
| Degree of protection | IP66 |
| IP67 | |
| Enclosure rating (NEMA) | 4 (UL 50e) |
| 4X (UL 50e) | |
| 12 (UL 50e) | |
| Ambient temperature (operation) | -40 °C ... 125 °C |
