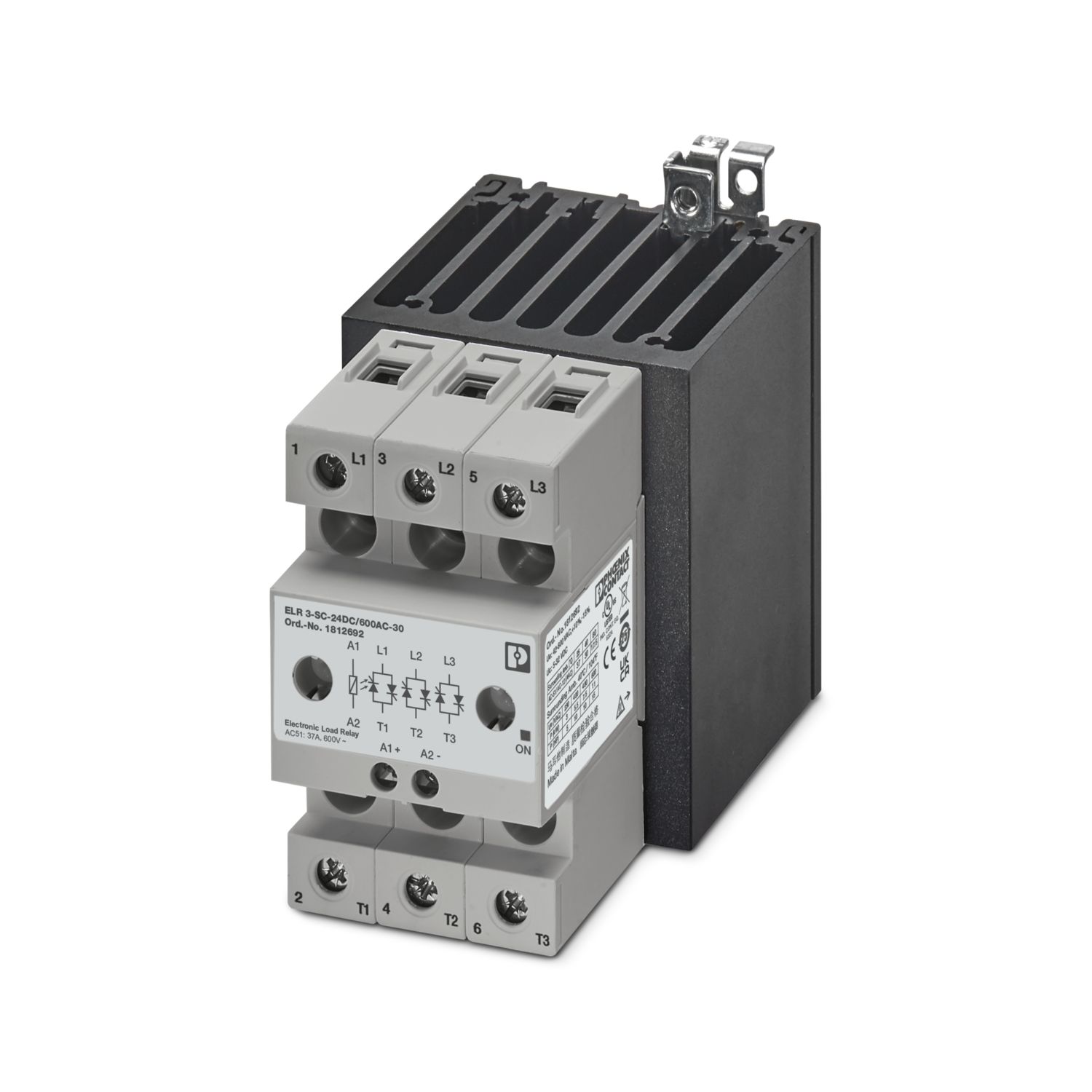

ELR 3-SC-24DC/600AC-30
-
Solid-state contactor
1812692
3-phase solid-state contactor, input voltage: 24 V DC, output current: 30 A, zero-voltage switch
Product details
| Product type | Solid-state contactor |
| Maximum power dissipation for nominal condition | 82 W |
| Mains type | 3-phase |
| Test voltage | 4 kV |
| Insulation characteristics | |
| Rated insulation voltage | 600 V |
| Rated surge voltage | 6 kV |
| Overvoltage category | III |
| Degree of pollution | 2 |
| Control | |
| Input name | Control input |
| Rated actuating voltage UC | 24 V DC |
| Triggering voltage range | 5 V DC ... 32 V DC |
| Rated actuating current IC | 29 mA |
| Switching threshold | ≤ 1 V DC (“0” signal) |
| ≥ 4.8 V DC (“1” signal) | |
| Protective circuit | Reverse polarity protection |
| Surge protection | |
| Operating voltage display | Green LED |
| Load output | |
| Operating voltage range | 42 V AC ... 660 V AC |
| Rated operating current at AC-51 | 30 A |
| Rated operating current at AC-53a | 14 A (TA = 40 °C) |
| Mains frequency | 45 Hz ... 65 Hz |
| Load current range | 400 mA ... 30 A (see to derating) |
| Leakage current | 5 mA (In off state) |
| Surge current | 1150 A (t = 10 ms) |
| Max. load value | 6600 A2s |
| Protective circuit | Varistor |
| Phase angle cos phi min | 0.5 |
| Control circuits | |
| Connection method | Screw connection |
| Stripping length | 8 mm |
| Screw thread | M3 |
| Conductor cross section rigid | 0.5 mm² ... 2.5 mm² |
| Conductor cross section flexible | 0.5 mm² ... 2.5 mm² |
| Conductor cross section AWG | 18 ... 12 |
| Tightening torque | 0.5 Nm ... 0.6 Nm |
| 4.4 lbf-in. ... 5.3 lbf-in. | |
| Load circuit | |
| Connection method | Screw connection |
| Stripping length | 11 mm |
| Screw thread | M5 |
| Conductor cross section rigid | 2.5 mm² ... 25 mm² |
| Conductor cross section flexible | 2.5 mm² ... 16 mm² |
| Conductor cross section AWG | 14 ... 3 |
| Tightening torque | 2.5 Nm ... 3 Nm |
| 22 lbf-in. ... 26.6 lbf-in. | |
| Protective conductor connection | |
| Connection method | Ring cable lug |
| Screw thread | M5 |
| Tightening torque | 1.5 Nm |
| Width | 72 mm |
| Height | 110 mm |
| Depth | 125.5 mm |
| Color | gray (RAL 7042) |
| Ambient conditions | |
| Degree of protection | IP20 |
| Mounting type | DIN rail mounting |
| Assembly note | See derating curve |
| Mounting position | Vertical (horizontal DIN rail) |
| Item number | 1812692 |
| Packing unit | 1 pc |
| Minimum order quantity | 1 pc |
| Product key | DK6841 |
| GTIN | 4067923439399 |
