OPT-24DC/230AC/ 2
-
Miniature solid-state relay
2982171
Plug-in miniature solid-state relay, power solid-state relay, 1 N/O contact, input: 24 V DC, output: 24 - 253 V AC/2 A
Product details
| Product type | Single solid-state relay |
| Operating mode | 100% operating factor |
| Insulation characteristics | |
| Insulation | Basic insulation |
| Insulation characteristics: Standards/regulations | |
| Insulation | Basic insulation |
| Overvoltage category | III |
| Pollution degree | 2 |
| Maximum power dissipation for nominal condition | 0.17 W |
| Test voltage (Input/output) | 2.5 kV (50 Hz, 1 min., input/output) |
| Standards/regulations | |
| Rated insulation voltage | 250 V AC |
| Nominal input voltage UN | 24 V DC |
| Input voltage range in reference to UN | 0.8 ... 1.2 |
| Input voltage range | 19.2 V DC ... 28.8 V DC |
| Switching threshold "0" signal, voltage | < 8.4 V DC |
| Switching threshold "1" signal voltage | > 18 V DC |
| Typical input current at UN | 7 mA |
| Typical response time | 10 ms |
| Typical turn-off time | 10 ms |
| Protective circuit | Reverse polarity protection; Polarity protection diode |
| Transmission frequency | 10 Hz |
| Contact switching type | 1 N/O contact |
| Design of digital output | electronic |
| Output nominal voltage | 230 V AC |
| Output voltage range | 24 V AC ... 253 V AC |
| Limiting continuous current | 2 A (see derating curve) |
| Maximum inrush current | 30 A (10 ms) |
| Min. load current | 25 mA |
| Leakage current | typ. 1 mA |
| Surge current | 30 A (10 ms) |
| Max. load value | 4 A2s (tp = 10 ms, at 25 °C) |
| Voltage drop at max. limiting continuous current | ≤ 1 V |

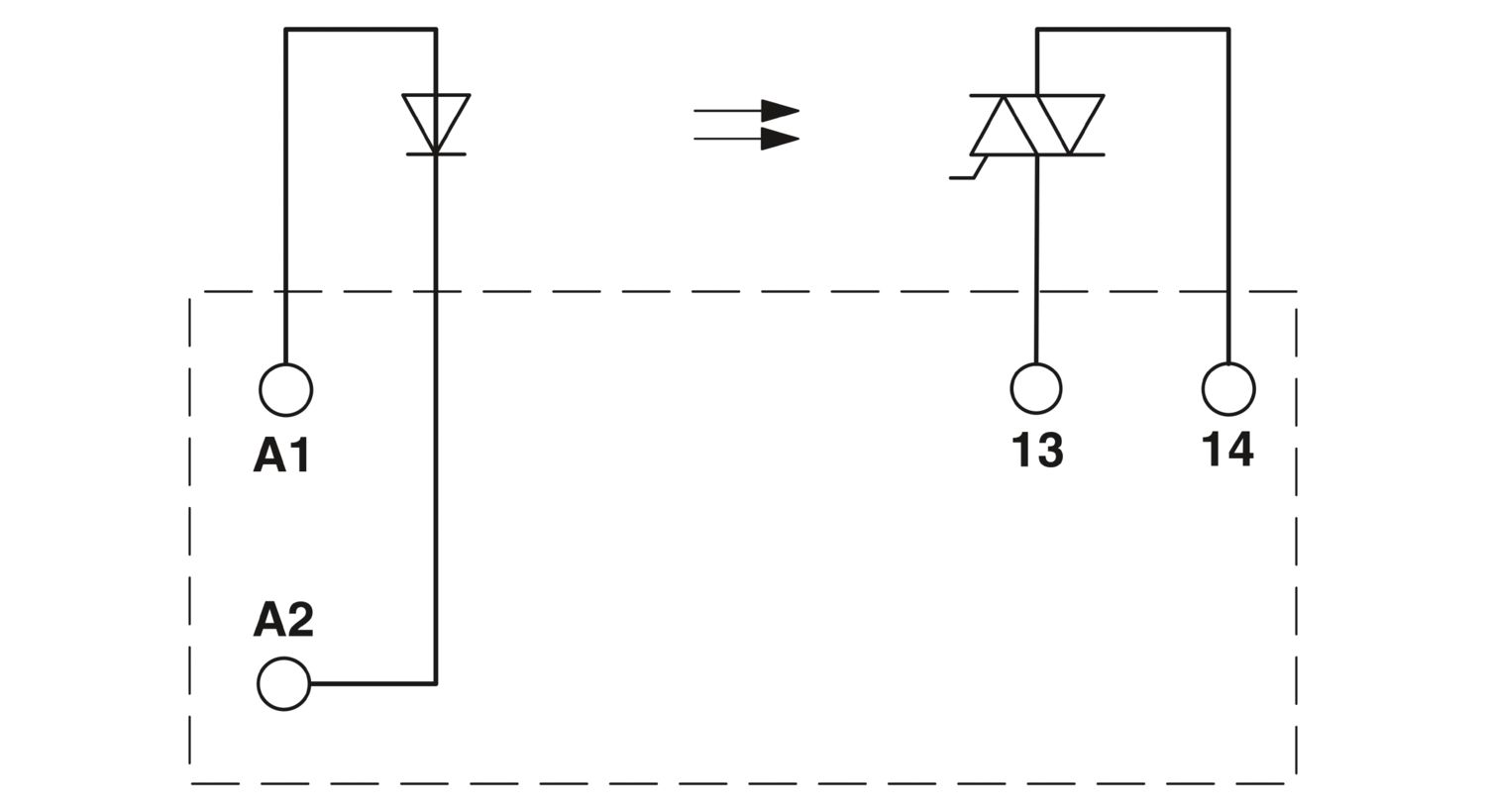

| Output circuit | 2-conductor floating, zero voltage switch |
| Protective circuit | Surge protection; RC element |
| Dimensional drawing |
|
| Width | 12.7 mm |
| Height | 29 mm |
| Depth | 15.7 mm |
| Flammability rating according to UL 94 | V0 (Housing) |
| Ambient conditions | |
| Degree of protection | RT III |
| Ambient temperature (operation) | -25 °C ... 60 °C |
| Ambient temperature (storage/transport) | -25 °C ... 70 °C |
| Corrosive gas test | |
| Identification | ISA-S71.04. G3 Harsh Group |
| EN 60068-2-60 | |
| Standards/regulations | |
| Standards/regulations | IEC 60664 |
| EN 50178 | |
| Assembly instructions | See derating curve |
| Mounting position | any |
Your advantages
Vibration and shock resistant
RT III-proof (wash-proof)
Wear-free and durable
Can be soldered on PCB
Zero voltage switch at AC output
