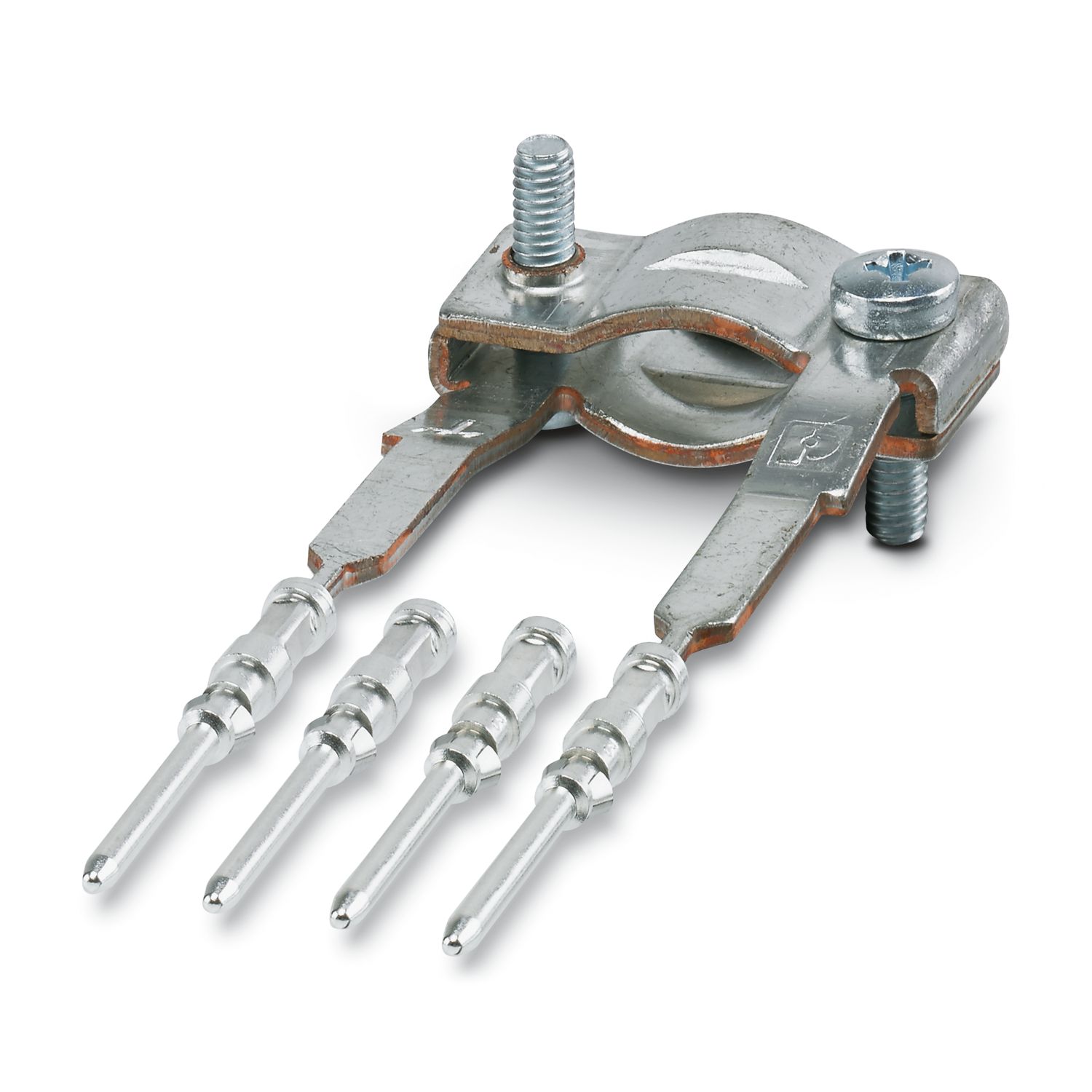

Shield connection, for a shielded line on male contact carriers, incl. two loose crimp contacts for PROFIBUS line
Product details
General
for HC-D40, HC-D64 contact carriers
Product type
Shield connection
Contact material type
turned
Rated voltage (III/3)
60 V
Connection technology
Connection method
Crimp connection
Mechanical characteristics
Contact diameter
1.6 mm
Contact material
Copper alloy
Contact surface material
hard-silver plated
External cable diameter
6 mm ... 9 mm
Stripping length of the individual wire
6 mm
Mechanical data
Insertion/withdrawal cycles
≥ 500
Ambient conditions
Ambient temperature (operation)
-40 °C ... 60 °C
Assembly note
for a bus line, see assembly instruction 9655870, with two CK1,6-ED-0,37ST AG crimp contacts
Item number
1886142
Packing unit
1 pc
Minimum order quantity
1 pc
Sales key
0229*
Product key
AF7ABZ
GTIN
4017918818418
Weight per piece (including packing)
16.3 g
Weight per piece (excluding packing)
16.1 g
Customs tariff number
85366990
Country of origin
DE
ECLASS
ECLASS-13.0
27440192
ETIM
ETIM 9.0
EC002943
UNSPSC
UNSPSC 21.0
39121400
EAC
Approval ID: RU C-DE.AI30.B.01102
EU RoHS
Fulfills EU RoHS substance requirements
Yes
Exemption
6(c)
China RoHS
Environment friendly use period (EFUP)
EFUP-50
An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration". For all articles with EFUP-E, no China RoHS declaration table issued and required.
