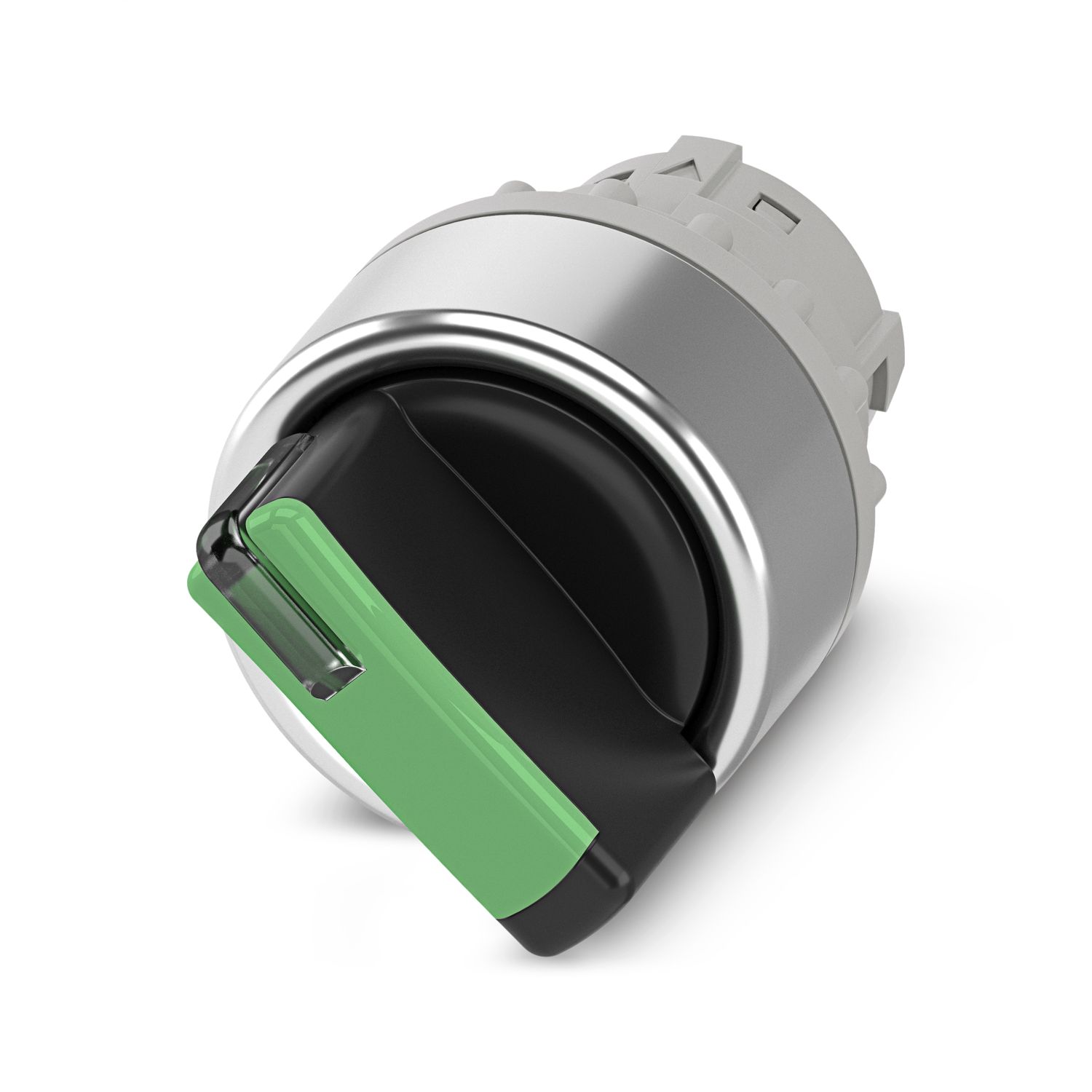

PHT22-SVD-GN - Selector switch
PHT22-SVD-GN
-
Selector switch
1108807
Selector switch, 22 mm, circular, 2 switch positions, V-shaped, green, self-locking
Product details
Expand all
Collapse all
Technical data
Product properties
Insulation characteristics
Degree of pollution
3
Dimensions
Width
29.6 mm
Height
29.6 mm
Material specifications
Color
green
Environmental and real-life conditions
Degree of protection (IP code)
Degree of protection
IP66
Ambient conditions
Ambient temperature (operation)
-25 °C ... 70 °C
Ambient temperature (storage/transport)
-30 °C ... 85 °C
Permissible humidity (operation)
≤ 95 % ((room temperature 25℃) no condensation)
Standards and regulations
Standards/specifications
IEC 60947-5-1
GB 14048.5
UL 60947-5-1
Mounting
Mounting type
Panel mount
Commercial data
Item number
1108807
Packing unit
1 pc
Minimum order quantity
1 pc
Note
Made to order (non-returnable)
Sales key
*****
Product key
BE6122
GTIN
4063151016494
Weight per piece (including packing)
51.9 g
Weight per piece (excluding packing)
18.7 g
Country of origin
CN
Classifications
ECLASS
ECLASS-15.0
27371213
ECLASS-13.0
27371213
ETIM
ETIM 9.0
EC000222
Approvals
cULus Listed
Approval ID: E172140
CCC
Approval ID: 2024010305697836
Environmental product compliance
EU RoHS
Fulfills EU RoHS substance requirements
Yes
(No exemptions)
China RoHS
Environment friendly use period (EFUP)
EFUP-E
No hazardous substances above the limits
EU REACH SVHC
REACH candidate substance (CAS No.)
No substance above 0.1 wt%
Compatible products
Expand all
Collapse all
Accessories
PHT22-PT10
-
Contact module
1108991
PHT22-PT01
-
Contact module
1108992

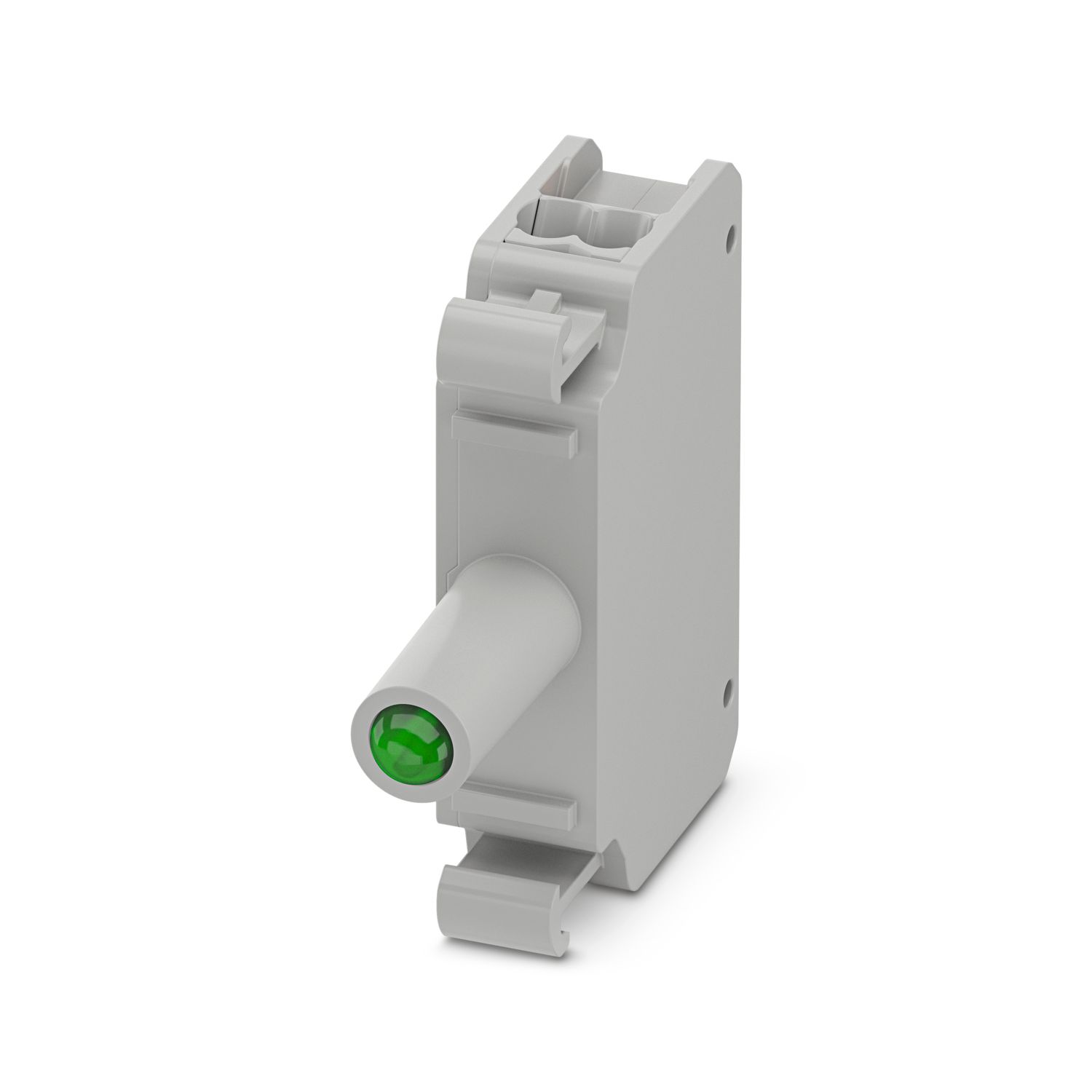

PHT22-LED-GN
-
LED module
1108999
PHT22-ARR
-
Accessories
1108845
PHT22-MC-3040
-
Accessories
1109014
PHT22-MC-3050
-
Accessories
1109015
SZF 0-0,4X2,5
-
Screwdriver
1204504
MPS-MT
-
Test plug
0201744
CARRIER-EMP 22 (27X8)
-
Marker carriers
0827445
CARRIER-EMP 22 (27X12,5)
-
Marker carriers
0827446
CARRIER-EMP 22 (27X15)
-
Marker carriers
0827447
CARRIER-EMP 22 (27X18)
-
Marker carriers
0827448
CARRIER-EMP 22 (27X27)
-
Marker carriers
0827449
CARRIER-EMLP 22 (27X8)
-
Marker carriers
0828984
CARRIER-EMLP 22 (27X12,5)
-
Marker carriers
0828985
CARRIER-EMLP 22 (27X15)
-
Marker carriers
0828986
CARRIER-EMLP 22 (27X18)
-
Marker carriers
0828987
CARRIER-EMLP 22 (27X27)
-
Marker carriers
0828988
US-EMP (27X8)
-
Snap-in markers
0828775
US-EMP (27X8) YE
-
Snap-in markers
0828844
US-EMP (27X8) SR
-
Snap-in markers
0828845
US-EMP (27X12,5)
-
Snap-in markers
0828776
US-EMP (27X12,5) YE
-
Snap-in markers
0828846
US-EMP (27X12,5) SR
-
Snap-in markers
0828847
US-EMP (27X15)
-
Snap-in markers
0828777
US-EMP (27X15) YE
-
Snap-in markers
0828848
US-EMP (27X15) SR
-
Snap-in markers
0828849
US-EMP (27X18)
-
Snap-in markers
0828778
US-EMP (27X18) YE
-
Snap-in markers
0828850
US-EMP (27X18) SR
-
Snap-in markers
0828851
US-EMP (27X27)
-
Snap-in markers
0828779
US-EMP (27X27) YE
-
Snap-in markers
0828852
US-EMP (27X27) SR
-
Snap-in markers
0828853
PHT22-ARR/FIX
-
Accessories
1108847
