PHT22-S3SD-BU/PT20/BU
-
Selector switch
1108347

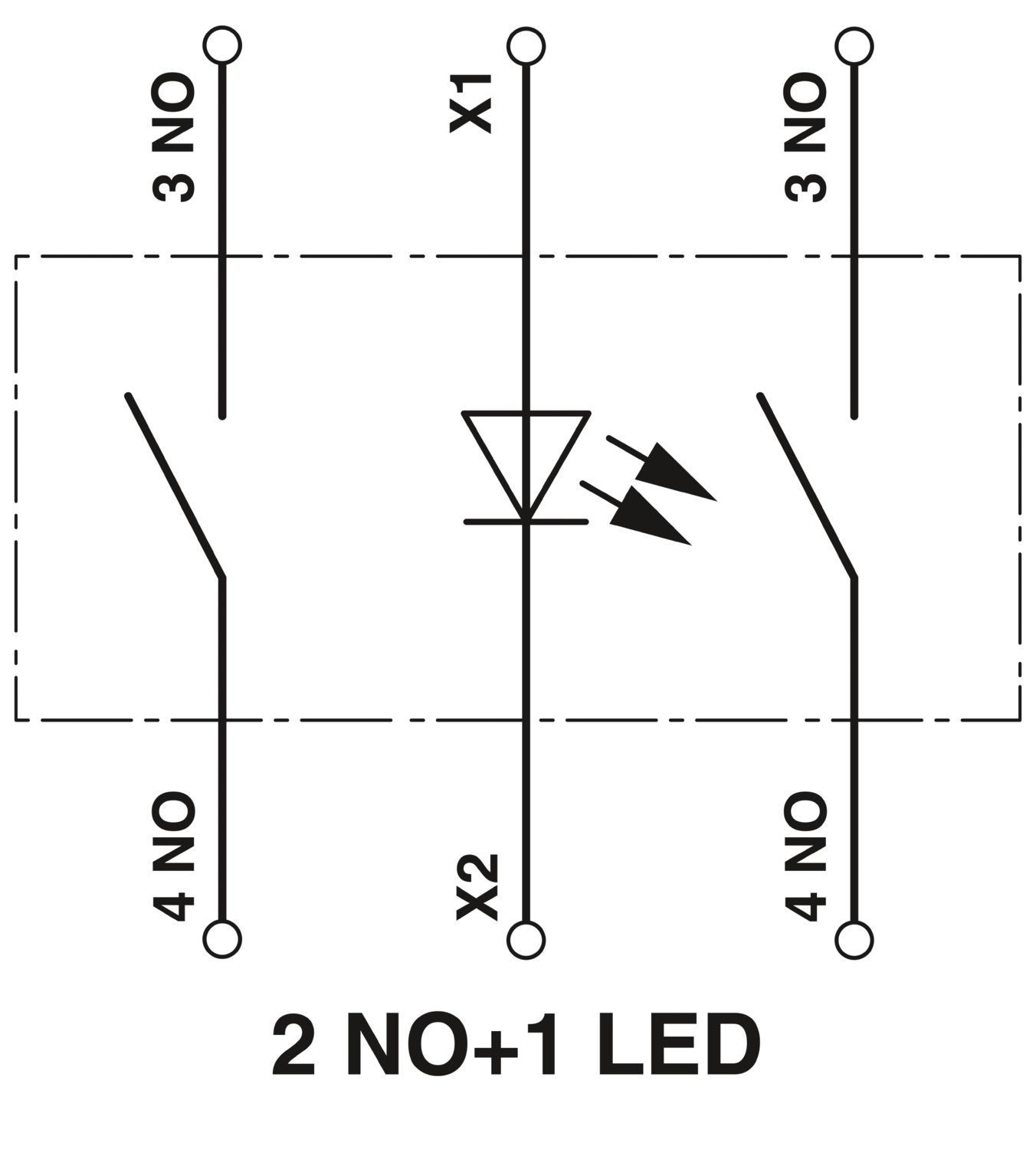

Selector switch, illuminated, 22 mm, circular, 3 switch positions, blue, self-locking, including an actuating head, module holder, a N/O contact module using push-in connection technology and a LED module
Product details
Insulation characteristics | |
Overvoltage category | III |
Degree of pollution | 3 |
Rated insulation voltage | 600 V |
Rated surge voltage | 6 kV |
Stripping length | 8 mm |
Conductor cross section rigid | 0.5 mm² ... 2.5 mm² |
Conductor cross section flexible | 0.5 mm² ... 1.5 mm² |
Conductor cross section, flexible [AWG] | 20 ... 16 (converted acc. to IEC) |
2 conductors with same cross section, solid | 0.5 mm² ... 2.5 mm² |
2 conductors with the same cross-section AWG rigid | 20 ... 16 (converted acc. to IEC) |
2 conductors with same cross section, flexible | 0.5 mm² ... 1.5 mm² |
2 conductors with the same cross-section AWG flexible | 20 ... 16 (converted acc. to IEC) |
2 conductors with the same cross section, flexible, with ferrule with plastic sleeve | 0.5 mm² ... 1.5 mm² |
Thermal continuous current Ith | 10 A |
Width | 30 mm |
Height | 46 mm |
Installation dimensions | |
Installation depth | 47.9 mm |
Color | white |
Degree of protection (IP code) | |
Degree of protection | IP66 |
Ambient conditions | |
Ambient temperature (operation) | -25 °C ... 70 °C |
Ambient temperature (storage/transport) | -30 °C ... 85 °C |
Permissible humidity (operation) | ≤ 95 % ((room temperature 25℃) no condensation) |
Standards/specifications | IEC 60947-5-1 |
GB 14048.5 | |
UL 60947-5-1 |
Mounting type | Panel mount |
Item number | 1108347 |
Packing unit | 1 pc |
Minimum order quantity | 1 pc |
Note | Made to order (non-returnable) |
Sales key | ***** |
Product key | BE6122 |
GTIN | 4063151013509 |
Weight per piece (including packing) | 23.4 g |
Weight per piece (excluding packing) | 55.3 g |
Country of origin | CN |
ECLASS
ECLASS-13.0 | 27371243 |
EU RoHS | |
Fulfills EU RoHS substance requirements | Yes |
Exemption | 7(a), 7(c)-I |
China RoHS | |
Environment friendly use period (EFUP) |
EFUP-50
An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration". For all articles with EFUP-E, no China RoHS declaration table issued and required.
|
EU REACH SVHC | |
REACH candidate substance (CAS No.) | Lead (CAS: 7439-92-1) |
Compatible products
-

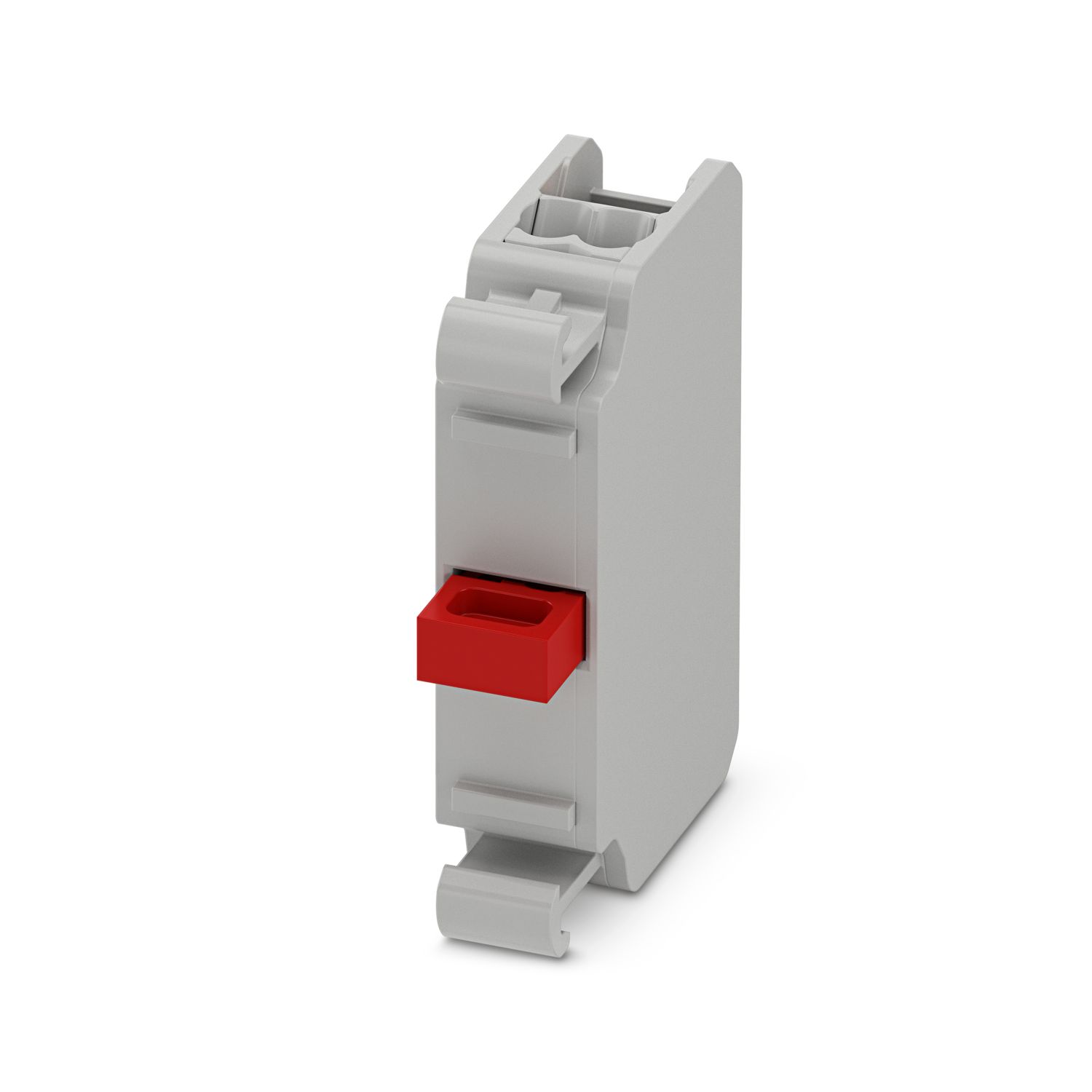

PHT22-PT10 - Contact module 1108991
-
PHT22-PT01 - Contact module 1108992
-
PHT22-ARR - Accessories 1108845
-
PHT22-MC-3040 - Accessories 1109014
-
PHT22-MC-3050 - Accessories 1109015
-
SZF 0-0,4X2,5 - Screwdriver 1204504
-
MPS-MT - Test plug 0201744
-

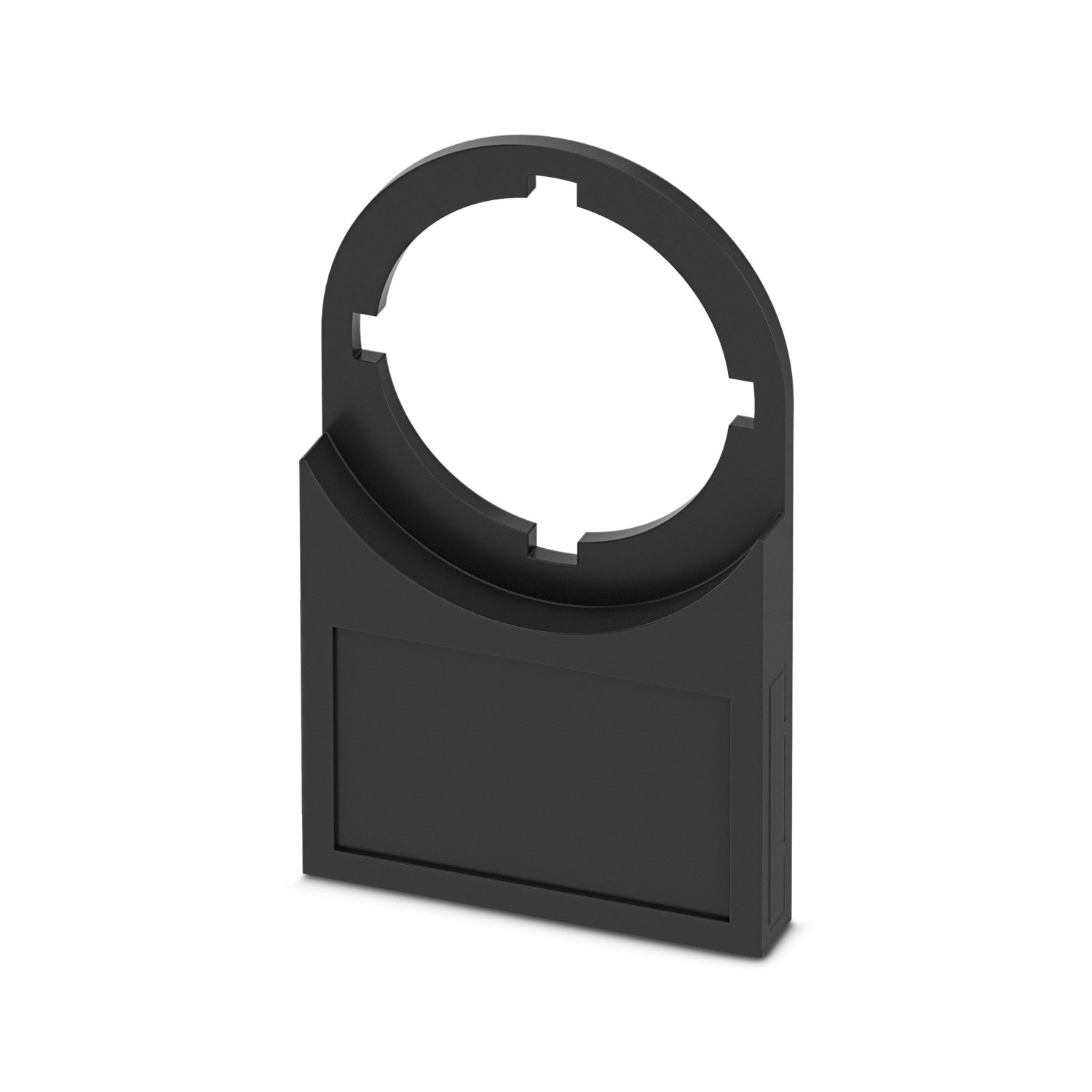

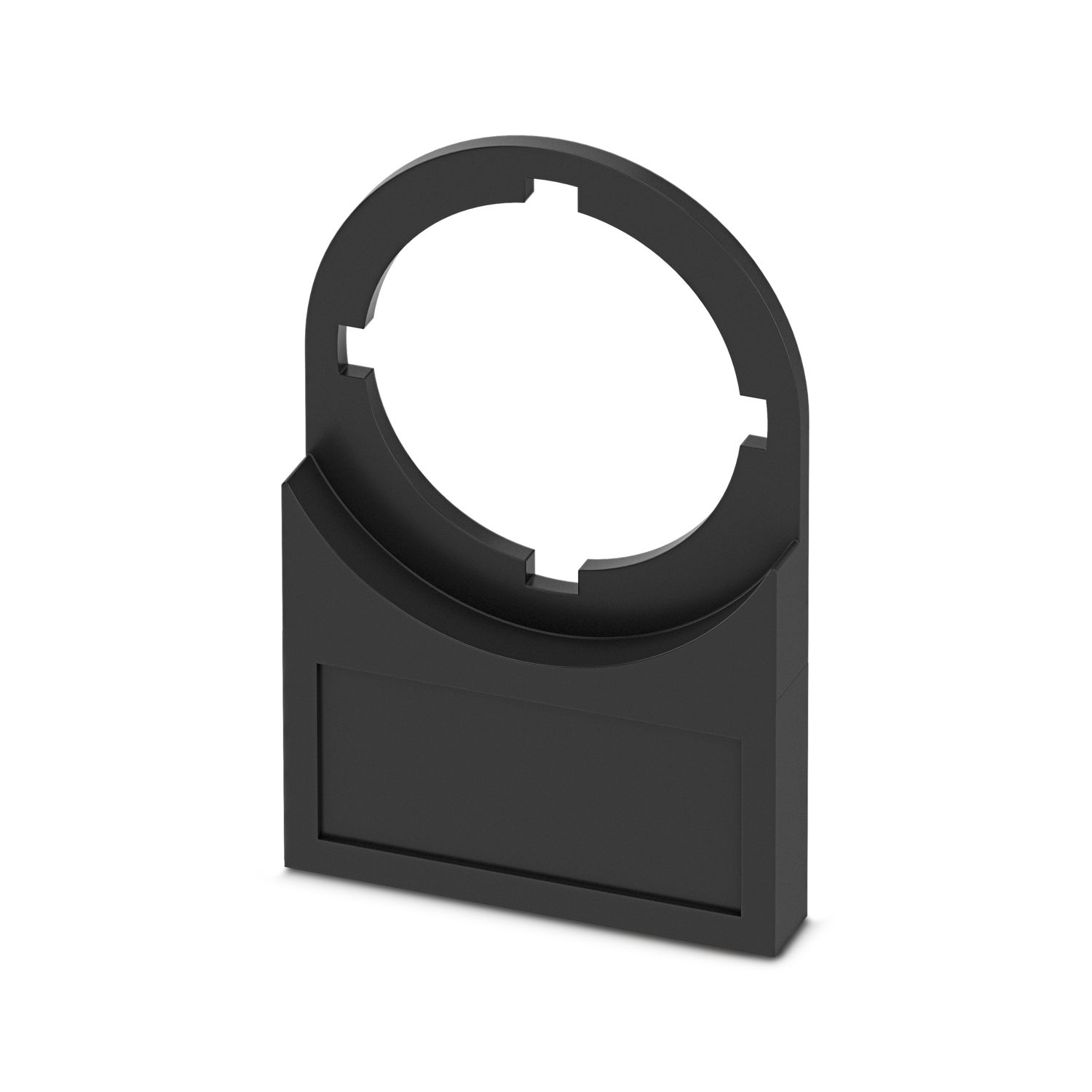

CARRIER-EMP 22 (27X8) - Marker carriers 0827445
-
CARRIER-EMP 22 (27X12,5) - Marker carriers 0827446
-
CARRIER-EMP 22 (27X15) - Marker carriers 0827447
-
CARRIER-EMP 22 (27X18) - Marker carriers 0827448
-
CARRIER-EMP 22 (27X27) - Marker carriers 0827449
-
CARRIER-EMLP 22 (27X8) - Marker carriers 0828984
-
CARRIER-EMLP 22 (27X12,5) - Marker carriers 0828985
-
CARRIER-EMLP 22 (27X15) - Marker carriers 0828986
-
CARRIER-EMLP 22 (27X18) - Marker carriers 0828987
-
CARRIER-EMLP 22 (27X27) - Marker carriers 0828988
-

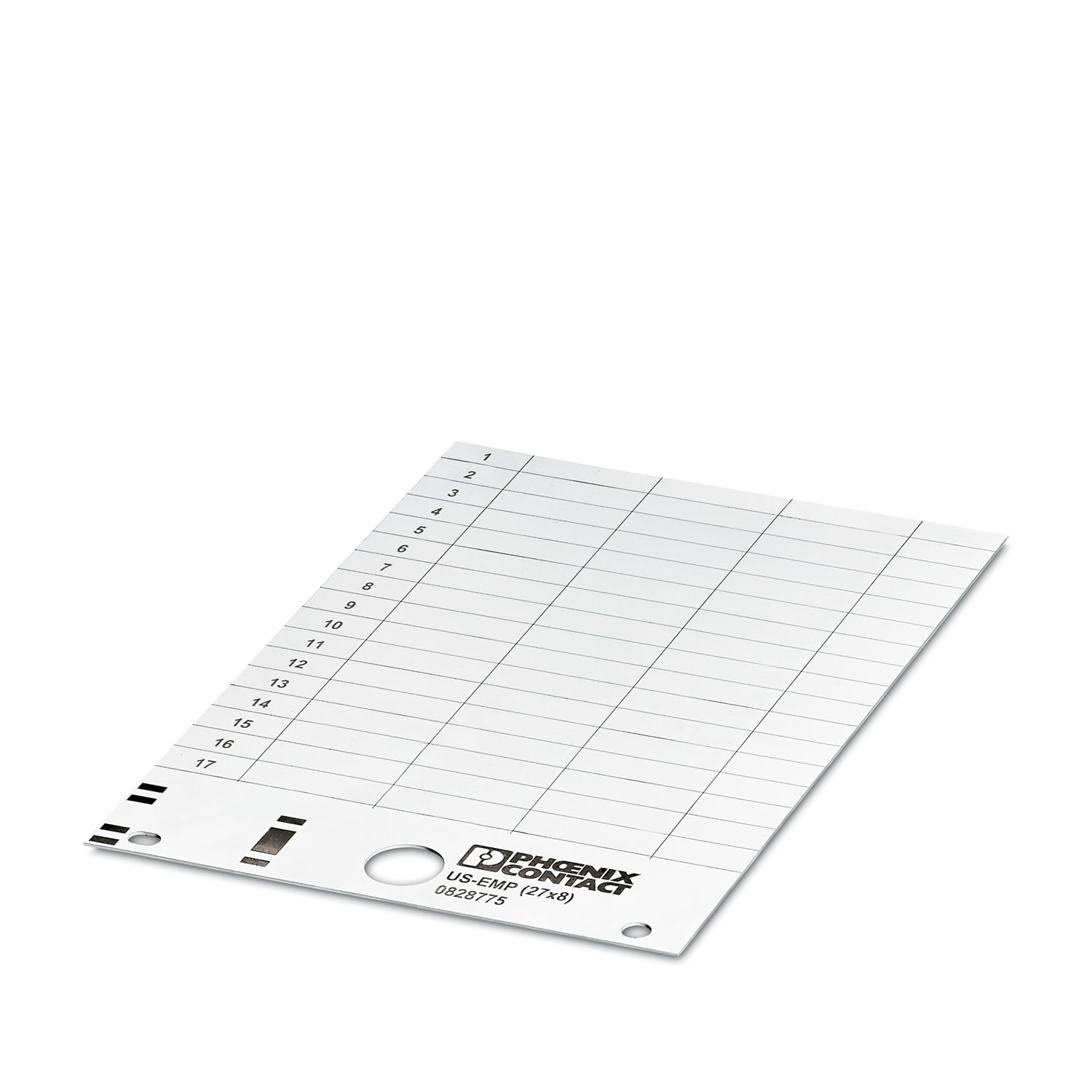

US-EMP (27X8) - Snap-in markers 0828775
-

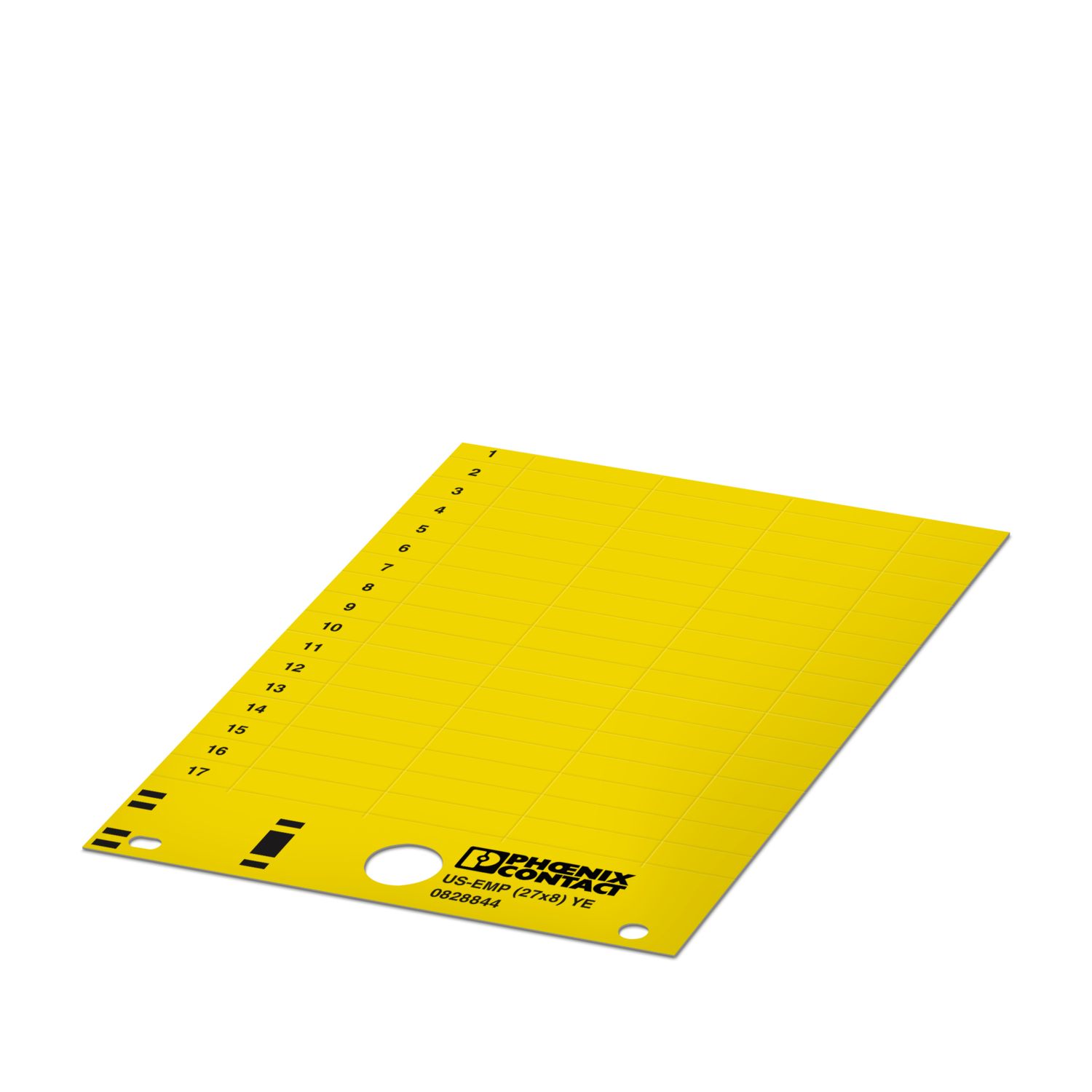

US-EMP (27X8) YE - Snap-in markers 0828844
-

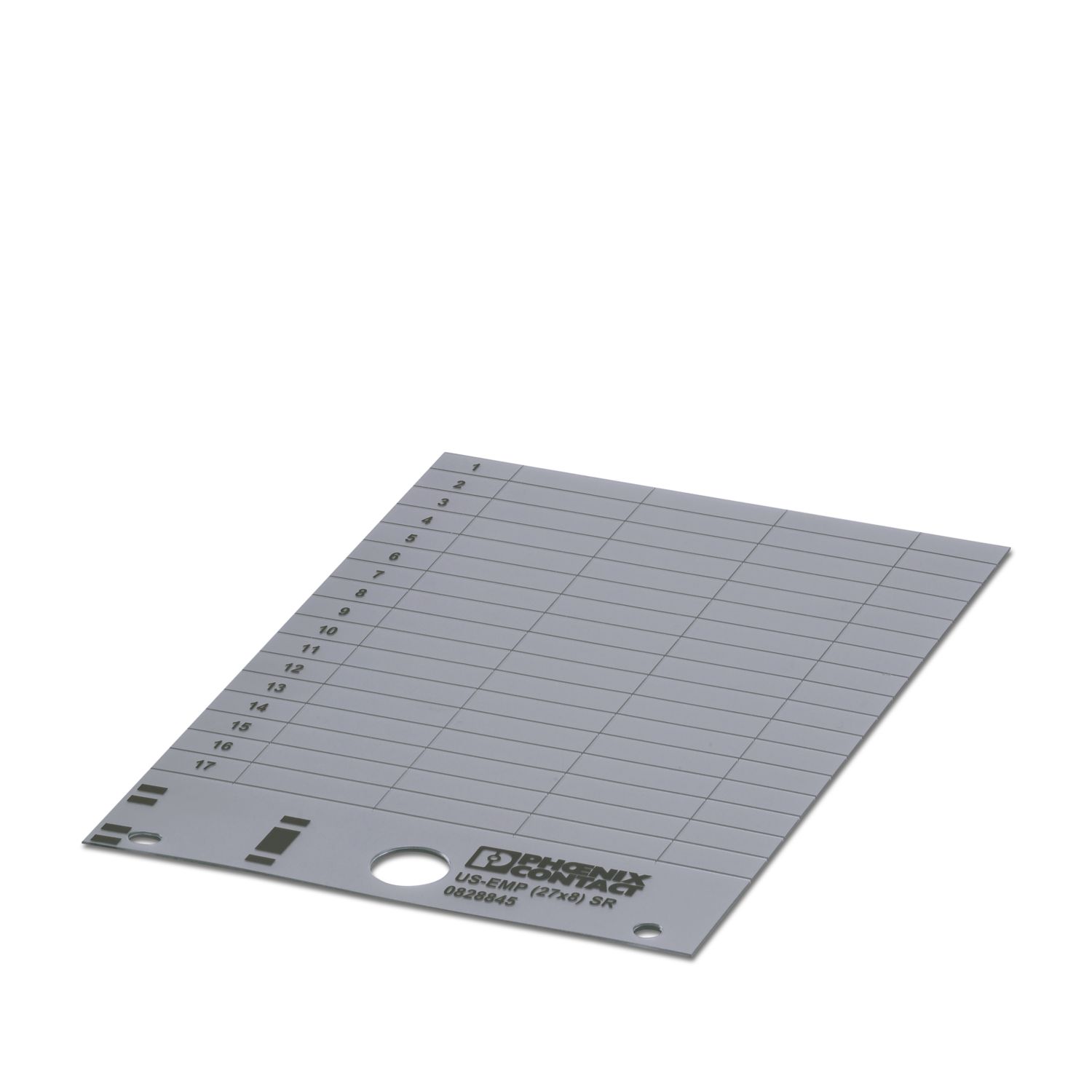

US-EMP (27X8) SR - Snap-in markers 0828845
-

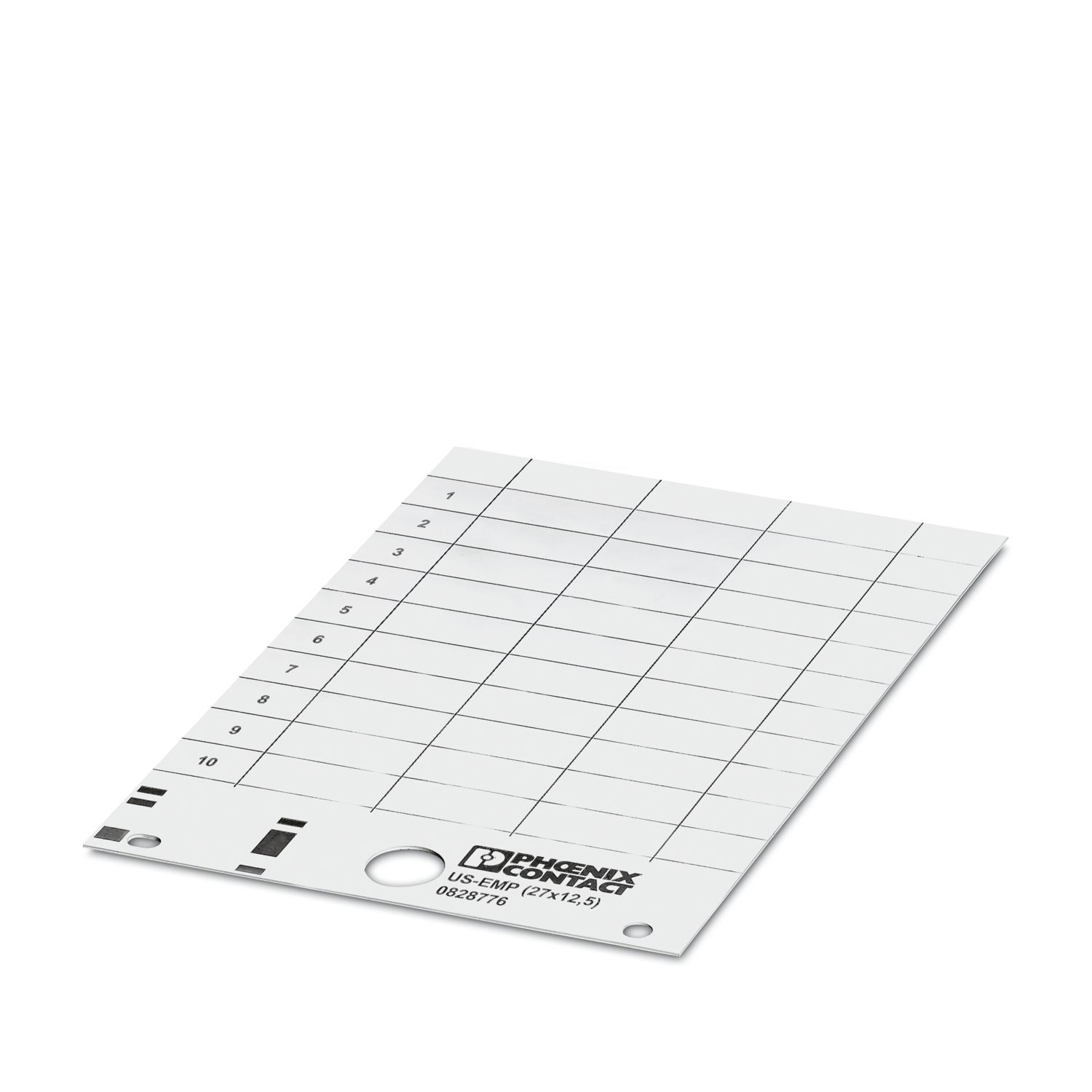

US-EMP (27X12,5) - Snap-in markers 0828776
-

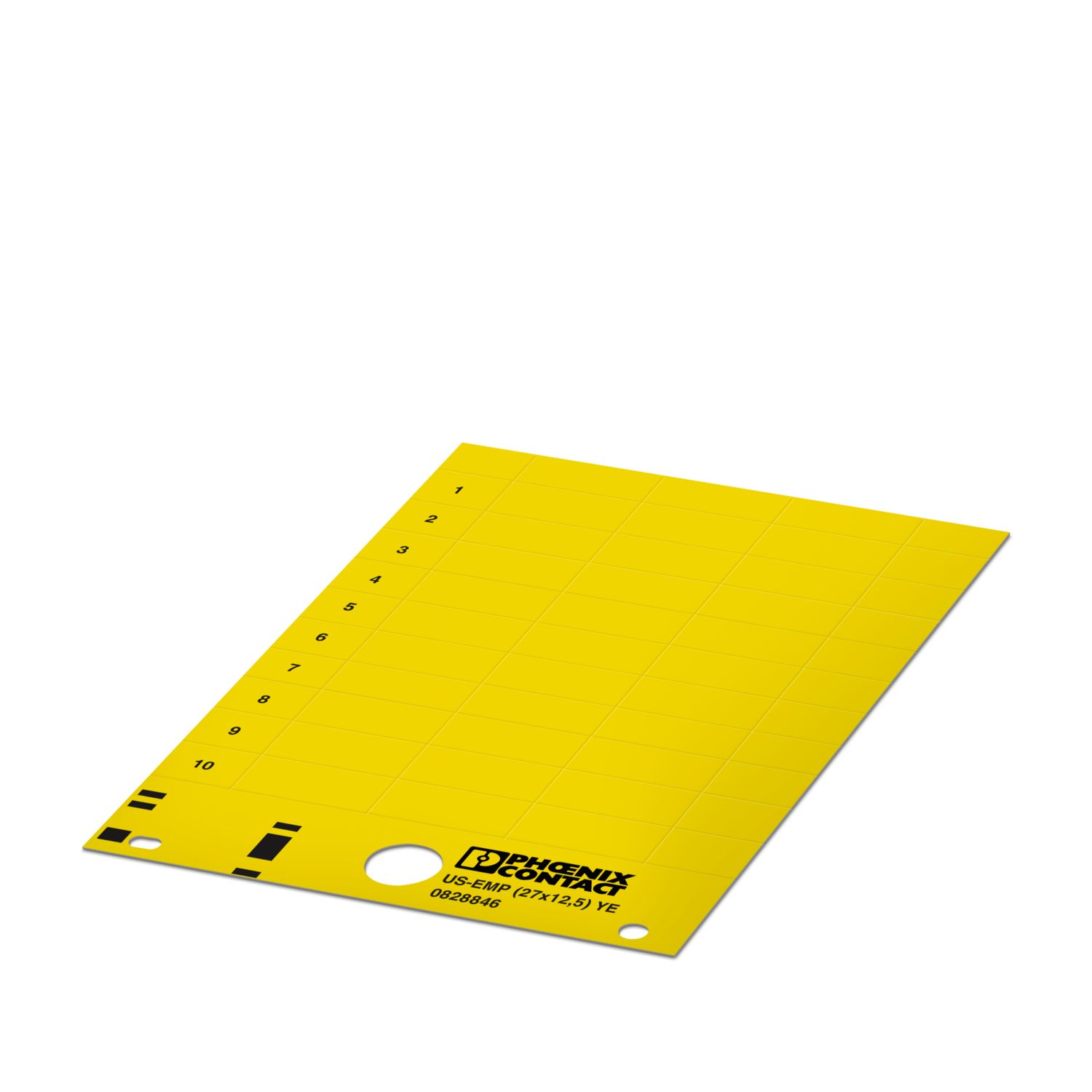

US-EMP (27X12,5) YE - Snap-in markers 0828846
-

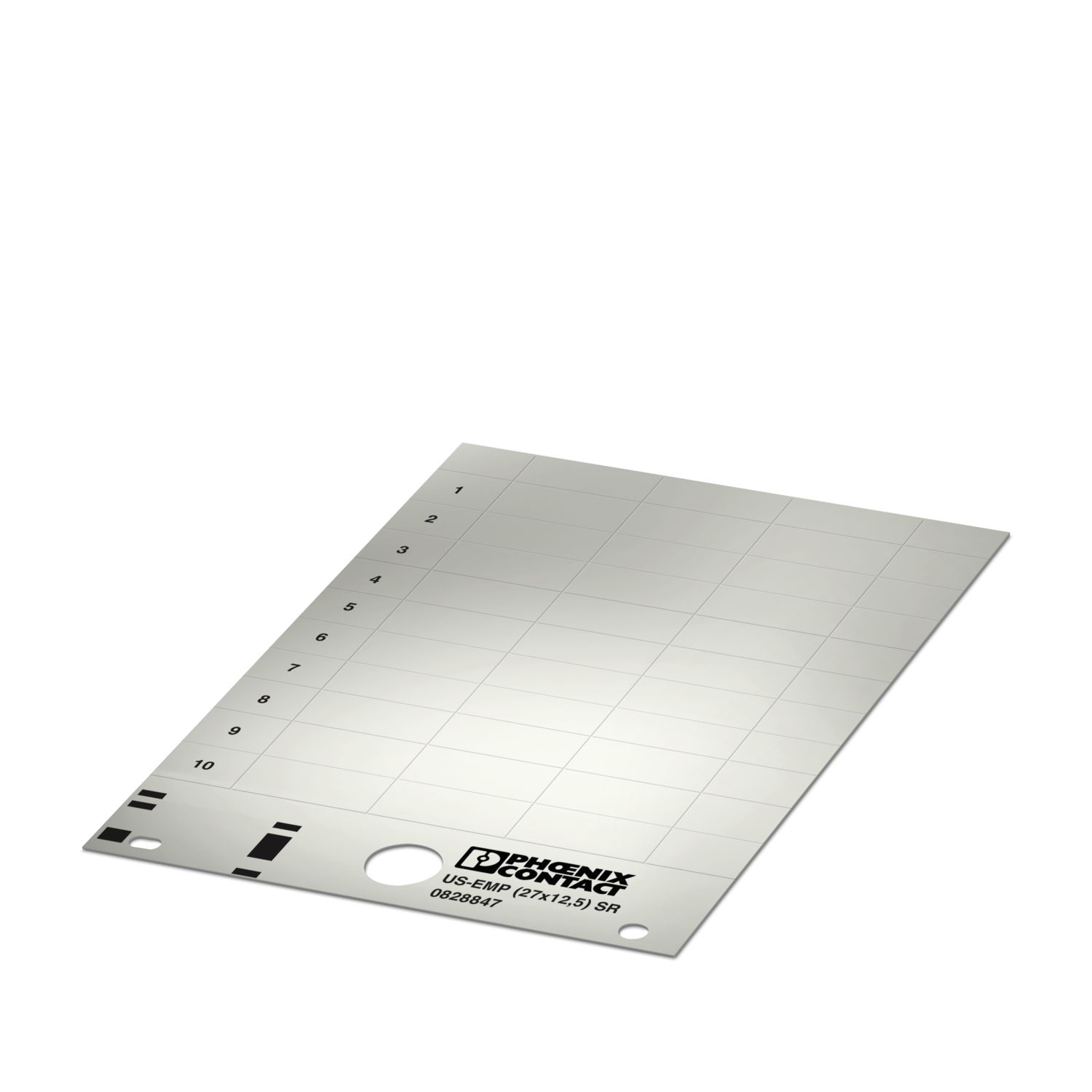

US-EMP (27X12,5) SR - Snap-in markers 0828847
-
US-EMP (27X15) - Snap-in markers 0828777
-
US-EMP (27X15) YE - Snap-in markers 0828848
-
US-EMP (27X15) SR - Snap-in markers 0828849
-

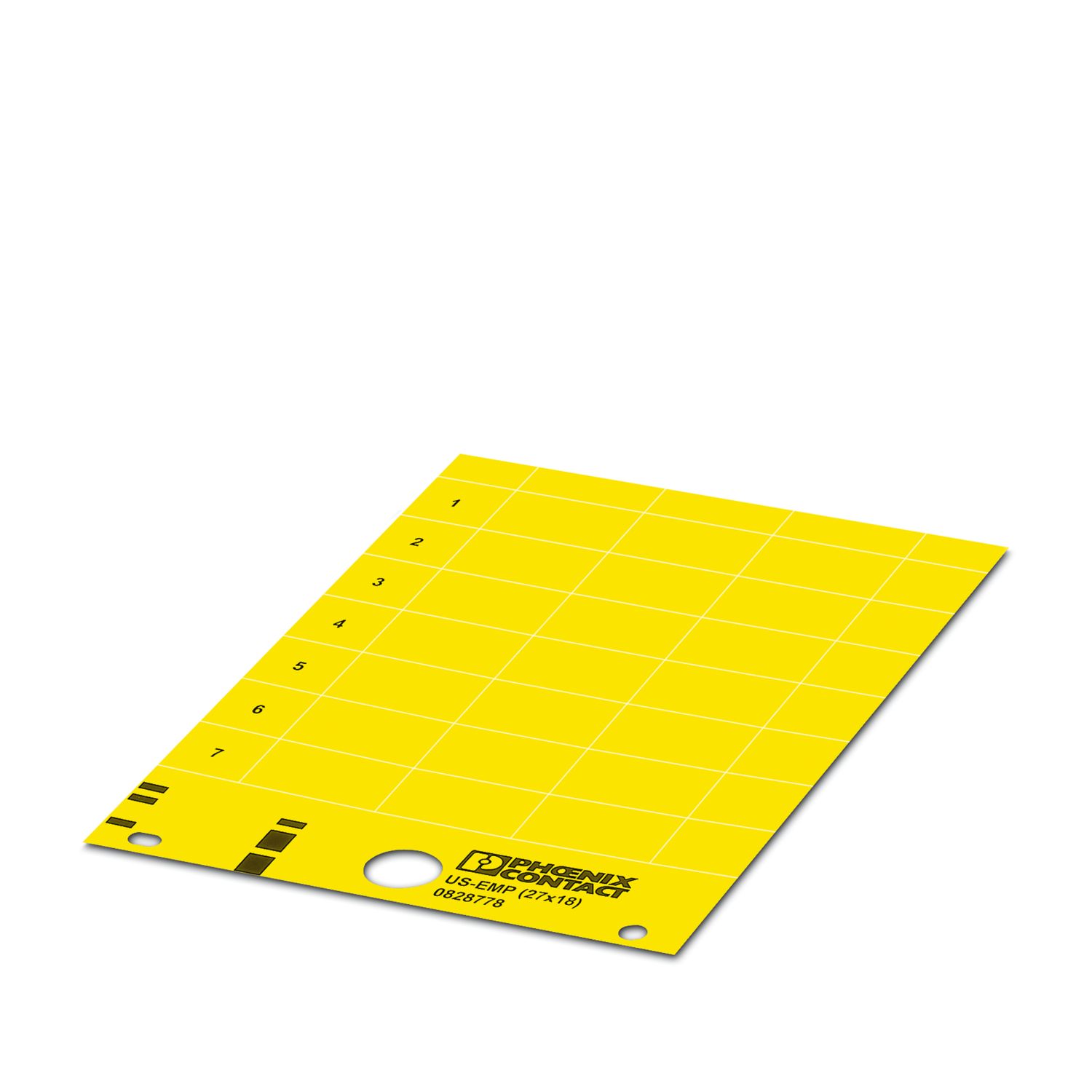

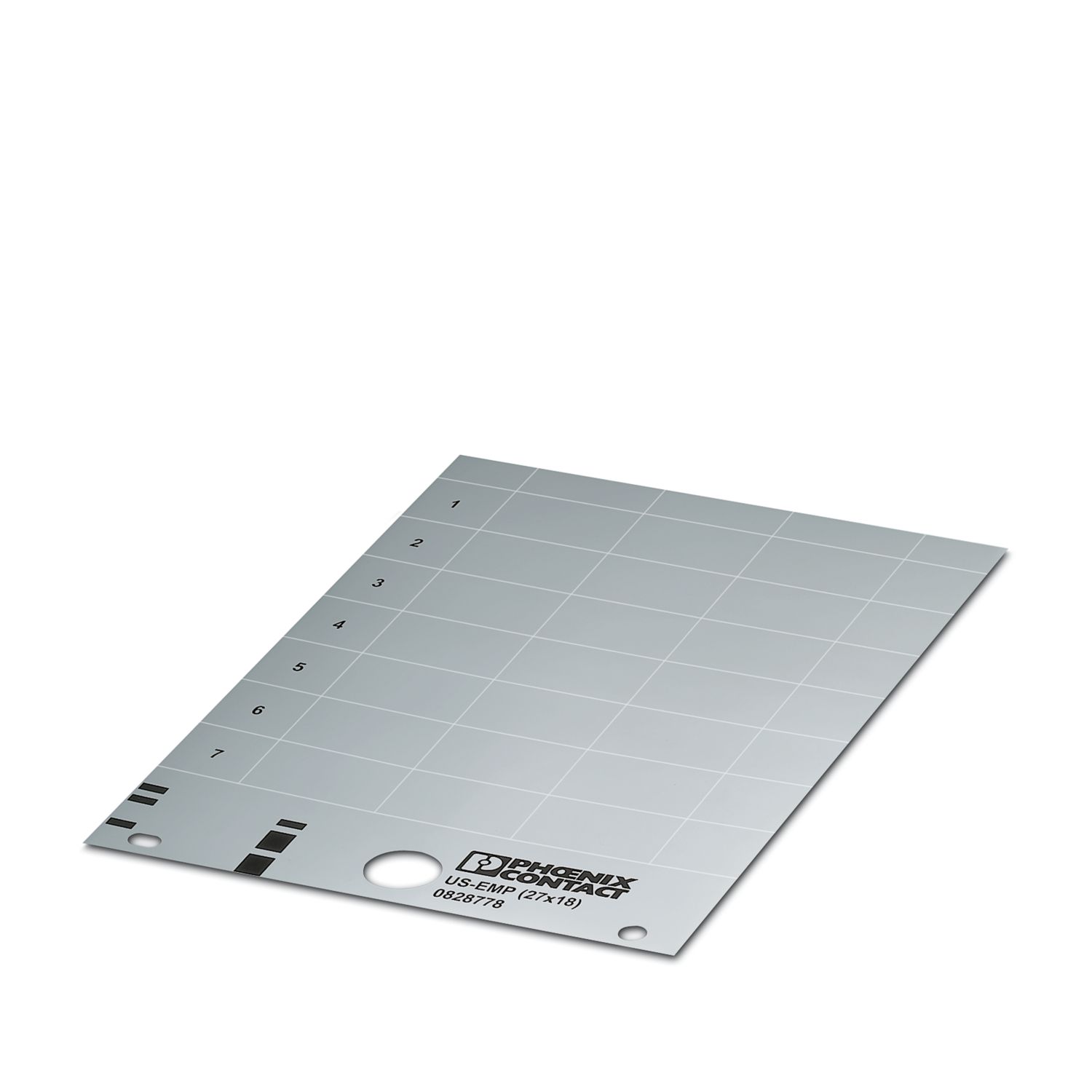

US-EMP (27X18) - Snap-in markers 0828778
-
US-EMP (27X18) YE - Snap-in markers 0828850
-
US-EMP (27X18) SR - Snap-in markers 0828851
-

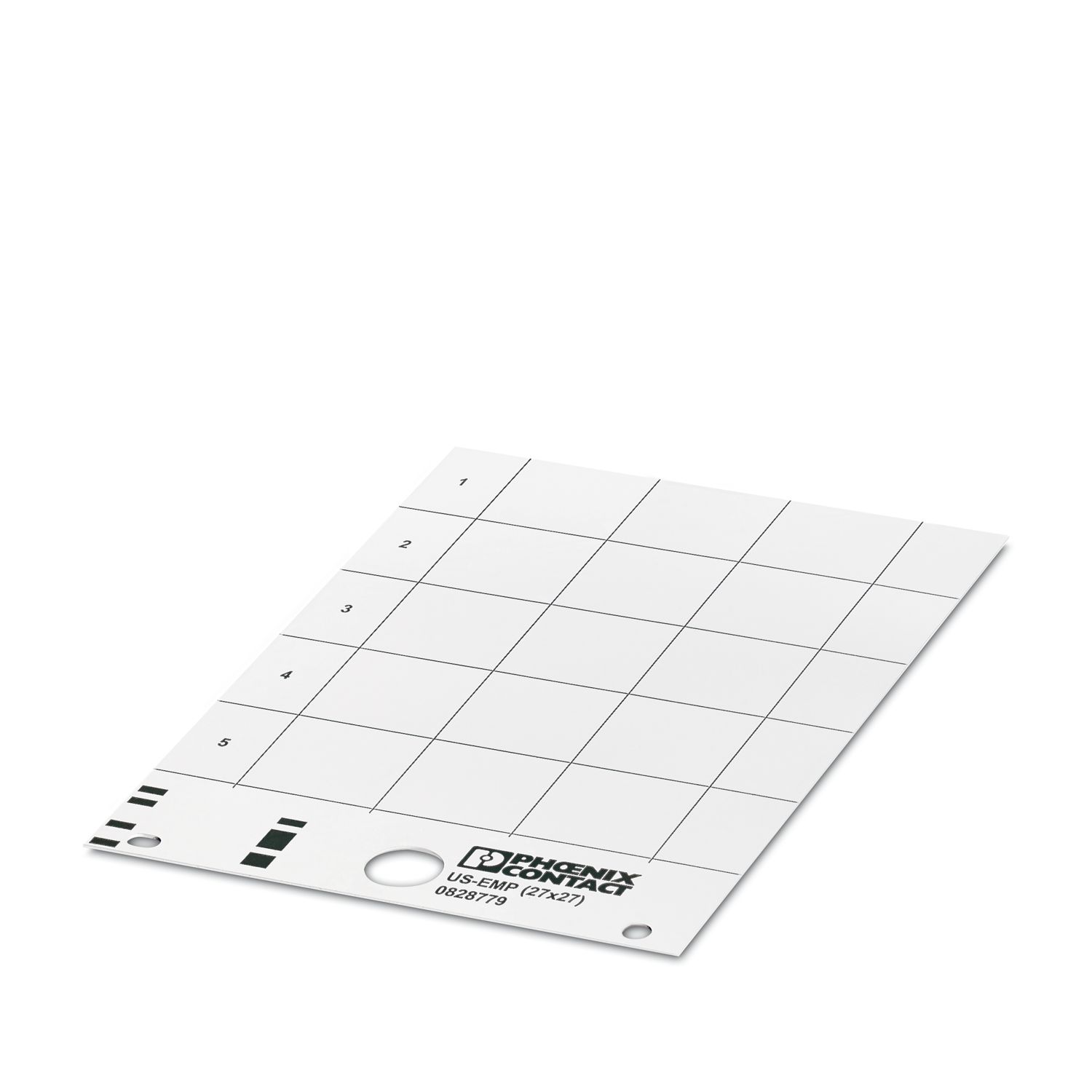

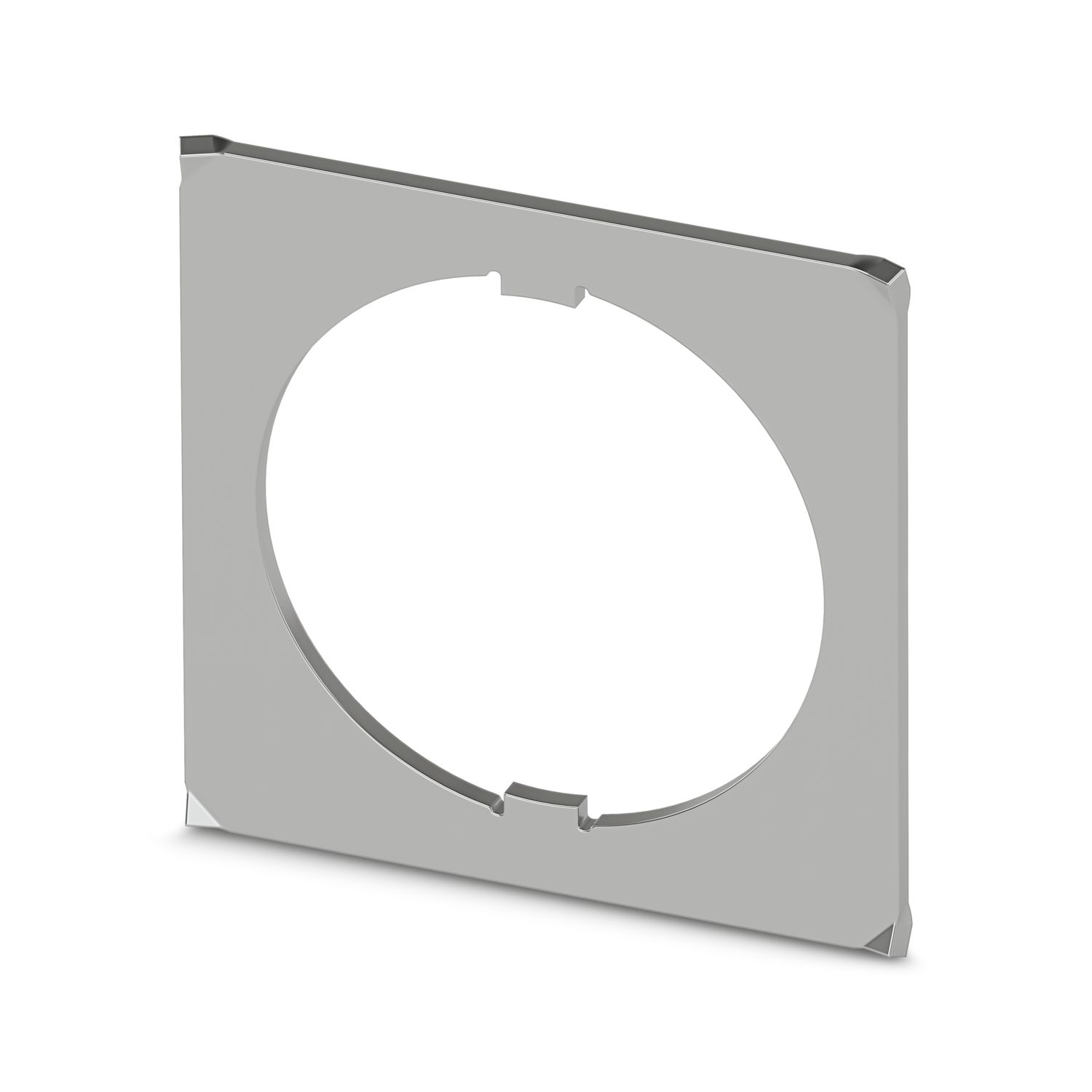

US-EMP (27X27) - Snap-in markers 0828779
-

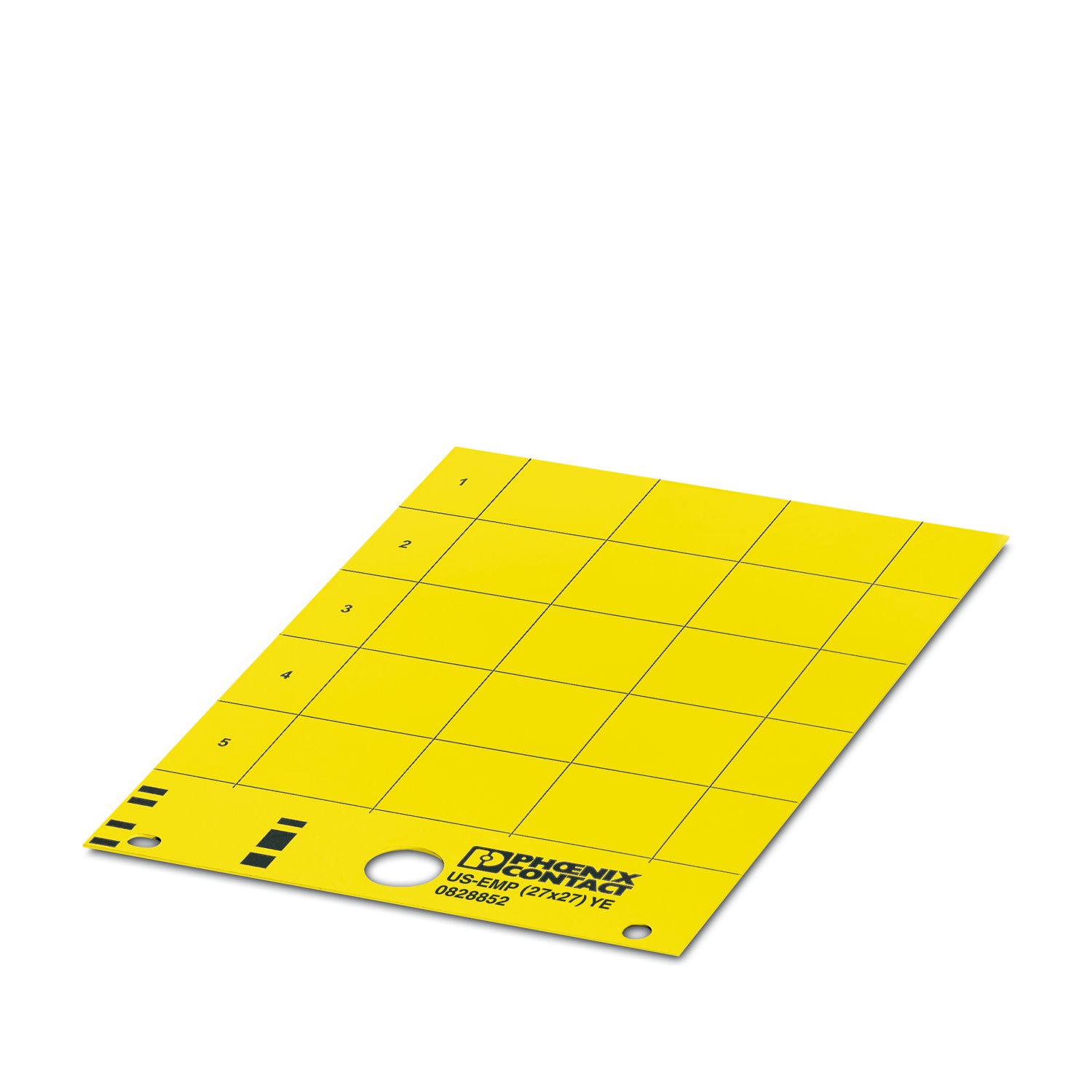

US-EMP (27X27) YE - Snap-in markers 0828852
-

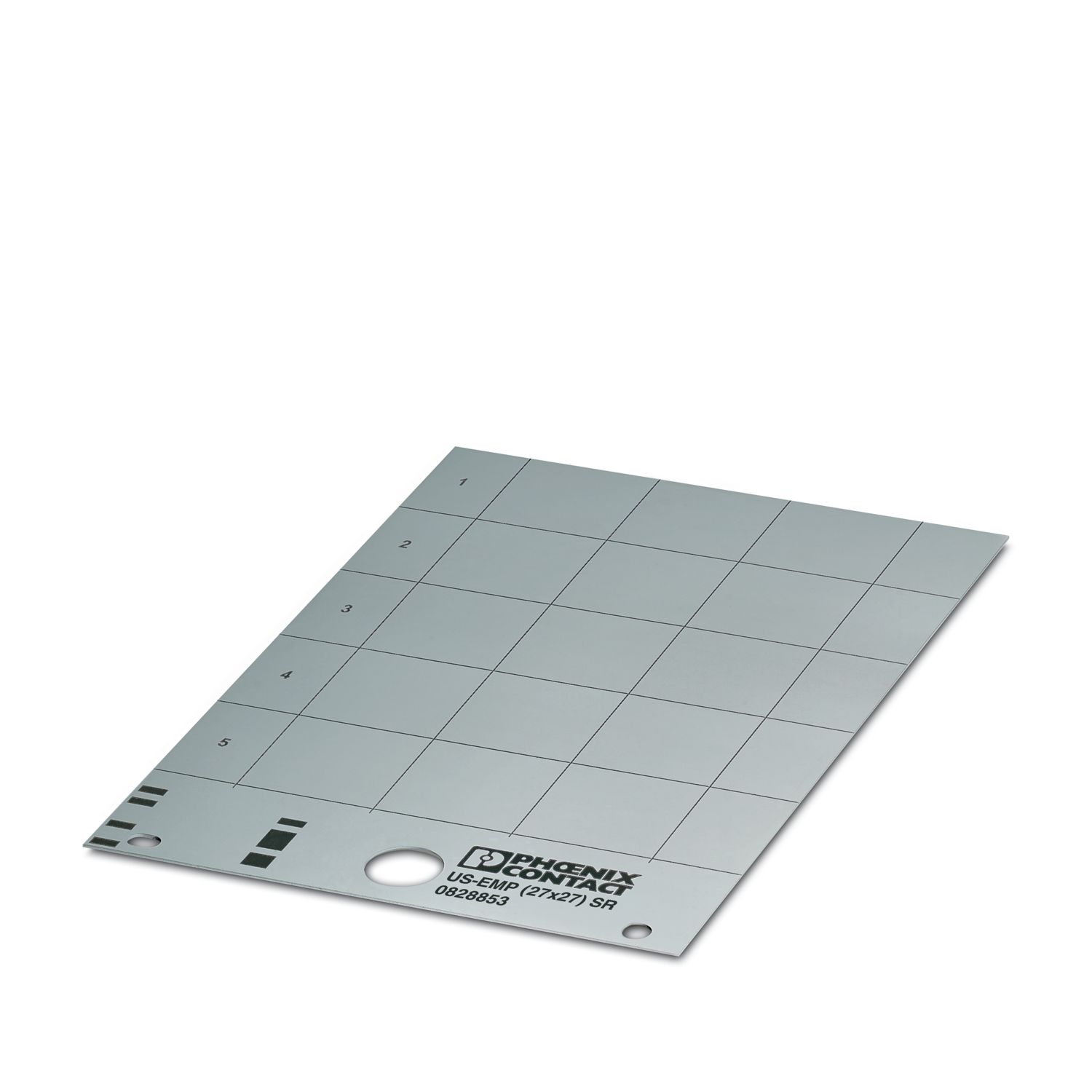

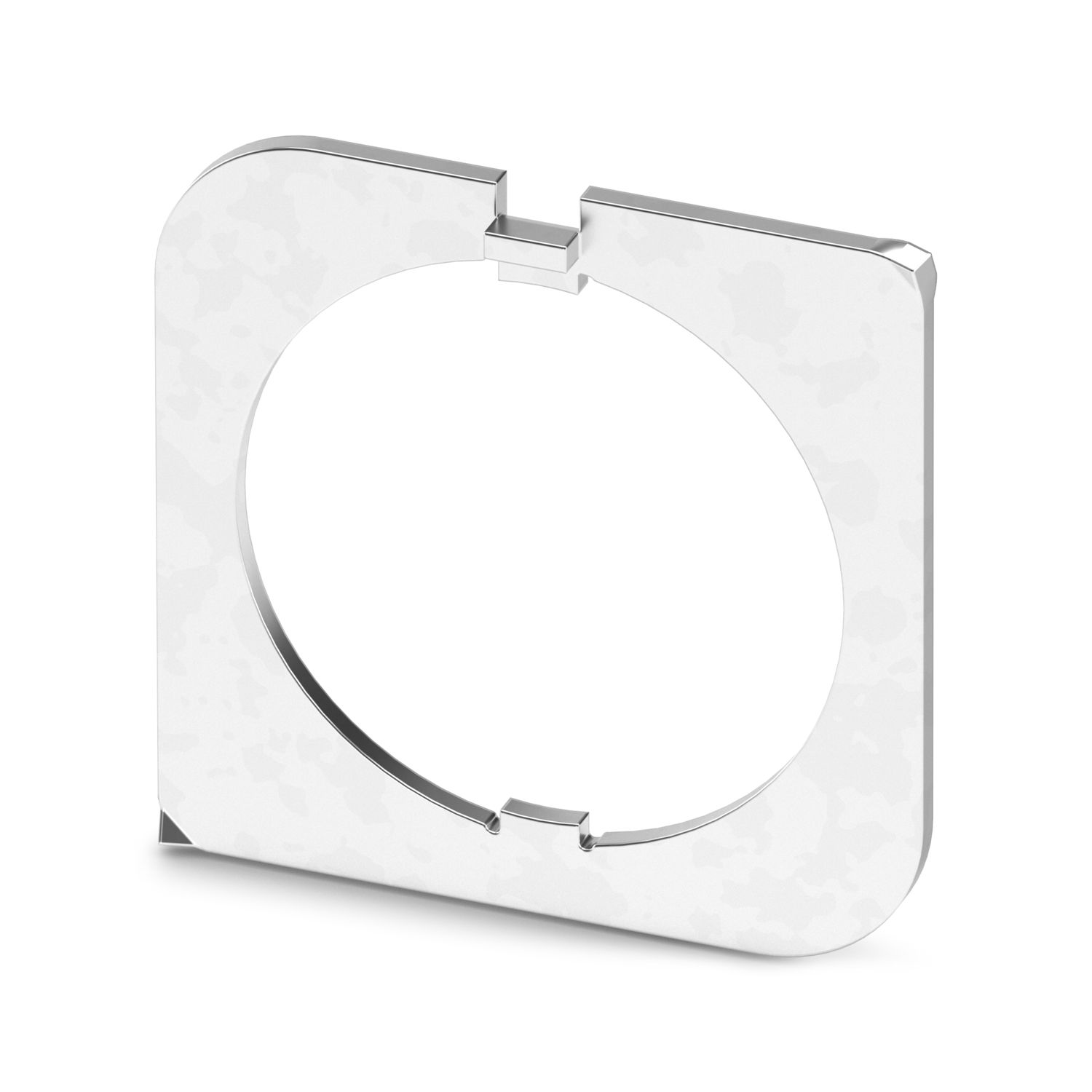

US-EMP (27X27) SR - Snap-in markers 0828853
-
