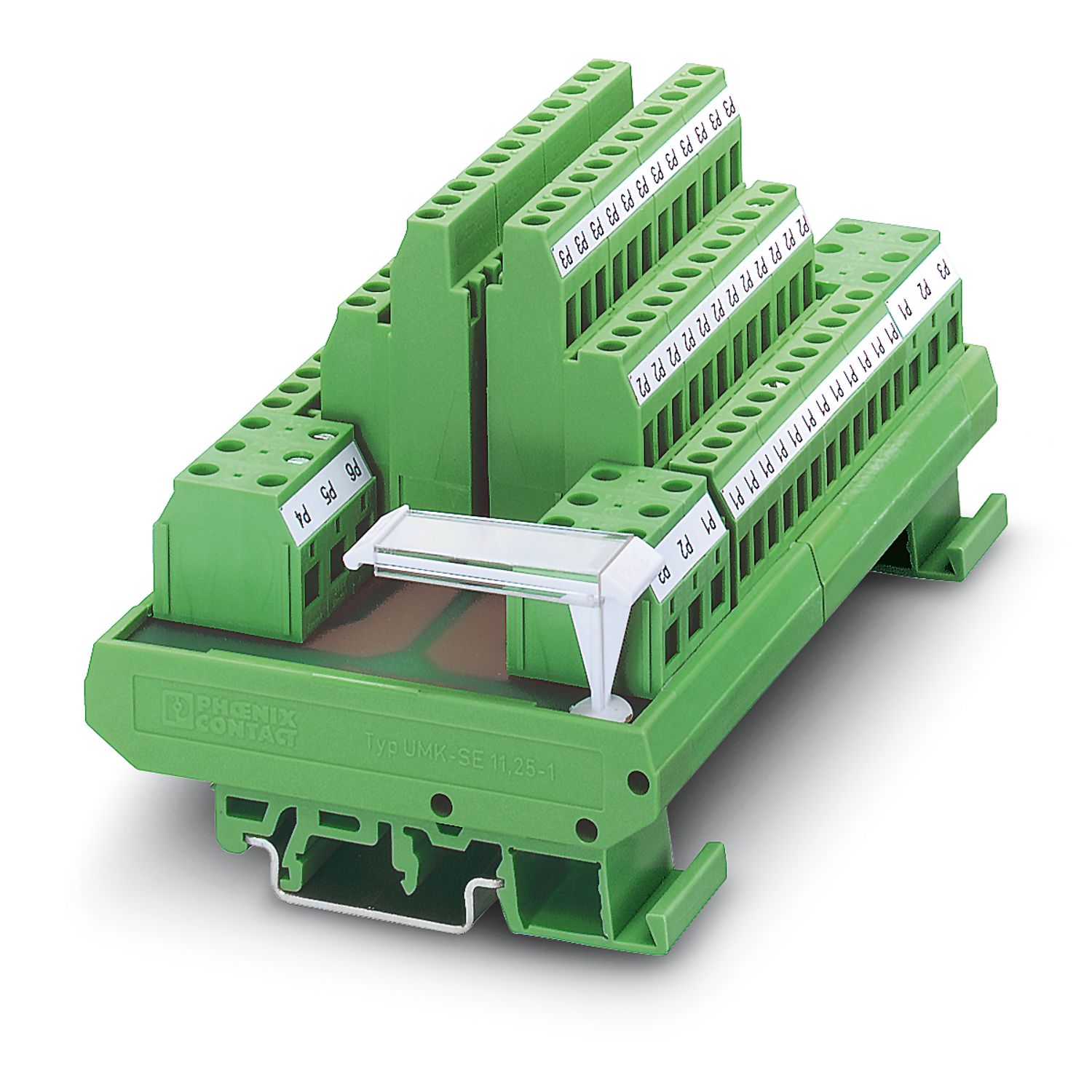

VARIOFACE module, with six equipotential busbars (P1, P2, P3, P4, P5, P6) for potential distribution, for mounting on NS 35/7.5 or NS 32
Product details
Notes on operation
The necessary requirements for insulation (basic insulation or reinforced insulation) from adjacent modules (in DIN-rail direction) must be realized by applying suitable measures (e. g., partition plates).
Notes on operation
Ensure that the supply voltage of the device has a common reference potential.
Notes on operation
For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met.
Product type
Potential distributor
Product family
VARIOFACE
Potential connections

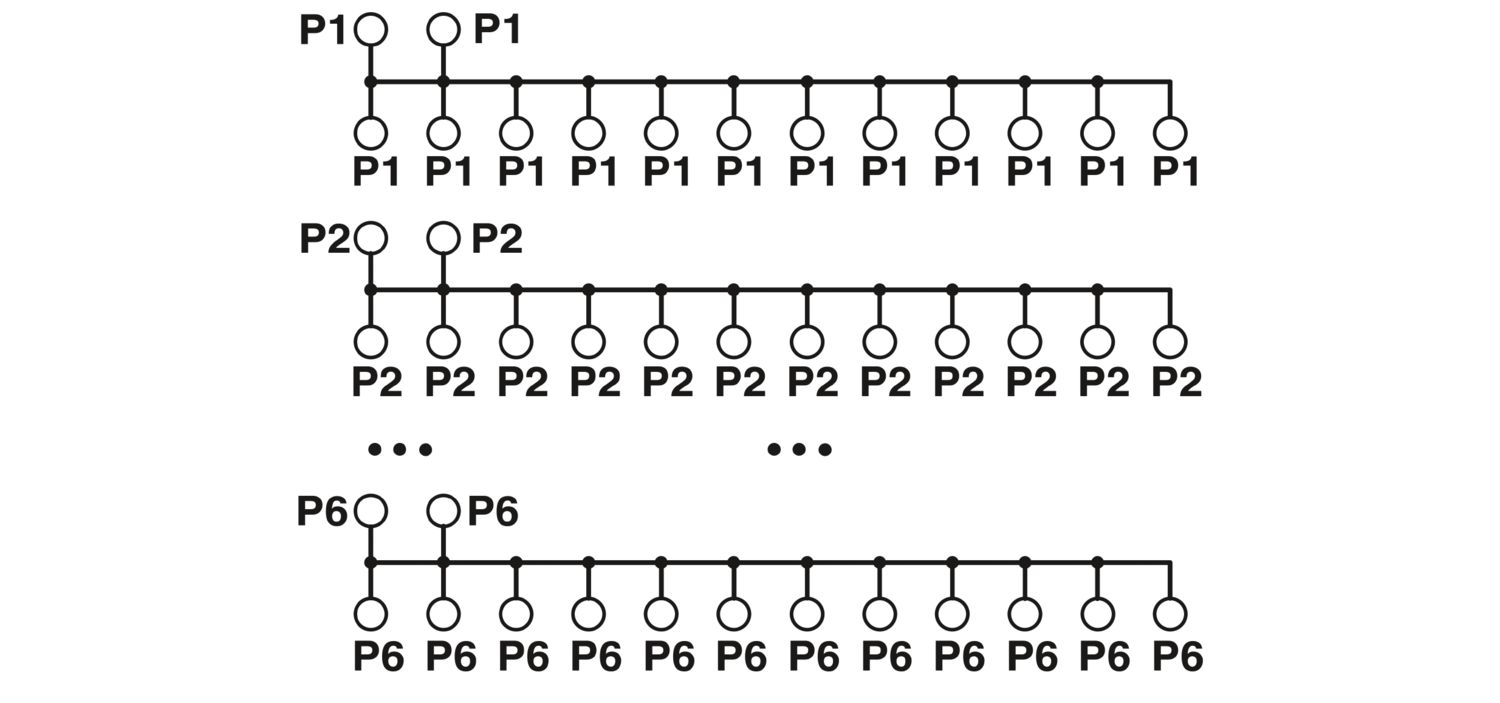

Per potential (P1...P6) 2 power/12 distributor terminal blocks
Insulation characteristics
Insulation
Functional insulation
Pollution degree
2
Nominal voltage UN
250 V AC/DC
Max. current carrying capacity per branch
16 A
Max. total current of all branches
16 A (per potential)
Rated insulation voltage
250 V
Rated surge voltage
2.5 kV
Potential connections
Per potential (P1...P6) 2 power/12 distributor terminal blocks
