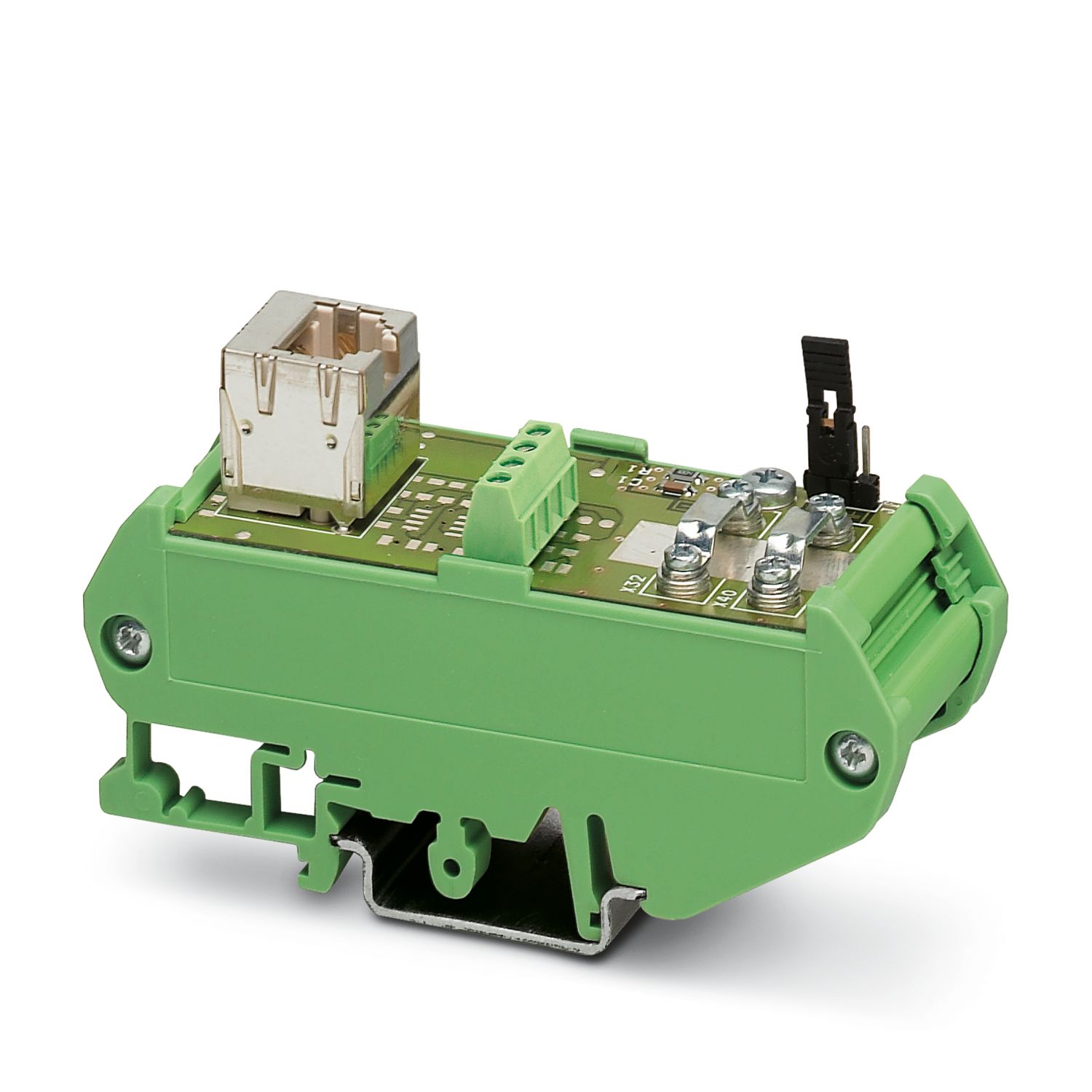

VS-PP-PN-R-1XRJ45/5-SC
-
Patch panel
1658587
Patch panel for PROFINET, RJ45, DIN rail mounting, IP20, 1 slot, screw connection, CAT5e, option of shielding via jumpers
Product details
| Product type | Patch panel |
| Number of positions | 4 |
| No. of cable outlets | 1 |
| Number of slots | 1 |
| Rated voltage (III/3) | 60 V |
| Rated current | 1 A |
| Transmission characteristics (category) | CAT5 (IEC 11801:2002) |
| Connection method | Screw connection |

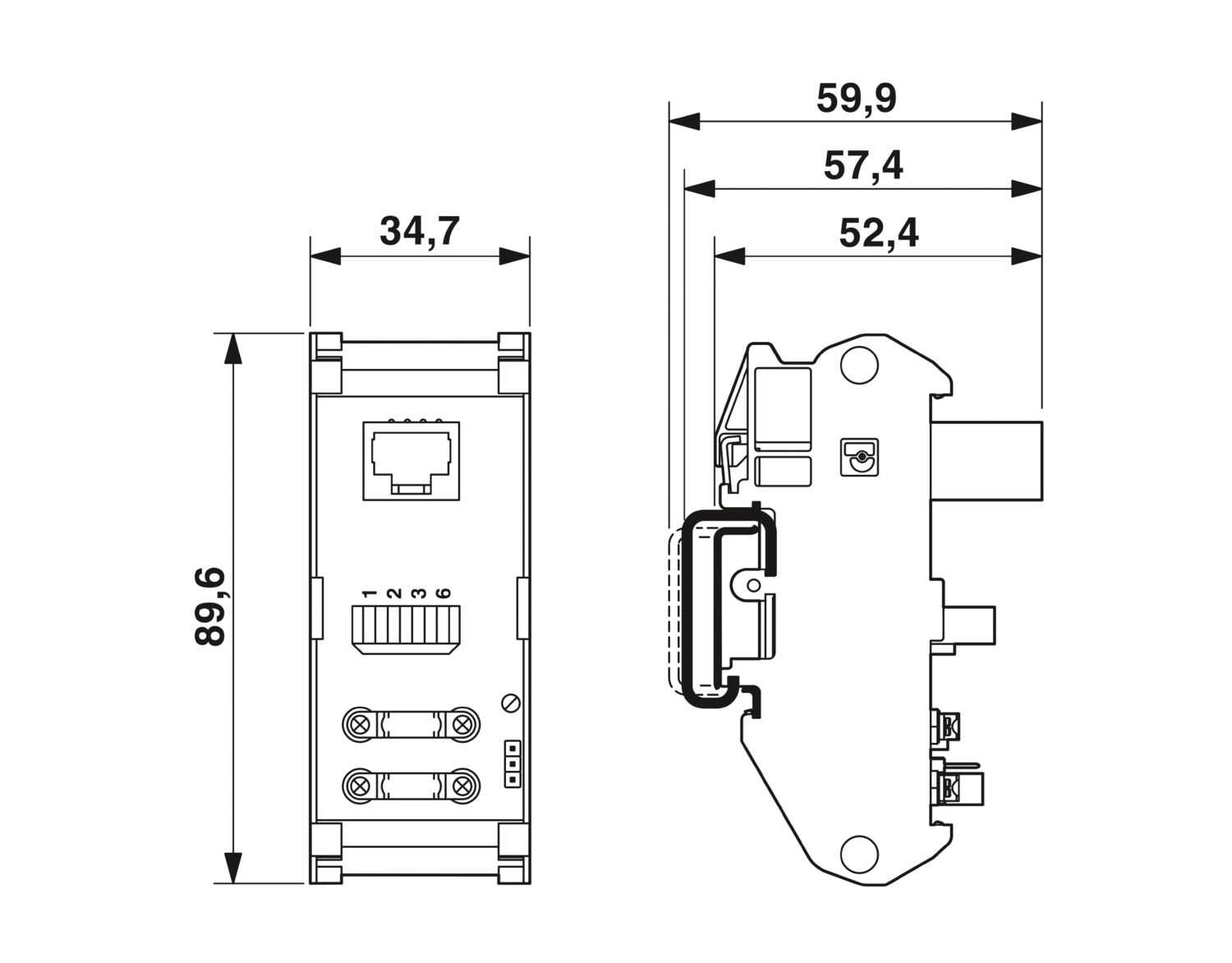

| Dimensional drawing |
|
| Width | 34.7 mm |
| Height | 52 mm |
| Length | 89.6 mm |
| Color | green |
| Flammability rating according to UL 94 | V0 |
| Housing material | PC |
| Contact material | Copper alloy |
| Contact surface material | Gold over nickel |
| Contact carrier material | PBT |
| External cable diameter | 5 mm ... 8.5 mm |
| Mechanical data | |
| Insertion/withdrawal cycles | ≥ 200 |
| Ambient conditions | |
| Degree of protection | IP20 |
| Ambient temperature (operation) | 0 °C ... 70 °C |
