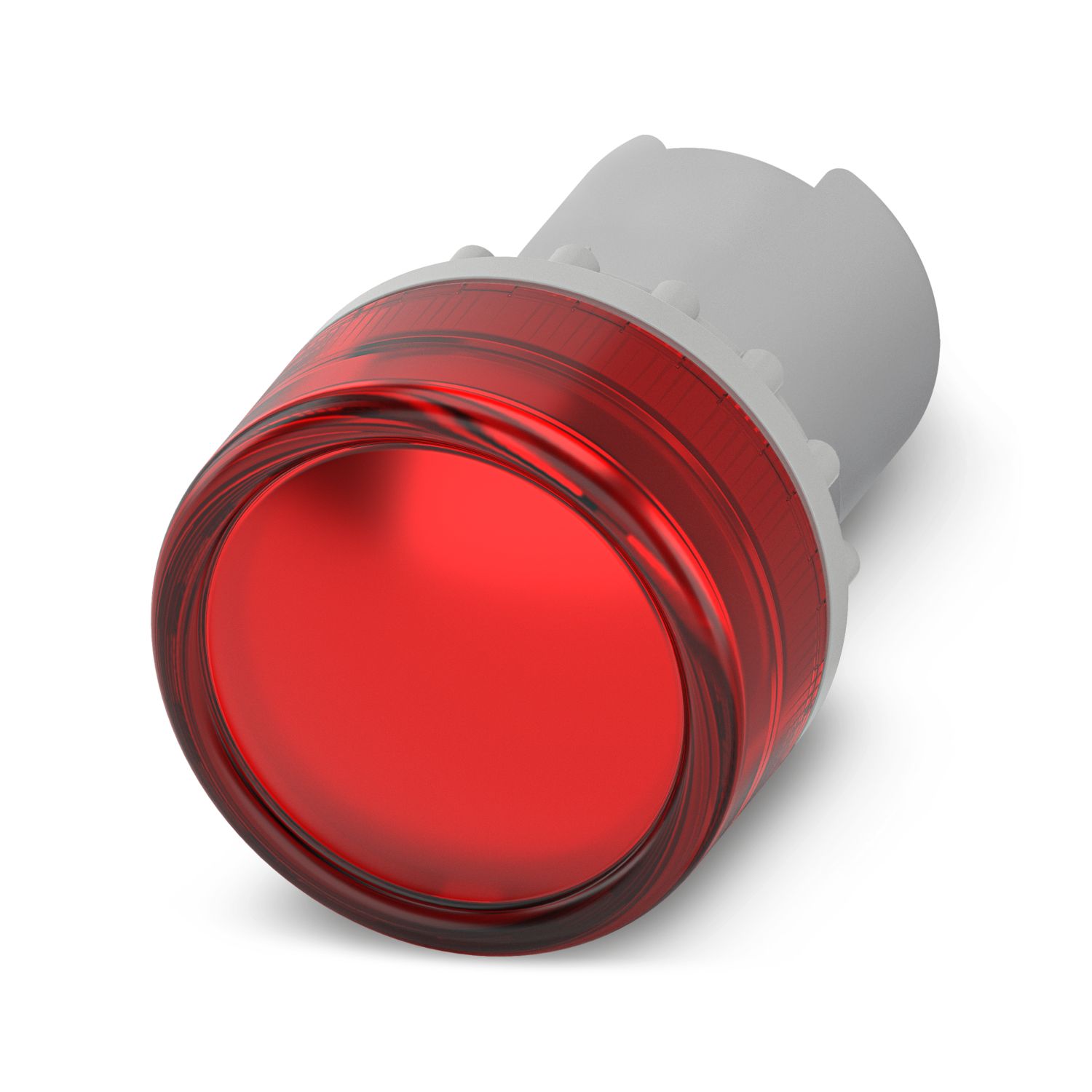

Indicator, 22 mm, round, red, LED integrated, AC/DC 24 ... 240 V, PT Push-in connection
Product details
Insulation characteristics
Overvoltage category
III
Degree of pollution
3
Rated insulation voltage
300 V
Rated surge voltage
4 kV
LED voltage range
24 V AC/DC ... 240 V AC/DC +10 %
Stripping length
8 mm
Conductor cross section rigid
0.5 mm² ... 2.5 mm²
Conductor cross section flexible
0.5 mm² ... 1.5 mm²
Conductor cross section, flexible [AWG]
20 ... 16 (converted acc. to IEC)
2 conductors with same cross section, solid
0.5 mm² ... 2.5 mm²
2 conductors with the same cross-section AWG rigid
20 ... 16 (converted acc. to IEC)
2 conductors with same cross section, flexible
0.5 mm² ... 1.5 mm²
2 conductors with the same cross-section AWG flexible
20 ... 16 (converted acc. to IEC)
2 conductors with the same cross section, flexible, with ferrule with plastic sleeve
0.5 mm² ... 1.5 mm²
Nominal current
25 mA (Green)
Nominal voltage
300 V AC/DC
Width
30 mm
Height
30 mm
Installation dimensions
Installation depth
28.2 mm
Color
red
Material
PA
Degree of protection (IP code)
Degree of protection
IP66
Ambient conditions
Ambient temperature (operation)
-25 °C ... 70 °C
Ambient temperature (storage/transport)
-30 °C ... 85 °C
Permissible humidity (operation)
≤ 95 % ((room temperature 25℃) no condensation)
Standards/specifications
IEC 60947-5-1
GB 14048.5
UL 60947-5-1
Mounting type
Panel mount
Item number
1109035
Packing unit
1 pc
Minimum order quantity
1 pc
Note
Made to order (non-returnable)
Sales key
*****
Product key
BE6122
GTIN
4063151019310
Weight per piece (including packing)
18.8 g
Weight per piece (excluding packing)
16.8 g
Country of origin
CN
ECLASS
ECLASS-13.0
27371302
ECLASS-15.0
27371302
cULus Listed
Approval ID: E172140
EU RoHS
Fulfills EU RoHS substance requirements
Yes
Exemption
7(a), 7(c)-I
China RoHS
Environment friendly use period (EFUP)
EFUP-50
An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration". For all articles with EFUP-E, no China RoHS declaration table issued and required.
