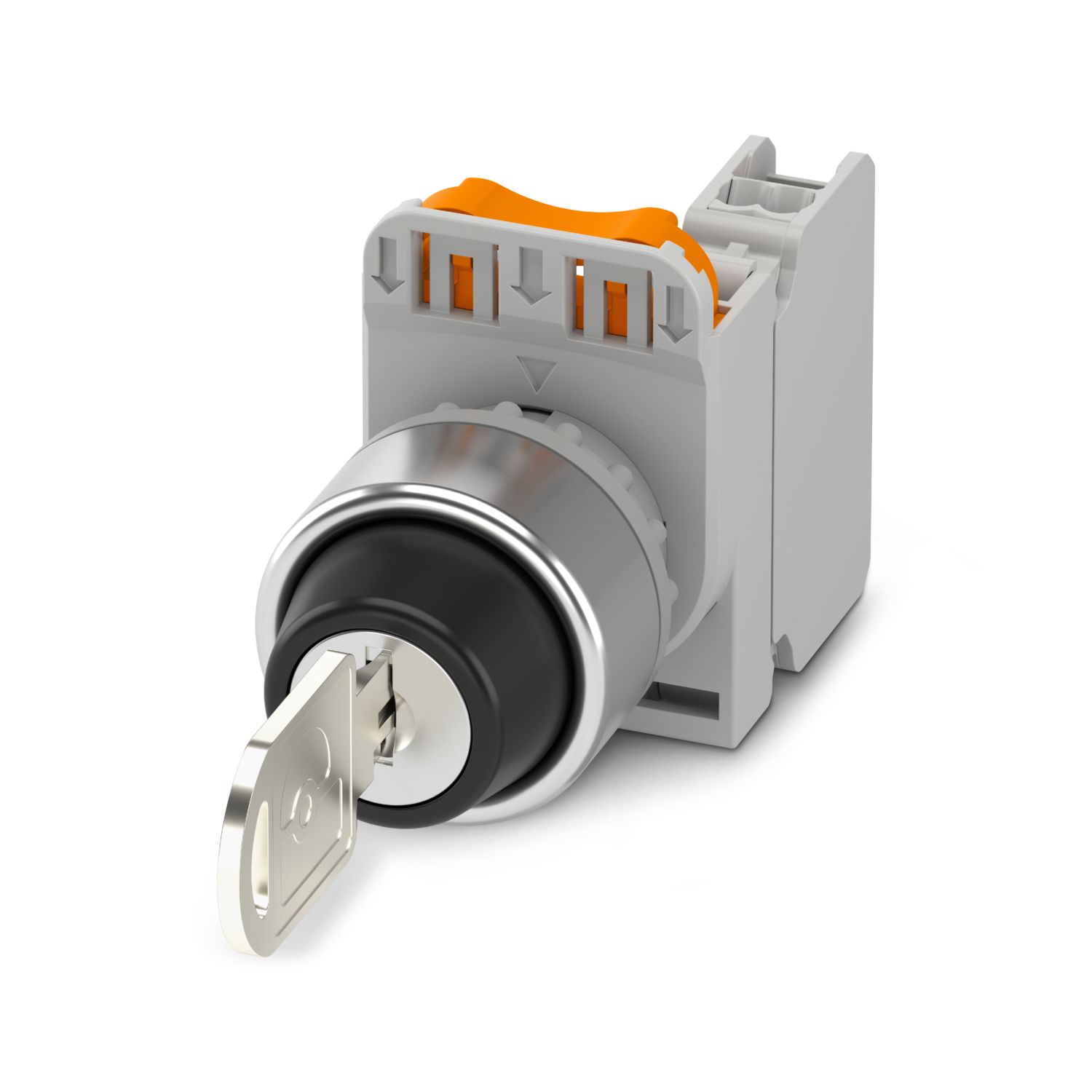

Key switch, 22 mm, circular, 2 switch positions, automatic reset, including a button head with 2 keys, module holder and 1 N/O contact module using push-in connection technology
Product details
Insulation characteristics
Overvoltage category
III
Degree of pollution
3
Rated insulation voltage
600 V
Rated surge voltage
6 kV
Stripping length
8 mm
Conductor cross section rigid
0.5 mm² ... 2.5 mm²
Conductor cross section flexible
0.5 mm² ... 1.5 mm²
Conductor cross section, flexible [AWG]
20 ... 16 (converted acc. to IEC)
2 conductors with same cross section, solid
0.5 mm² ... 2.5 mm²
2 conductors with the same cross-section AWG rigid
20 ... 16 (converted acc. to IEC)
2 conductors with same cross section, flexible
0.5 mm² ... 1.5 mm²
2 conductors with the same cross-section AWG flexible
20 ... 16 (converted acc. to IEC)
2 conductors with the same cross section, flexible, with ferrule with plastic sleeve
