ILB ETH 24 DI16 DIO16-2TX
-
I/O module
2832962
Inline, Block IO, Ethernet, RJ45 jack, Digital inputs: 32, 24 V DC, connection technology: 3-conductor, Digital outputs: 16, 24 V DC, connection technology: 2-conductor, degree of protection: IP20, including Inline connector
Free download available.
Downloads
Product details

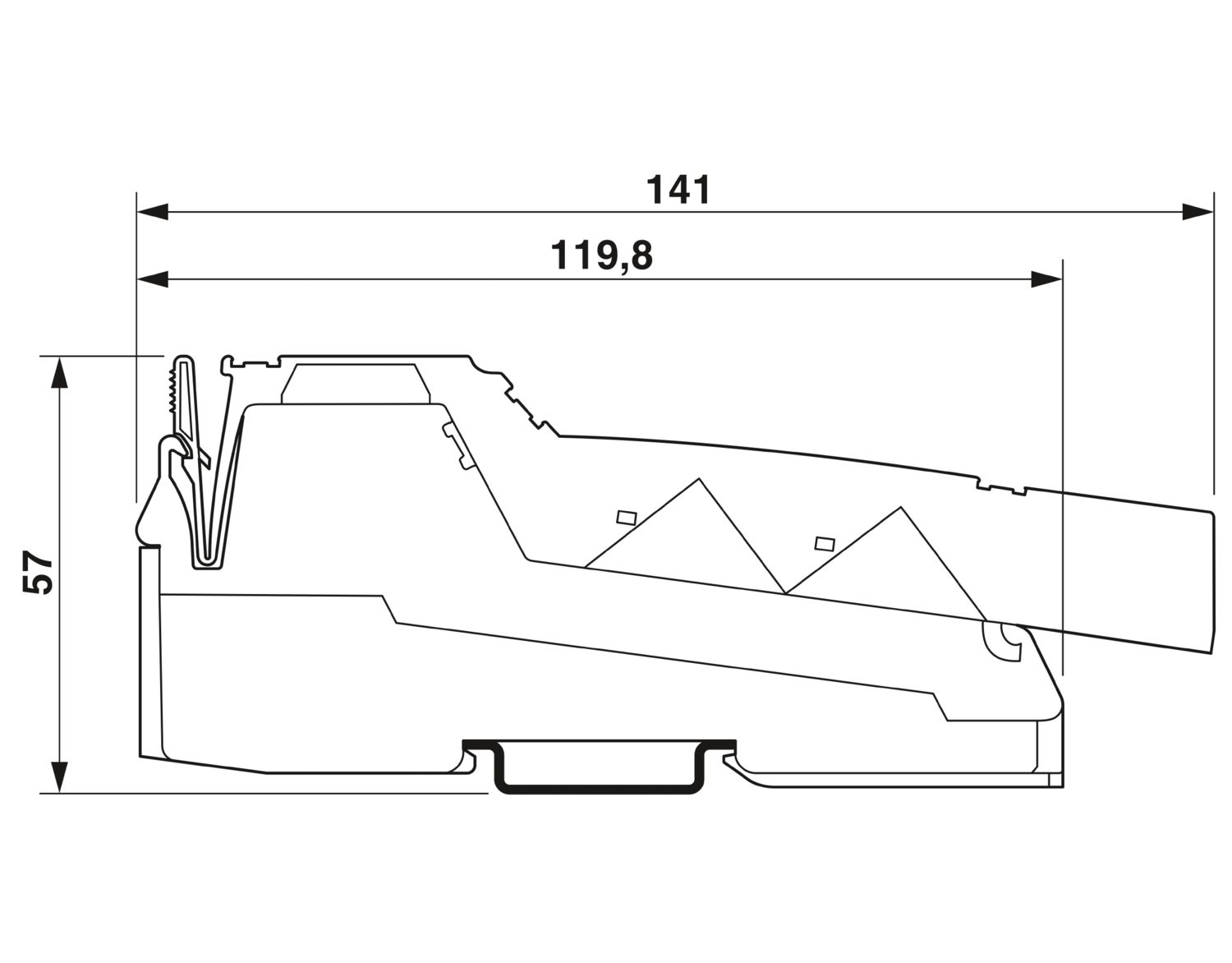

| Dimensional drawing |
|

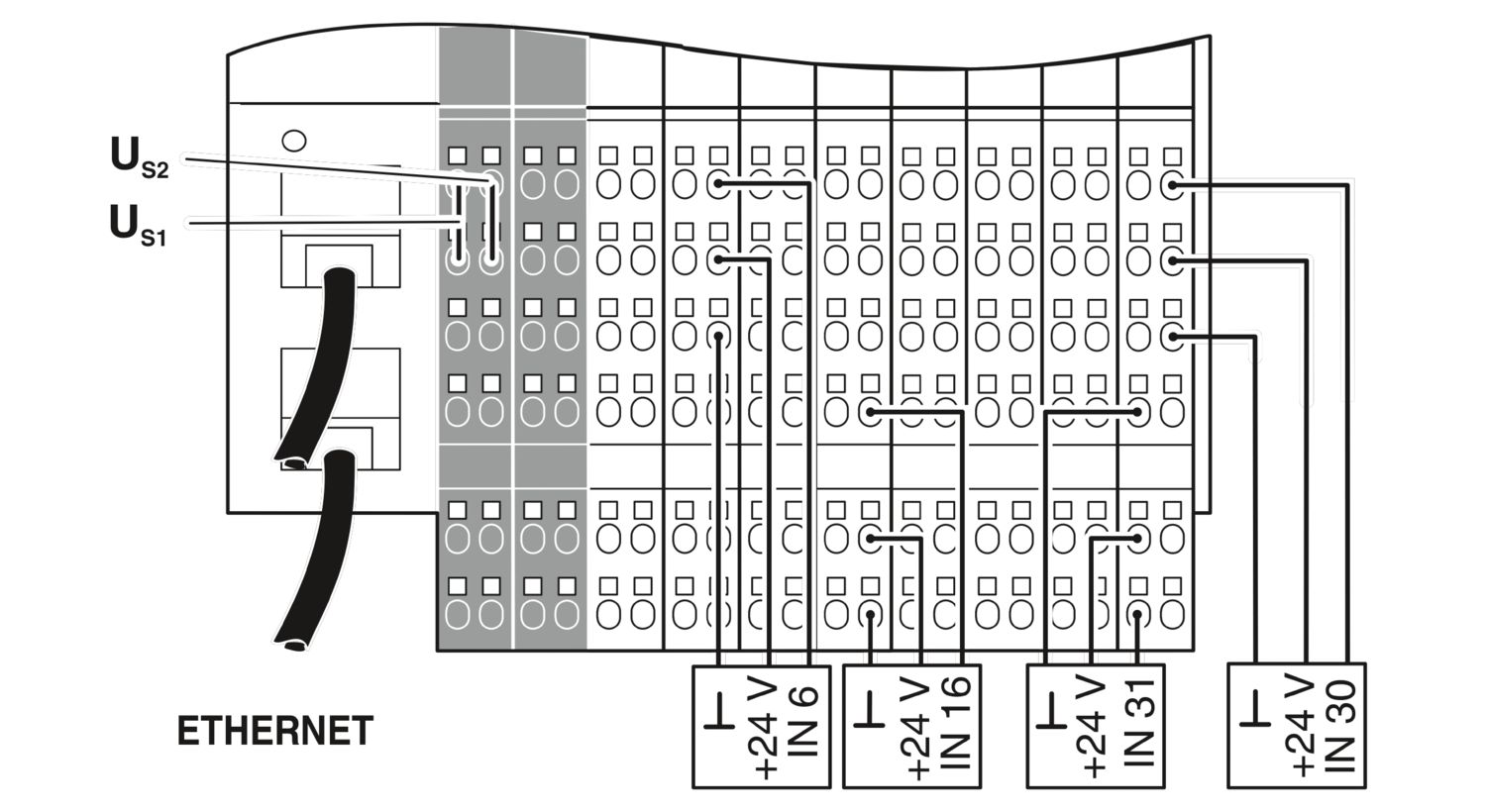

| Width | 156 mm |
| Height | 141 mm |
| Depth | 57 mm |
| Note on dimensions | Specfications with connectors |
| Utilization restriction | |
| CCCex note | Use in potentially explosive areas is not permitted in China. |
| Ethernet | |
| No. of channels | 2 |
| Connection method | RJ45 jack |
| Transmission speed | 10/100 Mbps (with auto negotiation) |
| Transmission physics | Copper |
| Digital: | |
| Input name | Digital inputs |
| Description of the input | 16 fixed and 16 freely selectable |
| Number of inputs | 32 |
| Connection method | Spring-cage connection |
| Connection technology | 3-conductor |
| Nominal input voltage UIN | 24 V DC |
| Nominal input current at UIN | typ. 5 mA |
| Typical response time | approx. 500 µs |
| Delay at signal change from 0 to 1 | 500 µs |
| Protective circuit | Short-circuit protection, overload protection of the sensor supply |
| Digital: | |
| Output name | Digital outputs |
| Connection method | Spring-cage connection |
| Connection technology | 2-conductor |
| Number of outputs | 16 |
| Protective circuit | Short-circuit and overload protection |
| Maximum output current per channel | 500 mA |
| Nominal output voltage | 24 V DC |
| Product type | I/O component |
| Product family | Inline |
| Type | Block design |
| Scope of supply | including Inline connector |
| No. of channels | 32 |
| Diagnostics messages | Short-circuit or overload of the digital outputs Message in the diagnostics register |
| Short-circuit, sensor supply Message in the diagnostics register | |
| Undervoltage Power supply for sensors Message in the diagnostics register |
| Potentials: Communications power (UL) | |
| Supply voltage | 24 V DC |
| Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) |
| Current draw | 70 mA |
| Potentials: Sensor supply (US1) | |
| Supply voltage | 24 V DC |
| Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) |
| Current draw | 4 A |
| Potentials: Sensor supply (US2) | |
| Supply voltage | 24 V DC |
| Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) |
| Current draw | 4 A |
| Potentials: Power supply to the actuator (UA1) | |
| Supply voltage | 24 V DC |
| Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) |
| Current draw | 4 A |
| Potentials: Power supply to the actuator (UA2) | |
| Supply voltage | 24 V DC |
| Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) |
| Current draw | 4 A |
| Potentials | |
| Current draw | 70 mA |
| Electrical isolation/isolation of the voltage ranges | |
| Test voltage: I/O / Logic | 500 V AC, 50 Hz, 1 min |
| Test voltage: I/O area / FE | 500 V AC, 50 Hz, 1 min |
| Test voltage: Logic / FE | 500 V AC, 50 Hz, 1 min |
| Connection technology | |
| Connection name | Inline connector |
| Conductor connection | |
| Connection method | Spring-cage connection |
| Conductor cross section rigid | 0.08 mm² ... 1.5 mm² |
| Conductor cross section flexible | 0.08 mm² ... 1.5 mm² |
| Conductor cross section AWG | 28 ... 16 |
| Stripping length | 8 mm |
| Inline connector | |
| Connection method | Spring-cage connection |
| Conductor cross section, rigid | 0.08 mm² ... 1.5 mm² |
| Conductor cross section, flexible | 0.08 mm² ... 1.5 mm² |
| Conductor cross section AWG | 28 ... 16 |
| Stripping length | 8 mm |
| Ambient conditions | |
| Ambient temperature (operation) | -25 °C ... 60 °C |
| Degree of protection | IP20 |
| Air pressure (operation) | 80 kPa ... 108 kPa (up to 2000 m above sea level) |
| Air pressure (storage/transport) | 66 kPa ... 108 kPa (up to 3500 m above sea level) |
| Ambient temperature (storage/transport) | -25 °C ... 85 °C |
| Permissible humidity (operation) | max. 85 % (non-condensing) |
| Noise emission | Industrial environment |
| Mounting type | NS 35/7,5 |
| DIN rail mounting |
