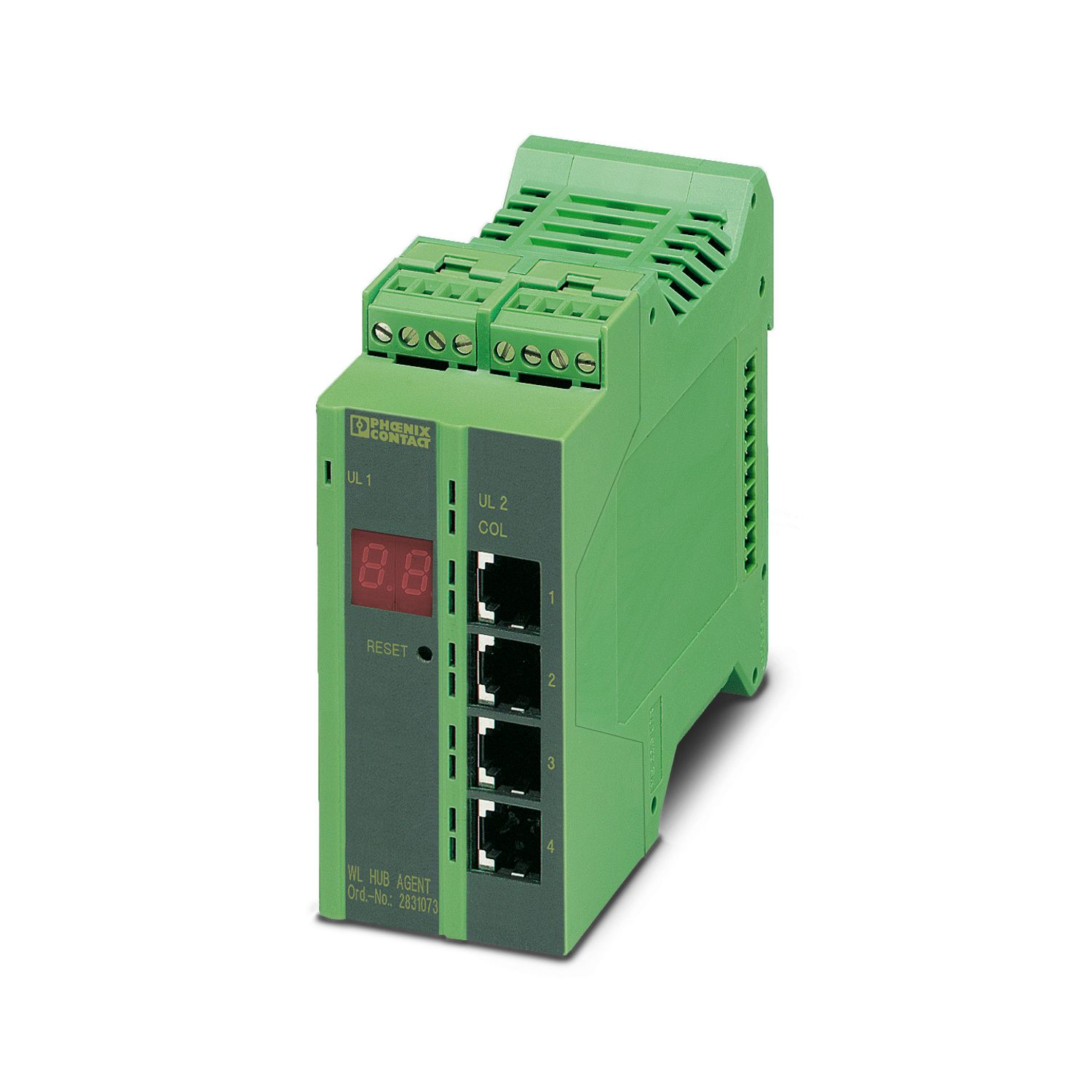

FL HUB AGENT - Hub

FL HUB AGENT - Hub

2831073

Management head station (Agent), with four 10Base-T ports for the modular hub system

Free download available. Downloads

Product details

Expand all Collapse all

Technical data

Product properties

Type	Stand-alone
Operating mode	Semi-duplex
Basic functions	Hub/Repeater, comply with IEEE 802.3, TCP/IP protocol, Boot-P and TFTP-capable
Insulation characteristics
Protection class	III (IEC 61140, EN 61140, VDE 0140-1)

System properties

Functionality
Basic functions	Hub/Repeater, comply with IEEE 802.3, TCP/IP protocol, Boot-P and TFTP-capable
System requirements
Supported browsers	Netscape Communicator versions 4.5 and up or Internet Explorer versions 4.01 and up

Electrical properties

Electrical isolation	10Base-T// supply
Power consumption	typ. 5.5 W
Local diagnostics	UL Supply voltage Green LED
		COL Telegram collisions LED red
		- Link status Green LED
		- Telegrams received Yellow LED
Maximum power dissipation for nominal condition	5.2 W
Test section	500 V AC 50 Hz 1 min
Transmission medium	Copper
Supply
Supply voltage	24 V DC (redundant supply is possible)
Supply voltage range	18.5 V DC ... 30.2 V DC
Power supply connection	Via COMBICON, max. conductor cross-section 2.5 mm²
Residual ripple	3.6 V_PP (within the permitted voltage range)
Typical current consumption	230 mA (to U_S)

Connection data

Connection method	RJ45, shielded

Interfaces

Ethernet
Connection method	Four 10Base-T ports
Transmission speed	10 Mbps (half duplex)
Transmission physics	Ethernet RJ45
Transmission length	100 m (per segment)
Backbone port
Connection method	Direct plug-in technology

Signaling

Status display	Two-digit, seven-segment display and LEDs: UL1 and UL2 (communications voltages), COL (collision) link and receive LED per port

Dimensions

Width	45 mm
Height	99 mm
Depth	112 mm

Material specifications

Color	green

Mechanical tests

Shock in accordance with EN 60068-2-27/IEC 60068-2-27	: Operation: 25g, 11 ms duration, semi-sinusoidal shock impulse
Shock in accordance with EN 60068-2-27/IEC 60068-2-27		: Storage/Transport: 50g, 11 ms duration, semi-sinusoidal shock impulse
Vibration resistance in accordance with EN 60068-2-6/IEC 60068-2-6	: Operation/Storage/Transport: 5 g, 150 Hz, criterion A
Free fall in accordance with IEC 60068-2-32	: 1 m

Environmental and real-life conditions

Ambient conditions
Degree of protection	IP20
Ambient temperature (operation)	0 °C ... 55 °C (non-condensing)
Ambient temperature (storage/transport)	-20 °C ... 70 °C
Permissible humidity (operation)	30 % ... 95 % (non-condensing)
Permissible humidity (storage/transport)	30 % ... 95 % (non-condensing)
Vibration (operation)	in acc. with IEC 60068-2-6: 5g, 150 Hz
Air pressure (operation)	86 kPa ... 108 kPa (1500 m above sea level)
Air pressure (storage/transport)	66 kPa ... 108 kPa (3500 m above sea level)
Resistance to gases that may endanger the functions, in acc. with DIN 40046-36, DIN 40046-37	Sulfur dioxide (SO₂) 10 ±0.3 cm³/m³, hydrogen sulfide (H₂S) 1 ±0.3 cm³/m³, at 25°C and 75% humidity and exposure of four days

EMC data

Electromagnetic compatibility	Conformance with EMC directive 89/336/EC
Conformance with EMC directives	IEC 61000-6-2 IEC 61000-4-2 (ESD) Criterion B
		IEC 61000-6-2 IEC 61000-4-3 (immunity to radiated interference) Criterion A
		IEC 61000-6-2 IEC 61000-4-4 (burst) Criterion B
		IEC 61000-6-2 IEC 61000-4-5 (surge) Criterion B
		IEC 61000-6-2 IEC 61000-4-6 (immunity to conducted interference) Criterion A
		IEC 61000-6-2 IEC 61000-4-8 (immunity to magnetic fields) Criterion A
		IEC 61000-6-2 EN 55022 (emitted interference) Criterion A
Noise immunity	EN 61000-6-2:2005
Noise emission
Standards/regulations	EN 61000-6-4

Standards and regulations

Free from substances that could impair the application of coating	In acc. with VW specification
Electrical isolation	10Base-T// supply

Mounting

Mounting type	DIN rail mounting

Commercial data

Item number	2831073
Packing unit	1 pc
Minimum order quantity	1 pc
Note	Made to order (non-returnable)
Sales key	1100*
Product key	DNN141
GTIN	4017918727369
Weight per piece (including packing)	379.5 g
Weight per piece (excluding packing)	379.5 g
Customs tariff number	85176200
Country of origin	DE

Environmental product compliance

EU REACH SVHC
REACH candidate substance (CAS No.)	No substance above 0.1 wt%

Compatible products

Expand all Collapse all

Accessories

FL PLUG RJ45 GR/2 - RJ45 connector 2744856
FL PLUG RJ45 GN/2 - RJ45 connector 2744571
FL CAT5 HEAVY - Data cable 2744814
FL CAT5 FLEX - Installation cable 2744830
FL CRIMPTOOL - Assembly tool 2744869
