Fixing frame for Infrastructure Socket Outlet
EV-T2SF-EM
-
Fixing frame
1627637

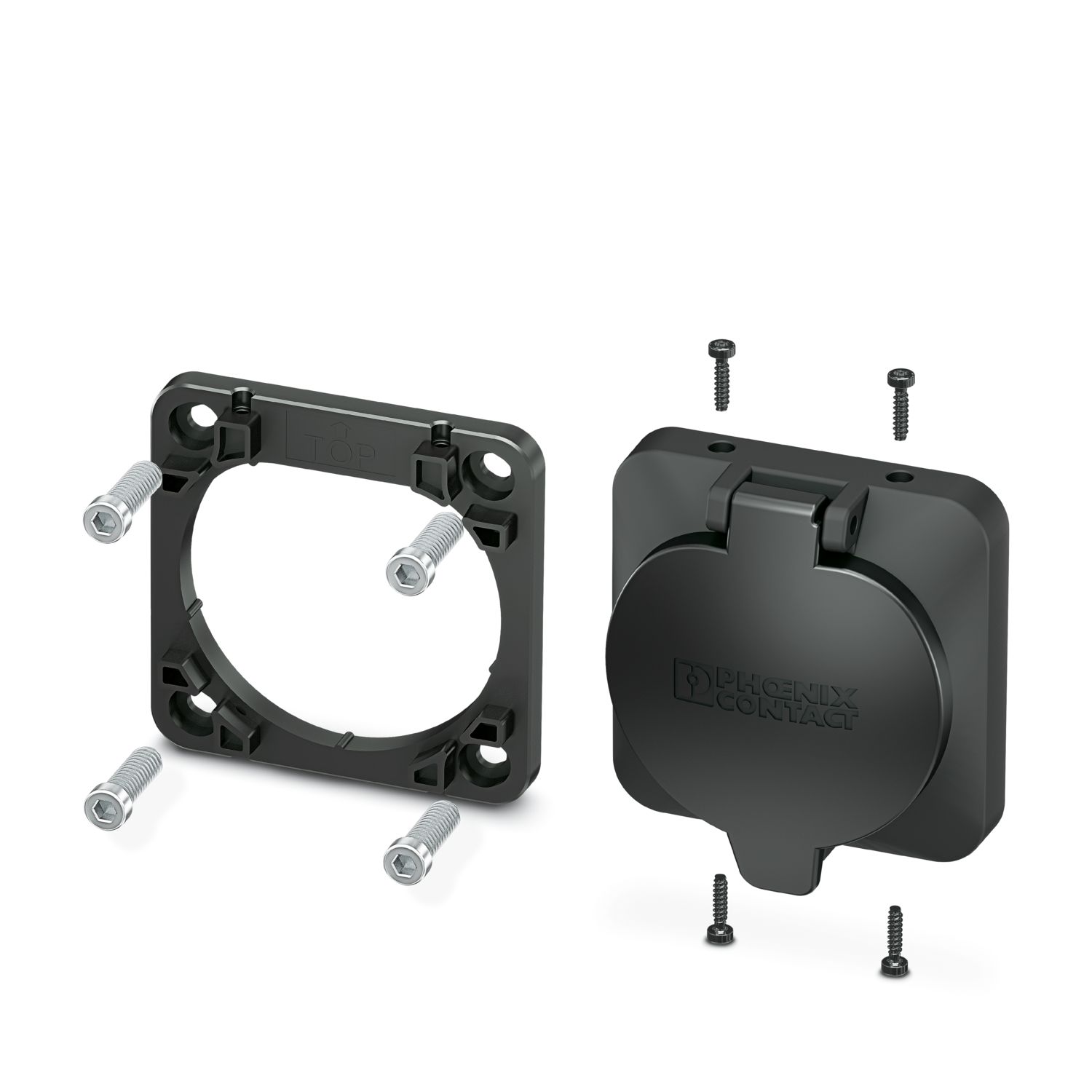

CHARX connect basic, Type 2, Fixing frame, Accessories, Front mounting, housing: black, for attaching to infrastructure charging sockets, Without logo, IEC 62196-2
Product details
| Product type | Fixing frame |
| Product family | CHARX connect basic |
| Application | for attaching to infrastructure charging sockets |
| Type | Accessories |
| Affixed logo | Without logo |
| Charging standard | Type 2 |
| Charging mode | Mode 3, Case B |
| Customer variations | On request |
| Width | 77.2 mm |
| Height | 77.4 mm |
| Depth | 11.5 mm |
| Dimensional drawing |
|
| Bore dimensions | 60 mm x 60 mm |
| Color (Housing) | black (9005) |
| Material (Housing) | Plastic |
| Ambient conditions | |
| Ambient temperature (operation) | -30 °C ... 50 °C |
| Ambient temperature (storage/transport) | -40 °C ... 80 °C |
| Standards | |
| Standards/regulations | IEC 62196-2 |
| Mounting type Panel-mount frame | Front mounting (rear screw connection) |
| Mounting hole diameter | < 7.00 mm (Elongated hole, for spacing see hole pattern) |
| Screws included in the scope of delivery | M5x20 cylinder head screws |
Your advantages
Developed and produced in accordance with the IATF 16949 automotive standard and ISO 9001
Individual branding, thanks to the use your own logo
Reliable protection of your socket outlet from weather and vandalism
