The PROFIBUS master is designed to be aligned to the left of an Axioline F controller. The PROFIBUS master can be used to integrate PROFIBUS devices into the Axioline F station.

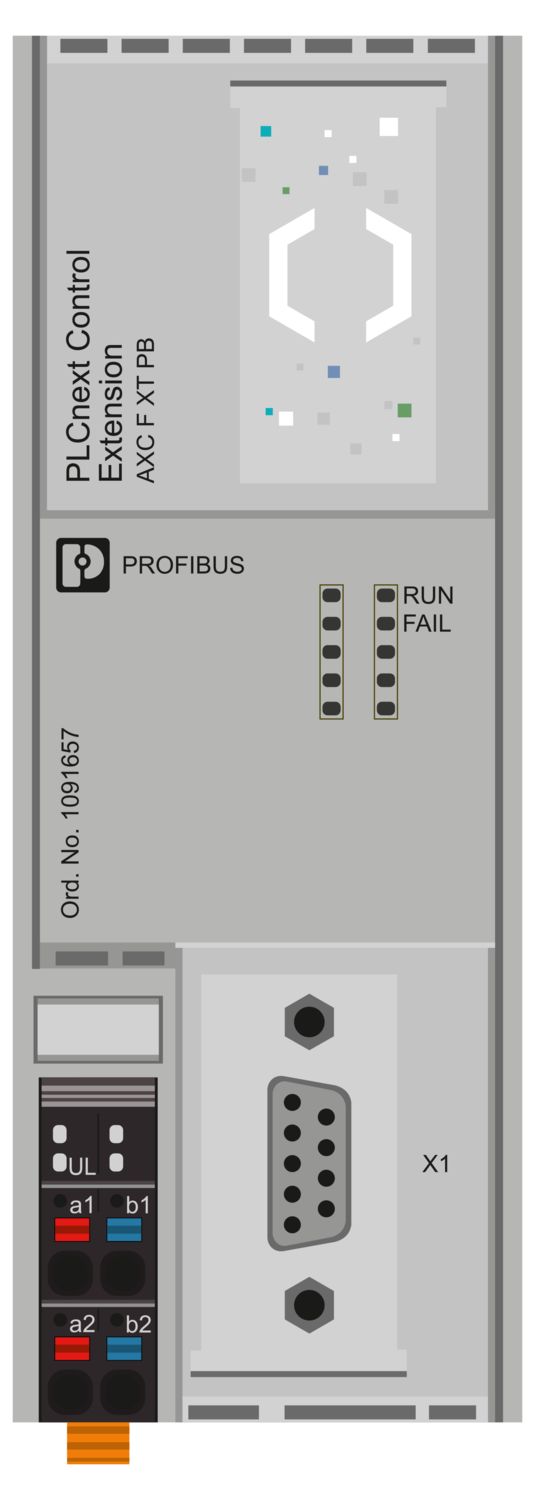

AXC F XT PB
-
PLC extension module
1091657
Left-alignable PROFIBUS master, for the connection of PROFIBUS components to a compatible modular controller from the PLCnext Control series.
This product needs further products for operation.
Mandatory accessories
Free download available.
Downloads
Product details
| Dimensional drawing |
|
| Width | 45 mm |
| Height | 126 mm |
| Depth | 79.1 mm |
| Note on dimensions | The depth applies when a TH 35-7.5 DIN rail is used (in accordance with EN 60715). |
| Note on application | |
| Note on application | Only for industrial use |
| PROFIBUS DP V0/V1 class 2 master | |
| Number of interfaces | 1 |
| Connection method | D-SUB-9 female connector |
| Transmission speed | 12 Mbps |
| Transmission length | max. 100 m |
| System limits | |
| Number of supported devices | max. 125 |
| Product type | I/O component |
| Product family | PLCnext Control Extension |
| Type | modular |
| Scope of supply | including bus base module and Axioline F connector |
| Special properties | PROFIBUS master |
| Max. process data width of 488 bytes |
| Maximum power dissipation for nominal condition | 1.68 W |
| Potentials: Supply of the logic voltage UL | |
| Supply voltage | 24 V DC |
| Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) |
| Current draw | max. 220 mA |
| typ. 70 mA | |
| Protective circuit | Reverse polarity protection; Polarity protection diode |
| Transient protection; Suppressor diode | |
| Connection technology | |
| Connection name | Axioline F connector |
| Conductor connection | |
| Connection method | Push-in connection |
| Conductor cross section rigid | 0.2 mm² ... 1.5 mm² |
| Conductor cross section flexible | 0.2 mm² ... 1.5 mm² |
| Conductor cross section AWG | 24 ... 16 |
| Stripping length | 8 mm |
| Axioline F connector | |
| Connection method | Push-in connection |
| Conductor cross section, rigid | 0.2 mm² ... 1.5 mm² |
| Conductor cross section, flexible | 0.2 mm² ... 1.5 mm² |
| Conductor cross section AWG | 24 ... 16 |
| Stripping length | 8 mm |
| Ambient conditions | |
| Ambient temperature (operation) | -20 °C ... 60 °C (with 0.5 m/s ventilation speed up to 2,000 m above mean sea level) |
| Degree of protection | IP20 |
| Air pressure (operation) | 70 kPa ... 106 kPa (up to 3,000 m above MSL (at an operating temperature of up to 55°C and with 0.5 ms ventilation speed)) |
| Permissible humidity (operation) | 10 % ... 95 % (non-condensing) |
| Protection class | III (IEC 61140, EN 61140, VDE 0140-1) |
| Mounting type | DIN rail mounting |
Your advantages
Individual extension option for a PLCnext Control from the Axiocontrol series
Up to 125 PROFIBUS devices can be connected
PROFIBUS connection via 9-pos. D-SUB socket
Transmission speed of up to 12 Mbps
Electrical isolation between PROFIBUS interface and logic
Diagnostic and status indicators
