With the left-alignable AXC F XT ML 1000 extension module, you can extend a PLCnext Control AXC F 3152 with a machine learning module for processing AI applications.
AXC F XT ML 1000
-
PLC extension module
1259849

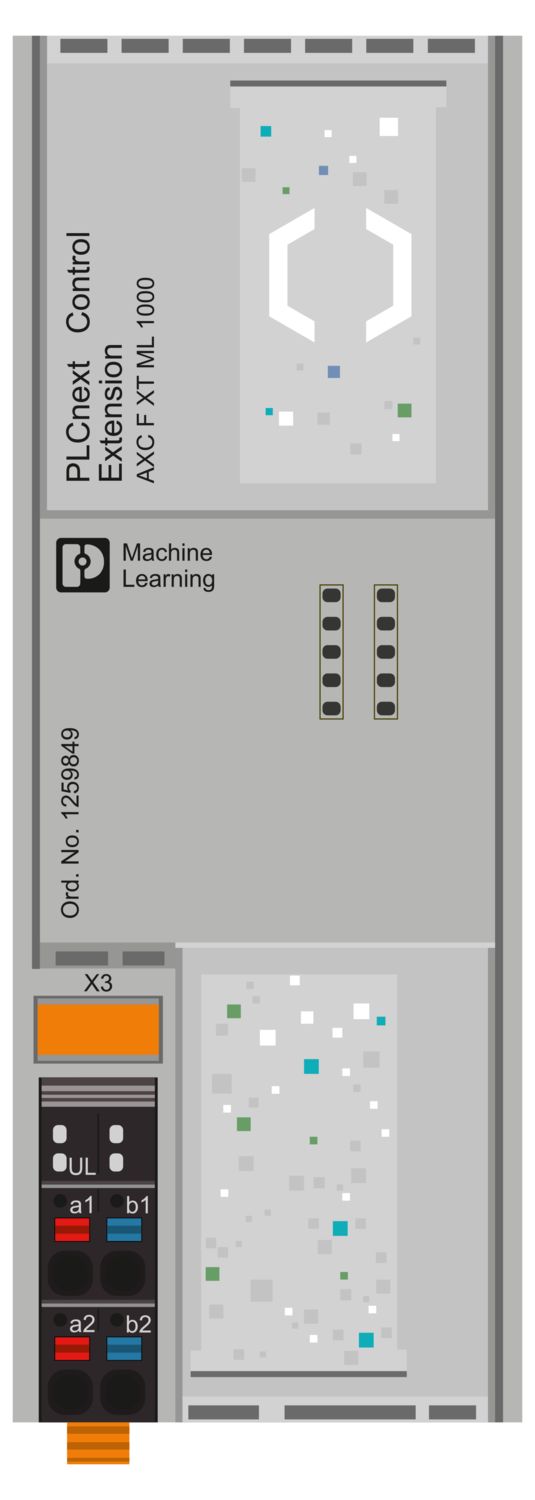

Left-alignable extension module (machine learning module) for connection to a PLCnext Control AXC F 3152
This product needs further products for operation.
Mandatory accessories
Free download available.
Downloads
Product details
| Dimensional drawing |
|
| Width | 45 mm |
| Height | 126.93 mm |
| Depth | 75 mm |
| Note on dimensions | The depth applies when a TH 35-7.5 DIN rail is used (in accordance with EN 60715). |
| Note on application | |
| Note on application | Only for industrial use |
| Product type | I/O component |
| Product family | PLCnext Control Extension |
| Type | modular |
| Maximum power dissipation for nominal condition | 1.68 W |
| Potentials: Supply of the logic voltage UL | |
| Supply voltage | 24 V DC |
| Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) |
| Current draw | max. 70 mA |
| typ. 70 mA | |
| Protective circuit | Reverse polarity protection; Polarity protection diode |
| Transient protection; Suppressor diode | |
| Connection technology | |
| Connection name | Axioline F connector |
| Conductor connection | |
| Connection method | Push-in connection |
| Conductor cross section rigid | 0.2 mm² ... 1.5 mm² |
| Conductor cross section flexible | 0.2 mm² ... 1.5 mm² |
| Conductor cross section AWG | 24 ... 16 |
| Stripping length | 8 mm |
| Axioline F connector | |
| Connection method | Push-in connection |
| Conductor cross section, rigid | 0.2 mm² ... 1.5 mm² |
| Conductor cross section, flexible | 0.2 mm² ... 1.5 mm² |
| Conductor cross section AWG | 24 ... 16 |
| Stripping length | 8 mm |
| Ambient conditions | |
| Ambient temperature (operation) | -25 °C ... 60 °C (up to 2000 m above sea level) |
| Degree of protection | IP20 |
| Air pressure (operation) | 70 hPa ... 106 kPa (up to 3000 m above sea level) |
| Permissible humidity (operation) | 0 % ... 90 % (according to DIN EN 61131-2) |
| Protection class | III (IEC 61140, EN 61140, VDE 0140-1) |
| Mounting type | DIN rail mounting |
Your advantages
Use of machine learning methods directly on a PLCnext Control AXC F 3152
Local exchange of sensor data and inferences with the PLC application
AI accelerator for using TensorFlow Lite files
Integration of Edge TPU (Coral) into the operating system of the PLCnext Control AXC F 3152
Creation of the AI application using Python programming language
