FL SNMP OPC SERVER V3 - Driver and interface software

2701139

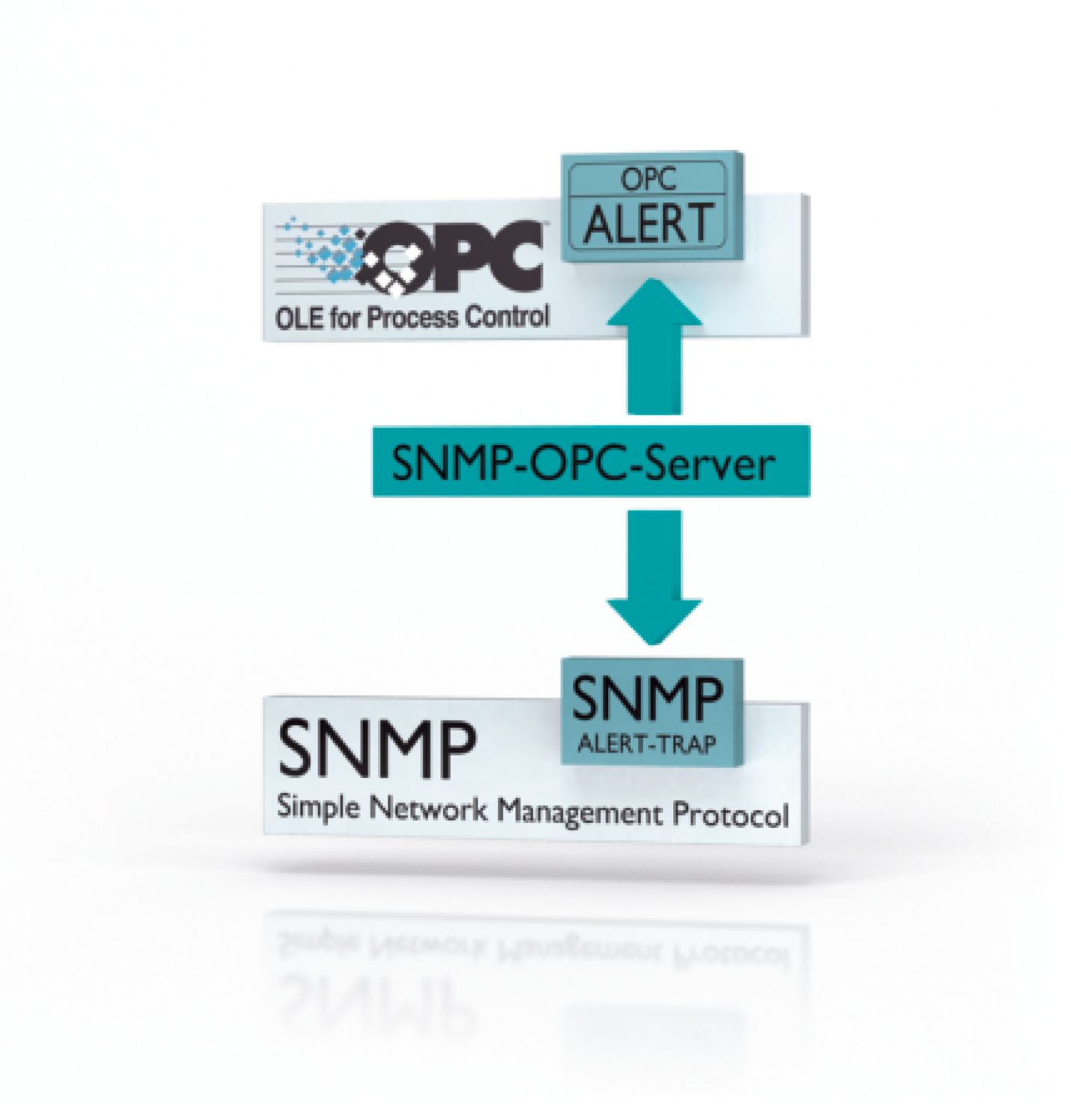

SNMP-OPC server, German and English, for monitoring and configuration of SNMP-capable equipment in HMI and SCADA systems

Free download available. Downloads

Product details

Technical data

Product properties

Product type	Drivers and interfaces
Scope of delivery	CD-ROM with German and English product version and online documentation

System properties

Intended use for the software	Configuration
Intended use for the software		Diagnostics
Functionality
Basic functions	Monitoring and configuration of 100 SNMP-compatible devices in HMI/SCADA systems
		Network monitoring with HMI/SCADA systems
		SNMP Version v1 and v2c supported
		OPC clients OPC Data Access 1.0A/2.0 or OPC Alarm and Events supported
		Integrated MIB browser
		Import/export and creation of device profiles supported, online and remote configuration possible via remote PCs
Expanded functionality	The SNMP OPC server V3 is designed for a maximum of 100 devices. If additional devices are required, an extension license (Item No. 2700138) is available.
Associated hardware	Ethernet infrastructure components
Supported controllers	Ethernet infrastructure components
Number of I/O nodes	not relevant
System requirements
Operating equipment	Keyboard, mouse recommended
Operating system	Windows® XP (SP3)
		Windows® 7
		Windows® 10
		Windows® Server 2008
		Windows® Server 2003
		Windows® Vista Business
Processor	PC Pentium > 266 MHz
Hard disk memory	min. 20 Mbyte
Languages supported	German, English
Optical drive	CD-ROM

Commercial data

Item number	2701139
Packing unit	1 pc
Minimum order quantity	1 pc
Note	Made to order (non-returnable)
Sales key	*****
Product key	DNN155
Catalog page	Page 37 (C-6-2019)
GTIN	4046356713184
Weight per piece (including packing)	81 g
Weight per piece (excluding packing)	81 g
Customs tariff number	85234910
Country of origin	DE

Classifications

Environmental product compliance

Freely configurable alarm conditions

Any number of SNMP trap receivers can be configured

EU RoHS
Fulfills EU RoHS substance requirements	Not applicable (No electrical and electronic equipment (EEE), cannot be used in EEE)
EU REACH SVHC
REACH candidate substance (CAS No.)	No substance above 0.1 wt%
