VS-PPC-J-1-RJ45-MNBK
-
RJ45 coupling
1405183

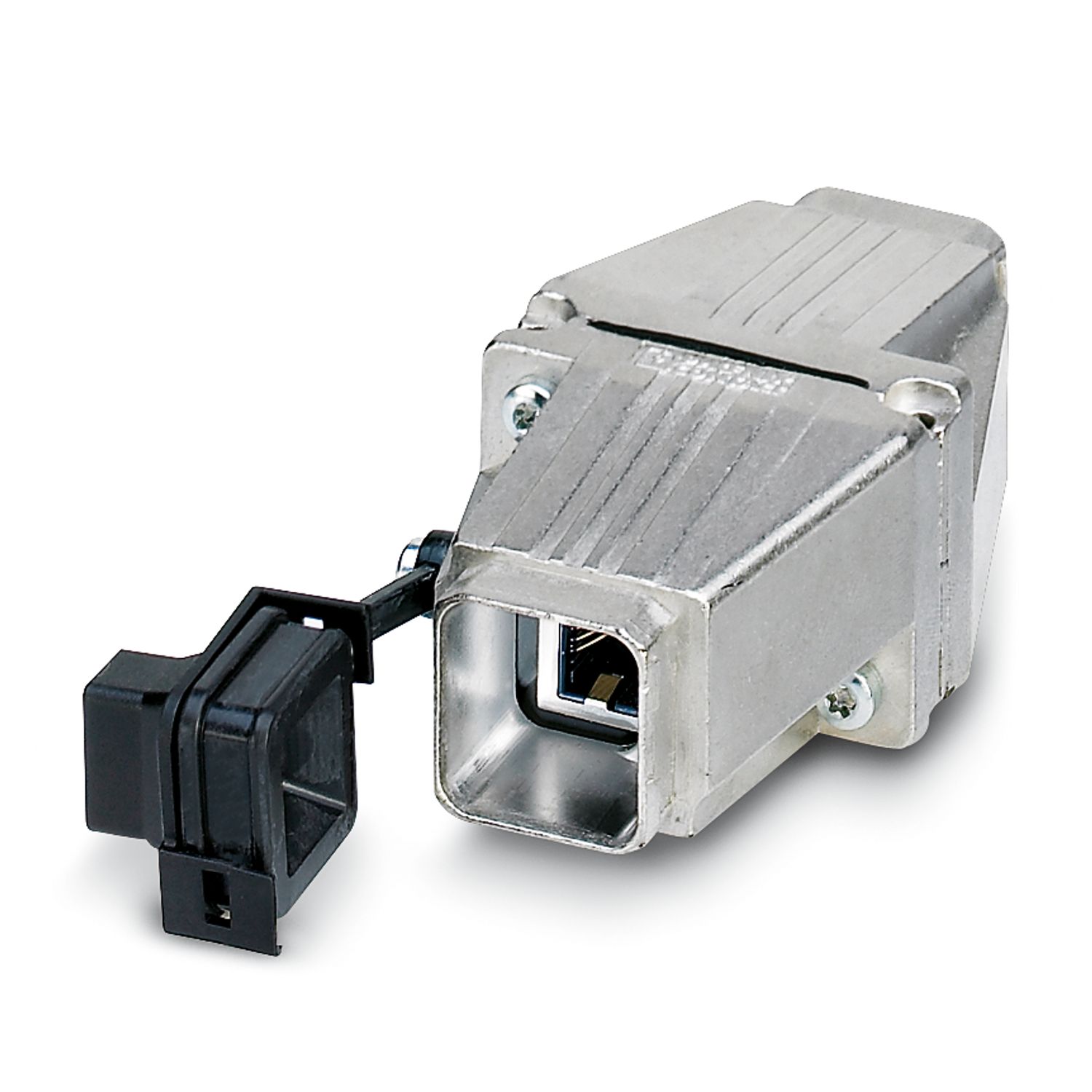

RJ45 push-pull coupling, IP65, metal, CAT5e, with protective cover, color: nickel-plated
Product details
| Product type | Female insert |
| Type | RJ45 |
| Sensor type | Ethernet |
| Number of positions | 8 |
| Connection profile | RJ45 |
| No. of cable outlets | 1 |
| Type | RJ45 |
| Shielded | no |
| Cable outlet | straight |
| Insulation characteristics | |
| Overvoltage category | III |
| Degree of pollution | 2 |
| Rated voltage (III/3) | 72 V (DC) |
| Rated surge voltage | 0.8 kV |
| ≥ 1 kV | |
| Rated current | 1 A |
| Nominal current IN | 0.5 A |
| Transmission medium | Copper |
| Transmission characteristics (category) | CAT5 |
| Connection technology | |
| Connection method | Coupling |
| Width | 29 mm |
| Height | 42 mm |
| Length | 78.4 mm |
| Color | silver |
| Flammability rating according to UL 94 | V0 |
| Housing material | Metal |
| Housing surface material | metal-plated |
| Contact material | Copper alloy |
| Contact surface material | Gold |
| Ambient conditions | |
| Degree of protection | IP65 |
| Ambient temperature (operation) | -40 °C ... 70 °C |
| Item number | 1405183 |
| Packing unit | 1 pc |
| Minimum order quantity | 1 pc |
| Sales key | ***** |
| Product key | ABNOAZ |
| Catalog page | Page 329 (PC-2011) |
| GTIN | 4046356332774 |
| Weight per piece (including packing) | 202.8 g |
| Weight per piece (excluding packing) | 201.5 g |
| Customs tariff number | 85366990 |
| Country of origin | DE |
ECLASS
| ECLASS-13.0 | 27440390 |
ETIM
| ETIM 9.0 | EC004746 |
UNSPSC
| UNSPSC 21.0 | 43222600 |
| EU RoHS | |
| Fulfills EU RoHS substance requirements | Yes (No exemptions) |
| China RoHS | |
| Environment friendly use period (EFUP) |
EFUP-E
No hazardous substances above the limits
|
| EU REACH SVHC | |
| REACH candidate substance (CAS No.) | No substance above 0.1 wt% |
