VS-08-NP-RJ45-GY
-
RJ45 connector
1416965

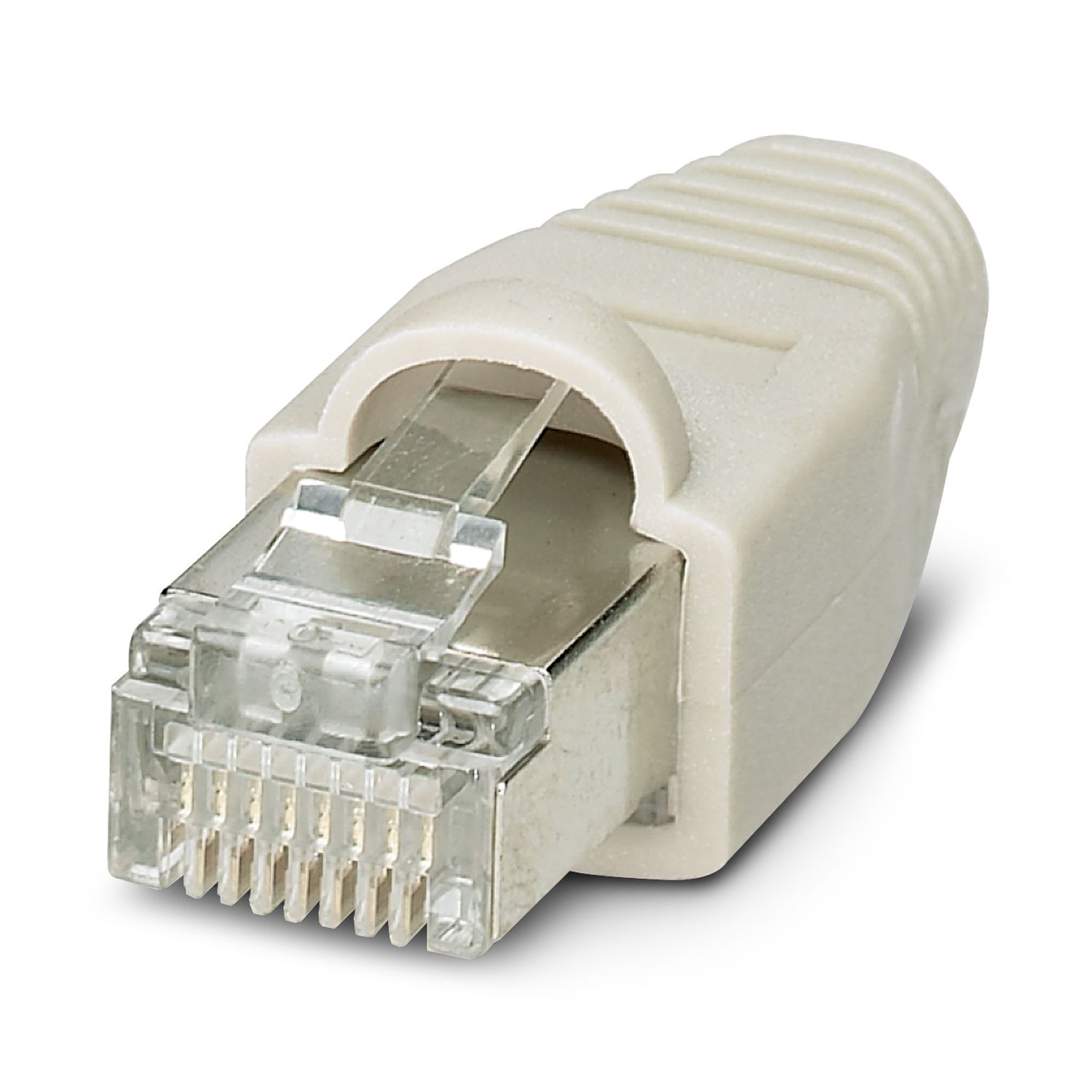

RJ45 connector, design: RJ45, degree of protection: IP20, number of positions: 8, 1 Gbps, CAT5 (IEC 11801:2002), material: Plastic, connection method: Crimp connection, connection cross section: AWG 26- 23, cable outlet: straight, Ethernet
Product details
| Product type | Data connector (cable side) |
| Type | RJ45 |
| Sensor type | Ethernet |
| Number of positions | 8 |
| Connection profile | RJ45 |
| No. of cable outlets | 1 |
| Type | RJ45 |
| Cable outlet | straight |
| Positions/contacts | 8P8C |
| Insulation characteristics | |
| Overvoltage category | I |
| Degree of pollution | 2 |
| Rated voltage (III/3) | 72 V (DC) |
| Rated current | 2 A |
| Contact resistance | < 20 mΩ (Contact) |
| < 100 mΩ (shield) | |
| Frequency range | 100 MHz |
| Insulation resistance | > 500 MΩ |
| Nominal current IN | 2 A |
| Contact resistance per contact pair | < 20 Ω |
| Contact resistance | > 10 mΩ (Wire – IDC) |
| Transmission medium | Copper |
| Transmission characteristics (category) | CAT5 |
| Transmission speed | 1 Gbps |
| Connection technology | |
| Connection method | Crimp connection |
| Connection cross section AWG | 26 ... 23 (solid) |
| 26 ... 24 (flexible) | |
| Conductor cross section | 0.14 mm² ... 0.22 mm² (solid) |
| 0.14 mm² ... 0.22 mm² (flexible) | |
| Connection in acc. with standard | in accordance with IEC 60603-7-1 |
| Cable outlet, angle | 180 |
| Width | 11.7 mm |
| Height | 7.9 mm |
| Length | 21.5 mm |
| Flammability rating according to UL 94 | V2 |
| Housing material | Plastic |
| Contact material | Phosphor bronze |
| Contact surface material | Au |
| Contact carrier material | PC |
| Locking latch material | PC |
| Material for screw connection | PA |
| External cable diameter | 5.6 mm ... 5.6 mm |
| Wire diameter including insulation | 0.9 mm |
| Cable cross section | 0.14 mm² |
| Test voltage Core/Core | 1000 V |
| Test voltage Core/Shield | 1500.00 V |
| Mechanical data | |
| Insertion/withdrawal cycles | ≥ 750 |
| Insertion force per signal contact | < 20.00 N |
| Extraction force per signal contact | < 20 N |
| Ambient conditions | |
| Degree of protection | IP20 |
| Ambient temperature (operation) | -40 °C ... 85 °C |
| Mounting type | Crimp connection |
| Item number | 1416965 |
| Packing unit | 10 pc |
| Minimum order quantity | 10 pc |
| Sales key | ***** |
| Product key | ABNAAG |
| GTIN | 4046356498432 |
| Weight per piece (including packing) | 4.79 g |
| Weight per piece (excluding packing) | 4 g |
| Customs tariff number | 85366990 |
| Country of origin | CN |
ECLASS
| ECLASS-13.0 | 27440114 |
ETIM
| ETIM 9.0 | EC002636 |
UNSPSC
| UNSPSC 21.0 | 39121400 |
| EU RoHS | |
| Fulfills EU RoHS substance requirements | Yes (No exemptions) |
| China RoHS | |
| Environment friendly use period (EFUP) |
EFUP-E
No hazardous substances above the limits
|
| EU REACH SVHC | |
| REACH candidate substance (CAS No.) | No substance above 0.1 wt% |
Your advantages
Optimized for an extended temperature range of up to 85°C
Easy installation with a crimping tool
The bend protection of the locking clip prevents damage and ensures error-free data transmission
