SUBCON-PLUS-MODBUS/IL/BK
-
D-SUB bus connector
2310808
D-SUB connector, 9-pos., male connector, two 35° cable entries, bus system: for Inline Modbus RTU/ASCII bus coupler termination resistance can be connected via slide switch, pin assignment: 3, 5, 6, 8; screw connection terminal blocks
Product details
| Note on application | |
| Note on application | Only for industrial use |
| Product type | Data plug |
| MTTF | 6706 Years (SN 29500 standard, temperature 25°C, operating cycle 21%) |
| 1817 Years (SN 29500 standard, temperature 40°C, operating cycle 34.25%) | |
| 155 Years (SN 29500 standard, temperature 40°C, operating cycle 100%) | |
| Pin assignment | 3, 5, 6, 8 |
| Nominal voltage UN | 5 V |
| Nominal current IN | 100 mA |
| D-SUB connection | |
| Connection method | D-SUB connector |
| PCB connection | |
| Connection method | Screw connection |
| Stripping length | 5 mm |
| Conductor cross section, rigid min. | 0.14 mm² |
| Conductor cross section, rigid max. | 0.5 mm² |
| Conductor cross section flexible min. | 0.14 mm² |
| Conductor cross section flexible max. | 0.5 mm² |
| Single-wire/terminal point, rigid AWG min. | 26 |
| Single-wire/terminal point, rigid AWG max. | 20 |
| Min. AWG conductor cross section, flexible | 26 |
| Max. AWG conductor cross section, flexible | 20 |
| Signal | Modbus |

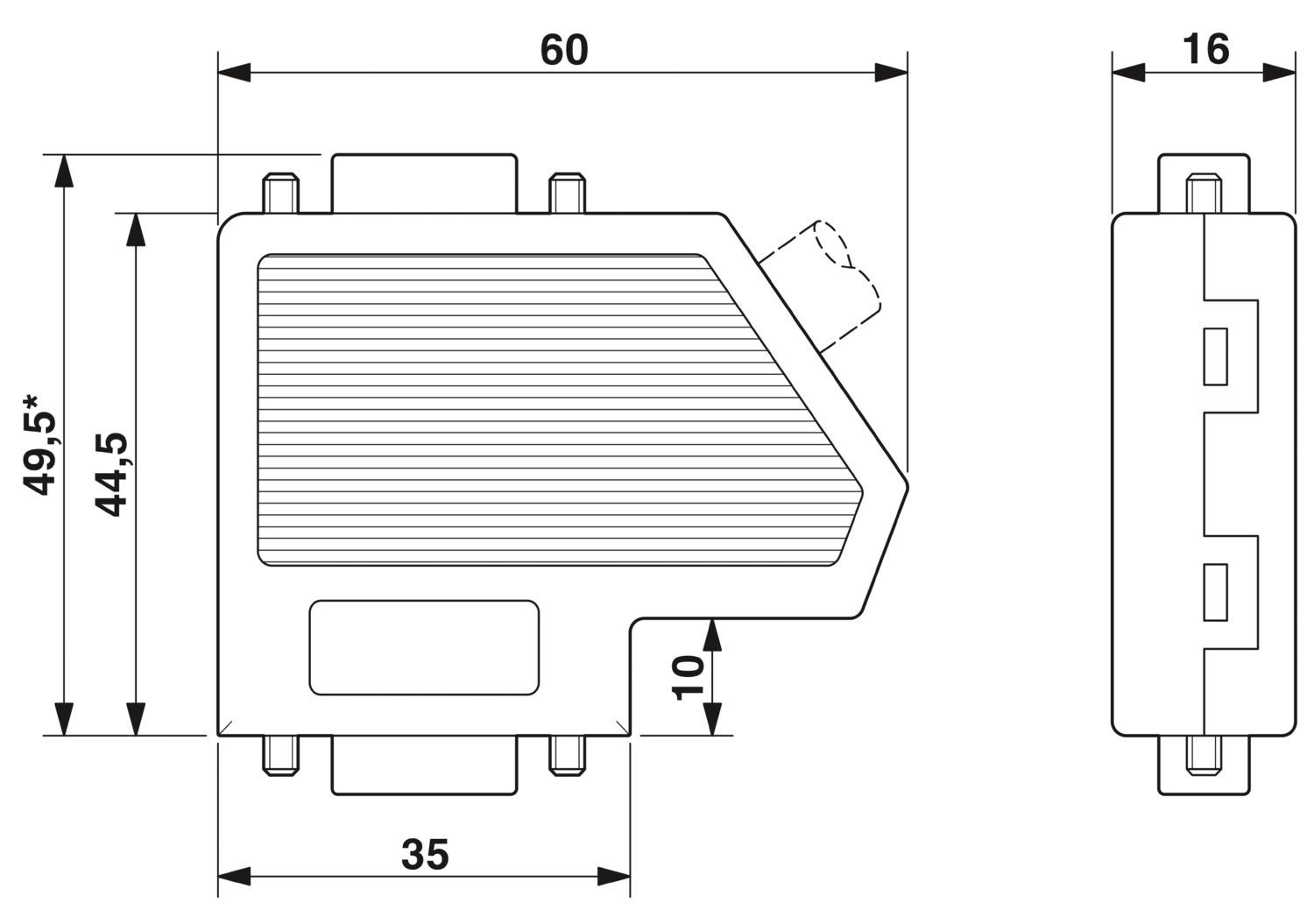

| Dimensional drawing |
|
| Width | 16 mm |
| Height | 49.5 mm |
| Length | 60 mm |
| Material (Housing) | ABS (metal-plated) |
| External cable diameter | 7.6 mm ... 10 mm (Incoming bus line) |
| Mechanical data | |
| Insertion/withdrawal cycles | > 200 |
| Vibration resistance in accordance with EN 60068-2-6/IEC 60068-2-6 | Vibration (operation): 5g, 10...150 Hz, 2.5 h, in XYZ direction |
| Shock in accordance with EN 60068-2-27/IEC 60068-2-27 | Shock (operation): 15g, 11 ms period, half-sine shock pulse |
| Ambient conditions | |
| Degree of protection | IP40 |
| Ambient temperature (operation) | -20 °C ... 75 °C |
| Ambient temperature (storage/transport) | -25 °C ... 80 °C |
| Altitude | ≤ 5000 m (For restrictions, see the manufacturer's declaration for altitude operation) |
| Permissible humidity (operation) | 10 % ... 95 % (non-condensing) |
| Permissible humidity (storage/transport) | 5 % ... 95 % (non-condensing) |
| Corrosive gas test | |
| Identification | ISA-S71.04-1985 G3 Harsh Group A |
| Free from substances that could impair the application of coating | VDMA 24364:2018-05 |
Your advantages
Change to the D-SUB orientation through a reversible connection block
