VS-PSC 1,5/3-M
-
Contact insert
1689310
POWER-SUBCON header, for mounting side, shielded, color: green
Product details
| Notes on operation | Only actuate MINI COMBICON connectors when under no load condition. If for operating reasons small loads must be switched, experimental values are available upon request. |
| Product type | Contact insert |
| Type | D-SUB |

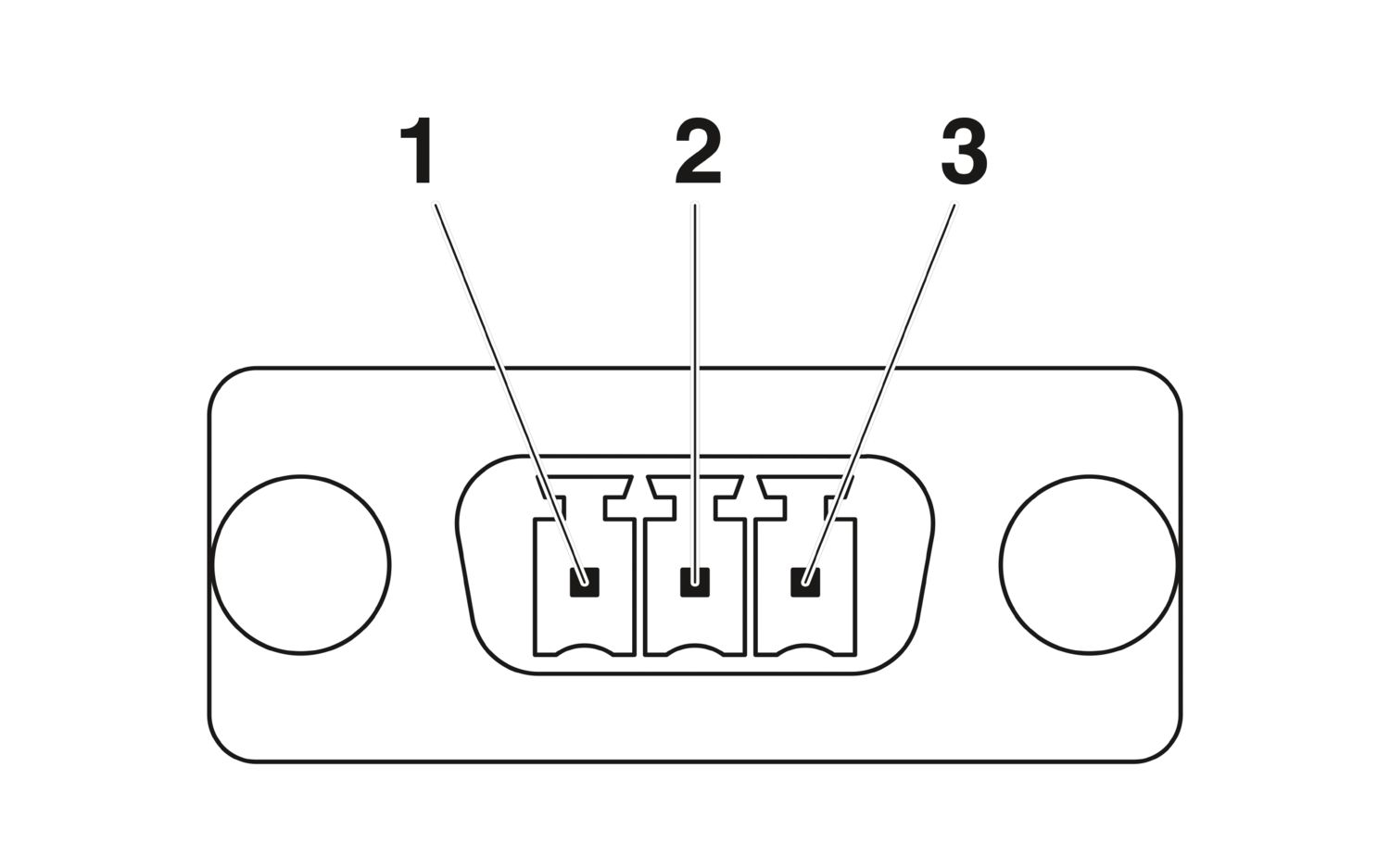

| Number of positions | 3 |
| Type | Male |
| Insulation characteristics | |
| Overvoltage category | III |
| Degree of pollution | 3 |
| Rated voltage (III/3) | 250 V |
| Rated surge voltage | 4 kV |
| Rated current | 8 A |
| Contact resistance | 3 mΩ |
| Insulation resistance | 1 TΩ |
| Transmission medium | Copper |
| Connection method | PCB connection |
| Width | 30.8 mm |
| Height | 13.7 mm |
| Length | 20.8 mm |
| Flammability rating according to UL 94 | V0 |
| Contact material | Copper alloy |
| Contact surface material | tin-plated |
| Contact carrier material | PA |
| Mechanical data | |
| Insertion/withdrawal cycles | ≥ 100 |
| Ambient conditions | |
| Degree of protection | IP20 |
| Ambient temperature (operation) | -20 °C ... 80 °C |
| Mounting type | Threads |
| Item number | 1689310 |
| Packing unit | 10 pc |
| Minimum order quantity | 10 pc |
| Note | Made to order (non-returnable) |
| Sales key | 0227* |
| Product key | ABNCAB |
| Catalog page | Page 215 (C-2-2013) |
| GTIN | 4017918883768 |
| Weight per piece (including packing) | 6.89 g |
| Weight per piece (excluding packing) | 5.469 g |
| Customs tariff number | 85366990 |
| Country of origin | PL |
ECLASS
| ECLASS-13.0 | 27440302 |
ETIM
| ETIM 9.0 | EC001132 |
UNSPSC
| UNSPSC 21.0 | 39121400 |
| EU RoHS | |
| Fulfills EU RoHS substance requirements | Yes (No exemptions) |
| China RoHS | |
| Environment friendly use period (EFUP) |
EFUP-E
No hazardous substances above the limits
|
| EU REACH SVHC | |
| REACH candidate substance (CAS No.) | No substance above 0.1 wt% |
