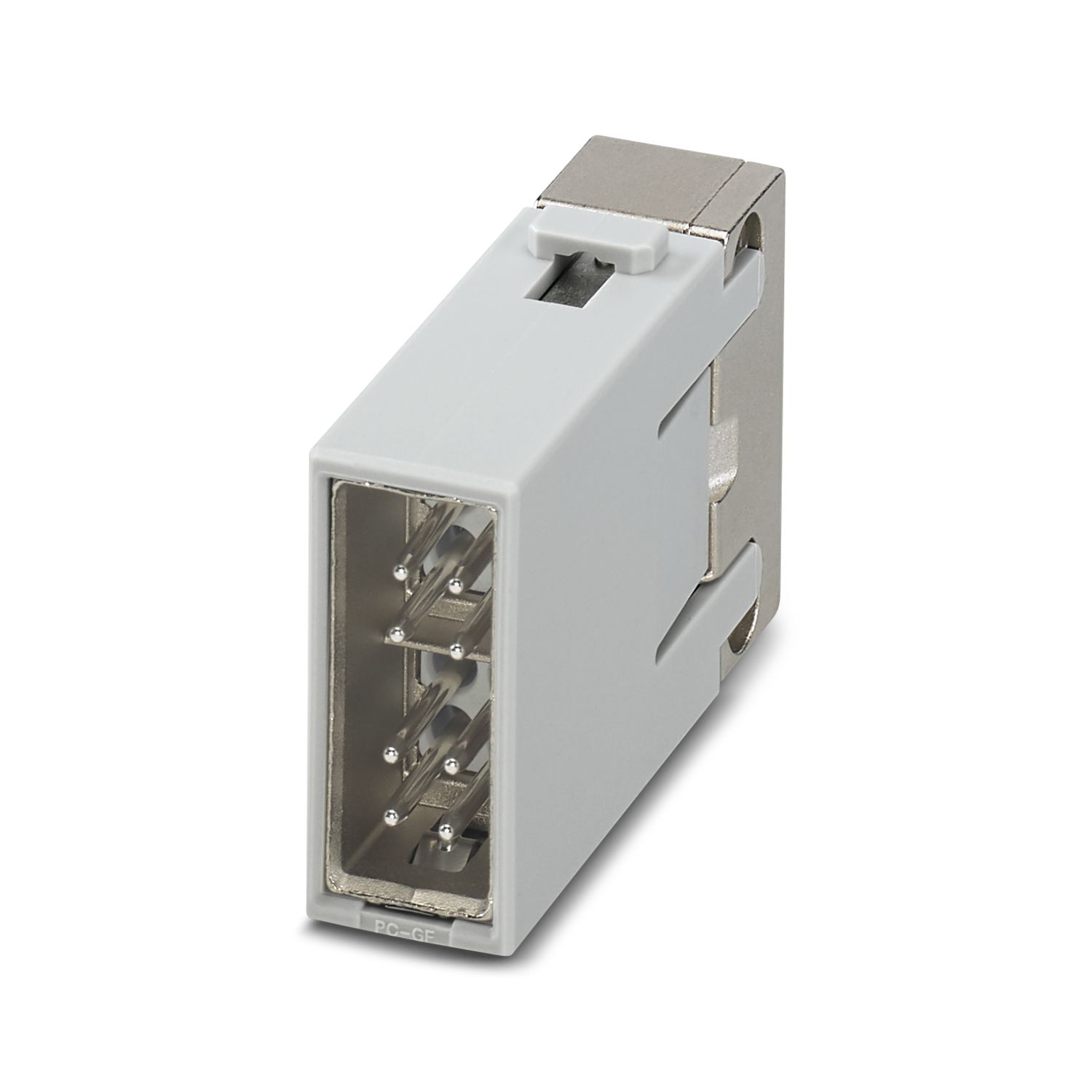

HC-M-08-MBIT-CT-M
-
Contact insert module
1353611
Contact insert module, number of positions: 8, Pin, Crimp connection, 48 V, 10 A, 0.14 mm2 ... 1.5 mm2, external cable diameter:4.5 mm ... 9 mm, application: Data/signal, without crimp contacts
Product details
General | Connectors may be operated only when there is no load/voltage. |
Assembly note | To ensure correct use, installation in housing with IP54 protection or better is required |
Product type | Modular contact insert |
Series | HC-M-08-MBIT |
Application | Data/signal |
Number of positions | 8 |
Connection profile | 8 |
Contact numbering | 1 - 8 |
No. of cable outlets | 1 |
Number of module slots | 1 |
Contact material type | turned |
rolled | |
Shielded | yes |
Insulation characteristics | |
Overvoltage category | III |
Degree of pollution | 3 |
Connection technology | |
Connection technology | Crimp connection |
Conductor connection | |
Conductor cross section | 0.14 mm² ... 1.5 mm² |
Connection cross section AWG | 26 ... 16 |
Width | 33.8 mm |
Height | 53.7 mm |
Length | 14.6 mm |
Mechanical characteristics | |
Minimum housing height | 72 mm |
Contact diameter | 1.6 mm |
Rated voltage (III/3) | 48 V |
Rated current | 10 A |
Transmission characteristics (category) | CAT5e |
Mechanical data | |
Insertion/withdrawal cycles | ≥ 500 |
Flammability rating according to UL 94 | V0 |
Contact material | Copper alloy |
Contact carrier material | PC |
Standards/regulations | PC |
Ambient conditions | |
Ambient temperature (operation) | -40 °C ... 125 °C (including heating up of contacts) |
Item number | 1353611 |
Packing unit | 1 pc |
Minimum order quantity | 1 pc |
Sales key | ***** |
Product key | AF7ACE |
GTIN | 4063151899479 |
Weight per piece (including packing) | 58.9 g |
Weight per piece (excluding packing) | 22.22 g |
Customs tariff number | 85389099 |
Country of origin | PL |
ECLASS
ECLASS-13.0 | 27440218 |
ETIM
ETIM 9.0 | EC000438 |
EU RoHS | |
Fulfills EU RoHS substance requirements | Yes (No exemptions) |
China RoHS | |
Environment friendly use period (EFUP) |
EFUP-E
No hazardous substances above the limits
|
EU REACH SVHC | |
REACH candidate substance (CAS No.) | No substance above 0.1 wt% |
