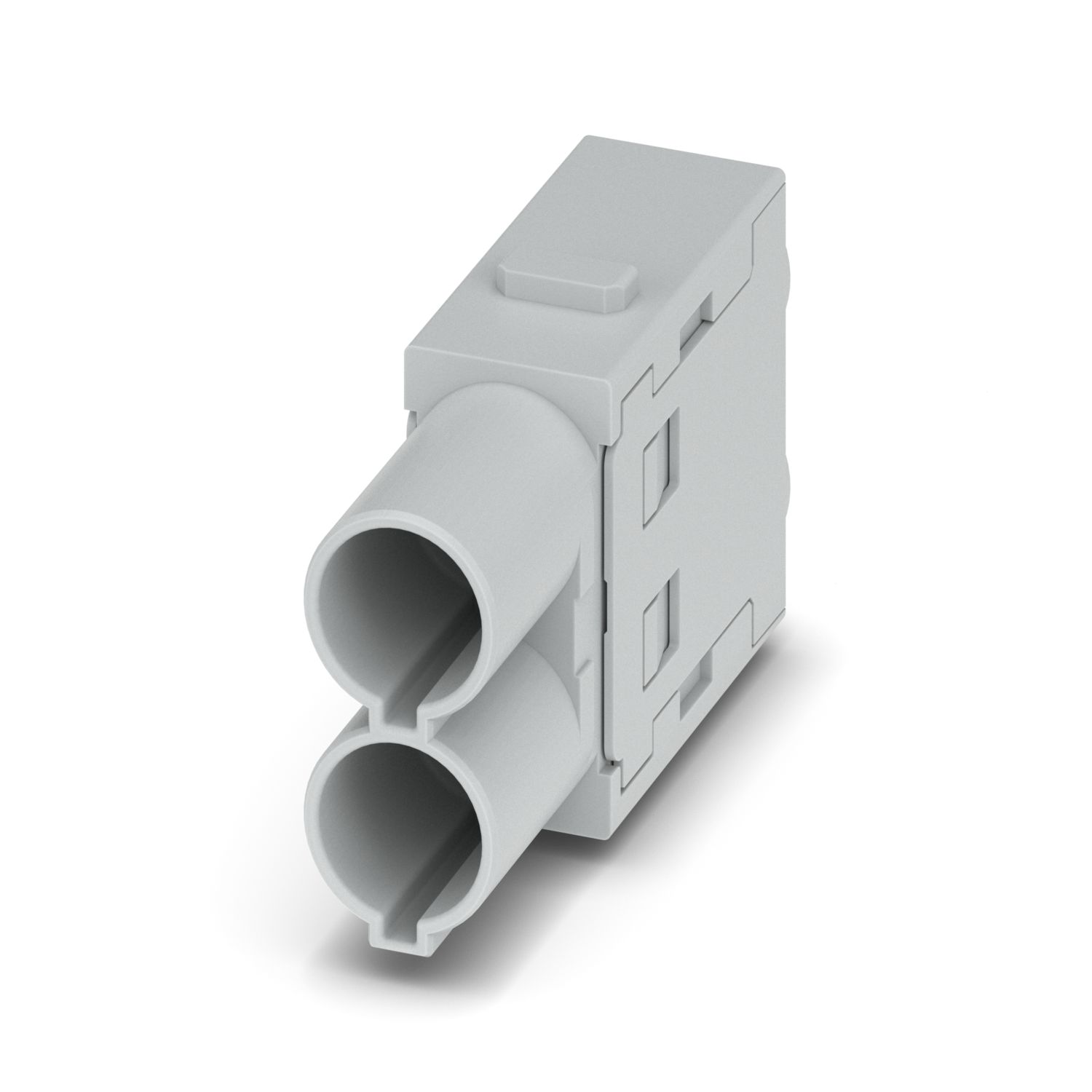

Contact insert module, number of positions: 2, power contacts: 2, control contacts: 0, Pin, Crimp connection, 1000 V, 70 A, 6 mm2 ... 25 mm2, application: Power, without crimp contacts
Product details
General
Order crimp contacts separately
General
Order crimp contacts separately
Assembly note
To ensure correct use, installation in housing with IP54 protection or better is required
Product type
Modular contact insert
Series
HC-M-02
Application
Power
Number of positions
2
Connection profile
2
Number of module slots
1
No. of power contacts
2
No. of control contacts
0
Contact material type
turned
Connection technology
Connection technology
Crimp connection
Conductor connection
Conductor cross section
6 mm² ... 25 mm² (The cross section specification refers to the geometric cross section of the cable used)
Connection cross section AWG
10 ... 4 (The cross section specification refers to the geometric cross section of the cable used)
