RC-0000000AD00 - Housing for circular connector

RC-0000000AD00 - Housing for circular connector

1592777

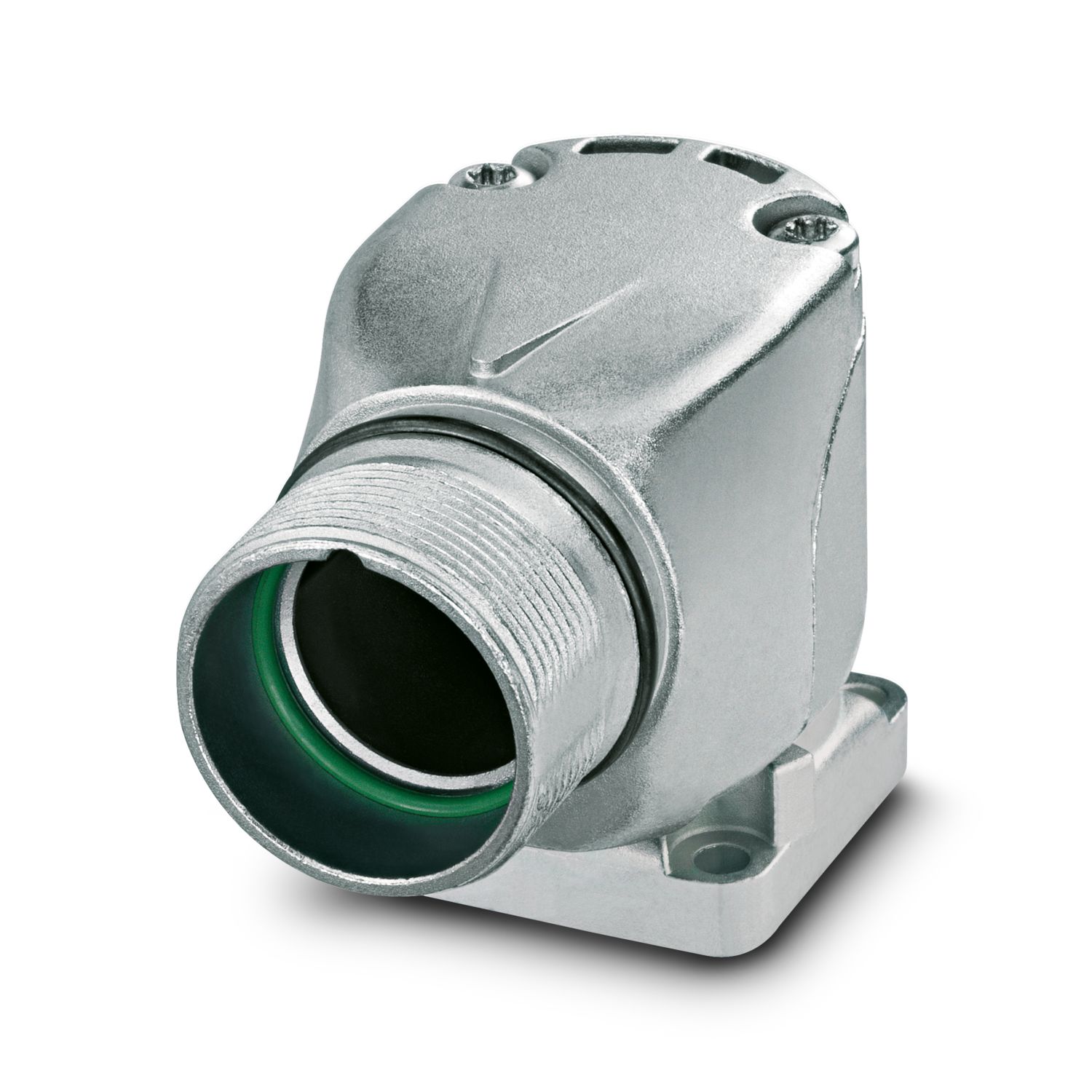

Housing for circular connector, series: RC, angled rotatable, Screw locking mechanism, M23, Axial O-ring, shielded: yes

Product details

Expand all Collapse all

Technical data

Product properties

Product type	Circular connector housing
Series	RC
Application	Signal
Type	Flange housing
Shielded	yes
Thread type	M23

Material specifications

Material (Rotating parts)	CuZn
Housing material	GD-Zn
Housing material	Turned parts: copper zinc alloy (CuZn), die-cast parts: zinc (GD-Zn)
Housing surface material	Ni
Gasket and O-ring material	FPM

Connector

Type	angled rotatable

Environmental and real-life conditions

Ambient conditions
Degree of protection	IP67
Ambient temperature (operation)	-20 °C ... 125 °C
Altitude	2000 m

Mounting

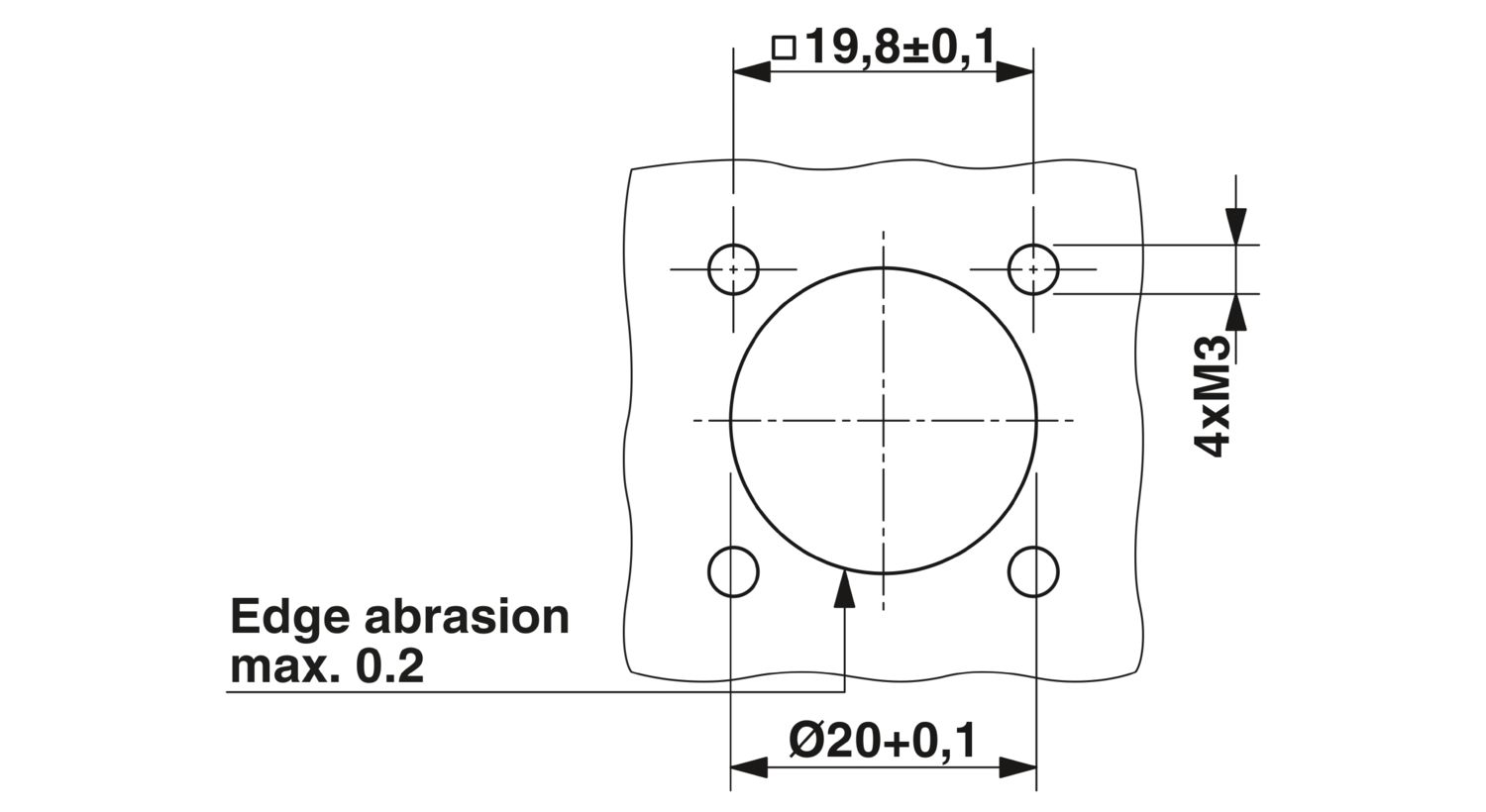

Mounting type	Front mounting/square flange 4x Ø 3,2 mm
Assembly note	4x Ø 3,2 mm

Commercial data

Item number	1592777
Packing unit	16 pc
Minimum order quantity	16 pc
Sales key	*****
Product key	ABRAFQ
GTIN	4046356192705
Weight per piece (including packing)	129.143 g
Weight per piece (excluding packing)	110.258 g
Customs tariff number	85366990
Country of origin	DE

Classifications

ECLASS

ECLASS-13.0

27440224

ETIM

ETIM 9.0

EC003556

UNSPSC

UNSPSC 21.0

31261500

Environmental product compliance

EU RoHS
Fulfills EU RoHS substance requirements	Yes (No exemptions)
China RoHS
Environment friendly use period (EFUP)	EFUP-E No hazardous substances above the limits
EU REACH SVHC
REACH candidate substance (CAS No.)	No substance above 0.1 wt%

Compatible products

Expand all Collapse all

Accessories

PROT-M23PRO-OT-IP20 - Plastic protective cap 1055753
