SM-5ES1N8A8S23 - Cable connector

1613519

Cable connector, straight long, Screw locking mechanism, M40, number of positions: 2+3+PE, contact connection type: Socket, shielded: yes, degree of protection: IP67, cable diameter range: 14 mm ... 20.5 mm, number of positions: 6, connection method: Crimp connection, series: SM, this item is expected to be lead-free from Q3 2026 in accordance with RoHS II without exception 6c (Pb < 0.1%), a lead-free alternative is possible on request in advance

Product details

Technical data

Notes

Order information:	Order crimp contacts 2 x Ø 2 mm, 4 x Ø 3.6 mm separately
Safety note
Safety note	WARNING: The connectors may not be plugged in or disconnected under load. Ignoring the warning or improper use may damage persons and/or property.
		• WARNING: Commission properly functioning products only. The products must be regularly inspected for damage. Decommission defective products immediately. Replace damaged products. Repairs are not possible.
		• WARNING: Only electrically qualified personnel may install and operate the product. They must observe the following safety notes. The qualified personnel must be familiar with the basics of electrical engineering. They must be able to recognize and prevent danger. The relevant symbol on the packaging indicates that only personnel familiar with electrical engineering are allowed to install and operate the product.
		• The products are suitable for applications in plant, controller, and electrical device engineering.
		• When operating the connectors in outdoor applications, they must be separately protected against environmental influences.
		• Assembled products may not be manipulated or improperly opened.
		• Only use mating connectors that are specified in the technical data of the standards listed (e.g. the ones listed in the product accessories online at phoenixcontact.com/products).
		• When using the product in direct connection with third-party manufacturers, the user is responsible.
		• For operating voltages > 50 V AC, conductive connector housings must be grounded
		• Ensure that the protective or functional ground has been properly connected.
		• VDE 0100/1.97 § 411.1.3.2 and DIN EN 60 204/11.98 § 14.1.3 are applicable when combining several circuits in a cable and/or connector
		• Only use tools recommended by Phoenix Contact
		• The installation notes/Design In documents online on the download page at phoenixcontact.com/products must be observed for this product.
		• Operate the connector only when it is fully plugged in and interlocked.
		• Ensure that when laying the cable, the tensile load on the connectors does not exceed the upper limit specified in the standards.
		• Observe the minimum bending radius of the cable. Lay the cable without twisting it.
		• The connector warms up in normal operation. Depending on the ambient conditions, the surface of the connector can continue to warm up. In this case, the user is responsible for posting warnings (e.g. DIN EN ISO 13732-1:2008-12).

Product properties

Product type	Circular connector (cable-side)
Series	SM
Application	Power
Number of positions	6

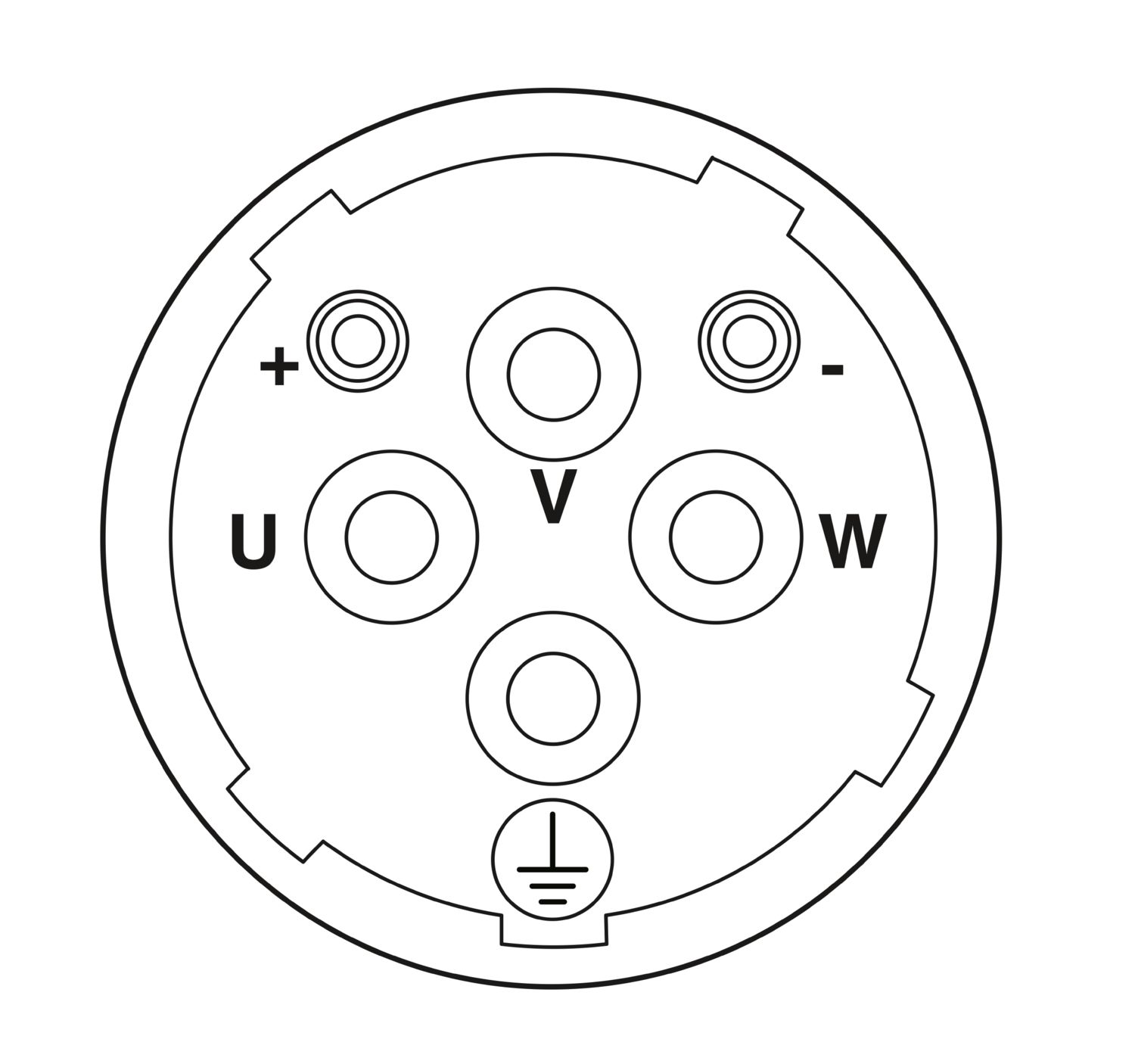

Connection profile	2+3+PE
Shielded	yes
Thread type	M40

Material specifications

Seal material	FPM
Housing material	Metal
Housing material	Turned parts: copper zinc alloy (CuZn), aluminum (Al), die-cast parts: zinc (GD-Zn)
Insulator material	PA 6.6
Gasket and O-ring material	FPM

Connection data

Conductor connection
Connection method	Crimp connection

Electrical properties

Contact
Contact diameter	3.6 mm
Max. current	70 A
Nominal voltage U_N	630 V
Overvoltage category	III
Degree of pollution	3
Rated surge voltage	6 kV
Contact
Contact diameter	2 mm
Max. current	30 A
Nominal voltage U_N	250 V
Overvoltage category	III
Degree of pollution	3
Rated surge voltage	4 kV

Connector

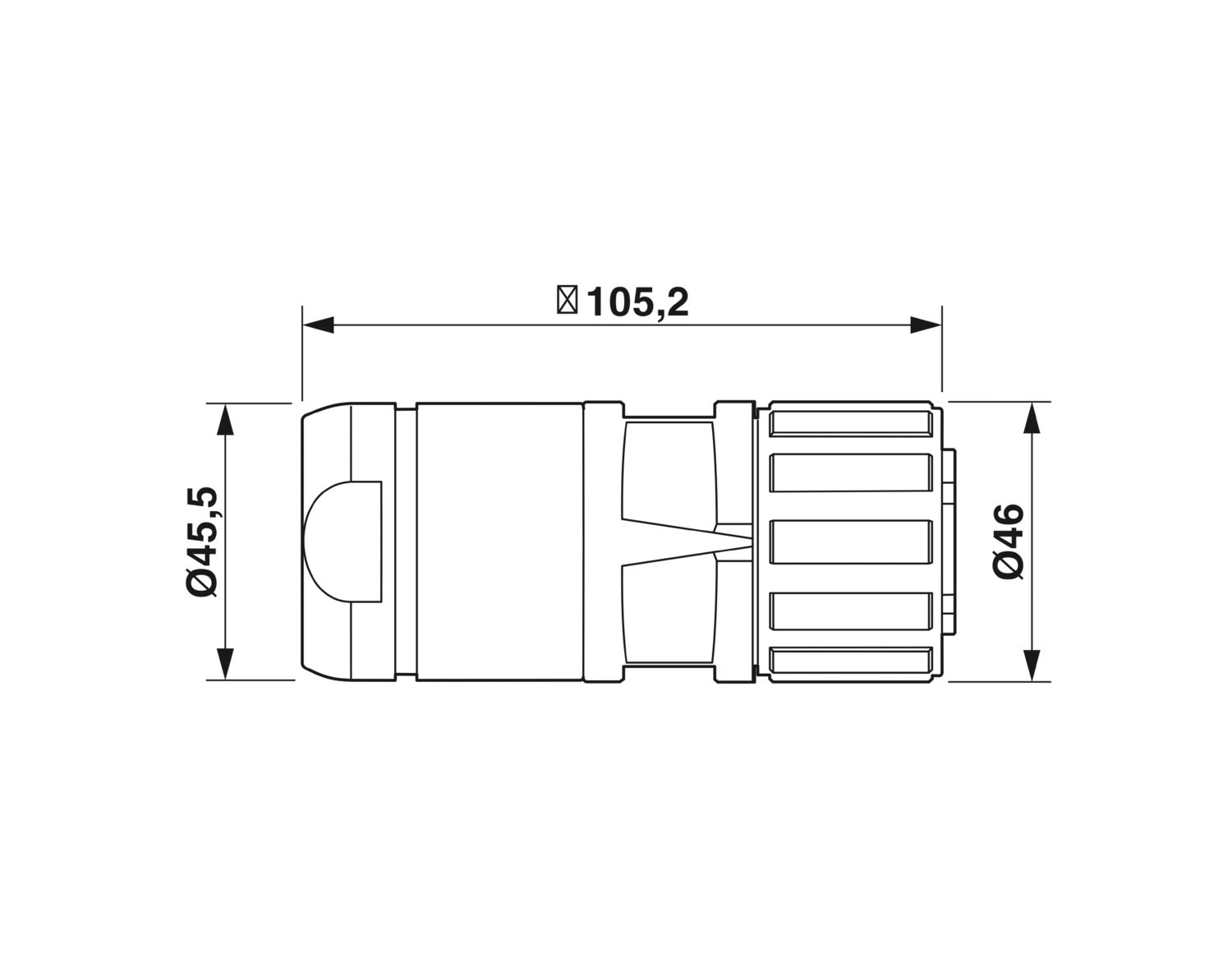

Type	straight long
Direction of rotation	Standard
Connection 1
Head design	Socket
Head cable outlet	straight, long
Head thread type	M40

Cable/line

External cable diameter	14 mm ... 20.5 mm

Environmental and real-life conditions

Ambient conditions
Degree of protection	IP67
Ambient temperature (operation)	-40 °C ... 125 °C
Altitude	3000 m

Commercial data

Item number	1613519
Packing unit	1 pc
Minimum order quantity	1 pc
Sales key	*****
Product key	ABRBGA
Catalog page	Page 166 (C-2-2019)
GTIN	4046356400800
Weight per piece (including packing)	436 g
Weight per piece (excluding packing)	378.721 g
Customs tariff number	85366990
Country of origin	DE

Classifications

Approvals

Approval Specification Data
	Nominal voltage U_N	Nominal current I_N	Cross section AWG	Cross section mm²
Power	600 V	40 A
Signal	600 V	20 A

Approval Specification Data
	Nominal voltage U_N	Nominal current I_N	Cross section AWG	Cross section mm²
Power	600 V	65 A
Signal	600 V	30 A

Environmental product compliance

Compatible products

Accessories

Your advantages

Consistent EMC protection for reliable connection solutions in the industrial environment

Crimping connection: vibration- and temperature-resistant assembly

Flexible use: reliably connect various cable diameters

Molded designs with preassembled cables on one or both sides

EU RoHS
Fulfills EU RoHS substance requirements	Yes
Exemption	6(b), 6(c)
China RoHS
Environment friendly use period (EFUP)	EFUP-50 An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration". For all articles with EFUP-E, no China RoHS declaration table issued and required.
EU REACH SVHC
REACH candidate substance (CAS No.)	Lead (CAS: 7439-92-1)
SCIP	8c67ff65-8704-45b3-8698-7d44e678dac8
