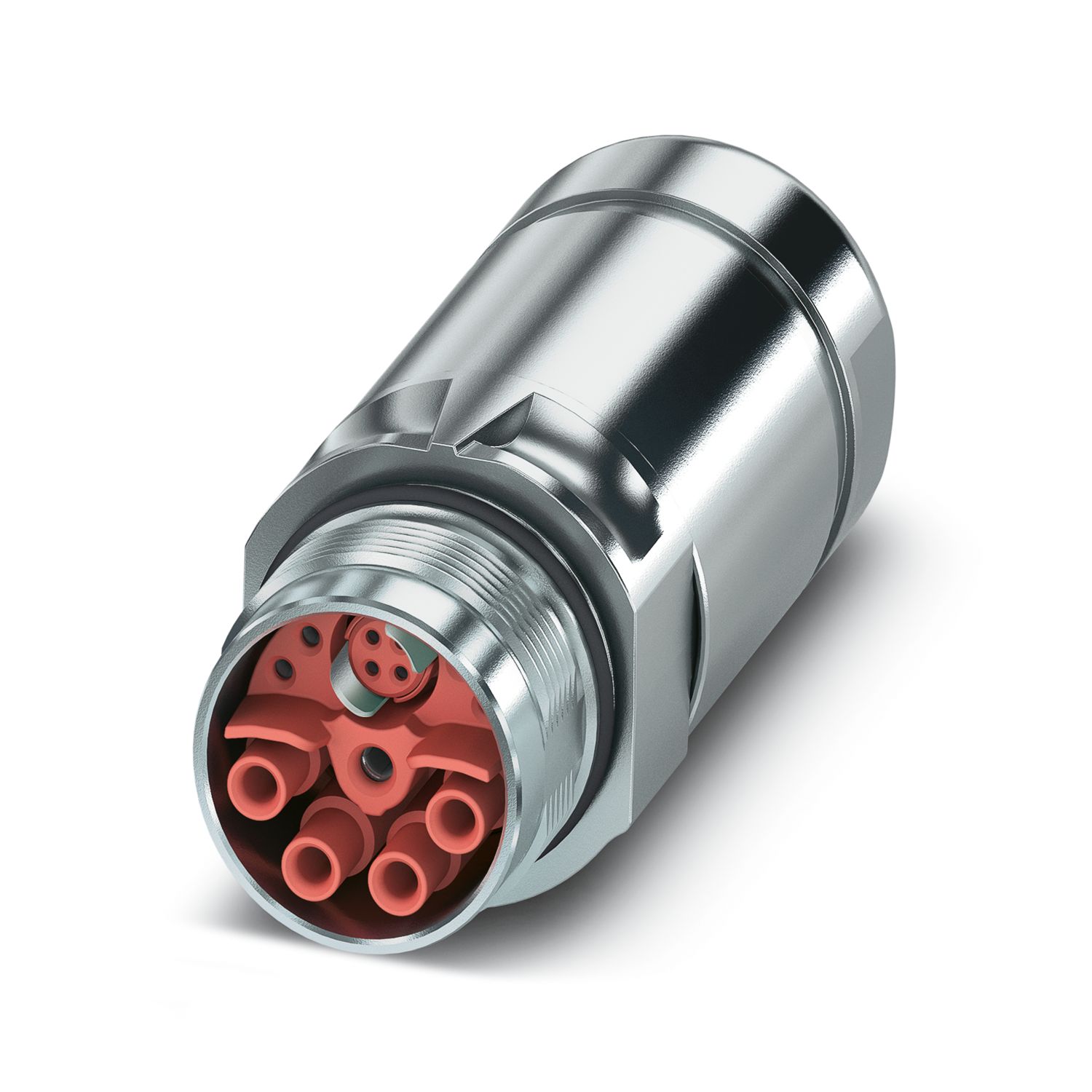

SH-8ESC58A9LDLS - Coupler connector

1621539

M23, Coupler connector, series: SH, straight long, shielded: yes, for standard and SPEEDCON interlock, No. of pos.: 4+4+4+PE / 3+N+PE, contact connection type: Socket, Crimp connection, cable diameter range: 7.5 mm ... 18 mm, this item is expected to be lead-free from Q1 2026 in accordance with RoHS II without exception 6c (Pb < 0.1%), a lead-free alternative is possible on request in advance

Product details

Technical data

Notes

Order information:	Crimp contacts, 4x Ø 0.8 mm, 4x Ø 1 mm, 5x Ø 2 mm, order separately
Safety note
Safety note	WARNING: The connectors may not be plugged in or disconnected under load. Ignoring the warning or improper use may damage persons and/or property.
		• WARNING: Commission properly functioning products only. The products must be regularly inspected for damage. Decommission defective products immediately. Replace damaged products. Repairs are not possible.
		• WARNING: Only electrically qualified personnel may install and operate the product. They must observe the following safety notes. The qualified personnel must be familiar with the basics of electrical engineering. They must be able to recognize and prevent danger. The relevant symbol on the packaging indicates that only personnel familiar with electrical engineering are allowed to install and operate the product.
		• The products are suitable for applications in plant, controller, and electrical device engineering.
		• When operating the connectors in outdoor applications, they must be separately protected against environmental influences.
		• Assembled products may not be manipulated or improperly opened.
		• Only use mating connectors that are specified in the technical data of the standards listed (e.g. the ones listed in the product accessories online at phoenixcontact.com/products).
		• When using the product in direct connection with third-party manufacturers, the user is responsible.
		• For operating voltages > 50 V AC, conductive connector housings must be grounded
		• Ensure that the protective or functional ground has been properly connected.
		• VDE 0100/1.97 § 411.1.3.2 and DIN EN 60 204/11.98 § 14.1.3 are applicable when combining several circuits in a cable and/or connector
		• Only use tools recommended by Phoenix Contact
		• The installation notes/Design In documents online on the download page at phoenixcontact.com/products must be observed for this product.
		• Operate the connector only when it is fully plugged in and interlocked.
		• Ensure that when laying the cable, the tensile load on the connectors does not exceed the upper limit specified in the standards.
		• Observe the minimum bending radius of the cable. Lay the cable without twisting it.
		• The connector warms up in normal operation. Depending on the ambient conditions, the surface of the connector can continue to warm up. In this case, the user is responsible for posting warnings (e.g. DIN EN ISO 13732-1:2008-12).

Product properties

Product type	Circular connector (cable-side)
Application	Hybrid

Mechanical properties

Mechanical data
Insertion/withdrawal cycles	100

Connector

Connection 1
Head design	Socket
Insulating body
Note	Order information: Crimp contacts, 4x Ø 0.8 mm, 4x Ø 1 mm, 5x Ø 2 mm, order separately
Protection against electric shock	IEC 61984 and VDE 0623
Data rate	100 Mbps
Insertion/withdrawal cycles	100
Connection method	Crimp connection
Contact switching type	Socket
Application	Hybrid
Number of positions	13
Connection profile	4+4+4+PE / 3+N+PE
Number Contact (Power contacts)	5
Diameter Contact (Power contacts)	2 mm
Litz wire cross-section min. Contact (Power contacts)	0.25 mm²
Litz wire cross-section max. Contact (Power contacts)	4 mm²
Rated current Contact (Power contacts)	30 A (for max. connection cross section)
Rated voltage Contact (Power contacts)	630 V AC (Overvoltage category III/3)
Rated voltage Contact (Power contacts)		850 V DC (Overvoltage category II/3)
Rated surge voltage	6 kV
Overvoltage category	III
Degree of pollution	3
Number Contact (Signal contacts)	4
Diameter Contact (Signal contacts)	1 mm
Litz wire cross-section min. Contact (Signal contacts)	0.06 mm²
Litz wire cross-section max. Contact (Signal contacts)	1 mm²
Nominal current per signal contact	8 A (for max. connection cross section)
Rated voltage Contact (Signal contacts)	50 V AC/DC
Rated surge voltage	1.5 kV
Overvoltage category	III
Degree of pollution	3
Number Contact (Data contacts)	4
Diameter Contact (Data contacts)	0.8 mm
Litz wire cross-section min. Contact (Data contacts)	0.08 mm²
Litz wire cross-section max. Contact (Data contacts)	0.5 mm²
Rated current per data contact at 25°C	3.6 A (for max. connection cross section)
Rated voltage Contact (Data contacts)	50 V AC/DC
Rated surge voltage	1.5 kV
Overvoltage category	II, III
Degree of pollution	3
Installation height	2000 m (4000 m at 300 V system voltage in accordance with DIN EN 606664-1)
Housing
Note	The suitability for assembly must be checked when fully assigned with maximum wire cross sections.
Thread type	M23
Type of locking	for standard and SPEEDCON interlock
Pg screw connection	none
Housing material	Turned parts: copper zinc alloy (CuZn), die-cast parts: zinc (GD-Zn)
Material for screw connection	CuZn
Degree of protection (plugged in)	IP67
Degree of protection (plugged in)		IP68
Seal
External cable diameter	7.5 mm ... 18 mm

Environmental and real-life conditions

Ambient conditions
Ambient temperature (operation)	-40 °C ... 115 °C (see derating curve)
Ambient temperature (storage/transport)	15 °C ... 25 °C
Permissible humidity (storage/transport)	50 % ... 65 %

Commercial data

Item number	1621539
Packing unit	1 pc
Minimum order quantity	1 pc
Sales key	*****
Product key	ABRCDG
Catalog page	Page 119 (C-2-2019)
GTIN	4046356936873
Weight per piece (including packing)	121.9 g
Weight per piece (excluding packing)	104.941 g
Customs tariff number	85366990
Country of origin	DE

Classifications

Approvals

Approval Specification Data
	Nominal voltage U_N	Nominal current I_N	Cross section AWG	Cross section mm²
Power	600 V	21.4 A	12
Control	50 V	4 A	18

Approval Specification Data
	Nominal voltage U_N	Nominal current I_N	Cross section AWG	Cross section mm²
Power	600 V	24 A	12
Control	50 V	4 A	18

Environmental product compliance

Compatible products

Accessories

Your advantages

Transmission of signals, data, and power in just a single connector

CAT5 data interface for up to 100 Mbps

Safe use in the field, thanks to high degree of protection

Consistent EMC protection for reliable connection solutions in the industrial environment

EU RoHS
Fulfills EU RoHS substance requirements	Yes
Exemption	6(c)
China RoHS
Environment friendly use period (EFUP)	EFUP-50 An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration". For all articles with EFUP-E, no China RoHS declaration table issued and required.
EU REACH SVHC
REACH candidate substance (CAS No.)	Lead (CAS: 7439-92-1)
SCIP	5a2a4bfe-76fb-4932-9ddd-ee4359f76e93
