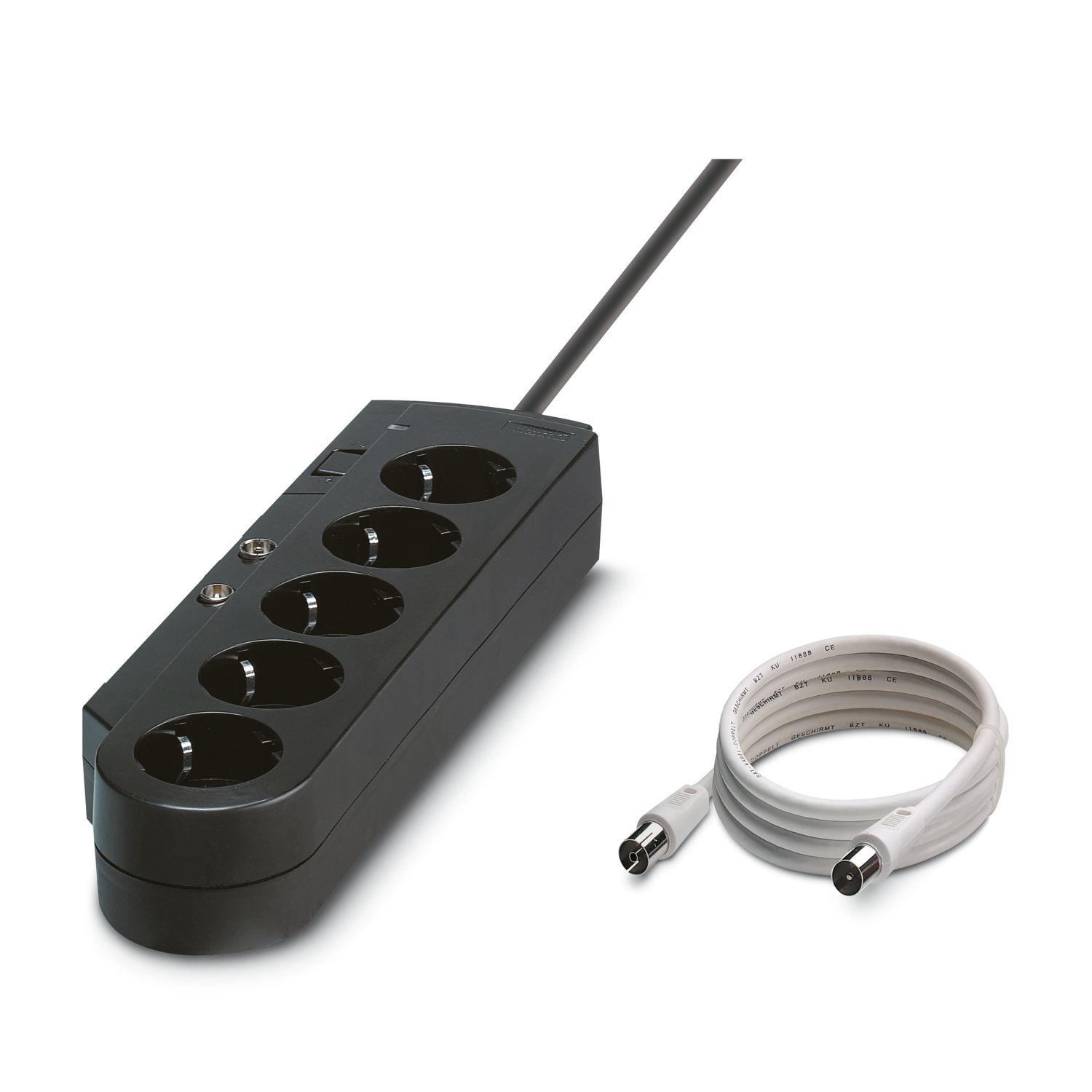

Socket strip (5x) with surge protection for power supply and TV antenna. Power display switches off automatically when there is a malfunction due to overload.
| IEC test classification | C2 |
| C3 | |
| D1 | |
| VDE requirement class | C2 |
| C3 | |
| D1 | |
| Type | Socket strip |
| For country-specific use in | D, I, NL, E, P |
| Surge protection fault message | optical |
| EN type | T3 |
| Connection method | TV connector |
| Width | 81 mm |
| Height | 271 mm |
| Depth | 42 mm |
| Flammability rating according to UL 94 | V0 |
| Housing material | PA |
| Mechanical data | |
| Open side panel | No |
| Power supplies | |
| Direction of action | L-N-PE & Signal Line-Signal Line-Earth Ground |
| Nominal frequency fN | 50 Hz (60 Hz) |
| Maximum continuous operating voltage UC (L-N) | 260 V AC |
| Maximum continuous operating voltage UC (L-PE) | 260 V AC |
| Protective conductor current IPE | ≤ 1 µA |
| Nominal discharge current In (8/20) µs (L-N) | 1.5 kA |
| Nominal discharge current In (8/20) µs (L-PE) | 1.5 kA |
| Nominal discharge current In (8/20) µs (N-PE) | 1.5 kA |
| Voltage protection level Up (L-N) | ≤ 1.3 kV |
| Voltage protection level Up (L-PE) | ≤ 1.5 kV |
| Voltage protection level Up (N-PE) | ≤ 1.5 kV |
| Residual voltage at In | ≤ 1.2 kV |
| ≤ 650 V | |
| ≤ 650 V | |
| Response time tA (L-N) | ≤ 25 ns |
| Response time tA (L-PE) | ≤ 100 ns |
| Max. required back-up fuse | 16 A (gL/C) |
| Information technology | |
| Maximum continuous voltage UC (line-shield) | 50 V AC |
| 72 V DC | |
| Operating effective current IC at UC | ≤ 1 µA |
| Protective conductor current IPE | ≤ 1 µA |
| Nominal discharge current In (8/20) µs (line-ground) | 2.5 kA |
| Nominal discharge current In (8/20) µs (line-shield) | 2.5 kA |
| Nominal discharge current In (8/20) µs (shield-ground) | 5 kA |
| Output voltage limitation at 1 kV/µs (line-earth) spike | ≤ 1 kV |
| Output voltage limitation at 1 kV/µs (line-shield) spike | ≤ 500 V |
| Output voltage limitation at 1 kV/µs (line-earth) static | ≤ 1 kV |
| Output voltage limitation at 1 kV/µs (line-shield) static | ≤ 500 V |
| Residual voltage at In (conductor-ground) | ≤ 30 V |
| Residual voltage at In (conductor-shield) | ≤ 30 V |
| Response time tA (line-earth) | ≤ 100 ns |
| Response time tA (line-shield) | ≤ 100 ns |
| Input attenuation aE, asym. | 1.5 dB (≤ 860 MHz) |
| Cut-off frequency fg (3 dB), asym. (shield) in 75 Ω system | 1 GHz |
| Frequency range | 0 Hz ... 1000 MHz |
| Ambient conditions | |
| Degree of protection | IP20 |
| Ambient temperature (operation) | -20 °C ... 75 °C |
| VDE requirement class | C2 |
| C3 | |
| D1 | |
| Air clearances and creepage distances | |
| Standards/regulations | DIN VDE 0110-1 / IEC 60664-1 |
| Standards Information technology specification | |
| Standards/regulations | IEC 61643-1 |
| DIN EN 61643-11/A11 | |
| IEC 61643-21 | |
| IEC 61643-21 | |
| Mounting type | Socket strip |
| Item number | 2857293 |
| Packing unit | 1 pc |
| Minimum order quantity | 1 pc |
| Note | Made to order (non-returnable) |
| Sales key | ***** |
| Product key | CL1454 |
| GTIN | 4017918876159 |
| Weight per piece (including packing) | 779.3 g |
| Weight per piece (excluding packing) | 733.2 g |
| Customs tariff number | 85363010 |
| Country of origin | DE |
| EU REACH SVHC | |
| REACH candidate substance (CAS No.) | No substance above 0.1 wt% |
