HC-DS-PG16-E
-
Pressure screw set
1676899
Pg pressure screw set, standard version; for housing with Pg16 support; consisting of pressure screw, notched seal and 2 washers
Product details
| Product type | Half screw connection |
| No. of conductors | 1 |
| Shielded | no |
| Pg screw connection | Pg16 |

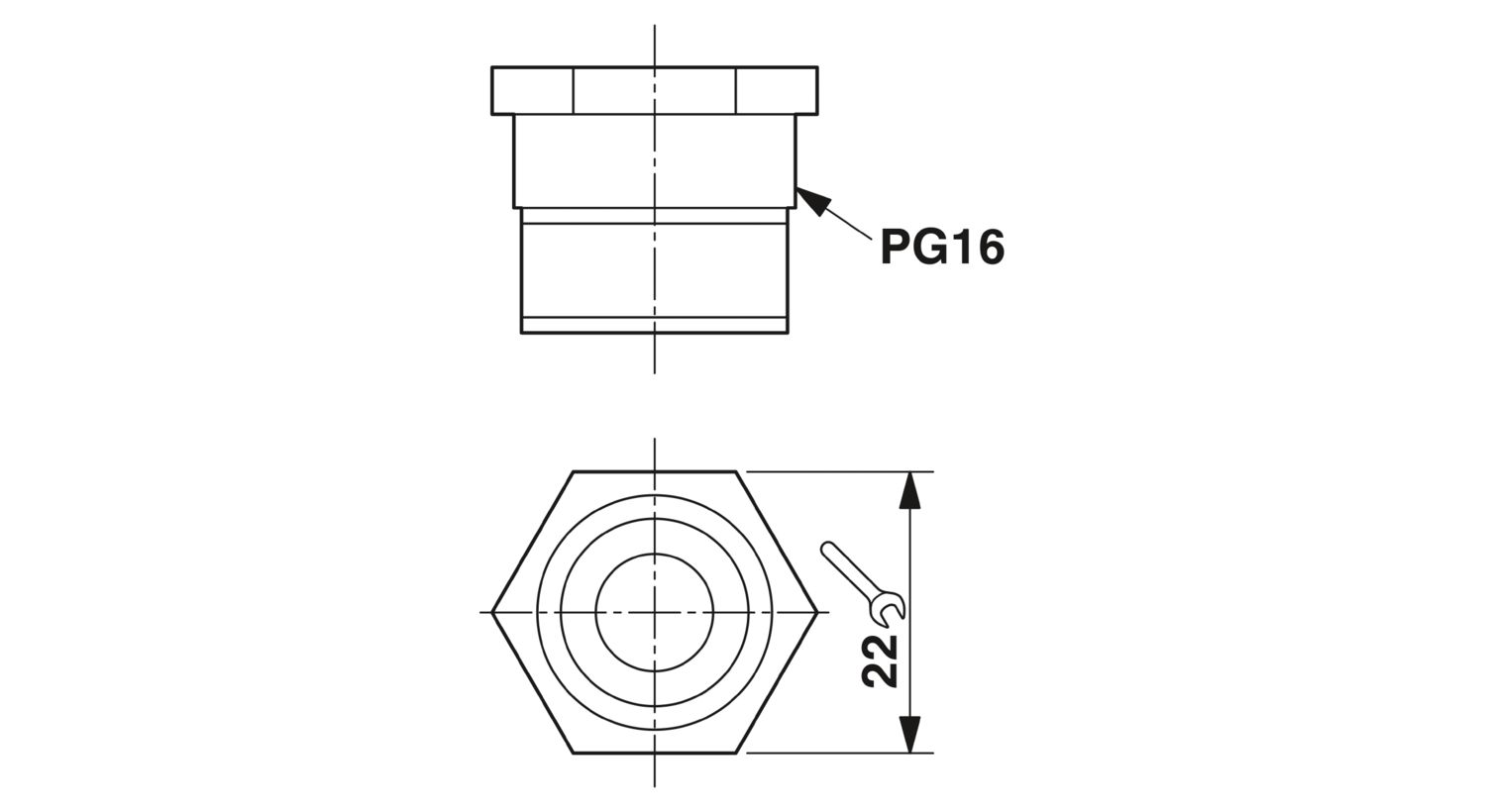

| Dimensional drawing |
|
| Wrench size, union nut | 22 mm |
| External dimensions | |
| External diameter min. | 16 mm |
| External diameter max. | 10 mm |
| Material Pressure screw | Brass, nickel-plated |
| Seal material Cable seal | Perbunan |
| External cable diameter Cable 1 | 7.5 mm ... 15 mm |
| Conductor sealing range | 7.50 mm ... 15.00 mm |
| Ambient conditions | |
| Degree of protection | IP54 |
| Ambient temperature (operation) | -20 °C ... 80 °C |
