MCR-SL-1CLP-I-I-00-4KV
-
Passive separator
2814841
MCR loop-powered isolator for the electrical isolation of current signals without auxiliary power, input signal: 0(4) ... 20 mA, output signal: 0(4) ... 20 mA
Product details
| Product type | Passive separator |
| No. of channels | 1 |
| Insulation characteristics | |
| Overvoltage category | II |
| Pollution degree | 2 |
| Electrical isolation between input and output | yes |
| Limit frequency (3 dB) | < 75 Hz (at I = 20 mA and maximum load) |
| Maximum power dissipation for nominal condition | 50 mW |
| Test voltage input/output | 4 kV AC (50 Hz, 60 s) |
| Signal transmission behavior | In = Out |
| Step response (10-90%) | 5 ms (with 500 Ω load) |
| Maximum temperature coefficient | ≤ 0.002 %/K (of measured value / 100 Ω load) |
| Maximum transmission error | ≤ 0.1 % (of final value) |
| Additional error, load-dependent | 0.02 % (of measured value / 100 Ω load) |
| Supply | |
| Supply voltage range | no separate supply voltage necessary |
| Signal | |
| Description of the input | Current input |
| Number of inputs | 1 |
| Configurable/programmable | no |
| Max. voltage input signal | 30 V (30 V overload) |
| Current input signal | 0 mA ... 20 mA |
| 4 mA ... 20 mA | |
| Max. current input signal | 50 mA (100 mA overload) |
| Response current | < 50 µA |
| Input voltage limitation | 33 V 5 % (with Zener diode) |

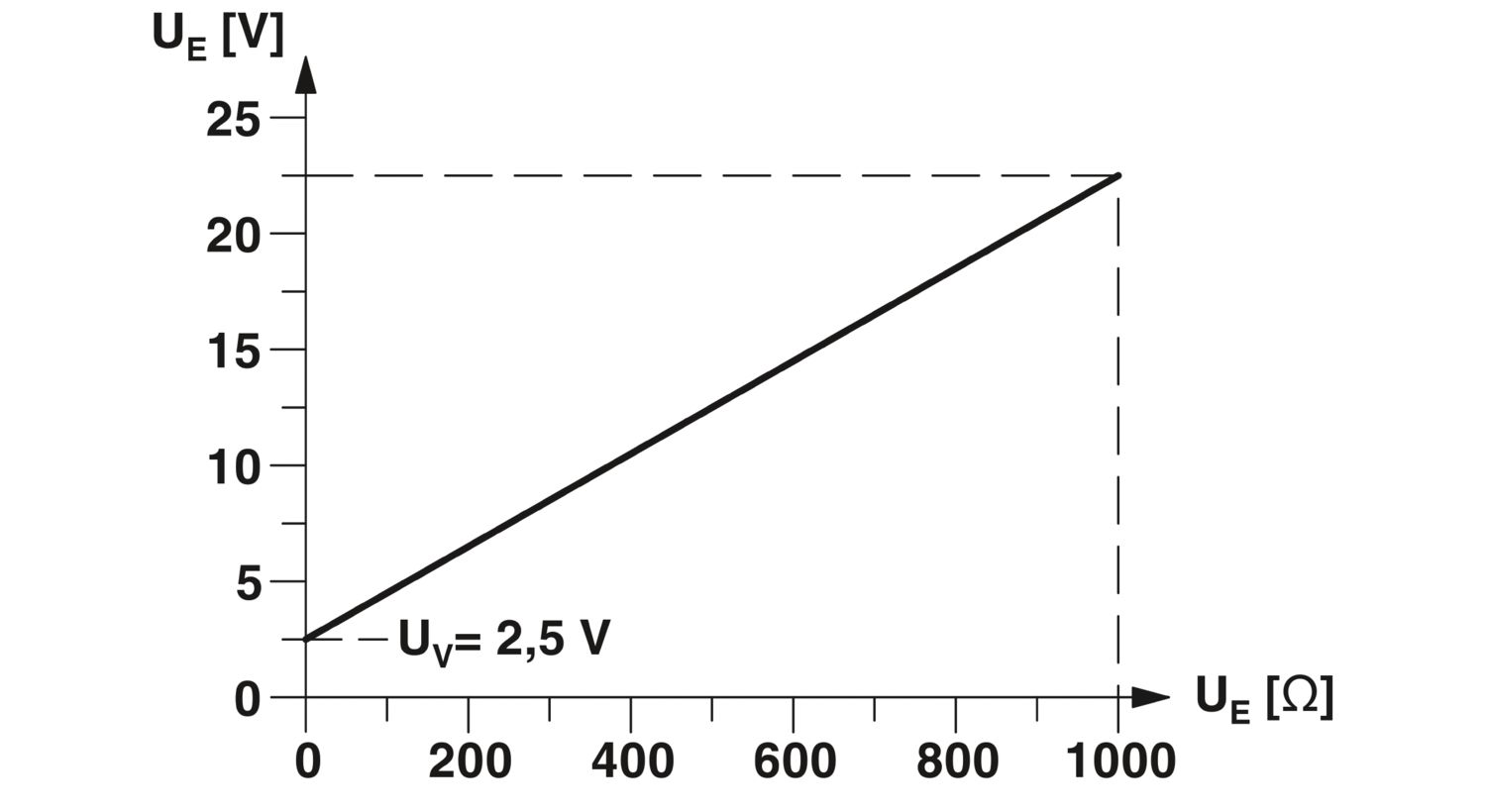

| Voltage dissipation | 2.5 V (I = 20 mA) |
| Signal: Current | |
| Number of outputs | 1 |
| Configurable/programmable | no |
| Current output signal | 0 mA ... 20 mA |
| 4 mA ... 20 mA | |
| Max. current output signal | < 50 mA |
| Load/output load current output | ≤ 1375 Ω (at I = 20 mA output signal) |
| Ripple | < 5 mV (rms) |
| Connection method | Screw connection |
| Stripping length | 8 mm |
| Screw thread | M3 |
| Conductor cross-section rigid | 0.2 mm² ... 2.5 mm² |
| Conductor cross-section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross-section AWG | 24 ... 14 |
| Dimensional drawing |
|
| Width | 12.5 mm |
| Height | 99 mm |
| Depth | 114.5 mm |
| Color | green (RAL 6021) |
| Housing material | Polyamide PA non-reinforced |
| Ambient conditions | |
| Degree of protection | IP20 |
| Ambient temperature (operation) | -10 °C ... 70 °C |
| CE | |
| Certificate | CE-compliant |
| UL, USA/Canada | |
| Identification | cULus |
| Standards/regulations | DIN EN 61010-1 |
| VDE 0100-410 | |
| VDE 0106-101 |
| Mounting type | DIN rail mounting |
| Mounting position | any |
Compatible products
Your advantages
0/4 ... 20 mA current signals
Electrical isolation without additional auxiliary voltage
Safe isolation
