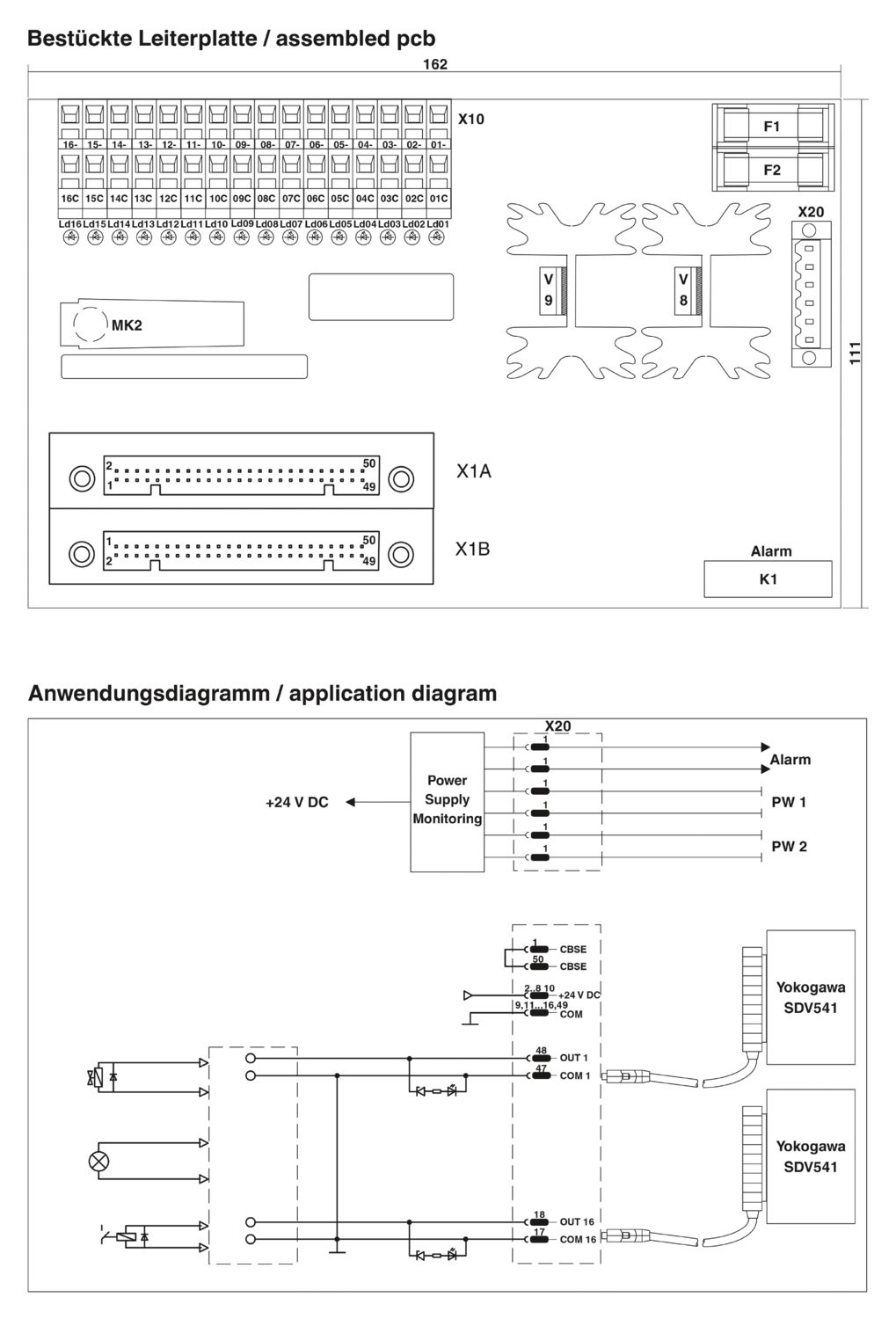

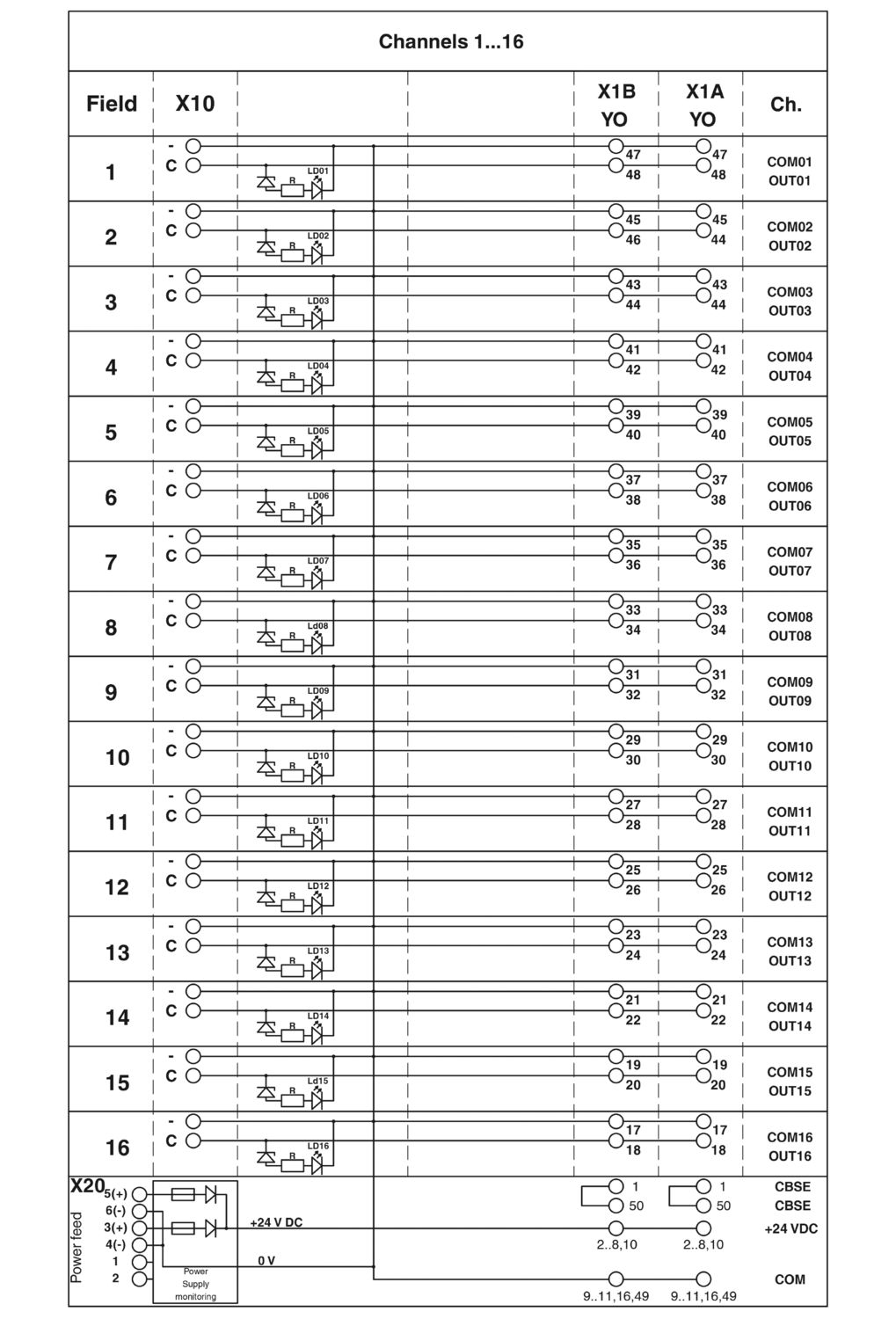

16-channel digital output module with spring-cage connection and redundant voltage supply. Suitable for Yokogawa card SDV 541.
Product details
Product type
Interface module
Insulation characteristics
Overvoltage category
III
Pollution degree
2
Nominal voltage UN
24 V DC ±5 %
Max. current carrying capacity per branch
100 mA
Max. total current of voltage supply
6.3 AT (F150, F151) plug-in fuse (5x20, 6.3 A), DIN 41662
Rated surge voltage
Basic insulation
Supported controller YOKOGAWA ProSafe-RS
Suitable I/O card
SDV541
Field level
Connection method
Spring-cage connection
Number of positions
32
Conductor cross-section rigid
0.2 mm² ... 2.5 mm²
Conductor cross-section flexible
0.2 mm² ... 1.5 mm²
Conductor cross-section AWG
24 ... 14
Controller level
Connection method
Yokogawa, KS compatible
Number of connections
2
Number of positions
50
Tightening torque
0.5 Nm
Status display
Green LED (supply), yellow LED (channel)
Status display present
yes
Item dimensions
Width
162 mm
Height
112 mm
Depth
80 mm
Ambient conditions
Ambient temperature (operation)
-20 °C ... 70 °C
Standards/regulations
DIN EN 50178
Mounting type
DIN rail mounting
Mounting position
any
Notes on operation
Voltage monitoring on the module does not work in combination with upstream HESILED fuse terminal blocks with integrated LED display.
Notes on operation
For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met.
Utilization restriction
EMC note
EMC: class A product, see manufacturer's declaration in the download area
Item number
2902931
Packing unit
1 pc
Minimum order quantity
1 pc
Note
Made to order (non-returnable)
Sales key
CK2
Product key
DK218N
GTIN
4046356697972
Weight per piece (including packing)
333.33 g
Weight per piece (excluding packing)
333.33 g
Customs tariff number
85369010
Country of origin
DE
China RoHS
Environment friendly use period (EFUP)
EFUP-50
An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration". For all articles with EFUP-E, no China RoHS declaration table issued and required.
