HC-D 7-AML-26/GW/PA
-
Housing
1772285

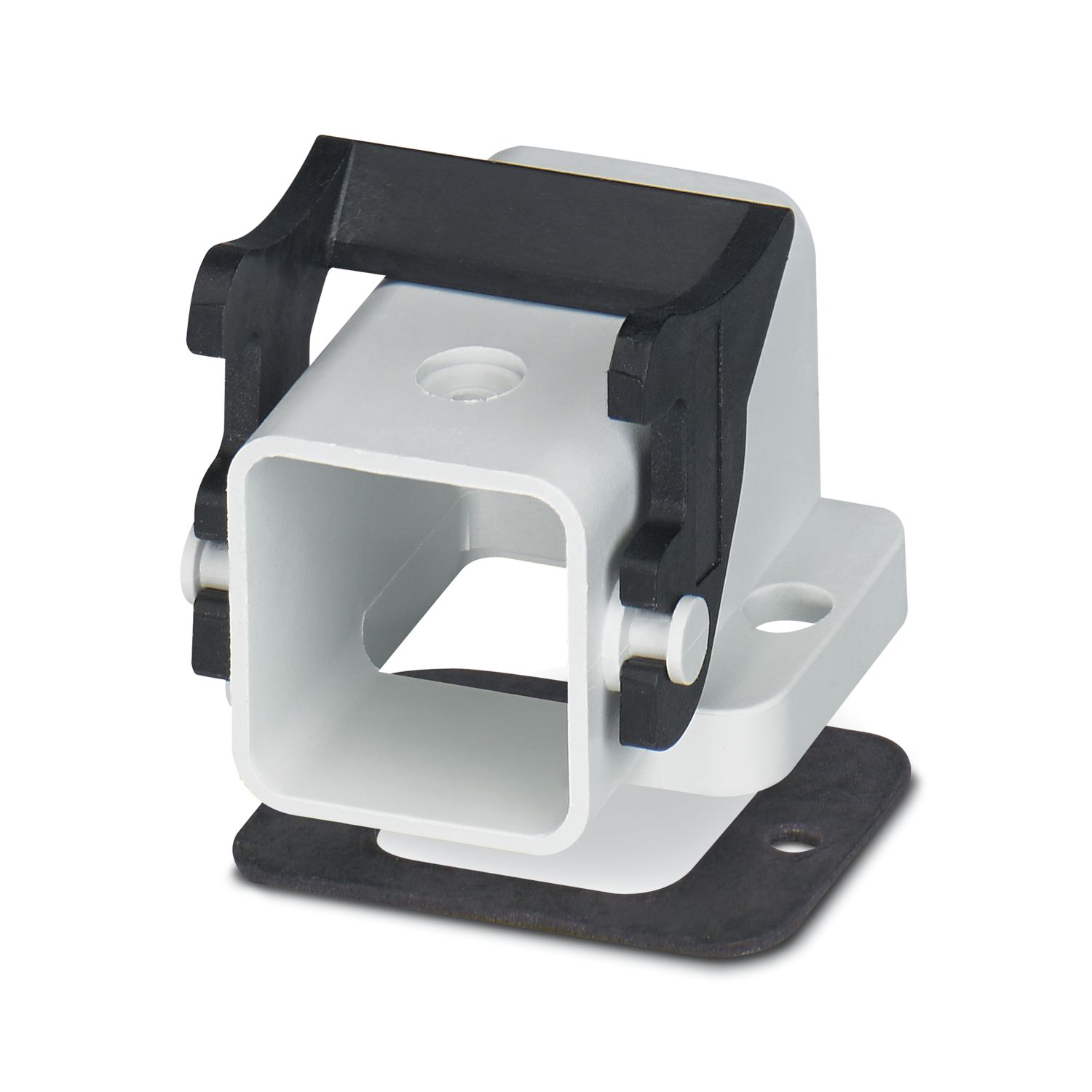

HEAVYCON D7 panel mounting base, with single locking latch, height: 25.5 mm, angled, PA
Product details
| General | for contact inserts HC-A03, A04, D07, D08, Q02, Q03, Q04, Q05, Q07, Q12 |
| Product type | Housing with locking latch |
| Housing type | Panel mounting base |
| Application | Standard |
| Type | D7 |
| Shielded | no |
| Pg screw connection | none |
| Dimensional drawing |
|
| Width | 40.5 mm |
| Height | 25.5 mm |
| Length | 24 mm |
| Installation dimensions | |
| Width of the assembly cutout | 21 mm |
| Length of the assembly cutout | 21 mm |
| Seal material | NBR |
| Housing material | PA |
| Housing surface material | PA, light gray |
| Locking latch material | PA |
| Mechanical data | |
| Locking type | Latch |
| Ambient conditions | |
| Degree of protection | IP54 |
| IP65 (with sealing screw) | |
| Ambient temperature (operation) | -40 °C ... 125 °C |
