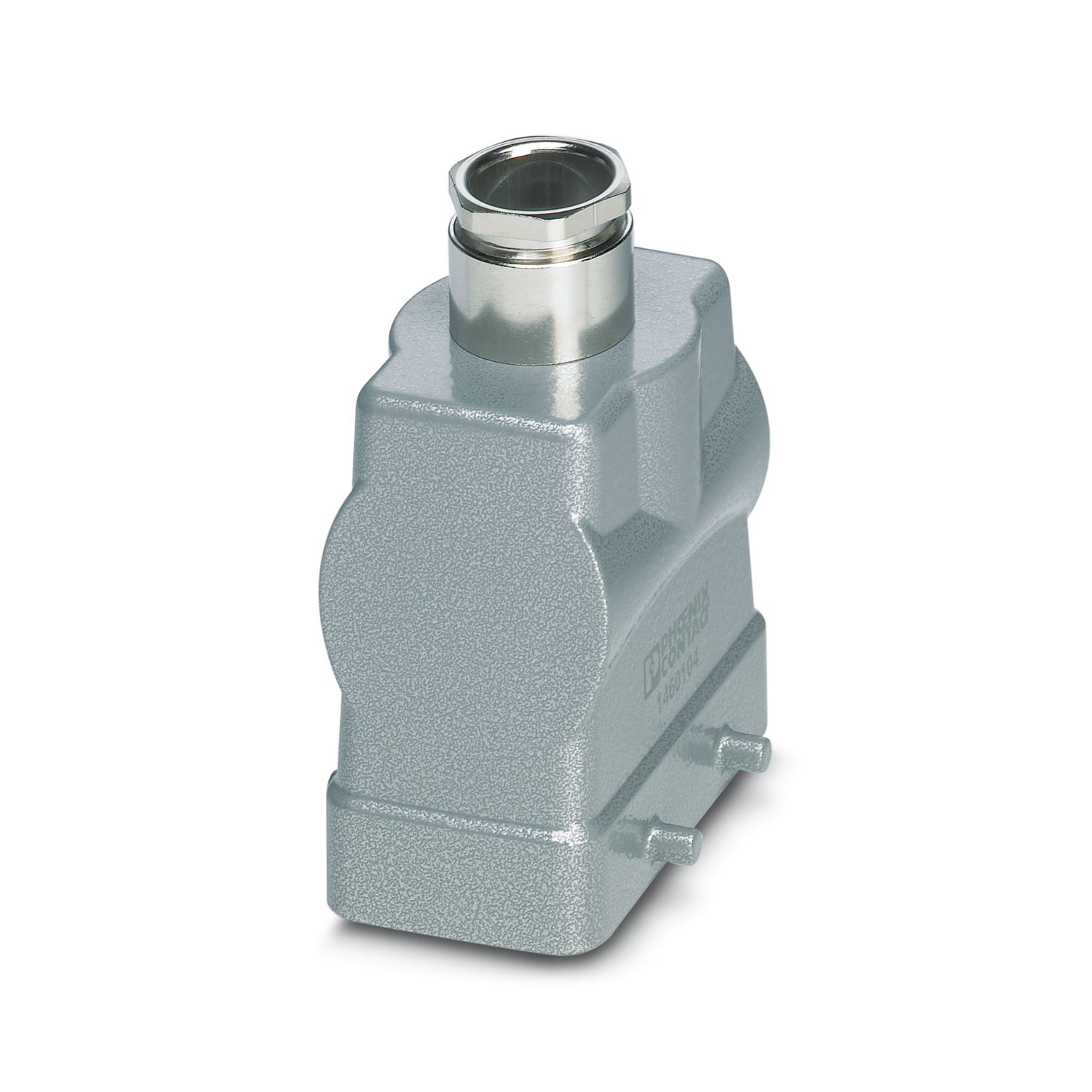

HC-B 10-TFQ-H-M1M25G
-
Housing
1460104
HEAVYCON sleeve housing B10, for double locking latch, height 72 mm, with screw connection 1x M25, straight conductor exit
Product details
| General | For contact inserts HC-B10, BB18, DD42, M, K8/24 |
| Product type | Housing with locking latch |
| Housing type | Sleeve housing |
| Type | B10 |
| No. of cable outlets | 1 |
| Type of the screw connection | 1x M25 |
| Cable outlet | straight |
| Pg screw connection | with |
| Dimensional drawing |
|
| Width | 43 mm |
| Height | 72 mm |
| Length | 73 mm |
| Wrench size, union nut | 25 mm |
| Material Screw connection | Brass, nickel-plated |
| Seal material Cable seal | NBR |
| Housing material | Die-cast aluminum |
| Housing surface material | Powder-coated, gray |
| Mechanical data | |
| Type of the screw connection | 1x M25 |
| External cable diameter | 9 mm ... 18 mm |
| External cable diameter | 9 mm ... 18 mm |
| Ambient conditions | |
| Degree of protection | IP65 |
| Ambient temperature (operation) | -40 °C ... 125 °C |
