TU-00000005300
-
Housing for circular connector
1605885

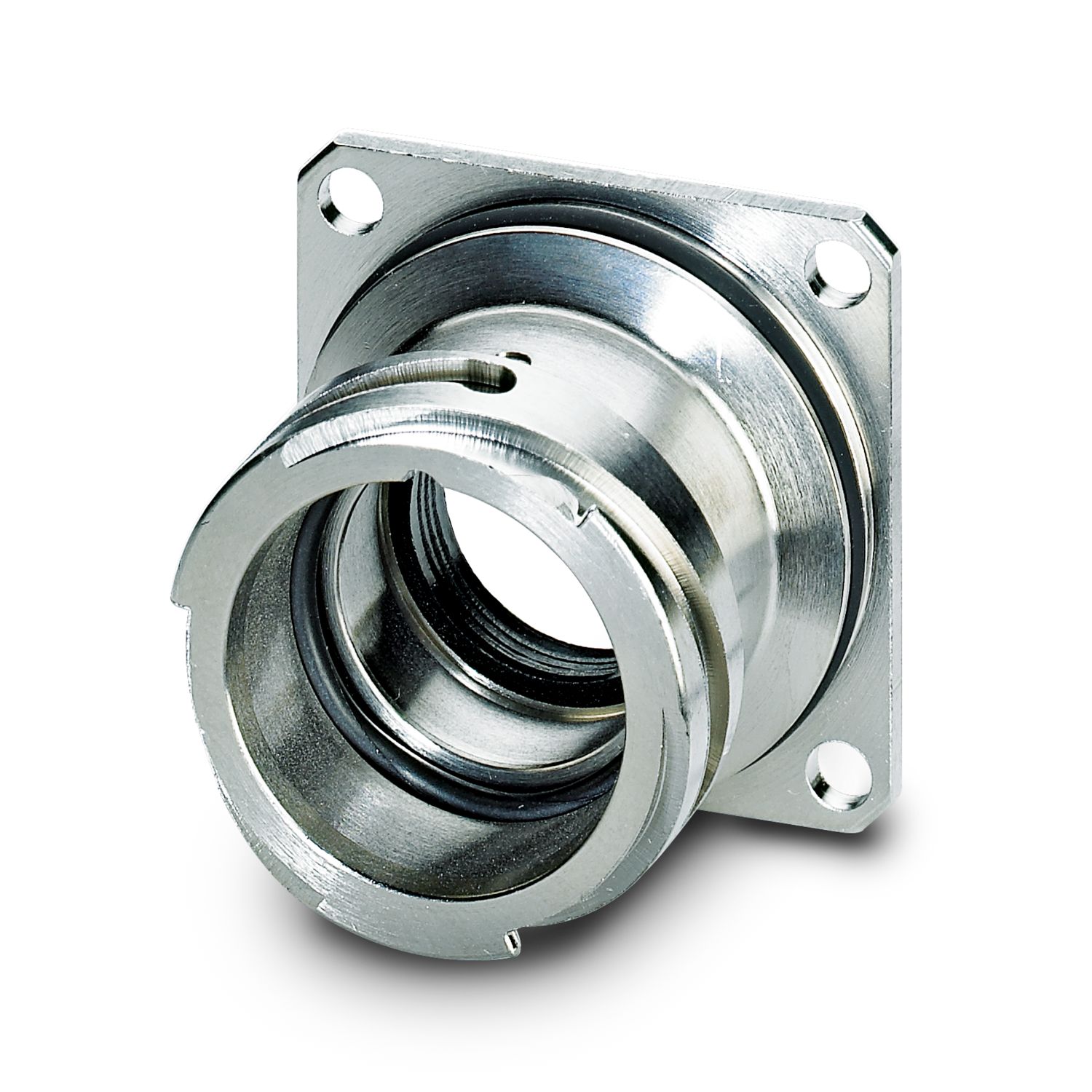

Housing for circular connector, series: TU, straight, Bayonet locking, M23, number of positions: 12, contact connection type: Socket, Crimp connection, Radial O-ring, shielded: yes, panel thickness min.: 3.5 mm
Product details
| Order information: | Order contact inserts separately |
| Product type | Circular connector housing |
| Series | TU |
| Application | Signal |
| Connection profile | 12 |
| Shielded | yes |
| Thread type | M23 |
| Connection method | Crimp connection |
| Dimensional drawing |
|
| Length of the solder pin | 16.5 mm |
| 2.5 mm | |
| 3.5 mm | |
| 9 mm | |
| 16.5 mm | |
| 2.5 mm | |
| 3.5 mm | |
| 9 mm | |
| Panel thickness | 2,5 3.5 mm |
| Material (Rotating parts) | CuZn |
| Seal material | FPM or NBR or EPDM |
| Housing material | GD-Zn |
| Housing material | Turned parts: copper zinc alloy (CuZn), die-cast parts: zinc (GD-Zn) |
| Housing surface material | Ni |
| Gasket and O-ring material | FPM |
| Type | straight |
| Ambient conditions | |
| Degree of protection | IP67 |
| Ambient temperature (operation) | -20 °C ... 125 °C |
| Altitude | 2000 m |
| Mounting type | Rear mounting/square flange (4x Ø 3.2 mm) |
