CES-B16-SFFS-PLBK
-

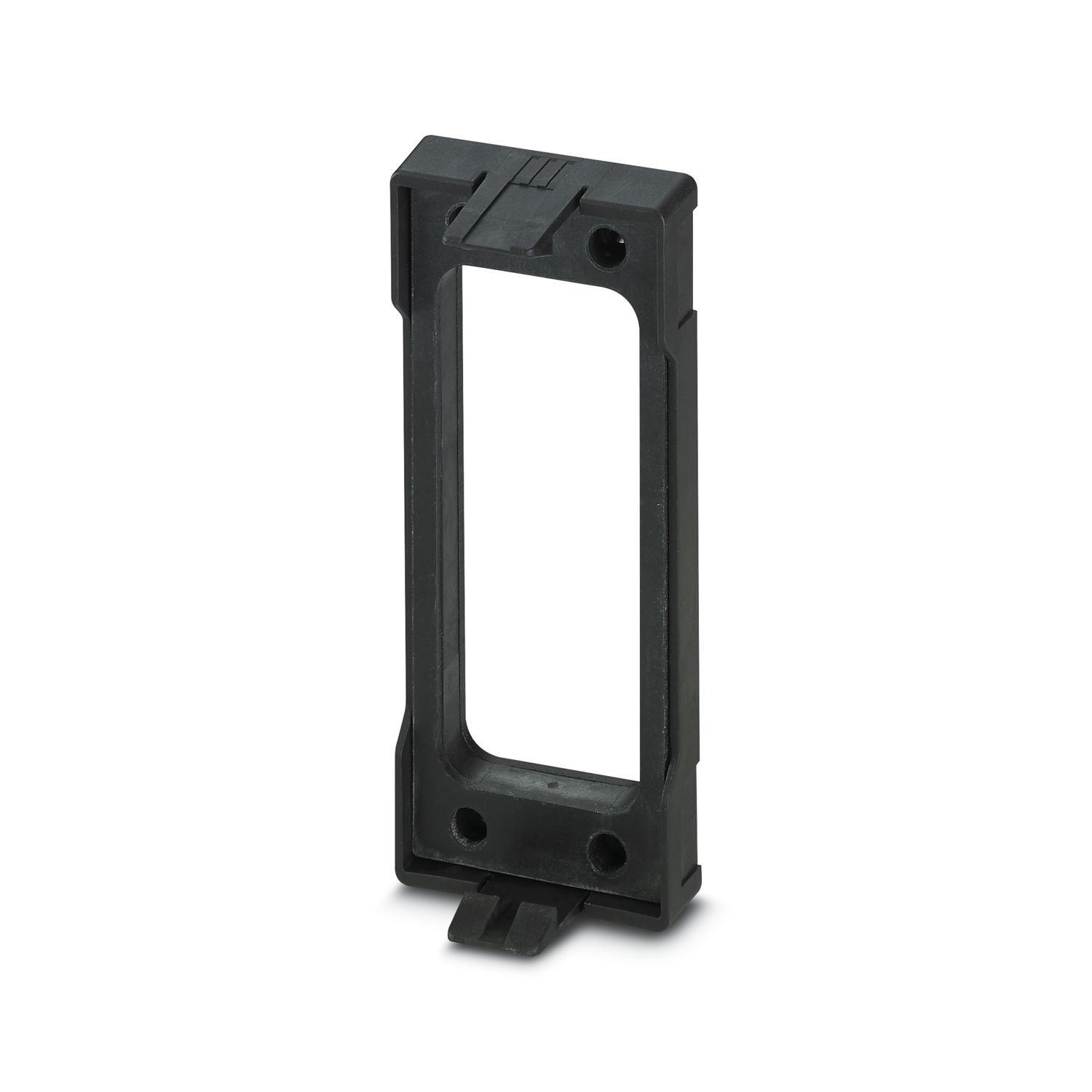

Sealing frame
0801659
Sealing frame, with screw locking, design: B16, Number of cable seals (small): 8, material: PA (halogen-free), color: black, length: 120 mm, width: 58 mm, height: 20 mm
Product details
| Note on application | Mounting screws not supplied as standard. The maximum width of the panel cutout must not exceed 51 mm (instead of 35 mm for heavy-duty industrial connectors). |
| Product type | Frame for cable sleeves |
| Type | B16 |
| Frame type | Sealing frame |
| Tightening torque | 2 Nm ... 4 Nm (Locking screw) |
| 1.8 Nm (Mounting screw, M4 (ISO 4762/DIN 912)) |

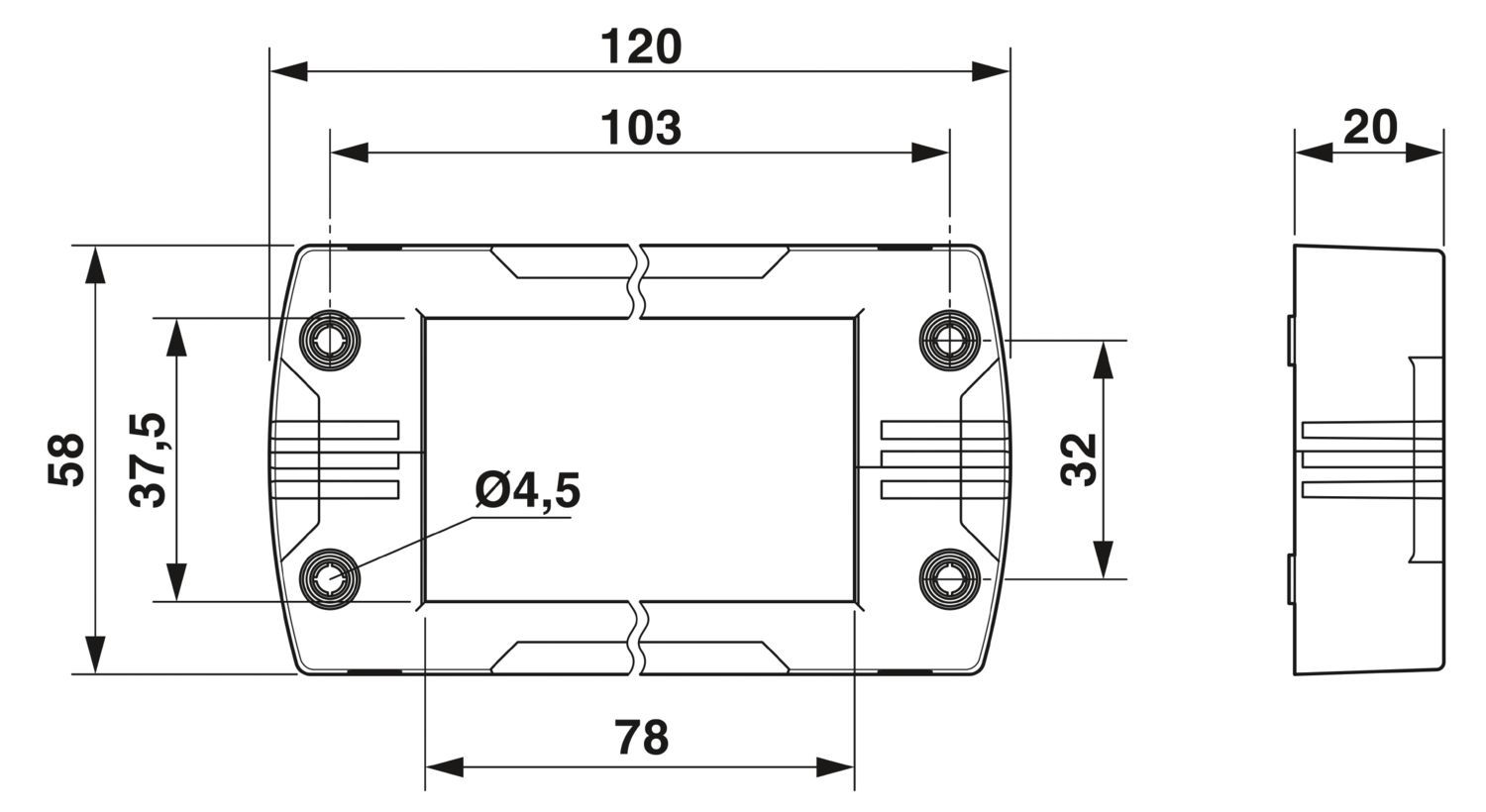

| Dimensional drawing |
|
| Width | 58 mm |
| Height | 20 mm |
| Length | 120 mm |
| Drill hole distance, horizontal | 32 mm |
| Drill hole distance, vertical | 103 mm |
| Hole diameter | 5.5 mm |
| Installation dimensions | |
| Width of the assembly cutout | 35 mm |
| Length of the assembly cutout | 86 mm |
| Material | PA (halogen-free) |
| Flammability rating according to UL 94 | V0 |

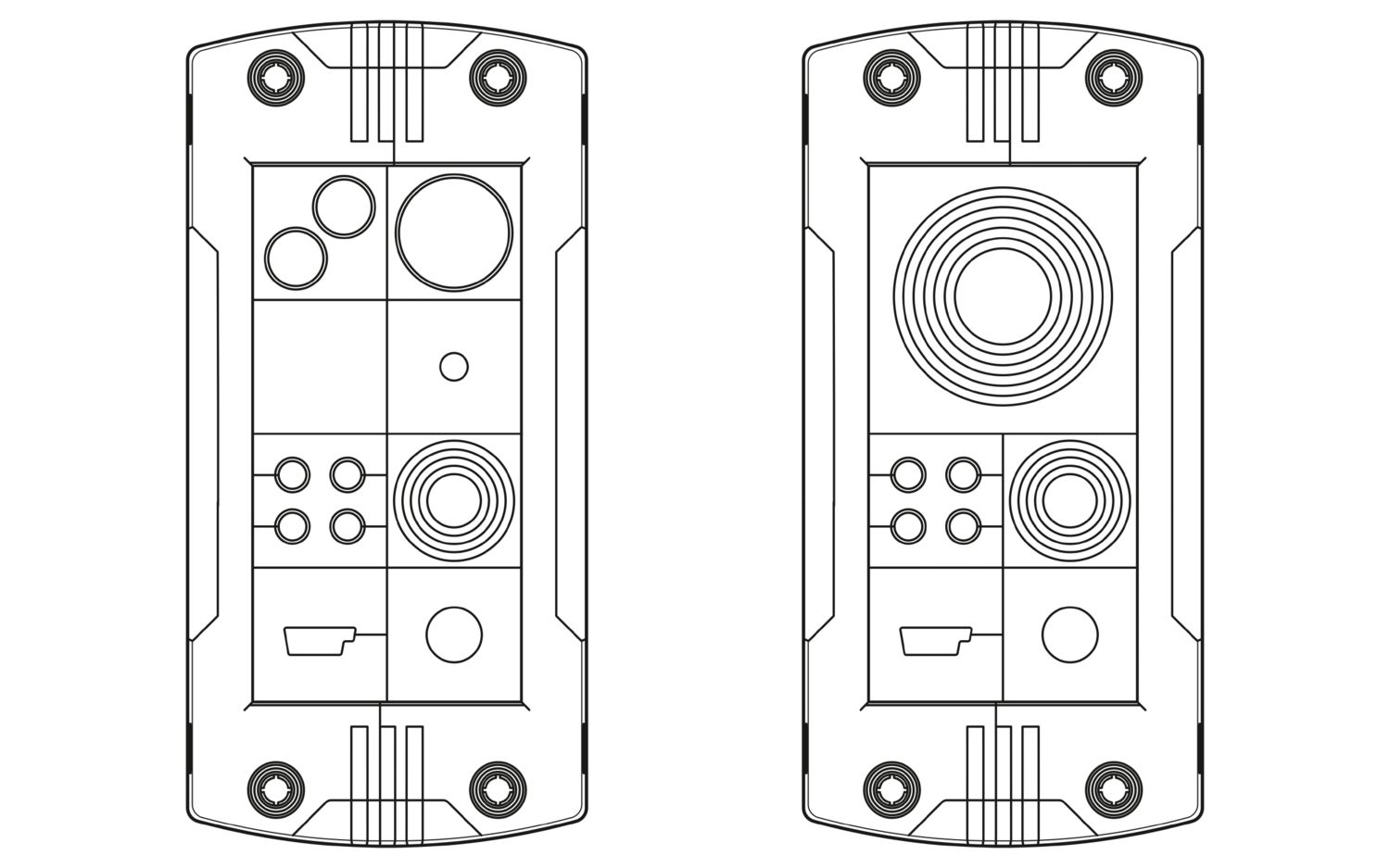

| Number of cable seals | 0 ... 8 (small seals, depending on the number of large seals installed) |
| 0 ... 2 (large seals, depending on the number of small seals installed) |
| Ambient conditions | |
| Degree of protection | IP54 |
| IP65 | |
| Ambient temperature (operation) | -40 °C ... 120 °C (static) |
| Assembly note | M4 locking screw with 3 mm Allen screw head, 3 ... 4 Nm torque, 1 large sleeve requires the space of 4 small sleeves, mounting screw: M4 (ISO 4762/DIN 912), 1.8 Nm torque |

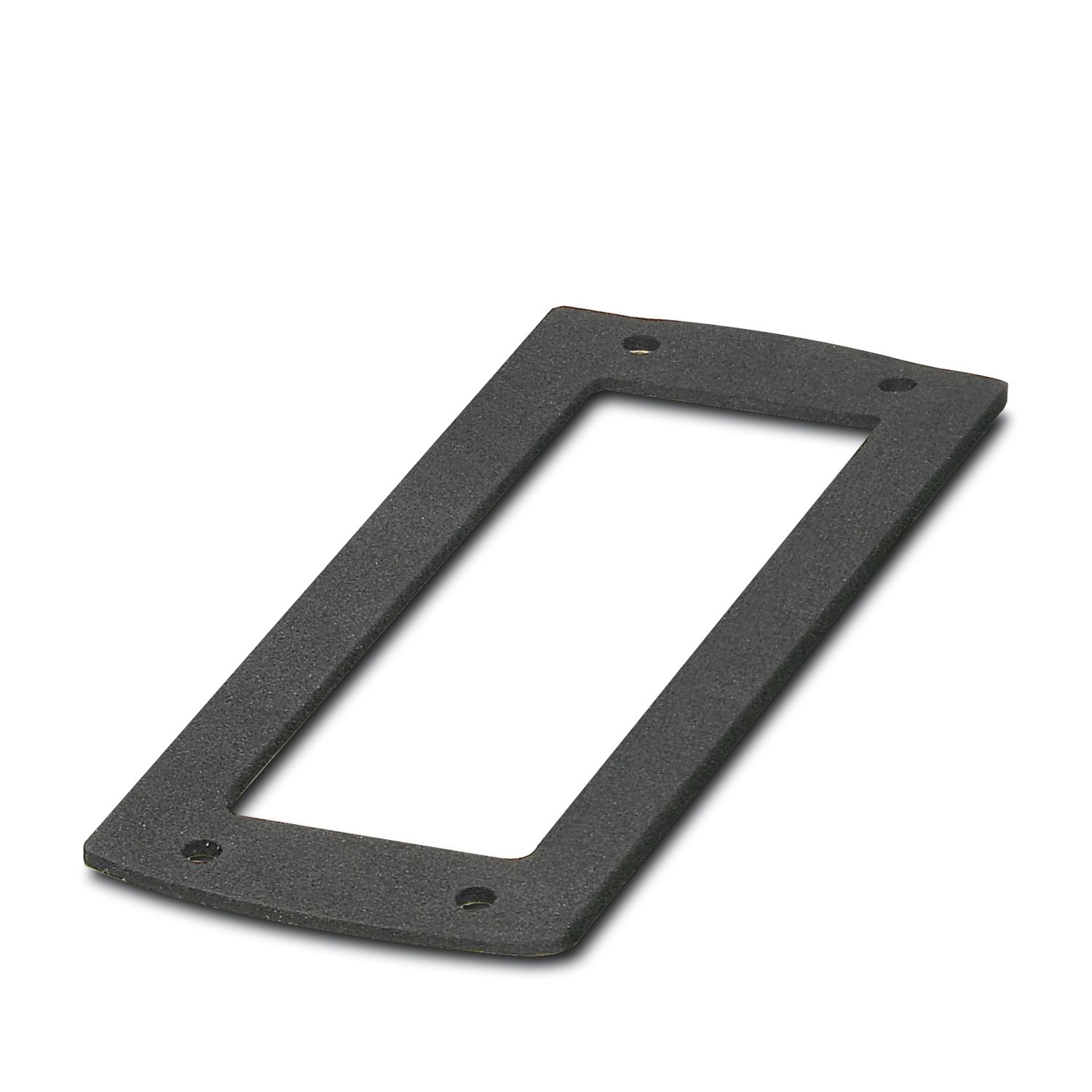

| The flat gasket supplied should be inserted between the wall and the sealing frame in the case of panel mounting. IP54: for vertical sealing frame mounting/for horizontal sealing frame mounting (downward cable outlet direction). IP65: when using the CES-SRC-BK / CES-LRC-BK cone sleeve, for vertical mounting/horizontal mounting (downward cable outlet direction) of the sealing frame directly on the housing panel, and use of a 3.6 mm wide cable binder (e.g., item 3240744). |
Your advantages
Can also be used for standard panel cutouts for heavy-duty industrial connectors
