The PSR-MIS non-contact safety switches offer a cost-optimized safety solution. The safety switches in this series use the proven magnetic switching principle for monitoring of movable guards and are easy to install.

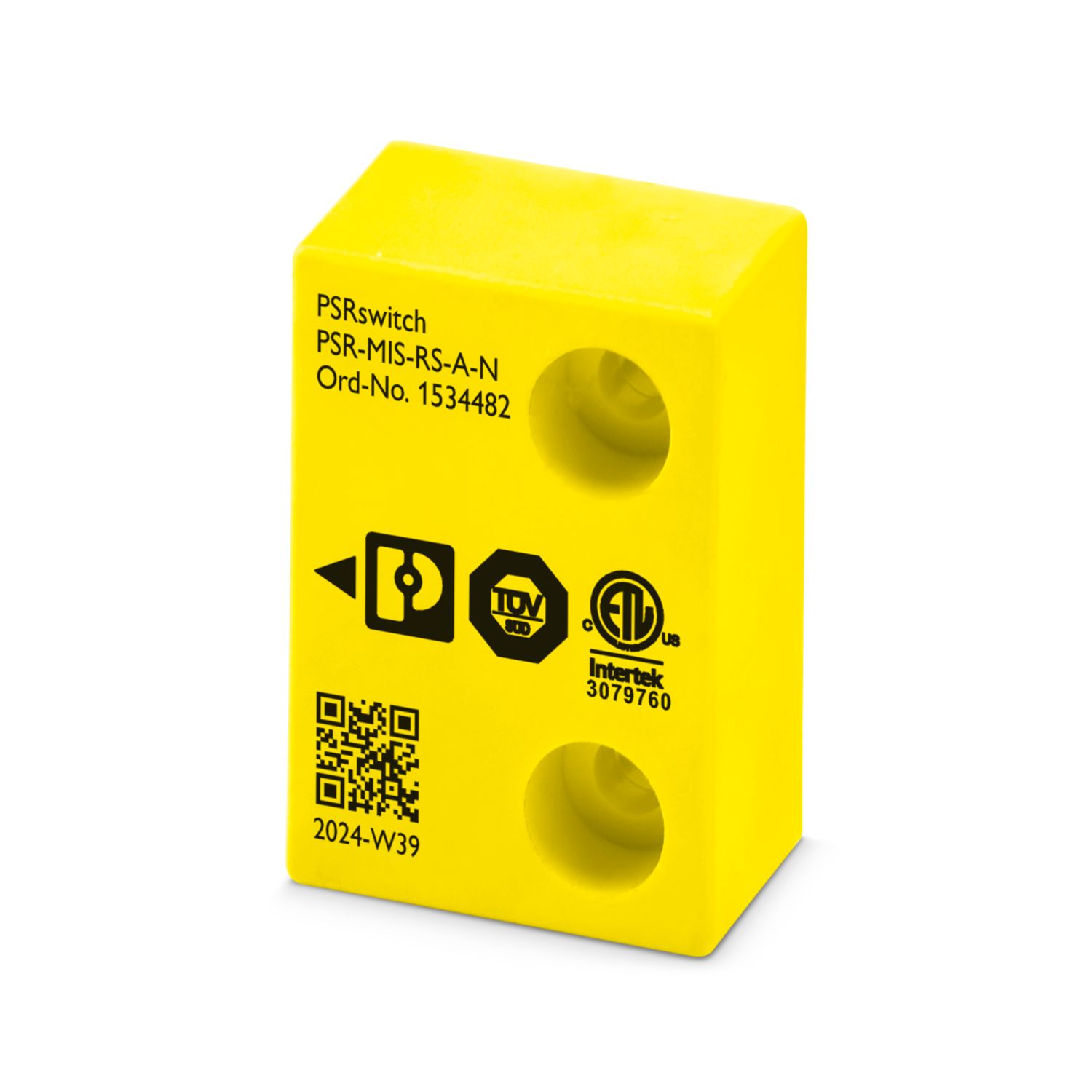

PSR-MIS-RS-A-N
-
Safety switch actuator
1534482
Non-contact safety switch, actuator, up to Cat. 4, PL e (EN ISO 13849), SIL 3 (EN IEC 62061), design 4 (EN ISO 14119), low encoding level, compact design
Product details
| Product type | Safety switches |
| Product family | PSR-MIS |
| Technology | Magnetic |
| Application | Safety door monitoring |
| Position monitoring | |
| Design in accordance with EN ISO 14119 | 4 |
| Encoding level in accordance with EN ISO 14119 | low |
| Switching intervals (Actuation position frontal) | |
| Actuation setting | 1 (frontal), see the “Actuation positions and travel directions” section in the data sheet |
| Fused switching interval Sao | 8 mm |
| Fused power off interval Sar | 17 mm |
| Switching hysteresis | 1.5 mm |
| Conductor connection | |
| Connection method | without |

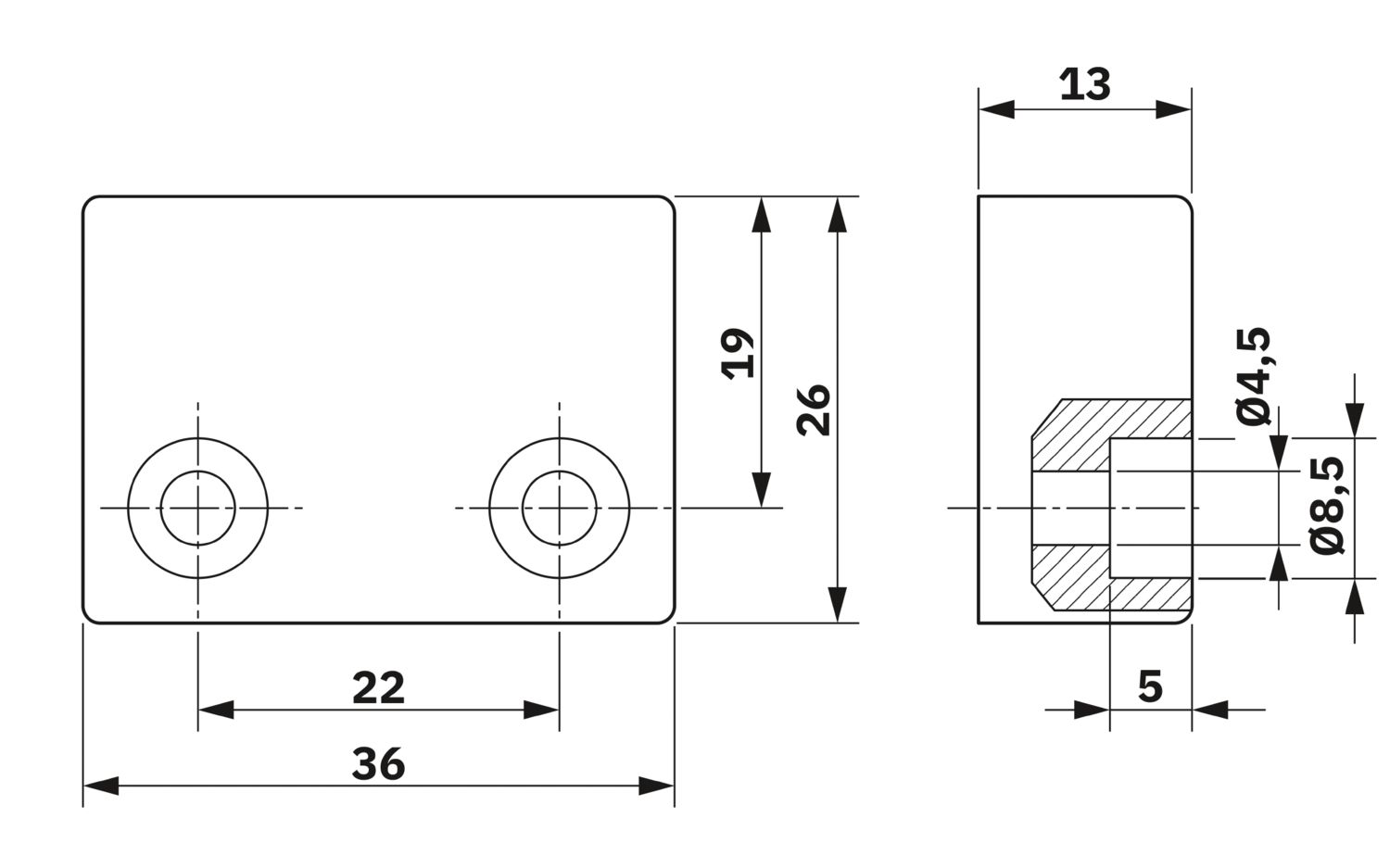

| Dimensional drawing |
|
| Width | 36 mm |
| Height | 26 mm |
| Depth | 13 mm |
| Color (Housing) | traffic yellow (RAL 1023) |
| Housing material | PBT |
| Ambient conditions | |
| Ambient temperature (operation) | -25 °C ... 75 °C |
| Ambient temperature (storage/transport) | -25 °C ... 75 °C |
| Maximum altitude | ≤ 2000 m (Above sea level) |
| Shock | 30g, 11 ms |
| Vibration (operation) | 10 Hz ... 55 Hz |
| Mounting type | not flush |
| Assembly note | Note EN ISO 14119 |
| max. tightening torque to secure: 2.9 Nm | |
| Mounting position | any, sensor and actuator parallel to each other |
| Minimum distance | min. 50 mm (between two safety switching systems) |
cETL
Approval ID: Industrial component
Your advantages
Cost-optimized safety switch
Tried-and-tested magnetic switching principle
Compact design
Standard actuator

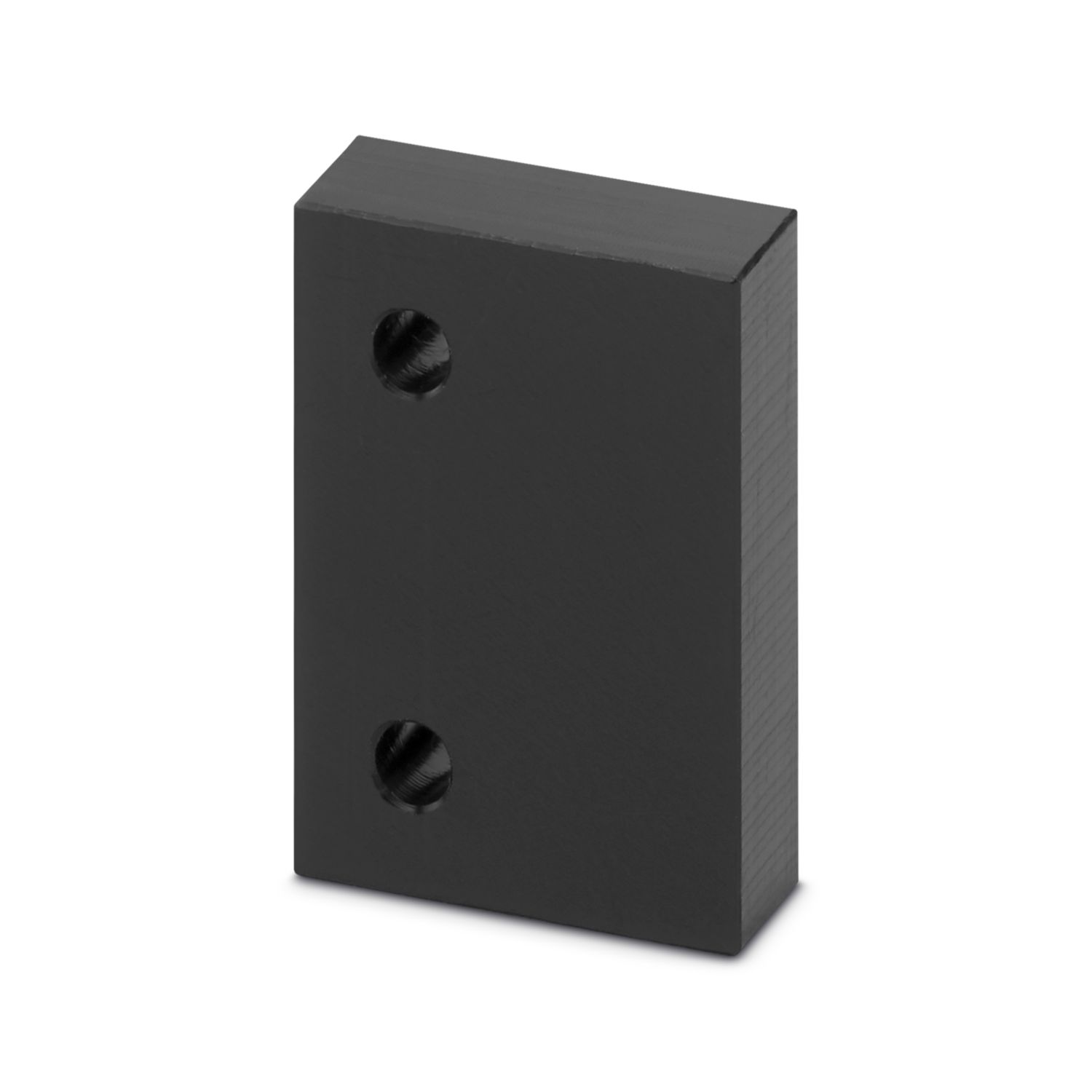

Spacer plates for mounting on ferrous material available as accessories
