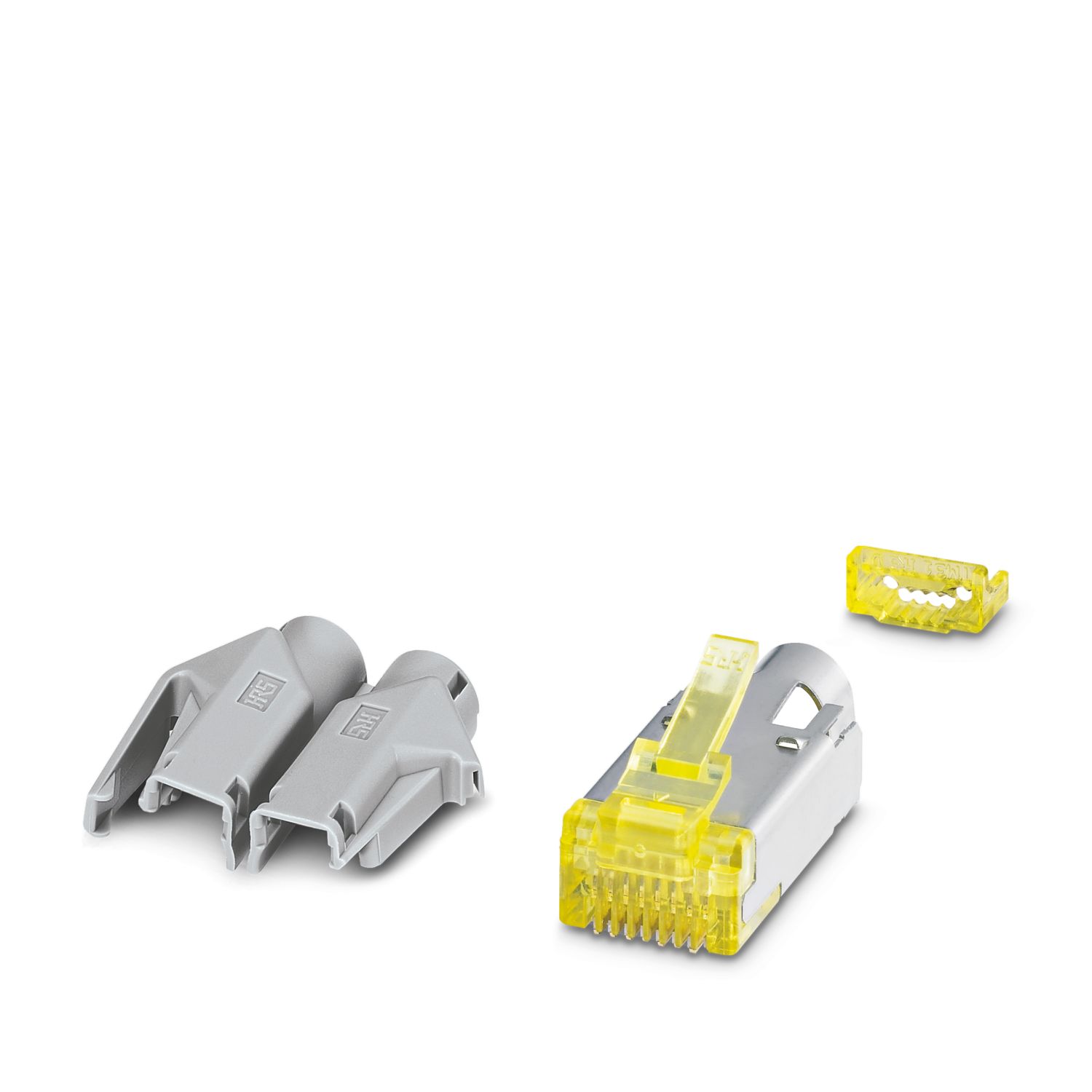

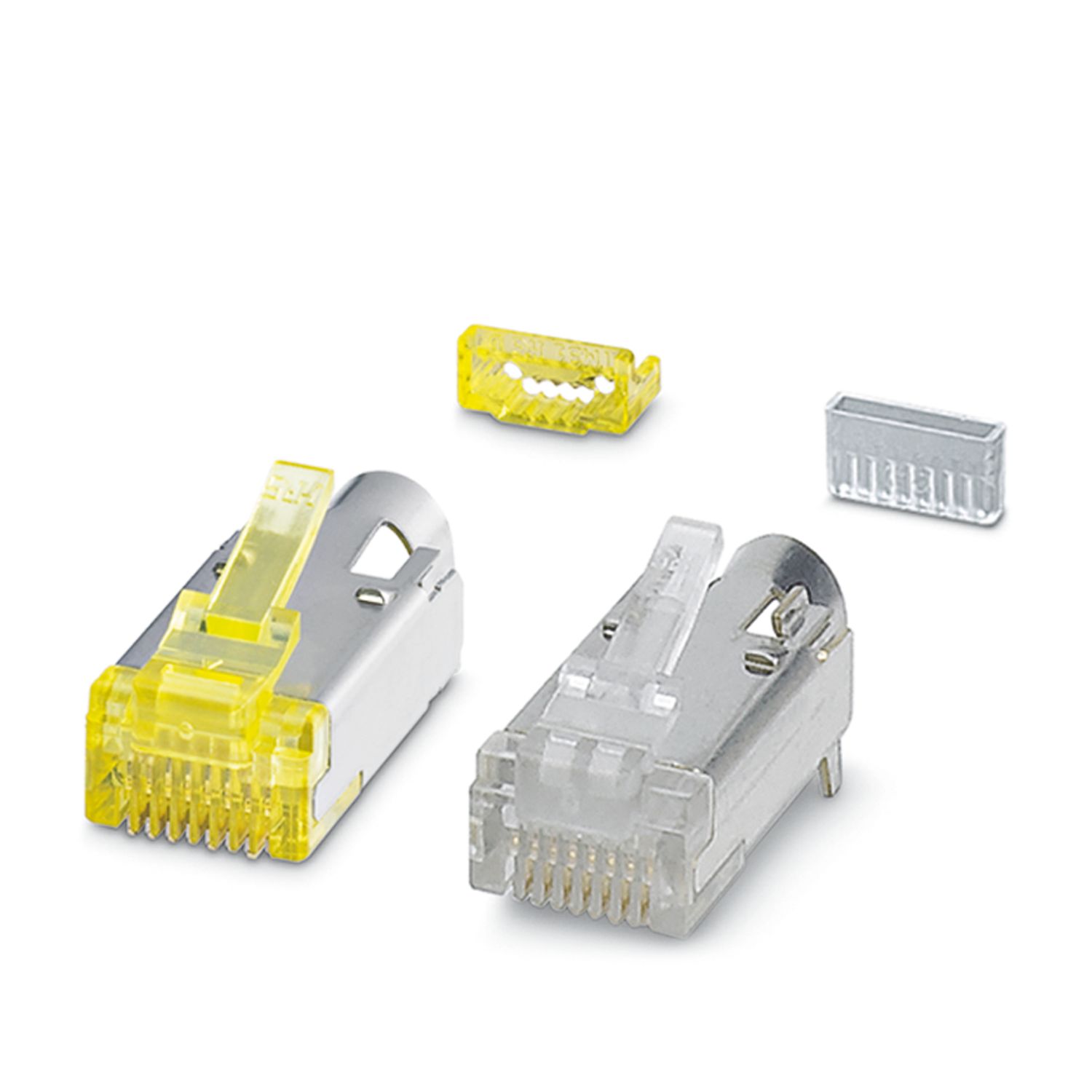

VS-08-RJ45-10G/C - RJ45 male insert
VS-08-RJ45-10G/C
-
RJ45 male insert
1418853
Male insert RJ45, CAT6
A
, 10 Gigabit
Product details
Expand all
Collapse all
Technical data
Product properties
Product type
Data connector (cable side)
Type
RJ45
Sensor type
Ethernet
Number of positions
8
Connection profile
RJ45
No. of cable outlets
1
Type
RJ45
Shielded
yes
Cable outlet
straight
Positions/contacts
8P8C
Insulation characteristics
Overvoltage category
I
Degree of pollution
2
Electrical properties
Rated voltage (III/3)
72 V (DC)
Rated surge voltage
330 kV
Contact resistance
< 20 mΩ (Contact)
< 100 mΩ (shield)
Frequency range
to 500 MHz
Insulation resistance
> 500 MΩ (100 V DC)
Nominal voltage U
N
48 V
Nominal current I
N
1 A
Contact resistance per contact pair
< 20 Ω
Contact resistance
> 10 mΩ (Wire – IDC)
Transmission medium
Copper
Transmission characteristics (category)
CAT6
A
Connection data
Connection technology
Connection method
Crimp connection
Connection cross section AWG
24 ... 27 (flexible)
Conductor cross section
0.11 mm² ... 0.22 mm² (flexible)
Cable outlet, angle
180
Dimensions
Width
11.7 mm
Height
14 mm
Length
30.2 mm
Material specifications
Color
yellow
Flammability rating according to UL 94
V2
Housing material
Steel, tin-plated
Contact material
Phosphor bronze
Contact surface material
Au/Ni
Contact carrier material
PC
Locking latch material
PC
Cable/line
External cable diameter
5.8 mm ... 6 mm
External cable diameter
5.8 mm ... 6 mm
Wire diameter including insulation
0.9 mm ... 1 mm
Test voltage Core/Core
1000 V
Test voltage Core/Shield
1500.00 V
Mechanical properties
Mechanical data
Insertion/withdrawal cycles
≥ 750
Insertion force per signal contact
< 20.00 N
Extraction force per signal contact
< 20 N
Environmental and real-life conditions
Ambient conditions
Degree of protection
IP20
Ambient temperature (operation)
-25 °C ... 60 °C
Mounting
Mounting type
For field assembly
Commercial data
Item number
1418853
Packing unit
5 pc
Minimum order quantity
5 pc
Sales key
ABNAAH
Product key
ABNAAH
Catalog page
Page 350 (C-2-2019)
GTIN
4046356536660
Weight per piece (including packing)
3,15 g
Weight per piece (excluding packing)
2,709 g
Customs tariff number
85366990
Country of origin
TW
Classifications
ECLASS
ECLASS-13.0
27440114
ETIM
ETIM 9.0
EC002636
UNSPSC
UNSPSC 21.0
39121400
Environmental product compliance
EU RoHS
Fulfills EU RoHS substance requirements
Yes
(No exemptions)
China RoHS
Environment friendly use period (EFUP)
EFUP-E
No hazardous substances above the limits
EU REACH SVHC
REACH candidate substance (CAS No.)
No substance above 0.1 wt%
