PLC-BPT- 24DC/21RW - Relay base

2900261

6.2 mm PLC basic terminal block for railway applications with Push-in connection, without relay or solid-state relay, range from 0.7 x U_N to 1.25 x U_N, temperature range from -25°C to +70°C, 1 changeover contact, input voltage 24 V DC

This product needs further products for operation. Mandatory accessories

Product details

Utilization restriction
EMC note	EMC: class A product, see manufacturer's declaration in the download area

Product type	Relay socket
Product family	PLC-INTERFACE
Application	Railway applications
Operating mode	100% operating factor
Compatible components	Miniature relay, REL-MR-18DC/21AU, REL-MR-18DC/21

Protective circuit	Damping diode, polarity protection diode

Nominal input voltage U_N	24 V DC
	The nominal voltage of the plug-on electromechanical relay or solid-state relay (see necessary accessories) deviates from the nominal input voltage of the base with integrated upstream circuit
Protective circuit	Freewheeling diode
Nominal input voltage U_N	24 V DC
	The nominal voltage of the plug-on electromechanical relay or solid-state relay (see necessary accessories) deviates from the nominal input voltage of the base with integrated upstream circuit
Relay assembly
Nominal input voltage U_N	24 V DC

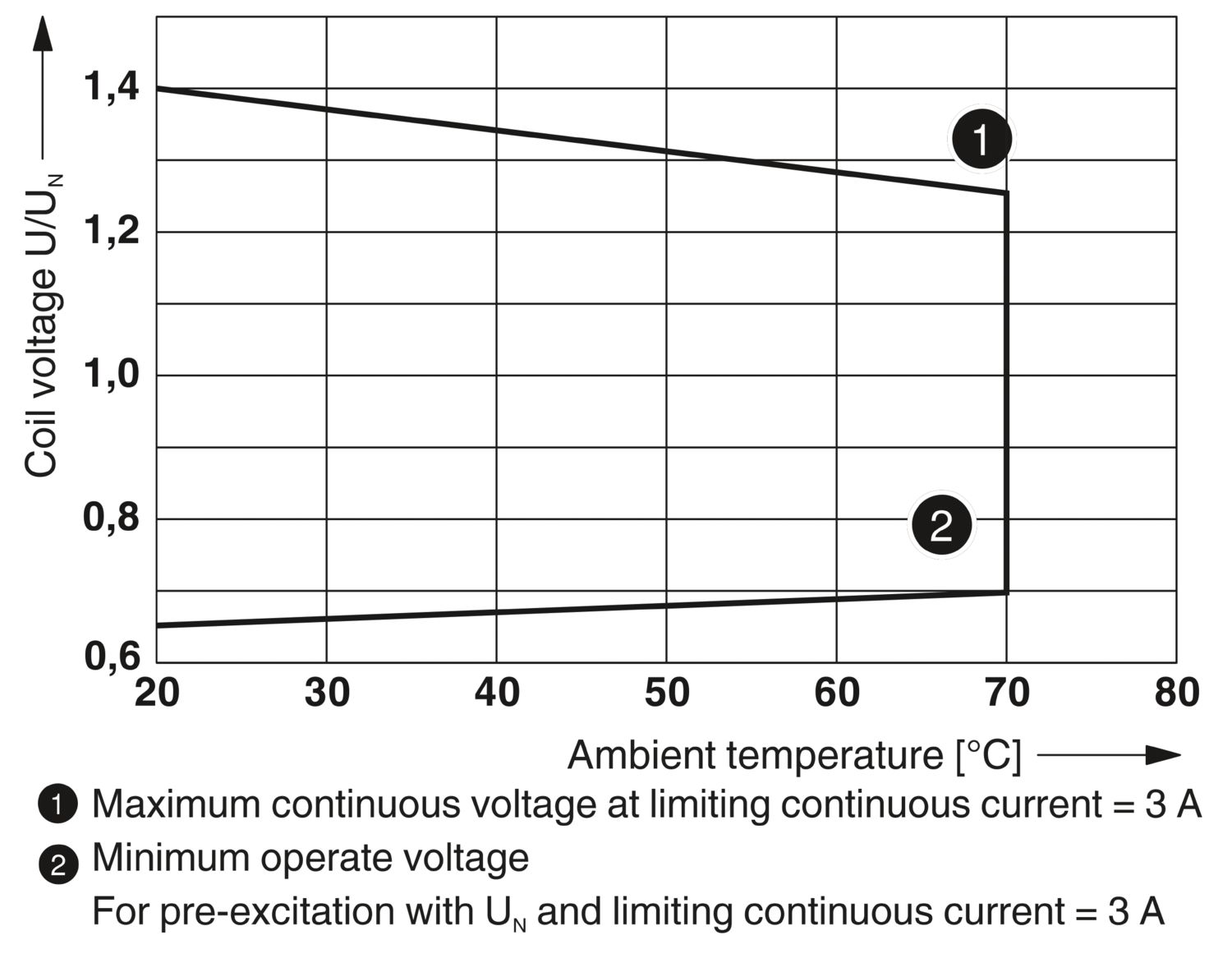

Input voltage range in reference to U_N	0.65 ... 1.25
Typical input current at U_N	12 mA
Typical response time	5 ms
Typical release time	8 ms
Operating voltage display	Yellow LED
Protective circuit	Reverse polarity protection; Polarity protection diode
	Freewheeling diode; Freewheeling diode

Compatible components	Miniature relay, REL-MR-18DC/21AU, REL-MR-18DC/21

Connection method	Push-in connection
Stripping length	10 mm
Conductor cross section rigid	0.14 mm² ... 2.5 mm²
Conductor cross section flexible	0.14 mm² ... 2.5 mm²
	0.2 mm² ... 2.5 mm² (Single ferrule)
	2x 0.5 mm² ... 1 mm² (TWIN ferrule)
Conductor cross section AWG	26 ... 14

Status display	LED

Width	6.2 mm
Height	80 mm
Depth	94 mm

Color	gray (RAL 7042)
Flammability rating according to UL 94	V0 (Housing)

Ambient conditions
Ambient temperature (operation)	-25 °C ... 70 °C
Ambient temperature (storage/transport)	-40 °C ... 85 °C

CE
Certificate	CE-compliant
UKCA
Certificate	UKCA-compliant
Shipbuilding approval
Certificate	TAE0000196
Corrosive gas test
Identification	ISA-S71.04. G3 Harsh Group
	EN 60068-2-60
Shipbuilding data
Temperature	D
Humidity	A
Vibration	B/C
EMC	B
Enclosure	Required protection according to the Rules shall be provided upon installation on board

Electromagnetic compatibility	Conformance with EMC directive
Low Voltage Directive	Conformance with Low Voltage Directive

Mounting type	DIN rail mounting
Assembly note	in rows with zero spacing
Mounting position	any

Commercial data

Item number	2900261
Packing unit	10 pc
Minimum order quantity	10 pc
Sales key	DK62AL
Product key	DK62AL
Catalog page	Page 418 (C-5-2019)
GTIN	4046356512916
Weight per piece (including packing)	30,554 g
Weight per piece (excluding packing)	27,73 g
Customs tariff number	85366990
Country of origin	DE

Classifications

Approvals

Environmental product compliance

Compatible products

Mandatory accessories

Accessories

Your advantages

Vibration and shock resistance in accordance with EN 50155

Safe isolation between coil and contact side

Input voltage range of 0.7 to 1.25 x UN

Temperature range: -25 °C ... +70 °C

EU RoHS
Fulfills EU RoHS substance requirements	Yes
Exemption	7(a), 7(c)-I
China RoHS
Environment friendly use period (EFUP)	EFUP-50 An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration". For all articles with EFUP-E, no China RoHS declaration table issued and required.
EU REACH SVHC
REACH candidate substance (CAS No.)	Hexahydromethylphthalic anhydride (CAS: n/a)
REACH candidate substance (CAS No.)		Lead (CAS: 7439-92-1)
SCIP	dedc5752-d2e8-4285-9b25-0090fd6048b7
