FLKM-2KS40/YCS - Passive module

2901056

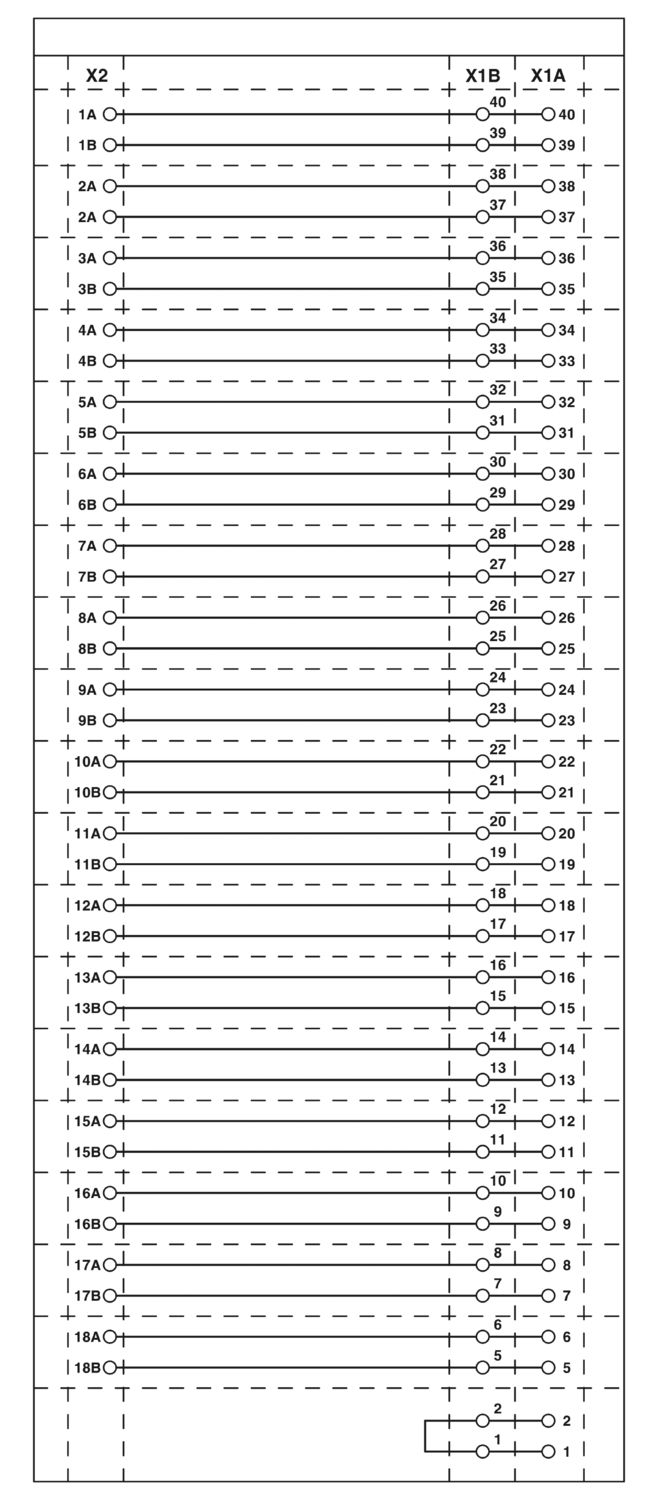

VARIOFACE interface module for analog modules, 1:1 connection, redundant connector. For Yokogawa CENTUM CS3000 cards AAV141, AAV142, AAI141, AAI143, AAV542, AAI543, AAI135, AAI835, AAP135, AAT141, AAR181, AAB841.

Product details

Product type	Interface module
No. of channels	4
	8
	12
	16
Operating mode	100% operating factor
Insulation characteristics: Air clearances and creepage distances
Insulation	Functional insulation
Overvoltage category	II
Pollution degree	2

Operating voltage (DC)	≤ 30 V DC
Current (per branch)	≤ 0.1 A
Air clearances and creepage distances
Rated insulation voltage	50 V
Rated surge voltage	0.5 kV (1.2/50 μs)
Supported controller YOKOGAWA CS3000 CentumVP
Suitable I/O card	AAI543
	AAI141
	AAI143
	AAI835
	AAI841
	AAI135
	AAR181
	AAT141
	AAV141
	AAV142
	AAB841
	AAV542
Supported controller YOKOGAWA STARDOM
Suitable I/O card	NFAI141
	NFAI143
	NFAI543
	NFAI135
	NFAP135
	NFAV141
	NFAV142
	NFAV542
	NFAB841
	NFAI841
	NFAI835

Connection 1 (control level)
Connection method	Yokogawa, KS compatible
Number of connections	2
Number of positions	40
Tightening torque	0.5 Nm
Pitch	2.54 mm
Connection 2 (field level)
Connection method	Screw connection
Stripping length	7 mm
Screw thread	M3
Number of positions	36
Conductor cross-section rigid	0.2 mm² ... 4 mm²
Conductor cross-section rigid (2 conductors with same cross section)	0.2 mm² ... 1.5 mm²
Conductor cross-section flexible	0.2 mm² ... 2.5 mm²
	0.25 mm² ... 1.5 mm² (Ferrule without plastic sleeve)
	0.25 mm² ... 2.5 mm² (Ferrule with plastic sleeve)
Conductor cross-section flexible (2 conductors with same cross section)	0.2 mm² ... 1.5 mm²
	0.25 mm² ... 0.75 mm² (Ferrule without plastic sleeve)
	0.5 mm² ... 0.5 mm² (TWIN ferrule with plastic sleeve)
Conductor cross-section AWG	24 ... 12
Tightening torque	0.5 Nm ... 0.6 Nm
Pitch	5.08 mm

Status display present	no

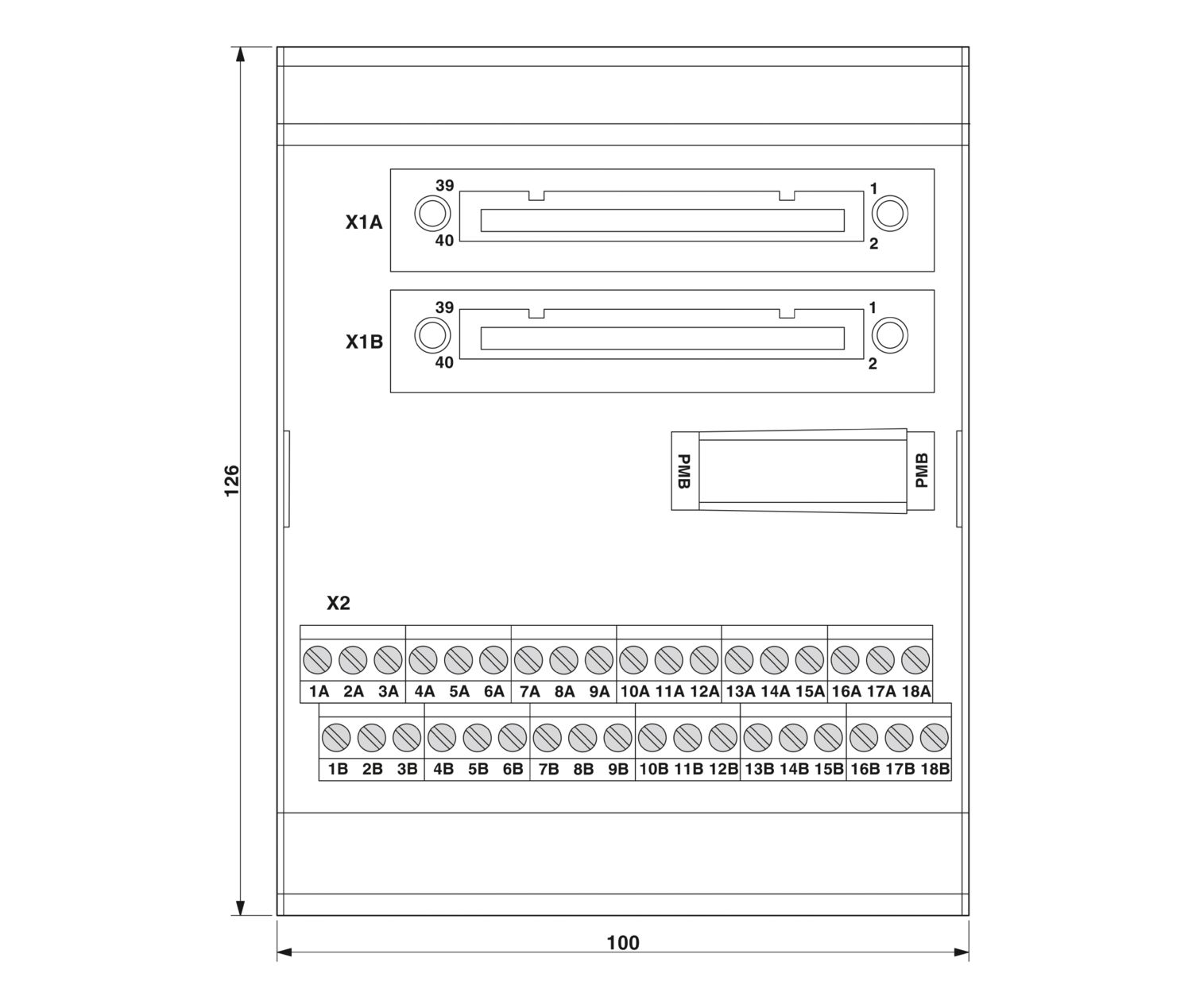

Item dimensions
Width	99.5 mm
Height	125.4 mm
Depth	65.8 mm

Ambient conditions
Degree of protection (Module)	IP00
Degree of protection (Installation location)	≤ IP54
Ambient temperature (operation)	-20 °C ... 65 °C
Ambient temperature (storage/transport)	-20 °C ... 70 °C
Altitude	≤ 2000 m

UKCA
Certificate	UKCA-compliant

Air clearances and creepage distances
Standards/regulations	EN IEC 60664-1

Mounting type	DIN rail mounting
Mounting position	any

Notes on operation	For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met.

Commercial data

Item number	2901056
Packing unit	1 pc
Minimum order quantity	1 pc
Sales key	DK218N
Product key	DK218N
GTIN	4046356565554
Weight per piece (including packing)	283,6 g
Weight per piece (excluding packing)	279,9 g
Customs tariff number	85369010
Country of origin	DE

Classifications

Approvals

Approval Specification Data
	Nominal voltage U_N	Nominal current I_N	Cross section AWG	Cross section mm²
keine
	24 V	1.6 A

Environmental product compliance

Compatible products

Accessories

ECLASS-13.0	27141152
ECLASS-15.0	27141152

EU RoHS
Fulfills EU RoHS substance requirements	Yes (No exemptions)
China RoHS
Environment friendly use period (EFUP)	EFUP-E No hazardous substances above the limits
EU REACH SVHC
REACH candidate substance (CAS No.)	No substance above 0.1 wt%
