VS-PPC-F1-RJ45-P0BK-1R-PHA
-
Panel-mount frame
1657847
RJ45 panel mounting frame, IP67, for push-pull interlocking, plastic, for PCB connection, for square panel cutout, with grommet, without mounting screws
Product details
| General | This product corresponds to the PROFINET Cabling and Interconnection Technology Guideline for PROFINET regulations, version 2.00, order no: 2.252, Chapter 8.2 Connectors for Outside Environment (Balanced cabling) and chapter 13 Application specific Cabling and Interconnection Technology (AIDA) |
| Product type | Panel-mount frame |
| Application | RJ45 PCB connection |
| Type | Version 14 |
| Number of positions | 8 |
| Connection profile | RJ45 |
| Type | RJ45 |
| Insulation characteristics | |
| Degree of pollution | 2 |
| Transmission medium | Copper |
| Connection technology | |
| Connection method | Spring-cage connection |

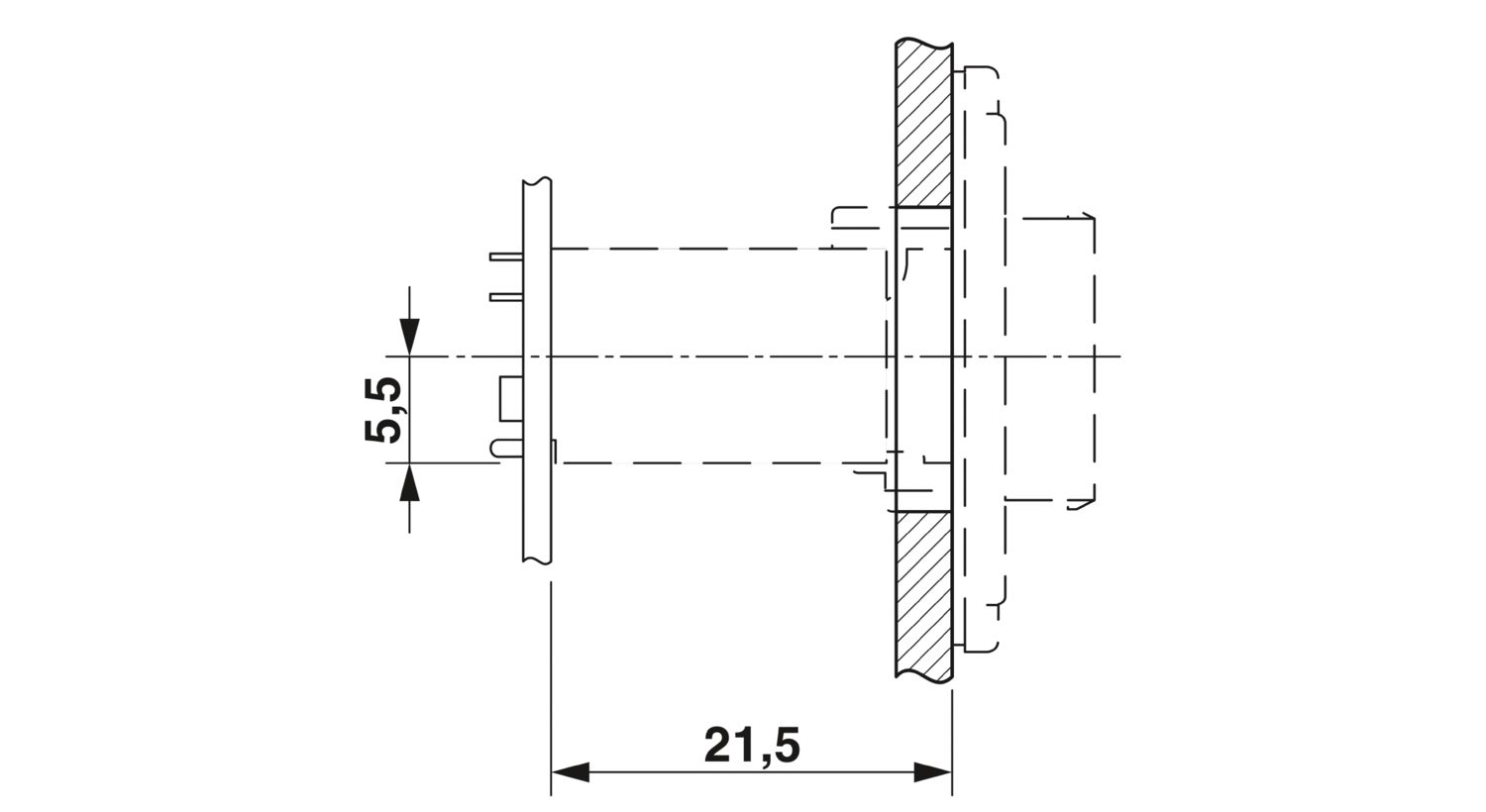

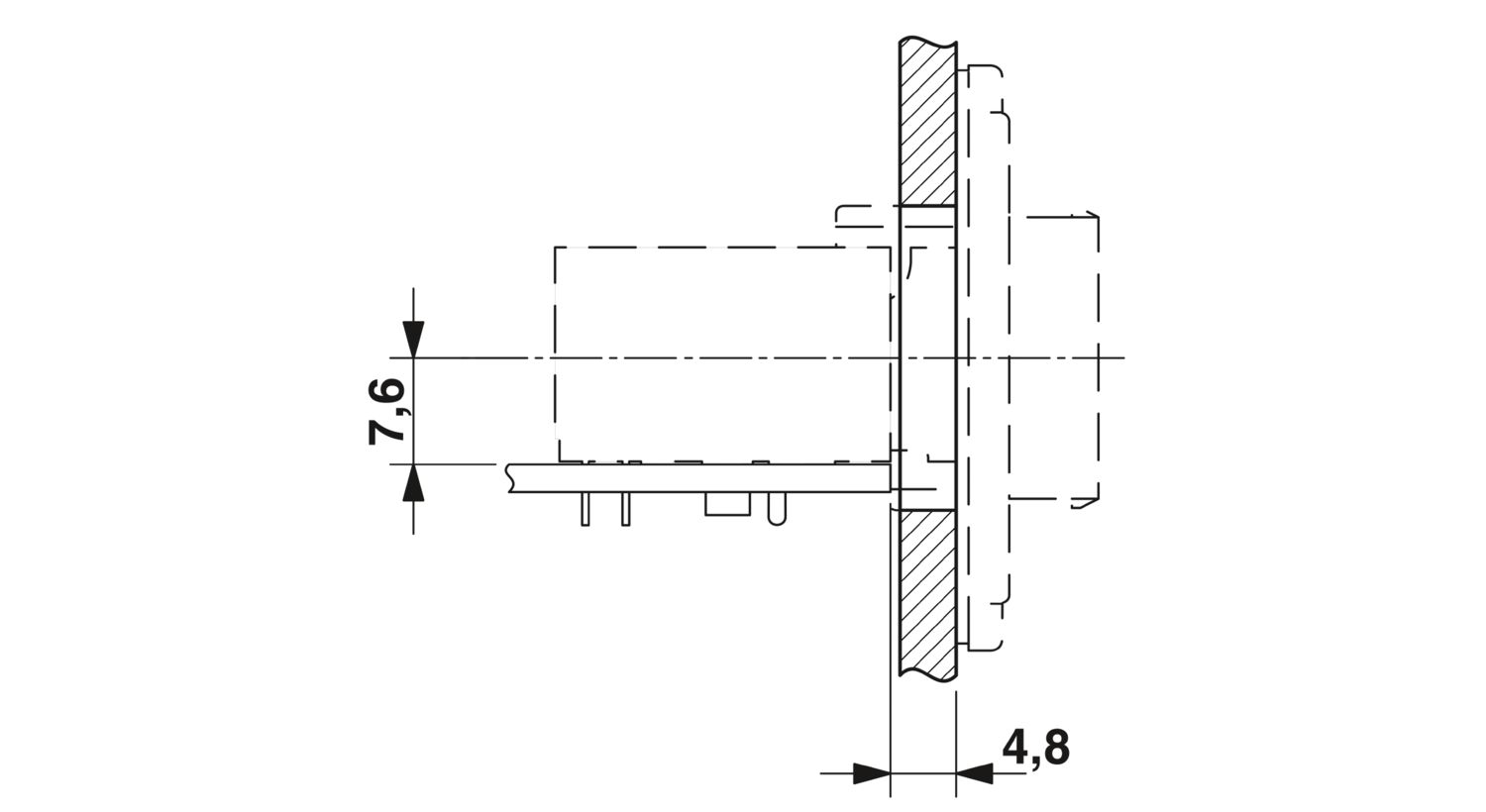

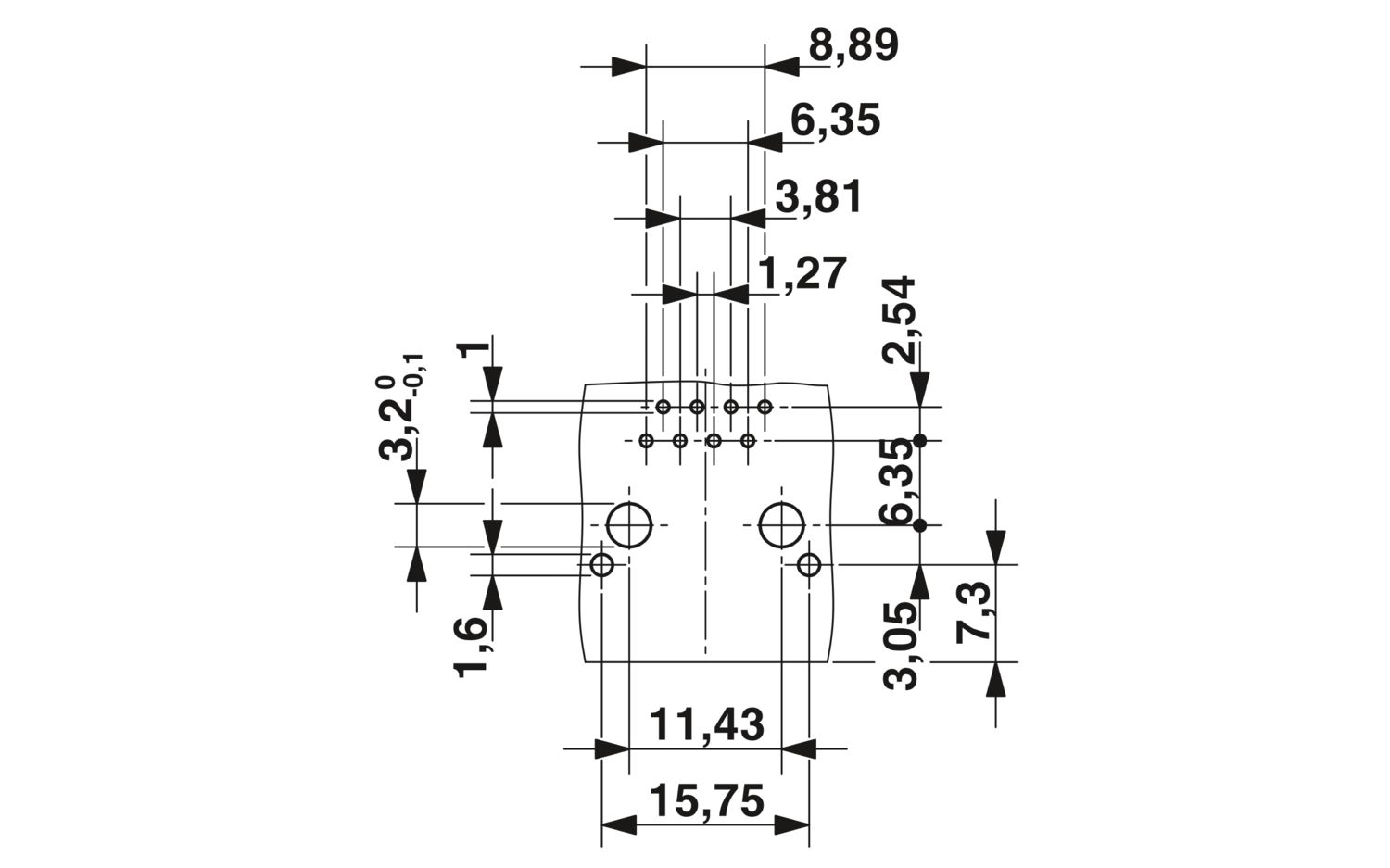

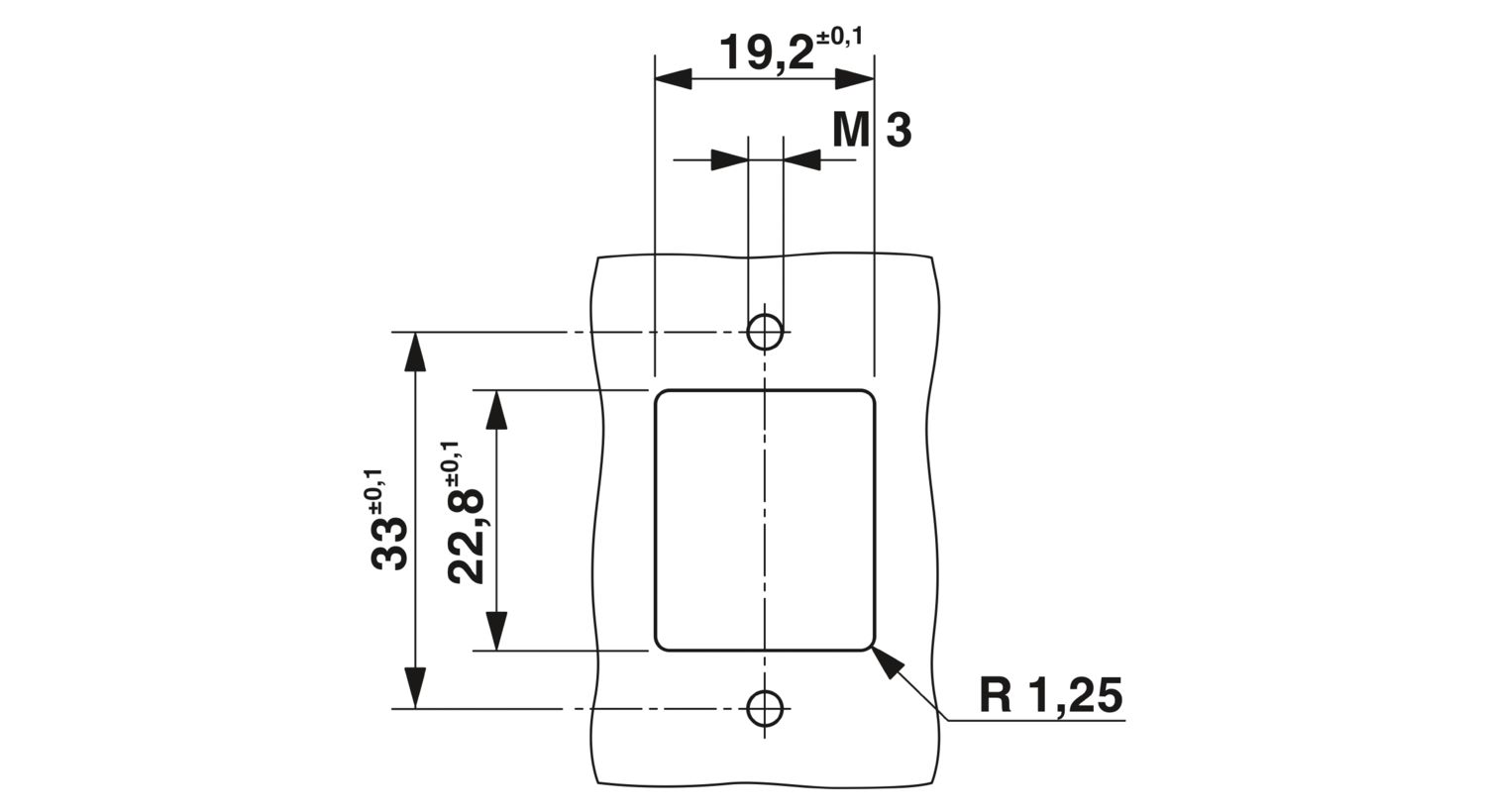

| Dimensional drawing |
|
| Width | 22.2 mm |
| Height | 42 mm |
| Length | 18.8 mm |
| Color | black |
| Material | Plastic |
| Flammability rating according to UL 94 | V0 |
| Seal material | NBR |
| Housing material | Plastic |
| Housing surface material | PA, light gray |
| Contact surface material | Au/Ni |
| Contact carrier material | Polyester GF |
| Mechanical data | |
| Insertion/withdrawal cycles | ≥ 500 |
| Ambient conditions | |
| Degree of protection | IP65/IP67 |
| Ambient temperature (operation) | -40 °C ... 70 °C |
| Mounting type | Front mounting |
