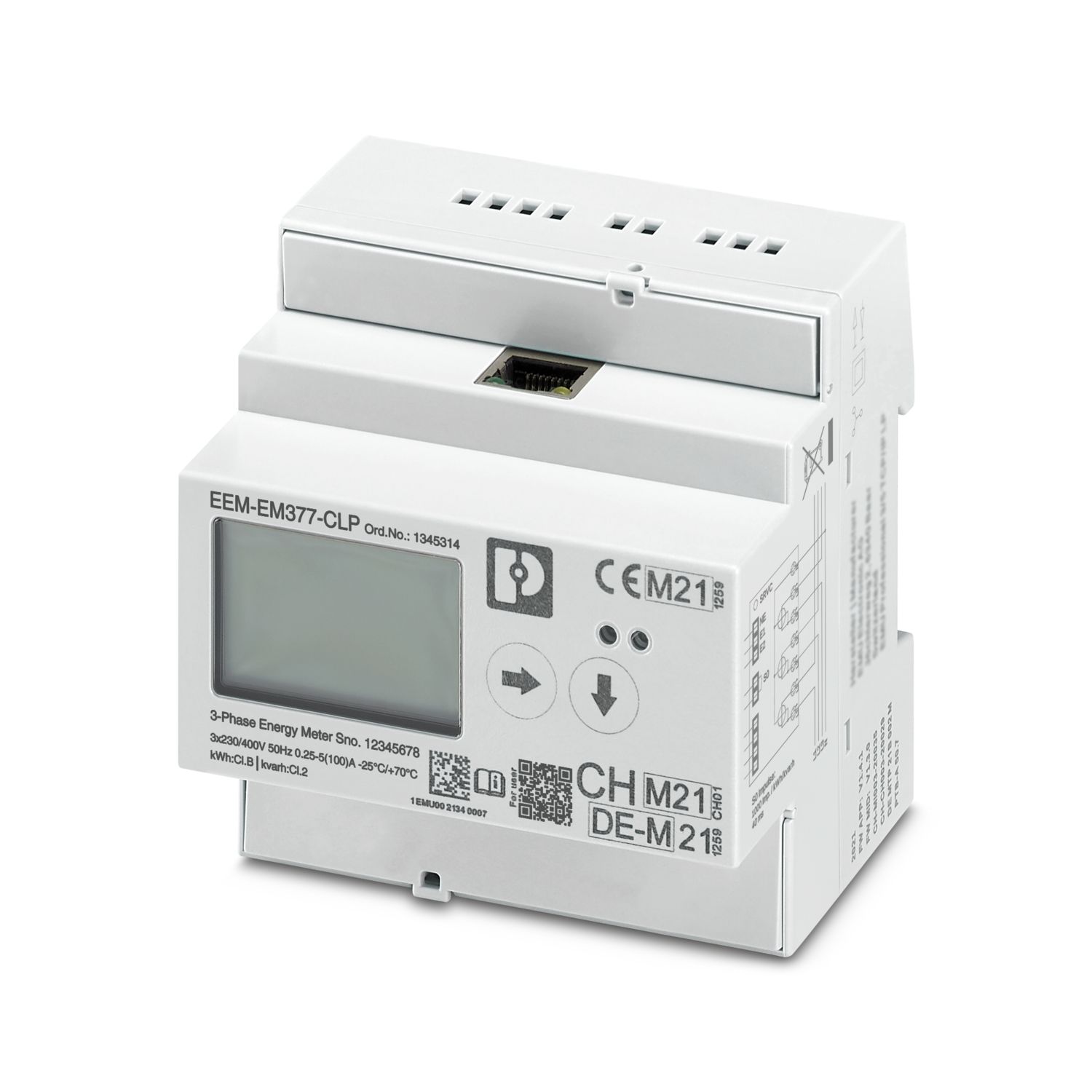

EEM-EM377-CLP
-
Measuring device
1345314
Energy meter for multi-metering with direct measurement in grids with 3x 230/400 V and 100 A, with S0 output, tariff inputs, Ethernet interface, certified in accordance with MID directive + PTB-A 50.7 load profile memory in compliance with weights and measures regulations
Product details

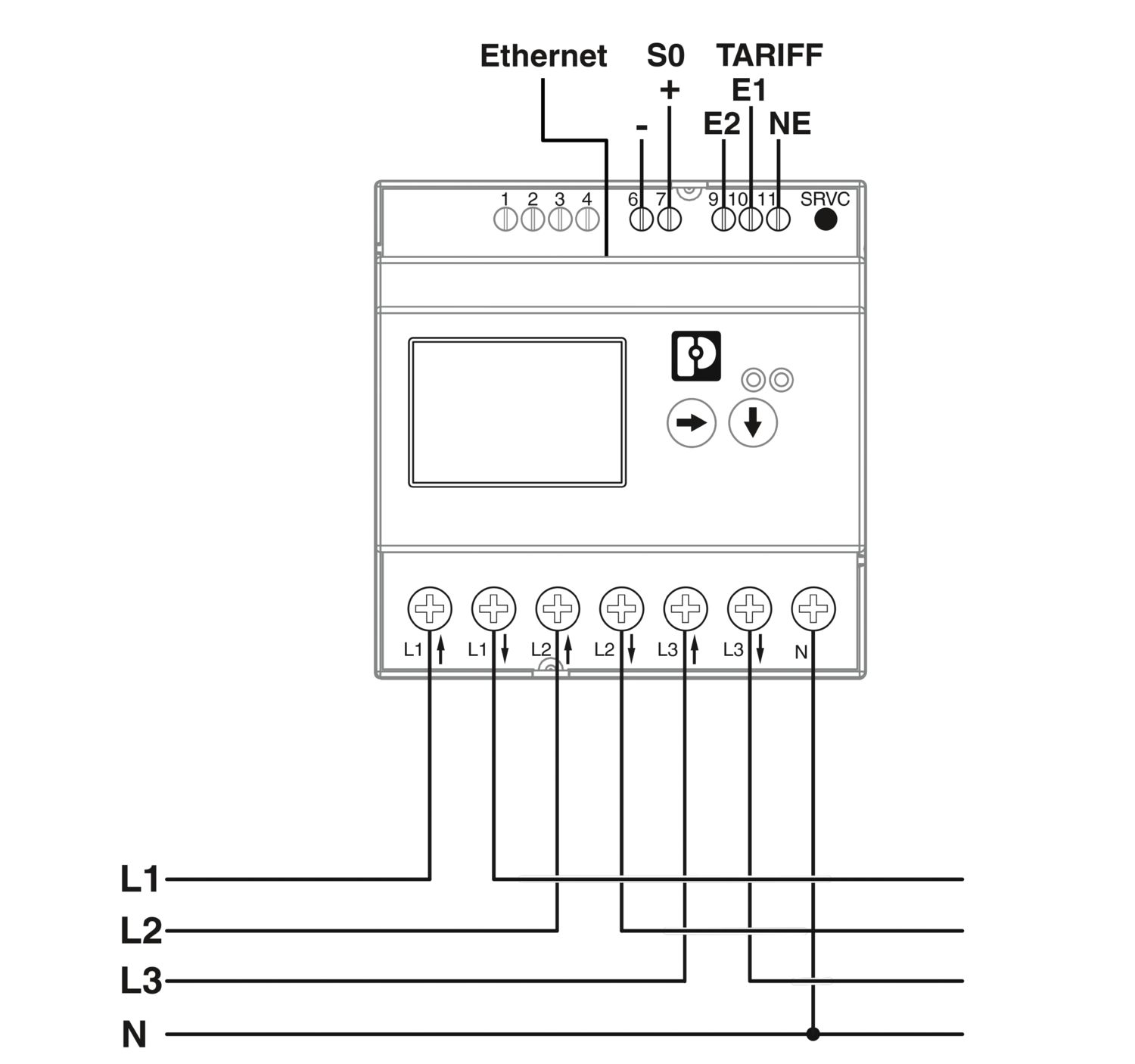

| Product type | Energy meter |
| Insulation characteristics | |
| Protection class | II (EN 50470-1) |
| Supply | |
| Supply voltage range | Supply from the measuring circuit |
| Measurement | |
| Input voltage range | 3x 230 V ... 400 V ±20 % |
| Input current range | 5 A |
| Frequency range | 50 Hz |
| Minimum current Imin | 0.15 A |
| Limiting current Imax | 100 A |
| Transient current Itr | 0.5 A |
| Reference current Iref | 5 A |
| Input voltage range | 230 V (Inputs for 4 tariffs) |
| S0 output | |
| Output description | EN 62052-31 |
| Meter constant | 0.001 imp/kWh, kvarh (Pulse rate) |
| 0.01 imp/kWh, kvarh (Pulse rate) | |
| 0.1 imp/kWh, kvarh (Pulse rate) | |
| 1 imp/kWh, kvarh (Pulse rate) | |
| 10 imp/kWh, kvarh (Pulse rate) | |
| 100 imp/kWh, kvarh (Pulse rate) | |
| 1000 imp/kWh, kvarh (Pulse rate) | |
| 10000 imp/kWh, kvarh (Pulse rate) | |
| 10 imp/kWh (Transformer meter) | |
| 1000 imp/kWh (Direct connection meter) | |
| Conductor connection | |
| Connection method | Screw connection |
| flexible | 35 mm² |
| Tightening torque | 2 Nm ... 3 Nm |
| Connector | |
| Pin dimensions | 0,6 x 3,5 |
| Conductor connection | |
| Connection method | Screw connection |
| flexible | 1.5 mm² |
| Dimensional drawing |
|
| Width | 90 mm |
| Height | 91 mm |
| Depth | 72 mm |
| Ambient conditions | |
| Degree of protection (Housing) | IP51 (Housing) |
| Degree of protection (Connections) | IP20 (Connections) |
| Ambient temperature (operation) | -25 °C ... 70 °C |
| Ambient temperature (storage/transport) | -30 °C ... 70 °C |
| Max. permissible relative humidity (operation) | 95 % (non-condensing) |
| 75 % | |
| CE | |
| Certificate | CE-compliant |
| MID | |
| Identification | MID-compliant |
| PTB-A 50.7 | |
| Identification | PTB-A 50.7 compliant |
| Standards/specifications | EN 50470-1 |
| EN 50470-3 | |
| Standards/specifications | PTB-A 50.7 |
| Mounting position | Horizontal DIN rail |
