CES-B16-SFC-M-15,6
-
Locking element
1423744
Locking element, design: B16, material: Steel, galvanized, length: 118 mm, width: 57 mm, height: 15.6 mm
Product details
| Product type | Cover plate |
| Type | B16 |

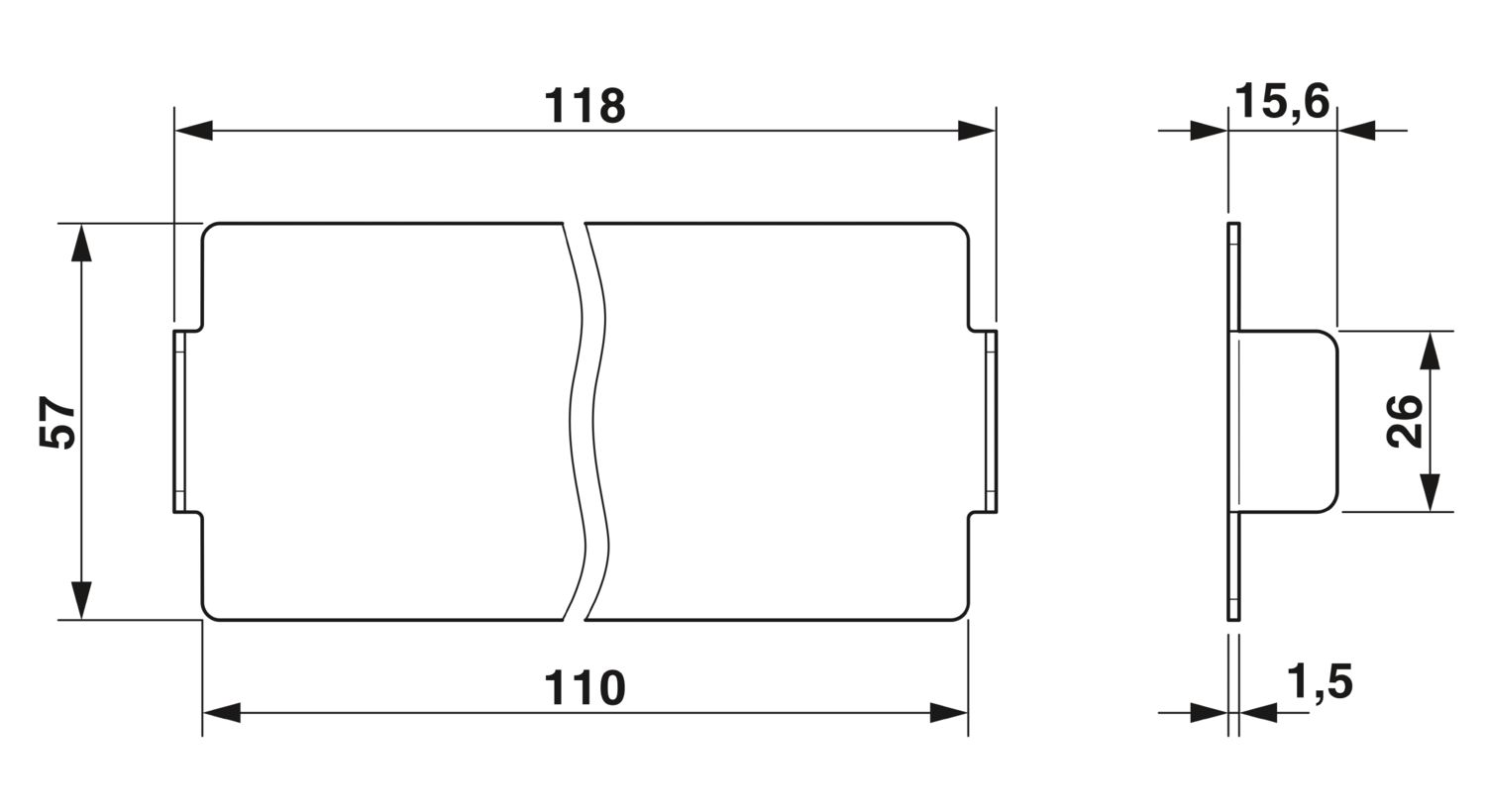

| Dimensional drawing |
|
| Width | 57 mm |
| Height | 15.6 mm |
| Length | 118 mm |
| Material | Steel, galvanized |
| Ambient conditions | |
| Ambient temperature (operation) | -40 °C ... 120 °C |
| Assembly note | suitable for article 0801651, V/C: 01 (version batch), see printing of the packaging label |
