PLD T/1AC/AS/1CON - LED light

PLD T/1AC/AS/1CON - LED light

2402991

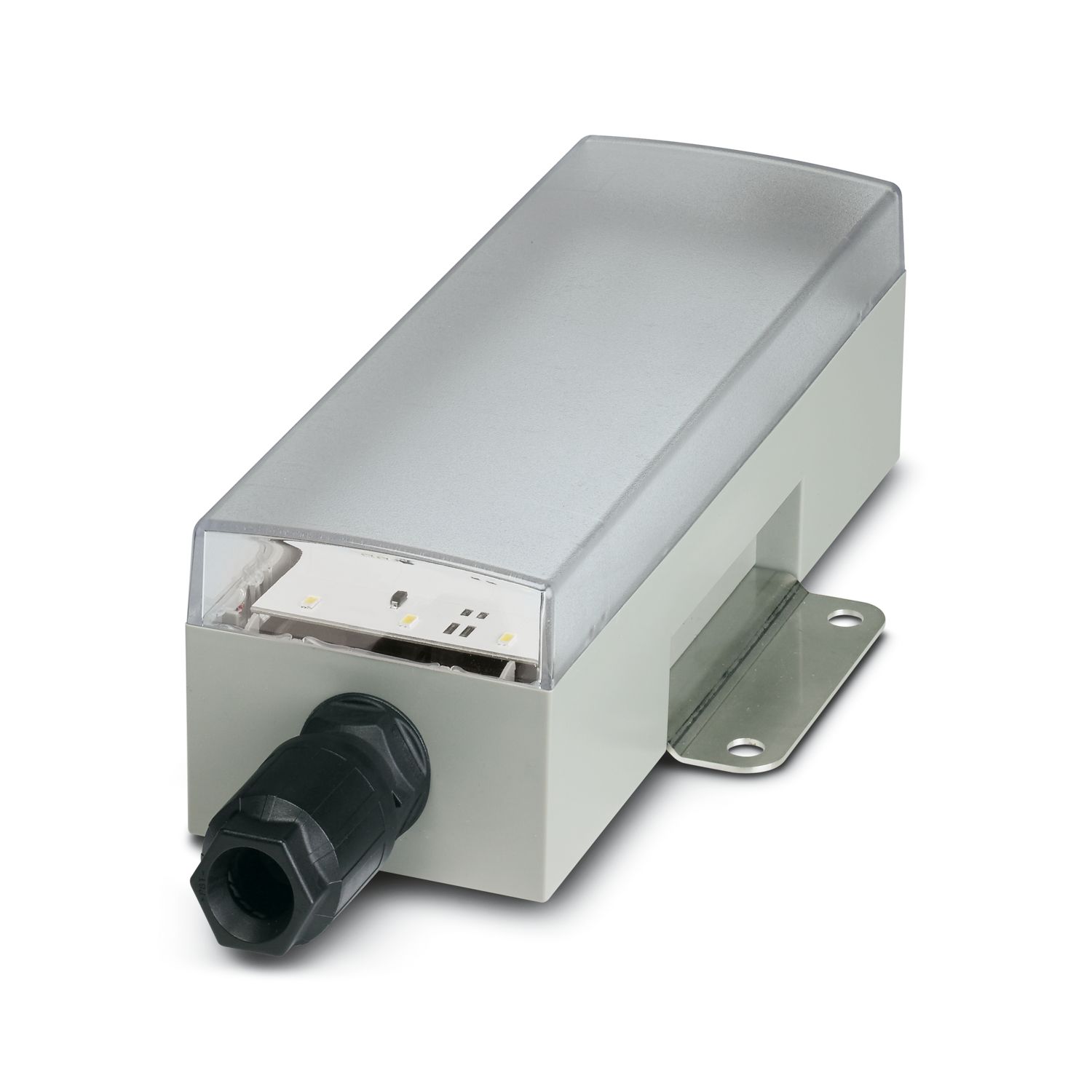

LED light, 230 V AC, Neutral white, length: 307 mm, QUICKON connection, degree of protection: IP67, Wide distribution optic

Product details

Expand all Collapse all

Technical data

Product properties

Product type	Light
Application	Wind turbine generators
Type	Stand-Alone
Mounting position	any
Special properties	Wide distribution optic with mounting accessories
Light color	Neutral white
Insulation characteristics
Overvoltage category	III

Electrical properties

Power dissipation	> 10 W
Supply: Module electronics
Connection technology	QUICKON connection
Connection method	QUICKON fast connection
Number of positions	3
Supply voltage	230 V AC
Supply voltage range	100 V AC ... 250 V AC (50/60 Hz)
Current consumption	typ. 42 mA (at 230 V AC)
Power consumption	approx. 10 W (at 230 V AC)

Connection data

Supply
Connection method	QUICKON fast connection
Conductor cross section, rigid	1 mm² ... 2.5 mm²
Conductor cross section, flexible	1 mm² ... 2.5 mm²
Conductor cross section AWG	16 ... 14

Signaling

Light properties
Source of light type	LED
Number of LEDs	24
Light color	Neutral white
Color temperature	5000 K
Color rendering index	70
Luminous flux	1100 lm (Gross)

Dimensions

Width	91.7 mm
Height	76.2 mm
Length	307 mm
Note on dimensions	Specfications with connectors

Material specifications

Color	gray/white
Material ()	Plastic (Light housing)

Environmental and real-life conditions

Ambient conditions
Ambient temperature (operation)	-40 °C ... 70 °C
Degree of protection	IP67
Air pressure (operation)	70 kPa ... 106 kPa (up to 3000 m above sea level)
Air pressure (storage/transport)	70 kPa ... 106 kPa (up to 3000 m above sea level)
Ambient temperature (storage/transport)	-40 °C ... 85 °C
Permissible humidity (operation)	95 %
Permissible humidity (storage/transport)	95 % (non-condensing)

Standards and regulations

Protection class	II

Mounting

Mounting type	Screw mounting
Mounting type		Panel mounting
Assembly note	Mounting with mounting holders or mounting brackets, please observe the notes in the package slip.
Mounting position	any

Commercial data

Item number	2402991
Packing unit	1 pc
Minimum order quantity	1 pc
Sales key	DRL241
Product key	DRL241
GTIN	4055626244037
Weight per piece (including packing)	959 g
Weight per piece (excluding packing)	687 g
Customs tariff number	94054239
Country of origin	DE

Classifications

ECLASS

ECLASS-13.0	27110635
ECLASS-15.0	27110635

ETIM

ETIM 9.0

EC000996

UNSPSC

UNSPSC 21.0

39101628

Environmental product compliance

EU RoHS
Fulfills EU RoHS substance requirements	Yes (No exemptions)
China RoHS
Environment friendly use period (EFUP)	EFUP-E No hazardous substances above the limits
EU REACH SVHC
REACH candidate substance (CAS No.)	No substance above 0.1 wt%

Compatible products

Expand all Collapse all

Accessories

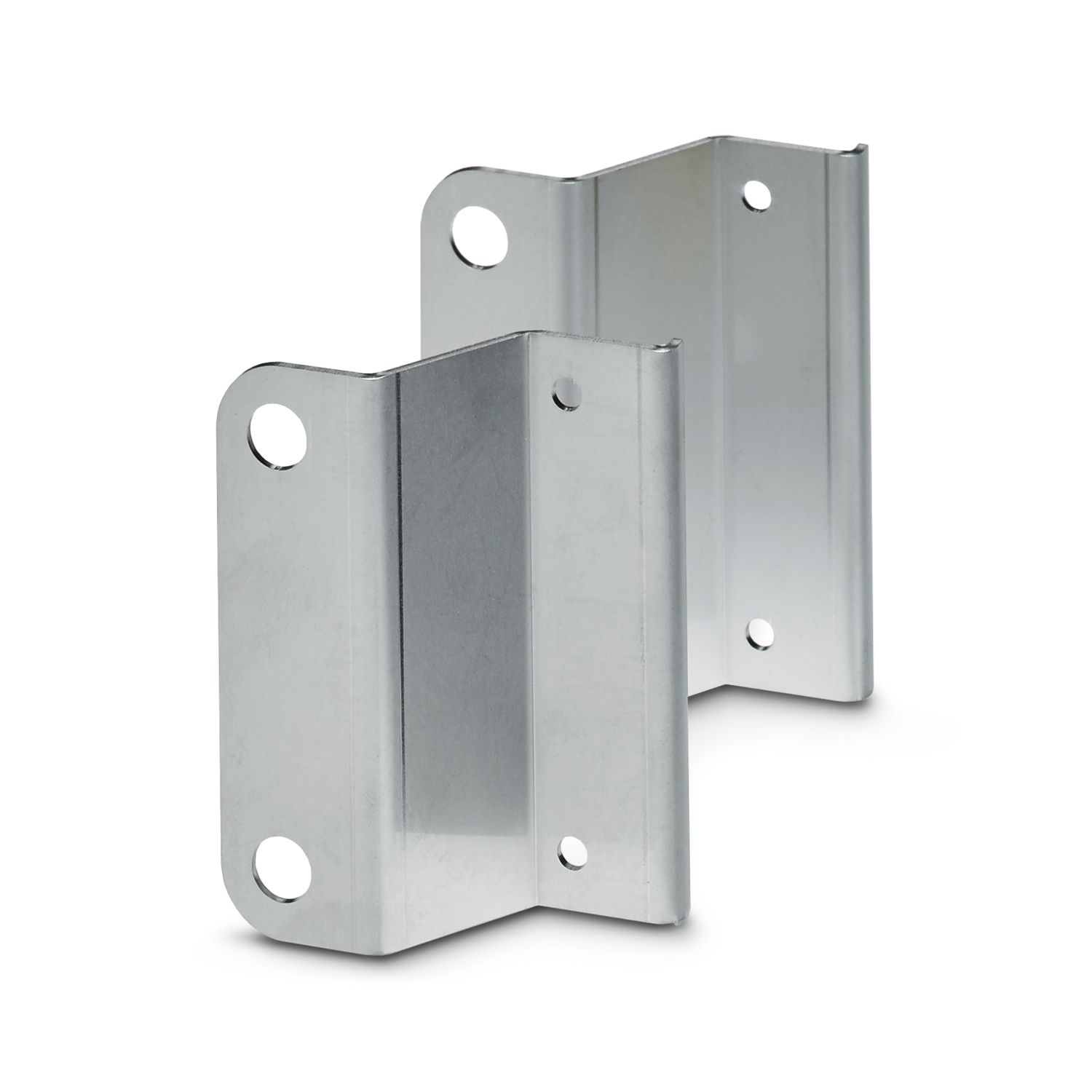

PLD T/1AC/MNT - Holder 2402993

Your advantages

Impact strength IK-Code 06

Color temperature 5000 K

IP67 degree of protection

LED technology
