E PX A 250X600X121
-
Empty enclosure
0899320
Empty enclosure, material: Glass-fiber-reinforced polyester with added graphite, black, 250 mm x 600 mm x 121 mm, type of locking: Screw-on cover
This product needs further products for operation.
Mandatory accessories
Product details
| General | Prepared for direct installation of a DIN rail |
| Product type | Terminal box |
| Type | Ex empty enclosure with cover |
| Insulation characteristics | |
| Protection class | II |

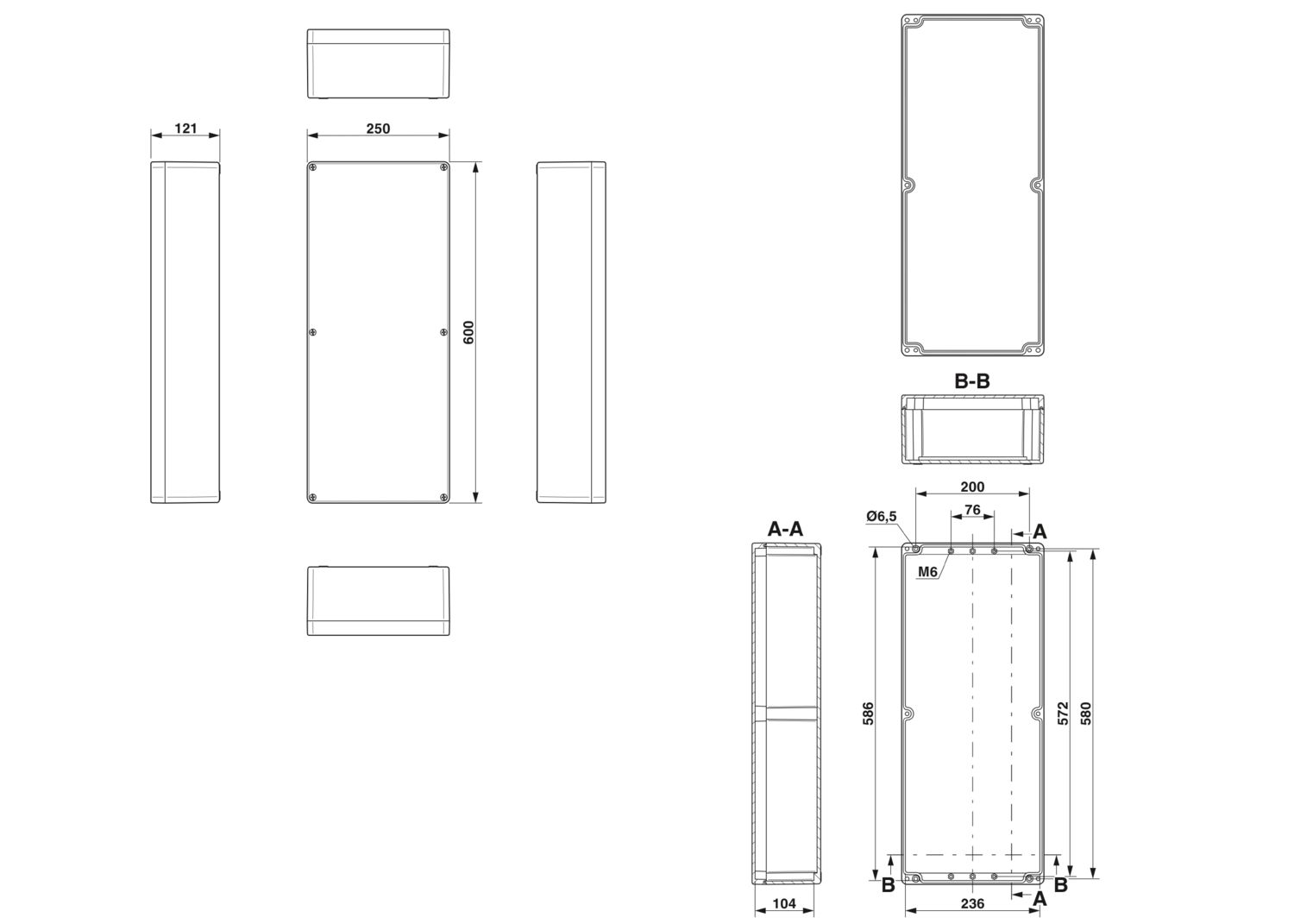

| Dimensional drawing |
|
| Width | 250 mm |
| Height | 600 mm |
| Depth | 121 mm |
| Clearance width, maximum DIN rail length | 581 mm |
| max. assembly length | 562 mm |
| Color | black |
| Material | Glass-fiber-reinforced polyester with added graphite |
| Flammability rating according to UL 94 | V0 |
| Seal material | Silicon |
| Components | halogen-free |
| General | |
| Type of locking (GRP) | Screw-on cover Plus/minus screw |
| Degree of protection (IP code) | |
| Degree of protection | IP66 |
| Ambient conditions | |
| Ambient temperature (operation) | -55 °C ... 127 °C |
| Assembly note | External fixing clips available as an option |
| Integrated blind hole | |
| Direct DIN rail mounting | yes |
| Useable DIN rail type | NS 35 |
