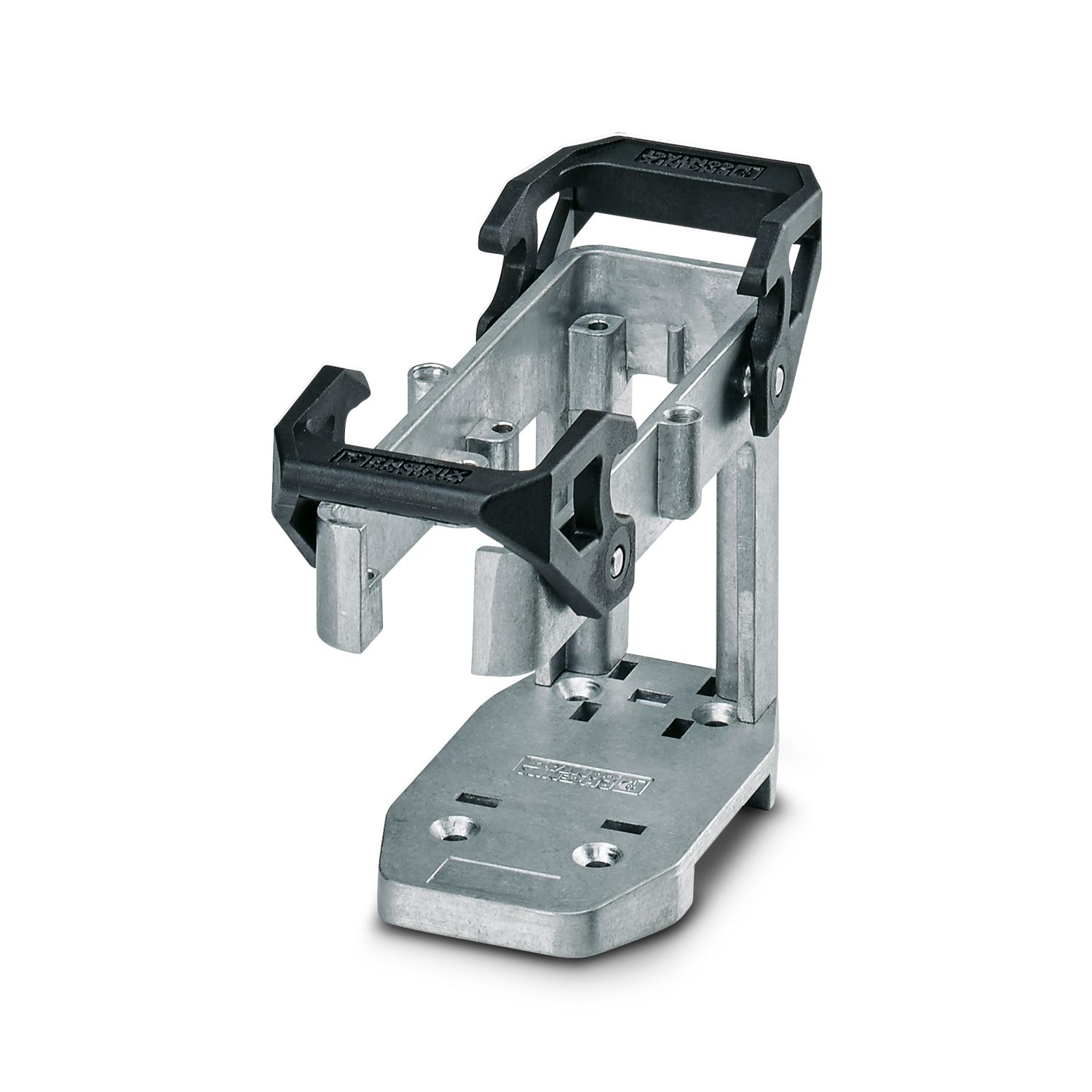

HC-CIF-B24-HFFD-WH-AL
-
DIN rail mounting frame
1404213
HEAVYCON DIN rail mounting frame, upper part for double locking latch, for HC-CIF...BFWD.. lower parts with double locking latch or for HC-CIF...BFFD.. lower parts, for type B24 contact inserts, with M4 screws with 3 mm Allen screw head, for NS35/7,5 DIN rails
Product details
| Product type | DIN rail mounting frame |
| Housing type | DIN rail mounting frame |
| Series | HC-CIF-AL |
| Type | B24 |
| Fixing screws | M4 with Allen screw, wrench size: 3 mm |
| Protective cover | no |
| Pg screw connection | none |

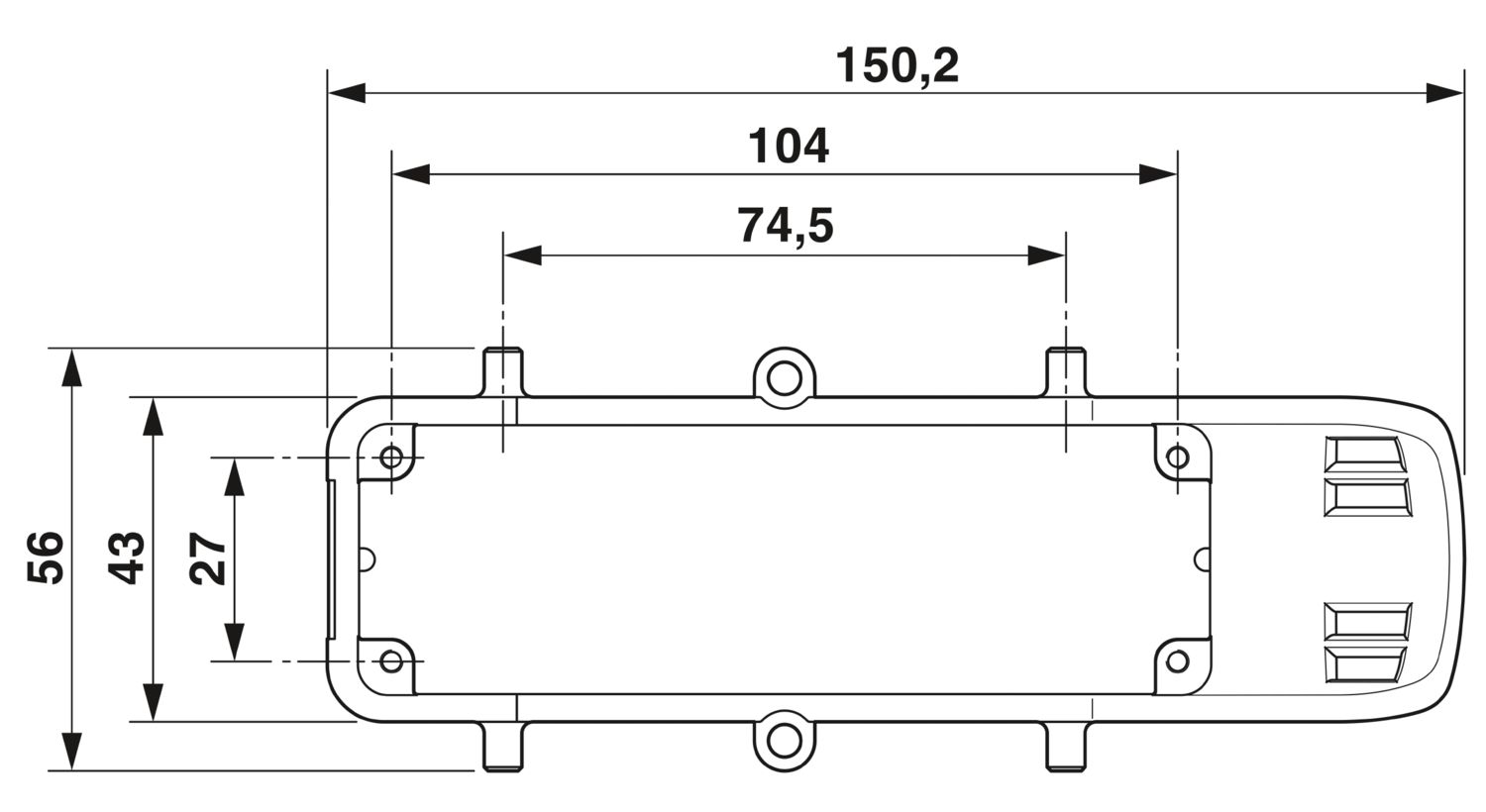

| Dimensional drawing |
|
| Width | 56 mm |
| Height | 49 mm |
| Length | 150.2 mm |
| Material | Cast aluminum, uncoated |
| Housing material | Cast aluminum, uncoated |
| Locking latch material | Steel, galvanized |
| Mechanical data | |
| Locking type | Screw |
| Ambient conditions | |
| Ambient temperature (operation) | -40 °C ... 125 °C |
| Assembly note | For screw locking: M4, 3 mm Allen screw, 2 Nm tightening torque |
| Fixing screws | M4 with Allen screw, wrench size: 3 mm |
Your advantages
Stable metal version
Open base, pre-assembled cable harnesses can be used
Safe capacitive PE even when connected slightly askew
