SACC-E-M5FS-3CON-M5/0,5 - Device connector front mounting

SACC-E-M5FS-3CON-M5/0,5 - Device connector front mounting

1530605

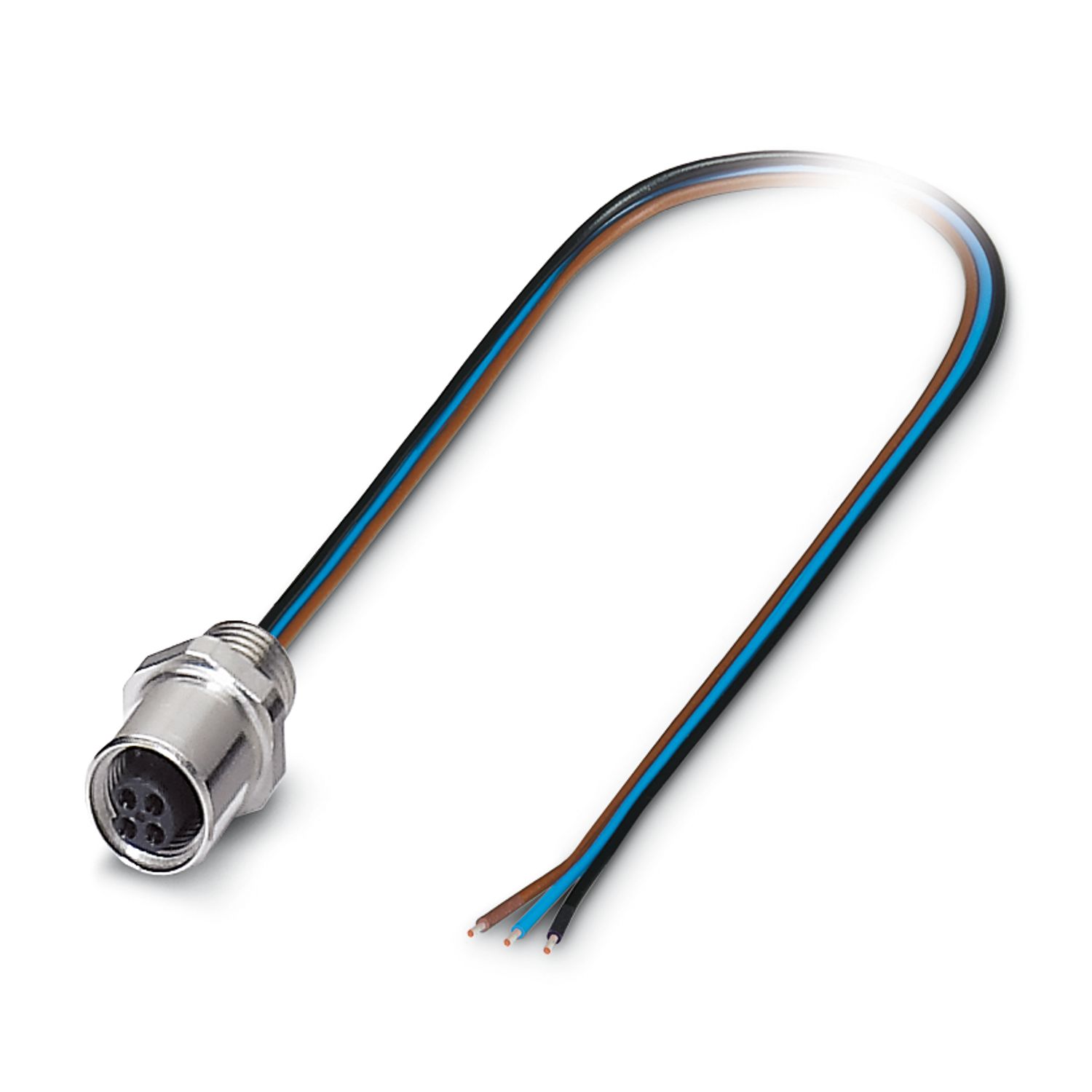

Device connector front mounting, 3-position, Socket, straight, M5, coding: A, Front mounting, M5 x 0.5, Individual wires, cable length: 0.5 m, 0.14 mm², TPE litz wire

Product details

Expand all Collapse all

Technical data

Mounting

Mounting type	Front mounting M5 x 0.5

Product properties

Product type	Circular connectors (device side)
Application	Signal
Number of positions	3
No. of cable outlets	1
Shielded	no
Coding	A
Thread type	M5
Insulation characteristics
Overvoltage category	II
Degree of pollution	3

Material specifications

Flammability rating according to UL 94	HB
Seal material	Viton
Contact material	CuSn
Contact surface material	Au
Contact carrier material	PA 6.6
Material for screw connection	Brass, nickel-plated

Electrical properties

Contact resistance	≤ 3 mΩ
Insulation resistance	≥ 100 MΩ
Nominal voltage U_N	48 V AC
Nominal voltage U_N		60 V DC
Nominal current I_N	1 A
Test voltage	800 V

Connection data

Conductor connection
Connection method	Individual wires
Contact connection type	Socket
Conductor cross section	0.14 mm²

Connector

Connection 1
Head design	Socket
Head cable outlet	straight
Head thread type	M5
Coding	A

Cable/line

Cable length	0.5 m
Cable type	TPE litz wire
Single wire, color	brown, blue, black
Cable cross section	0.14 mm²
Conductor structure signal line	18x 0.10 mm
AWG signal line	26
Material wire insulation	TPE
Ambient temperature (operation)	-25 °C ... 80 °C (cable, fixed installation)

Environmental and real-life conditions

Ambient conditions
Degree of protection	IP67
Degree of protection		IP67
Ambient temperature (operation) (Cable, fixed installation)	-25 °C ... 80 °C (cable, fixed installation)
Ambient temperature (operation) (male connector/female connector)	-25 °C ... 85 °C (Plug)

Standards and regulations

Standard designation	M5 connector
Standards/specifications	according to IEC 61076-2-105

Commercial data

Item number	1530605
Packing unit	1 pc
Minimum order quantity	1 pc
Sales key	ABQMBA
Product key	ABQMBA
GTIN	4046356024402
Weight per piece (including packing)	6,8 g
Weight per piece (excluding packing)	6,8 g
Customs tariff number	85444290
Country of origin	DE

Classifications

ECLASS

ECLASS-13.0

27440103

ETIM

ETIM 9.0

EC003570

UNSPSC

UNSPSC 21.0

39121400

Environmental product compliance

EU RoHS
Fulfills EU RoHS substance requirements	Yes
Exemption	6(c)
China RoHS
Environment friendly use period (EFUP)	EFUP-50 An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration". For all articles with EFUP-E, no China RoHS declaration table issued and required.
EU REACH SVHC
REACH candidate substance (CAS No.)	Lead (CAS: 7439-92-1)
SCIP	d36c1cfc-e9e0-4983-9ece-5e6142d122fe

Compatible products

Expand all Collapse all

Accessories

SACC-E-MU-M 5 - Flat nut 1535901

Your advantages

Preassembled with litz wires for immediate use

Customer-specific assemblies and litz wire lengths available

Sealed on the litz wire side for optimum leak-tightness
