HC-28P1N322300
-
Device connector front mounting
1615314
Device connector front mounting, straight, Screw locking mechanism, M27, number of positions: 28, contact connection type: Pin, Flat gasket, 4x Ø 3.2, shielded: yes, number of positions: 28, connection method: Solder-in connection, series: HC
Product details
| Mounting | 4x Ø 3.2 |
| Product type | Circular connectors (device side) |
| Series | HC |
| Application | Signal |
| Number of positions | 28 |
| Connection profile | 28 |
| Shielded | yes |
| Coding | N |
| Thread type | M27 |

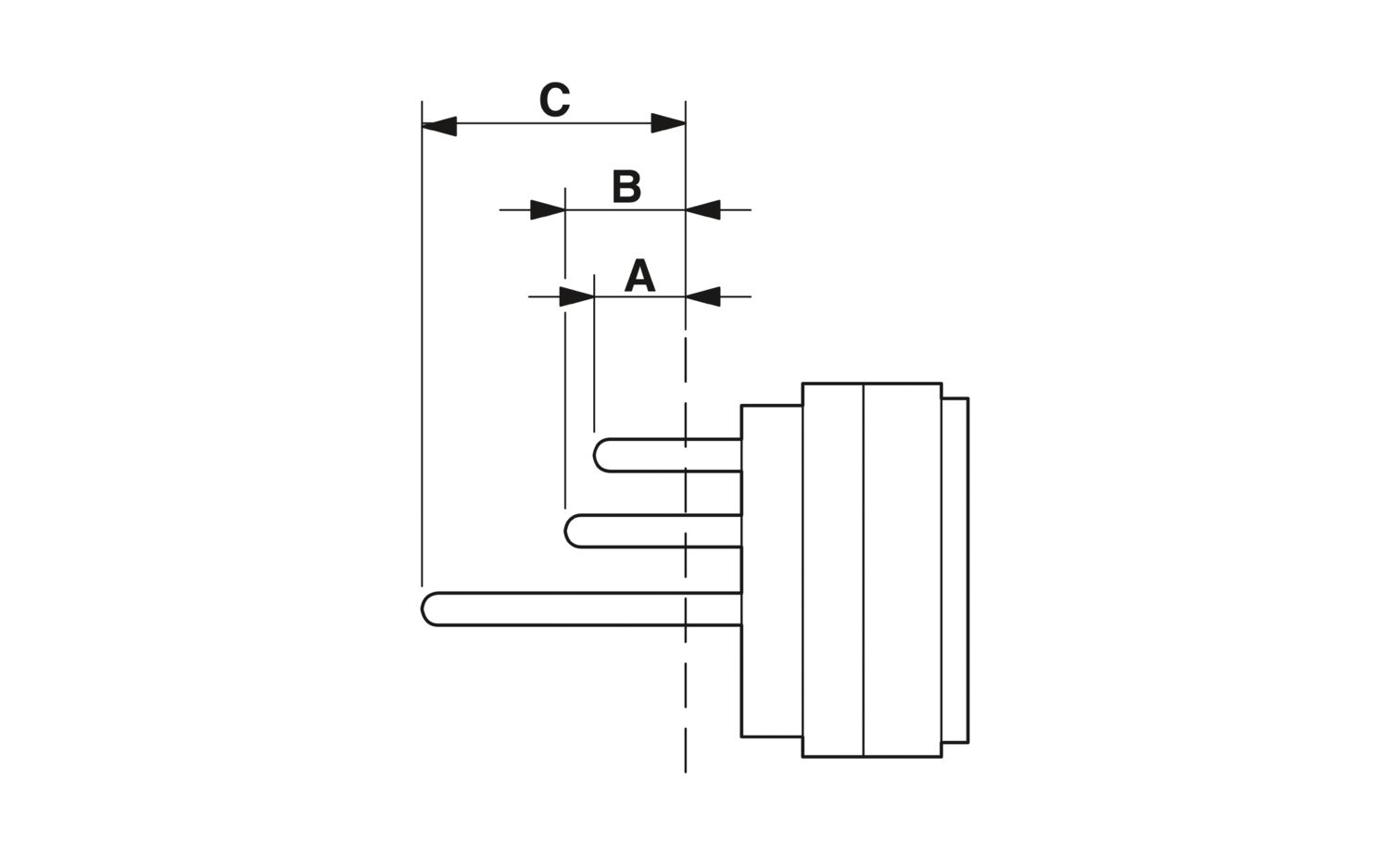

| Dimensional drawing |
|
| Length of the solder pin | 4.5 mm |
| 4.5 mm |
| Seal material | FPM or NBR or EPDM |
| Housing material | Metal |
| Housing material | Turned parts: copper zinc alloy (CuZn), die-cast parts: zinc (GD-Zn) |
| Contact material | CuZn |
| Contact surface | Nickel-plated, gold coating |
| Contact | |
| Contact diameter | 1 mm |
| Max. current | 8 A |
| Nominal voltage UN | 150 V |
| Overvoltage category | II |
| Degree of pollution | 3 |
| Rated surge voltage | 1.5 kV |
| Contact | |
| Overvoltage category | II |
| Degree of pollution | 3 |
| Conductor connection | |
| Connection method | Solder-in connection |
| Contact connection type | Pin |
| Mechanical data | |
| Insertion/withdrawal cycles | 50 |
| Type | straight |
| Direction of rotation | Standard |
| Ambient conditions | |
| Degree of protection | IP67 |
| Ambient temperature (operation) | -20 °C ... 125 °C |
| Altitude | 2000 m |
